  1. Triple frequency (40/80/120kHz) supports diverse lab applications from nanoparticle dispersion to deep-hole cleaning.
  2. Pulse, degas & sweep functions enhance cleaning efficacy and uniformity.
  3. SUS304 stainless steel construction ensures reliable performance in rigorous lab environments.
SKU: YL1622-4080120

$1,468.80 piece

15 People watching this product now!
Standards
CEFCCRoHS
ISO Standard Quality Management
Global Safety Certified
Technical Manuals Download (PDF)
  • Warranty 1 year

More details

  • 30-Day returns

More details

Payment Methods:

Description

Designed as a multi-purpose, high-capacity ultrasonic cleaning machine 22L for semiconductor cleanrooms and pilot-scale studies, this triple-frequency system offers fast turnaround on multiple samples, graphite block cleaning, or wafer cassette preparation. It leverages 16 industrial-grade transducers (50W each) delivering 800W combined power across 40/80/120kHz ranges. Pulse cleaning mode helps break down tough organic residues; sweep cleaning ensures uniform cleaning in dense loadouts; 120kHz mode achieves sub-micron level blind-hole and slit cleaning critical for advanced R&D. CE-certified and built to withstand continuous use cycles.

40/80/120kHz Switchable Triple-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power

Application Scenarios

🌱 Algae Removal
🧫 Sample Prep HPLC/LC-MS
🧴 Nanoparticle Dispersion
🍲 Emulsion Breaking
🛢 Grease Removal
🌊 Immiscible Mixing
🌿 Bioactive Extraction
🔬 Sonochemistry

Product Features:

  • Three Frequency 40/80/120kHz: Sample preparation applications in the lab. dispersion, extraction, degassing, solubilization, and sonochemical treatments
  • 16 x 50 Watts Transducers – 800 Watts Efficient
  • Generous 22L Tank Capacity & Dimensions 50x30x15cm
  • 1 – 9999s Digital Time Setting
  • Heating Function Room Temperature – 80℃ Range
  • Secure Wire Cleaning Mesh Basket
  • Yunyisonic ultrasonic cleaner meets CE + RoHS + FCC (“Limit the use of certain hazardous substances”) standards and comes with a 1-year “Free Parts” warranty

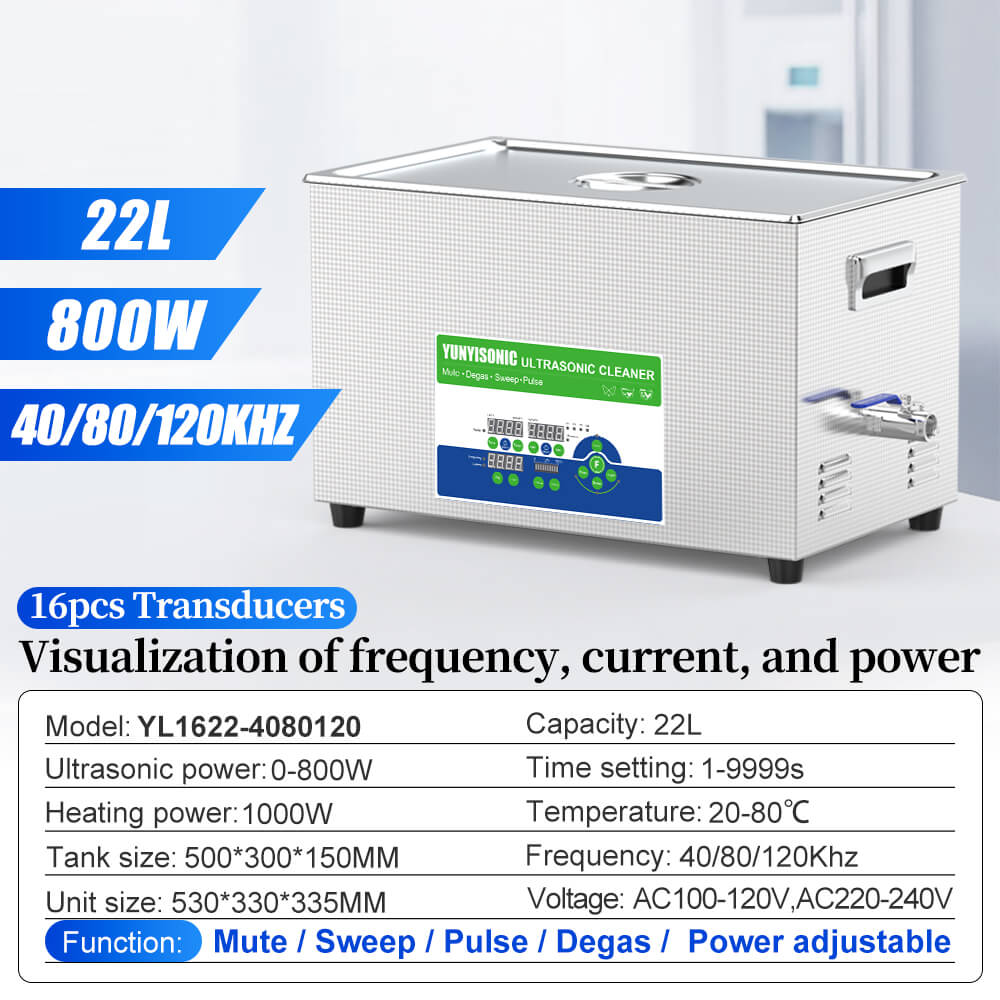

Specification:

Model YL1622-4080120 Transducer No. 16pcs
Frequency 40/80/120kHz Ultrasonic Power 0-800W
Capacity 22L Heating Power 1000W
Timer 1~9999s Adjustable Tank Material SUS304
Heater 20°C – 80°C Housing Material SUS304
Tank Size(mm) 500x300x150 Unit Size(mm) 530x330x335
Drain Valve Yes Refurbished No
Function Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-Language Interface Optional
Logo/Pattern Silk screen printing, Laser Printing, UV printing, PVC, Other

Box Contents:

1 x Professional Ultrasonic Cleaner

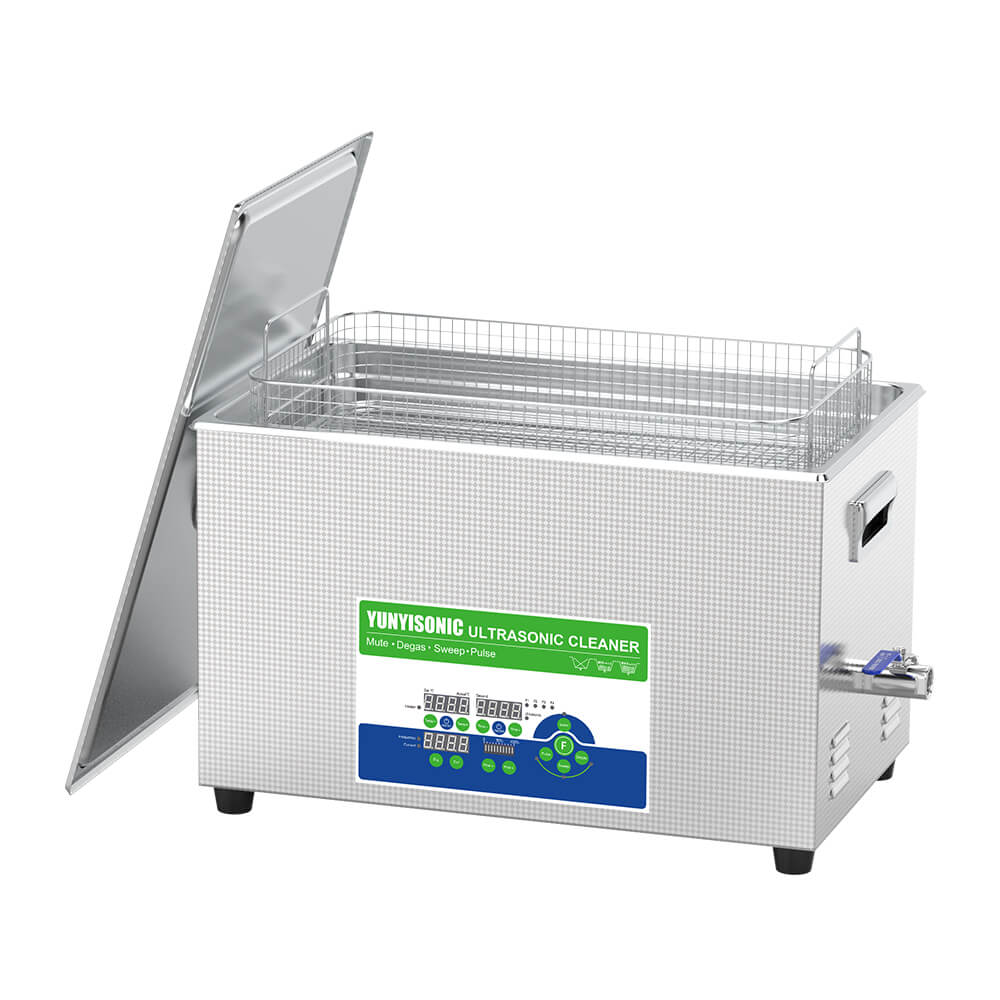

1 x Durable Mesh Cleaning Basket
One cover, one power cord, one manual warranty card certificate of conformity.

Packing type:

One unit filled with thick foam, then standard export corrugated carton or wooden box.

More Units

40/80/120kHz Switchable Triple-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power

40/80/120kHz Triple Frequency Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model Transducers Cap Frequency UT Power Heat Pwr Size(LxWxH mm)
(PCS) (L) (kHz) (W) (W) Tank Unit
YL0404-4080120 4 4.5 40/80/120 0-200 450 300x150x100 325x175x280
YL0406-4080120 4 6.5 40/80/120 0-200 450 300x150x150 325x175x330
YL0810-4080120 8 10 40/80/120 0-400 600 300x240x150 325x265x330
YL0814-4080120 8 14 40/80/120 0-400 600 300x240x200 325x265x380
YL1015-4080120 10 15 40/80/120 0-500 1000 330x300x150 355x325x330

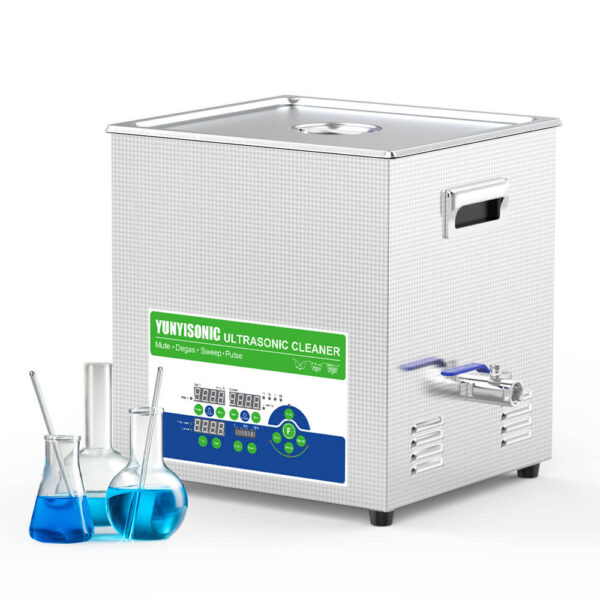

YL1019-4080120 10 19 40/80/120 0-500 1000 330x300x200 355x325x380
YL1622-4080120 16 22 40/80/120 0-800 1000 500x300x150 530x330x335
YL1630-4080120 16 30 40/80/120 0-800 1000 500x300x200 530x330x385

22L Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model Transducers Cap Frequency UT Power Heat Pwr Size(LxWxH mm)
(PCS) (L) (kHz) (W) (W) Tank Unit
YNLH1422-17 14 22 17 0–1120 1000 500x300x150 600x360x380
YNLH1422-20 14 22 20 0-1400 1000 500x300x150 600x360x380
YNL1622-25 16 22 25 0-800 1000 500x300x150 600x360x380
YL1422-28 14 22 28 0-700 1000 500x300x150 530x330x345
YL1422-33 14 22 33 0-700 1000 500x300x150 530x330x345
YL1022-40 10 22 40 0-500 1000 500x300x150 530x330x335
YL1622-40 16 22 40 0-800 1000 500x300x150 530x330x335
YLS3222-50 32 22 50 0–960 1000 500×300×150 530×330×335
YLS3222-53 32 22 53 0–1120 1000 500×300×150 530×330×335
YL1622-68 16 22 68 0-800 1000 500x300x150 530x330x345
YL1622-80 16 22 80 0-800 1000 500x300x150 530x330x335
YL1622-120 16 22 120 0-800 1000 500x300x150 530x330x335
YL1622-130 16 22 130 0–960 1000 500×300×150 530×330×335
YLS3222-200 32 22 200 0-800 1000 500x300x150 530x330x335
YL1422-2840 14 22 28/40 0-700 1000 500x300x150 530x330x345
YL1622-4068 16 22 40/68 0-800 1000 500x300x150 530x330x345
YL1622-4080 16 22 40/80 0-800 1000 500x300x150 530x330x335
YL1622-40120 16 22 40/120 0-800 1000 500x300x150 530x330x335
YL1622-80120 16 22 80/120 0-800 1000 500x300x150 530x330x335
YNLH1022-20/40/60 10 22 20/40/60 0-1200 1000 500x300x150 600x360x380
YL1622-4080100 16 22 40/80/100 0-800 1000 500x300x150 530x330x335
YL1622-4080120 16 22 40/80/120 0-800 1000 500x300x150 530x330x335
YL1622-255080120 16 22 25/50/80/120 0-800 1000 500x300x150 530x330x335
YL1622-4080100160 16 22 40/80/100/160 0-800 1000 500x300x150 530x330x335
YL1622-4080120170 16 22 40/80/120/170 0-800 1000 500x300x150 530x330x335

YL Ultrasonic Bath Features

  • YL ultrasonic cleaner for lab cleaning
  • YL Series ultrasonic cleaner features summary
  • 40/80/120kHz Switchable Triple-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 40/80/120kHz Switchable Triple-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 40/80/120kHz Switchable Triple-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 40/80/120kHz Switchable Triple-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 40/80/120kHz Switchable Triple-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 40/80/120kHz Switchable Triple-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 40/80/120kHz Switchable Triple-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 40/80/120kHz Switchable Triple-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power

Technical Documents & Catalogues

Yunyisonic YL-Lab Multi-function Bath Spec Sheet - Low Noise | Sweep | Pulse | Degas | 17-200kHz [Download]

Yunyisonic YL Series Support & FAQ

Precision cleaning is defined by Miniaturization (e.g., wafers, chips, micro-blind holes < 0.1mm) and Low Particle Residue (invisible to the naked eye).

Yunyisonic YL Series Recommendations:
• 200kHz: Dedicated for semiconductor wafers, silicon, and chips.
• 80kHz / 120kHz: Ideal for micro/nano blind holes, high-end optical lenses, and sensitive electronic components.

Higher frequencies produce smaller, denser cavitation bubbles with high penetration, ensuring cleaning without damaging fragile structures.

Based on our YL Series switchable configurations (Single/Dual/Triple/Quad), we recommend:

ProcessRecommended FrequencyApplication Context
Dispersion17-28kHz / 40kHz / 120kHz17-28k for large solids; 40k for powders; 120k for micron/nano particles.
Emulsification28kHz / 40kHz28kHz is preferred for higher shearing force.
Extraction40kHz / 120kHz120kHz is standard for intracellular substance extraction.
Mixing/Catalysis40kHz / 120kHz40kHz for routine; 120kHz for micro-particle homogenization.
Synthesis80kHz / 120kHzUsed for molecular aggregation and new material synthesis.
Environmental20kHzUnified recommendation for sewage, sludge, and algae treatment.

💡 Pro Tip: For dispersion, always identify if your particles are solid chunks, powders, or nano-scale before choosing.

We use high-grade stainless steel with different specifications based on the frequency to ensure durability and cavitation resistance:

Frequency RangeInner Tank (SUS304)Outer ShellProcess Details
28kHz - 200kHz 1.5 mm Thickness SUS304 (1.0 mm) Precision industrial grade.
25kHz 2.0 mm Thickness SUS201 (1.0 mm) Thickened tank; Manual oxy-acetylene welding.
17kHz & 20kHz 3.0 mm Thickness SUS201 (1.0 mm) Ultra-thickened tank; Manual oxy-acetylene welding.

The Manual oxy-acetylene welding process is specifically used for low-frequency units to withstand the intense cavitation energy generated by high-power transducers.

Our YL Series is equipped with advanced functions to enhance experimental accuracy:

  • Sweep Mode: Automatically sweeps ±1kHz around the main frequency to eliminate standing waves and ensure every transducer operates at peak efficiency.
  • Degas Mode: Uses pulse intervals (e.g., 5s on/off) to remove dissolved air and chlorine from reagents, crucial for HPLC and lab preparations.
  • Pulse Mode: Cycles power from 100% to 0% repeatedly, creating a "blasting" effect to remove tough or baked-on residues.

The difference lies in the Full-Bridge Separately Excited PCB vs. cheap self-excited boards:

  1. Visualized Data: Our interface shows real-time Power, Frequency, and Current—essential for recording experimental data.
  2. High Power Density: We maintain a standard ≥ 0.3W/cm². Power Density = Output Power (W) / Radiation Area (cm²)
  3. Low-Noise Design: Advanced acoustic insulation keeps 68kHz+ units under 80dB, compared to 110dB+ in standard models.
  4. Reliability: Industrial-grade components ensure a near-zero failure rate even under heavy lab workloads.

Beaker Matching:
• Beaker ≤ 500mL → 3.2L to 6.5L Tank.
• Beaker ≥ 800mL → 10L to 30L Tank (10L is the most popular choice for lab efficiency).

Temperature Management:
Ultrasonic vibration naturally generates heat. While our YL series supports up to 80°C, cavitation effectiveness drops significantly above 80°C. Industry leaders like Branson and Elma also stop activity above 72°C for this reason. To maintain low temperatures, we recommend using ice packs or a cooling condensation system.

If the specific model is currently out of stock, the standard production lead times are as follows:

  • 28kHz - 200kHz (Single, Dual, Triple, or Quad frequency): 3 - 5 business days for shipping.
  • Low Frequency (17kHz, 20kHz, and 25kHz): 14 - 20 business days for shipping.

*Note: Lead times may vary slightly based on customization requirements (e.g., 485 ports or PLC integration). Please contact us for the most accurate shipping schedule.

Frequency determines the wavelength and the intensity of bubble collapse:

Wavelength (λ) = 1,450,000 (mm/s) / Frequency (Hz)
  • 20kHz (λ ≈ 72.5mm): Large bubbles, brute force. Best for heavy rust/oil. Feel: Strong vibration.
  • 40kHz (λ ≈ 36.2mm): Universal frequency. Best for general labware. Feel: Gentle tingling.
  • 120kHz (λ ≈ 12.0mm): Micro bubbles, high penetration. Best for nano-scale work. Feel: Deep vibration felt in the bone.

Not sure which frequency fits your needs?

Our technical engineers are ready to provide a customized solution for your specific application.

Get Expert Advice

Bulk Orders & Business Support

Need assistance with bulk orders, OEM customization, international freight, or lead times?

  • Volume pricing for bulk purchases
  • International freight & pallet shipping
  • OEM / private label support
  • Production lead time information

Specification

Product Specifications

BrandYunyisonic
OriginShenzhen City, China
Capacity
Frequency
Power
Timer1-9999s
HeaterRT~80°C
Tank MaterialSUS304 Stainless Steel
Housing MaterialSUS304 Stainless Steel
VoltageAC 110V 60Hz；AC 220V 50Hz
Plug TypeAU Plug, EU Plug, Other Plugs, UK Plug, US Plug
CertificatesCE, FCC, RoHS
Warranty1 Year
Customization485 Port, Frequency, PLC System, Tanks Numbers
Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing
Function
ManufacturerYunyisonic Shenzhen Co., Ltd.

Packaging

Volumetric Weight24.2 kg
Package Dimensions63.5 × 40.5 × 40 cm
