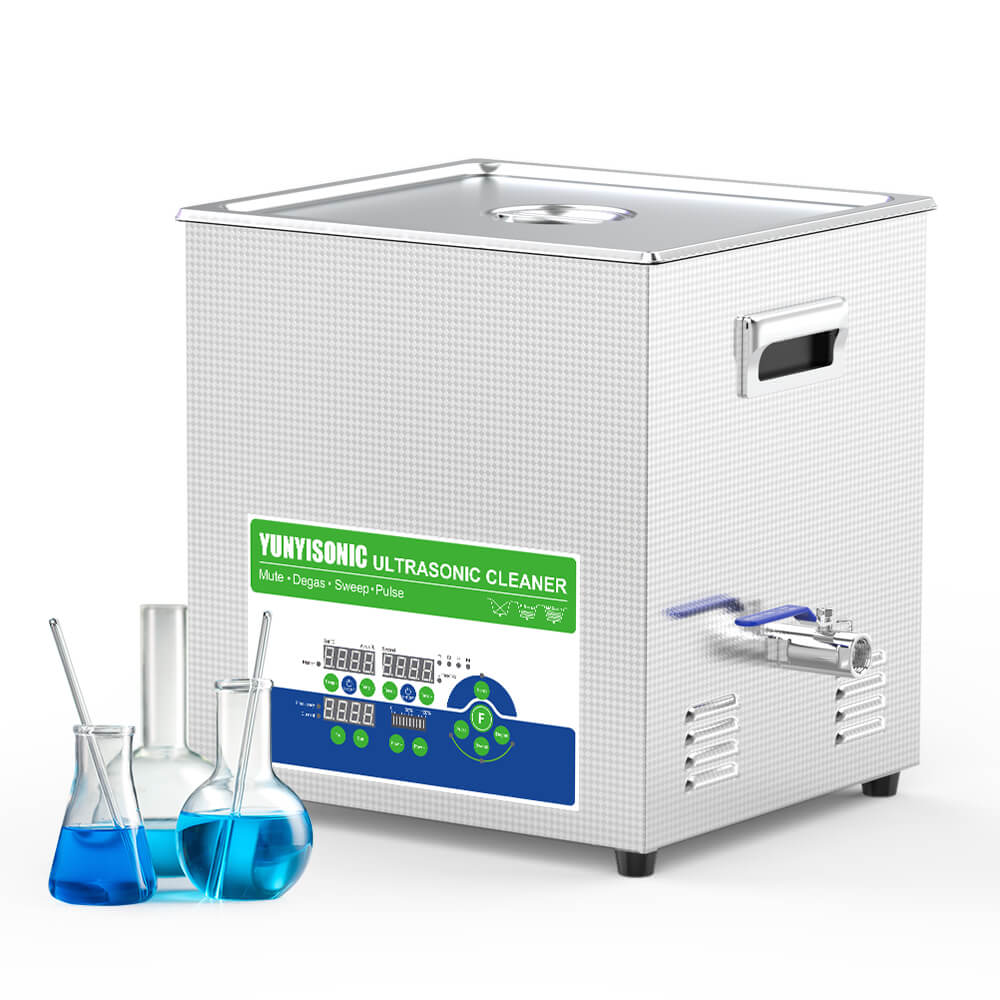

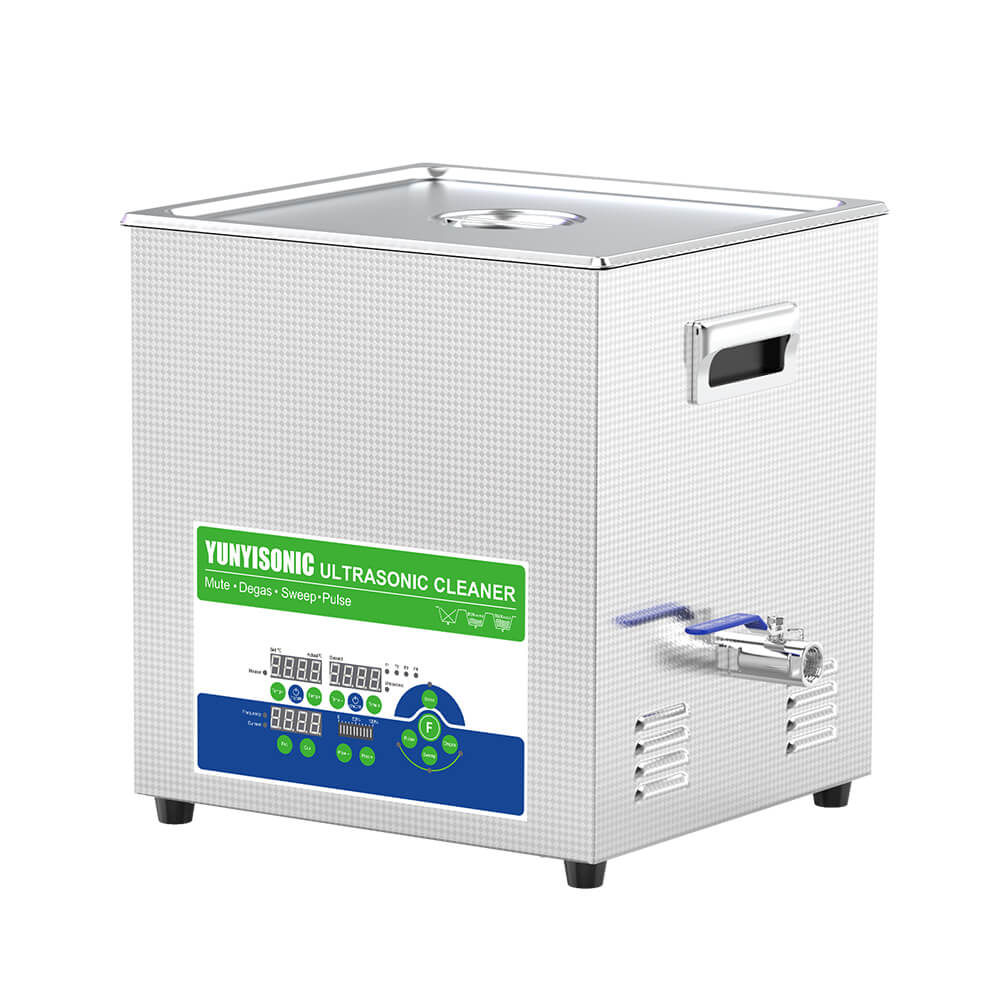

19L Triple-Frequency Ultrasonic Bath, 40/80/120kHz, Adjustable Power 0–500W
- Truly universal cleaner: Cleans everything from engine carburetors and injectors to jewelry and optical lenses by adjusting frequencies as needed.
- Low-frequency power: 40kHz blasts away oil and rust from rugged components, while high-frequency care: 120kHz gently cleans fine circuitry without damage.
- Balanced performance: Mid-range 80kHz provides thorough, balanced cleaning for general parts, ensuring all surfaces and crevices are cleaned.
$1,196.35piece
20
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description
Product Features:
- 40/80/120kHz Triple Frequency: ideal for demanding labs processing multiple samples simultaneously.
- 40kHz mode handles heavy-duty degreasing of graphite and metal molds
- 80kHz balances cleaning power and substrate safety
- 120kHz targets precision cleaning of print heads, delicate filters, and fine channels;
- 10 x 50W Transducers – 500W 0 -100% ultrasonic power adjustable
- 15L Tank (33×30×15cm) with reinforced SUS304 construction, and secure mesh basket.
- Degas Cleaning Mode: Improves ultrasonic transfer for high-purity lab solvents
- Pulse Cleaning Mode: Enhances power bursts for stubborn oil, carbon, wax residues
- Sweep Cleaning Mode: Smooths frequency peaks for uniform blind-hole uniformity;
- Digital Heating and Timer Range: Room Temperature – 80℃, programmable up to 9999s
- Noise Reduced Design: Quieter operation <85dB, meets CE + RoHS + FCC compliance
- 1-year “Free Parts” warranty

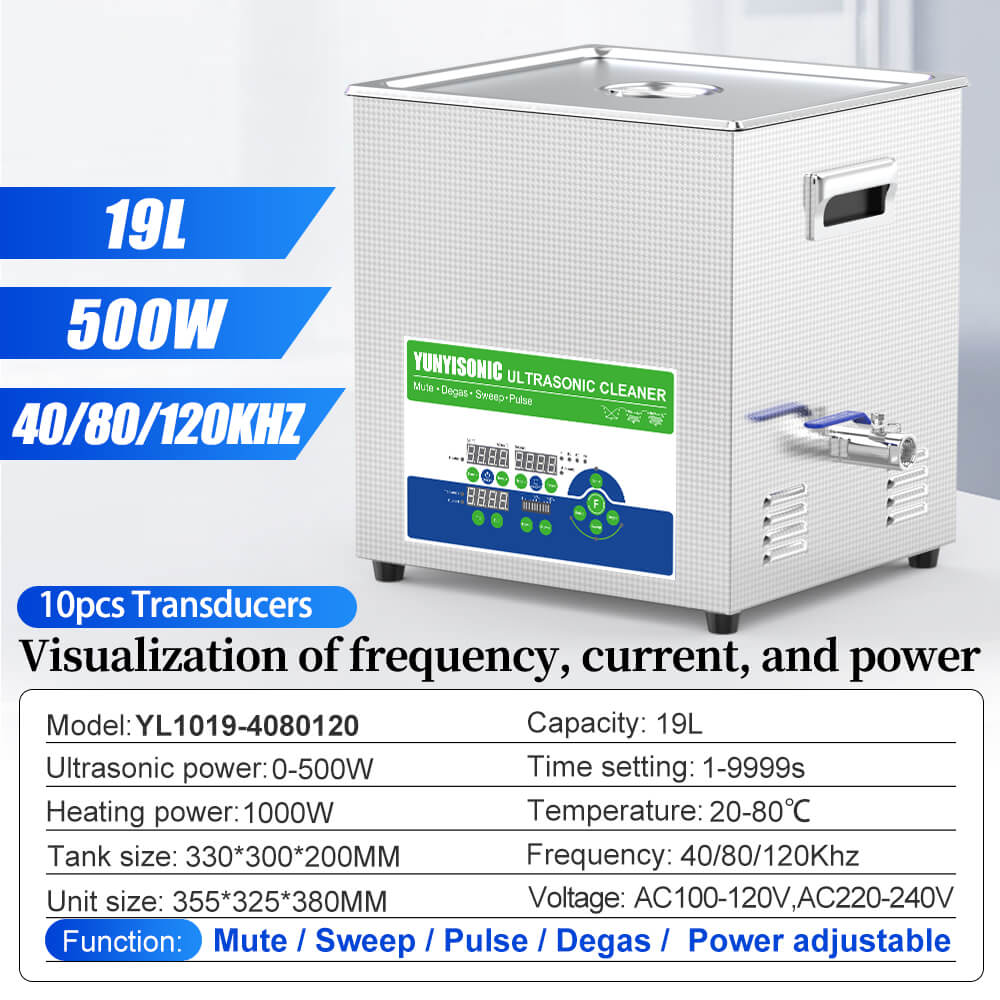

Specification:
| Model | YL1019-4080120 | Transducer No. | 10 pcs |
| Frequency | 40/80/120kHz | Ultrasonic Power | 0-500W |
| Capacity | 19L | Heating Power | 1000W |
| Timer | 1~9999s Adjustable | Tank Material | SUS304 |
| Heater | 20°C – 80°C | Housing Material | SUS304 |
| Tank Size(mm) | 330x300x200 | Unit Size(mm) | 355x325x380 |
| Drain Valve | Yes | Refurbished | No |
| Function | Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-Language Interface Optional | ||
| Logo/Pattern | Silk screen printing, Laser Printing, UV printing, PVC, Other | ||
Box Contents:

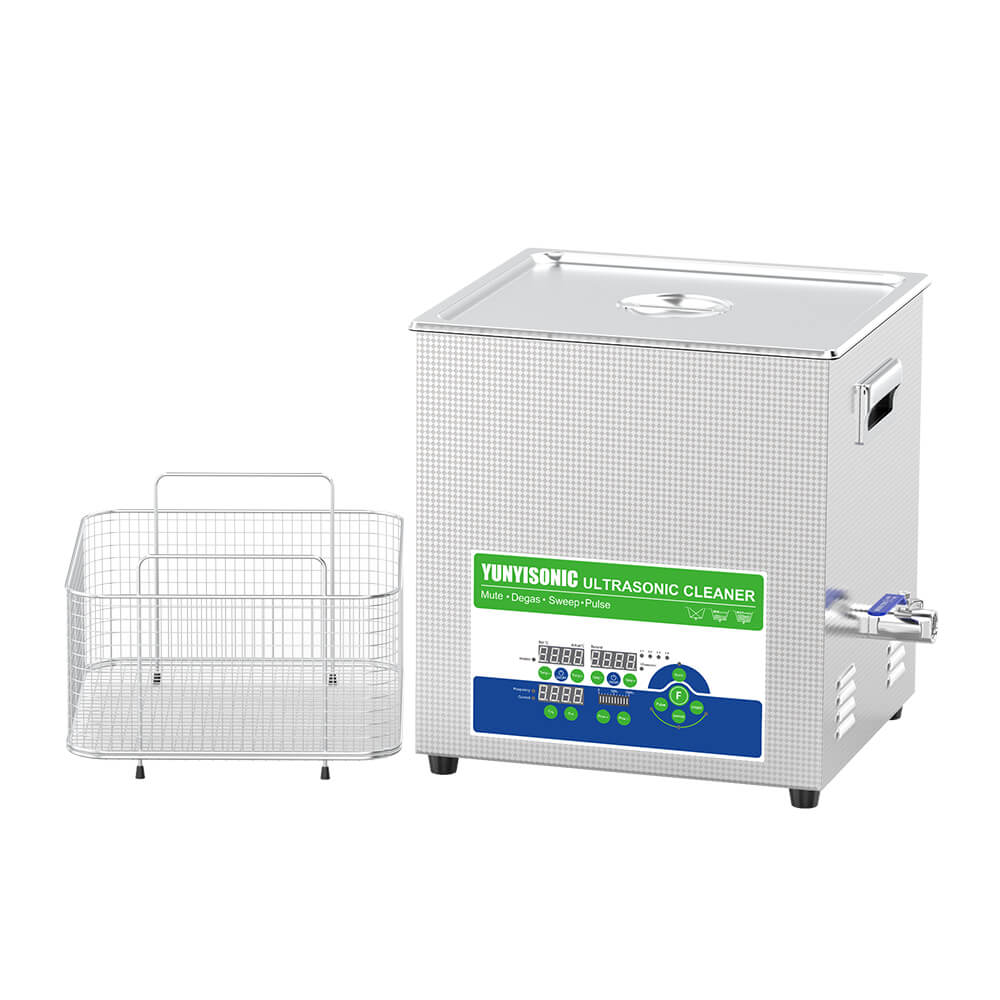

1 x Professional Ultrasonic Cleaner 1 x Durable Mesh Cleaning Basket One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
One unit filled with thick foam, then standard export corrugated carton or wooden box.
More Units
More Units
40/80/120kHz Triple Frequency Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YL0404-4080120 | 4 | 4.5 | 40/80/120 | 0-200 | 450 | 300x150x100 | 325x175x280 |
| YL0406-4080120 | 4 | 6.5 | 40/80/120 | 0-200 | 450 | 300x150x150 | 325x175x330 |
| YL0810-4080120 | 8 | 10 | 40/80/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0814-4080120 | 8 | 14 | 40/80/120 | 0-400 | 600 | 300x240x200 | 325x265x380 |

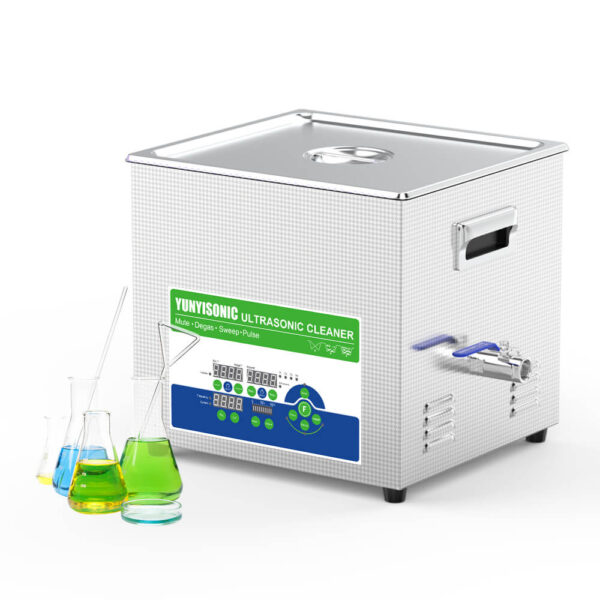

| YL1015-4080120 | 10 | 15 | 40/80/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1019-4080120 | 10 | 19 | 40/80/120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1622-4080120 | 16 | 22 | 40/80/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1630-4080120 | 16 | 30 | 40/80/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
19L Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YNLH0819-17 | 8 | 19 | 17 | 0–640 | 1000 | 330x300x200 | 430x360x420 |
| YNLH0819-20 | 8 | 19 | 20 | 0-800 | 1000 | 330x300x200 | 430x360x420 |
| YNL1019-25 | 10 | 19 | 25 | 0-500 | 1000 | 330x300x200 | 430x360x420 |
| YL0819-28 | 8 | 19 | 28 | 0-400 | 1000 | 330x300x200 | 355x325x390 |
| YL0819-33 | 8 | 19 | 33 | 0-400 | 1000 | 330x300x200 | 355x325x390 |
| YL0619-40 | 6 | 19 | 40 | 0-300 | 1000 | 330x300x200 | 355x325x380 |
| YL1019-40 | 10 | 19 | 40 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YLS2019-50 | 20 | 19 | 50 | 0–600 | 1000 | 330×300×200 | 355×325×380 |
| YLS2019-53 | 20 | 19 | 53 | 0–700 | 1000 | 330×300×200 | 355×325×380 |
| YL1019-68 | 10 | 19 | 68 | 0-500 | 1000 | 330x300x200 | 355x325x390 |
| YL1019-80 | 10 | 19 | 80 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1019-120 | 10 | 19 | 120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1019-130 | 10 | 19 | 130 | 0–600 | 1000 | 330×300×200 | 355×325×380 |
| YLS2019-200 | 20 | 19 | 200 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL0819-2840 | 8 | 19 | 28/40 | 0-400 | 1000 | 330x300x200 | 355x325x390 |
| YL1019-4068 | 10 | 19 | 40/68 | 0-500 | 1000 | 330x300x200 | 355x325x390 |
| YL1019-4080 | 10 | 19 | 40/80 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1019-40120 | 10 | 19 | 40/120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1019-80120 | 10 | 19 | 80/120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YNLH0619-20/40/60 | 6 | 19 | 20/40/60 | 0-720 | 1000 | 330x300x200 | 430x360x420 |
| YL1019-4080100 | 10 | 19 | 40/80/100 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1019-4080120 | 10 | 19 | 40/80/120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1019-255080120 | 10 | 19 | 25/50/80/120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1019-4080100160 | 10 | 19 | 40/80/100/160 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1019-4080120170 | 10 | 19 | 40/80/120/170 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
YL Ultrasonic Bath Features
Engineered for efficiency and versatility, this 19L triple-frequency ultrasonic cleaner is a game-changer for labs seeking to streamline high-throughput sample preparation and routine cleaning operations. Boasting a generous 19L capacity, it effortlessly accommodates multiple samples at once, making it an indispensable asset for bustling research environments and educational institutions alike.
The cleaner’s triple-frequency functionality (40/80/120kHz) offers unparalleled adaptability to diverse cleaning needs. In the 40kHz mode, it unleashes robust power for heavy-duty degreasing tasks, effectively tackling stubborn grime on graphite and metal molds. Switching to 80kHz strikes the perfect balance between cleaning efficacy and substrate protection, ensuring that delicate components are thoroughly cleaned without risk of damage. Meanwhile, the 120kHz setting is tailored for precision cleaning, excelling at removing microscopic contaminants from intricate parts such as print heads, delicate filters, and fine channels in semiconductor or wafer manufacturing processes.
Enhanced with adjustable power settings ranging from 0 to 500W, users have the flexibility to customize the cleaning intensity according to specific requirements. The integrated sweep mode works to ensure uniform cleaning even in hard-to-reach blind holes, while degas cycles optimize ultrasonic performance by eliminating dissolved gases from the cleaning solution.
This ultrasonic cleaner is equally at home in university laboratories, training facilities, and student research projects. Its user-friendly digital control panel allows for precise adjustments of time and temperature, enabling researchers and students to execute experiments with accuracy and consistency. The inclusion of degas, pulse, and sweep functions further expands its capabilities, allowing it to adapt seamlessly to a wide array of experimental protocols across disciplines like chemistry, physics, and materials science.
Designed with safety and convenience in mind, the cleaner features lab-safe noise reduction technology, creating a more comfortable working environment. Additionally, it comes with a secure mesh basket, providing a stable and reliable way to hold samples during the cleaning process. Whether you’re running complex research experiments or conducting routine lab maintenance, this 19L triple-frequency ultrasonic cleaner delivers reliable, consistent results every time.
Yunyisonic YL Series Support & FAQ
Precision cleaning is defined by Miniaturization (e.g., wafers, chips, micro-blind holes < 0.1mm) and Low Particle Residue (invisible to the naked eye).
Yunyisonic YL Series Recommendations:
• 200kHz: Dedicated for semiconductor wafers, silicon, and chips.
• 80kHz / 120kHz: Ideal for micro/nano blind holes, high-end optical lenses, and sensitive electronic components.
• 200kHz: Dedicated for semiconductor wafers, silicon, and chips.
• 80kHz / 120kHz: Ideal for micro/nano blind holes, high-end optical lenses, and sensitive electronic components.
Higher frequencies produce smaller, denser cavitation bubbles with high penetration, ensuring cleaning without damaging fragile structures.
Based on our YL Series switchable configurations (Single/Dual/Triple/Quad), we recommend:
| Process | Recommended Frequency | Application Context |
|---|---|---|
| Dispersion | 17-28kHz / 40kHz / 120kHz | 17-28k for large solids; 40k for powders; 120k for micron/nano particles. |
| Emulsification | 28kHz / 40kHz | 28kHz is preferred for higher shearing force. |
| Extraction | 40kHz / 120kHz | 120kHz is standard for intracellular substance extraction. |
| Mixing/Catalysis | 40kHz / 120kHz | 40kHz for routine; 120kHz for micro-particle homogenization. |
| Synthesis | 80kHz / 120kHz | Used for molecular aggregation and new material synthesis. |
| Environmental | 20kHz | Unified recommendation for sewage, sludge, and algae treatment. |
💡 Pro Tip: For dispersion, always identify if your particles are solid chunks, powders, or nano-scale before choosing.
We use high-grade stainless steel with different specifications based on the frequency to ensure durability and cavitation resistance:
| Frequency Range | Inner Tank (SUS304) | Outer Shell | Process Details |
|---|---|---|---|
| 28kHz - 200kHz | 1.5 mm Thickness | SUS304 (1.0 mm) | Precision industrial grade. |
| 25kHz | 2.0 mm Thickness | SUS201 (1.0 mm) | Thickened tank; Manual oxy-acetylene welding. |
| 17kHz & 20kHz | 3.0 mm Thickness | SUS201 (1.0 mm) | Ultra-thickened tank; Manual oxy-acetylene welding. |
The Manual oxy-acetylene welding process is specifically used for low-frequency units to withstand the intense cavitation energy generated by high-power transducers.
Our YL Series is equipped with advanced functions to enhance experimental accuracy:
- Sweep Mode: Automatically sweeps ±1kHz around the main frequency to eliminate standing waves and ensure every transducer operates at peak efficiency.
- Degas Mode: Uses pulse intervals (e.g., 5s on/off) to remove dissolved air and chlorine from reagents, crucial for HPLC and lab preparations.
- Pulse Mode: Cycles power from 100% to 0% repeatedly, creating a "blasting" effect to remove tough or baked-on residues.
The difference lies in the Full-Bridge Separately Excited PCB vs. cheap self-excited boards:
- Visualized Data: Our interface shows real-time Power, Frequency, and Current—essential for recording experimental data.
- High Power Density: We maintain a standard ≥ 0.3W/cm². Power Density = Output Power (W) / Radiation Area (cm²)
- Low-Noise Design: Advanced acoustic insulation keeps 68kHz+ units under 80dB, compared to 110dB+ in standard models.
- Reliability: Industrial-grade components ensure a near-zero failure rate even under heavy lab workloads.
Beaker Matching:
• Beaker ≤ 500mL → 3.2L to 6.5L Tank.
• Beaker ≥ 800mL → 10L to 30L Tank (10L is the most popular choice for lab efficiency).
Temperature Management:
Ultrasonic vibration naturally generates heat. While our YL series supports up to 80°C, cavitation effectiveness drops significantly above 80°C. Industry leaders like Branson and Elma also stop activity above 72°C for this reason. To maintain low temperatures, we recommend using ice packs or a cooling condensation system.
If the specific model is currently out of stock, the standard production lead times are as follows:
- 28kHz - 200kHz (Single, Dual, Triple, or Quad frequency): 3 - 5 business days for shipping.
- Low Frequency (17kHz, 20kHz, and 25kHz): 14 - 20 business days for shipping.
*Note: Lead times may vary slightly based on customization requirements (e.g., 485 ports or PLC integration). Please contact us for the most accurate shipping schedule.
Frequency determines the wavelength and the intensity of bubble collapse:
Wavelength (λ) = 1,450,000 (mm/s) / Frequency (Hz)
- 20kHz (λ ≈ 72.5mm): Large bubbles, brute force. Best for heavy rust/oil. Feel: Strong vibration.
- 40kHz (λ ≈ 36.2mm): Universal frequency. Best for general labware. Feel: Gentle tingling.
- 120kHz (λ ≈ 12.0mm): Micro bubbles, high penetration. Best for nano-scale work. Feel: Deep vibration felt in the bone.
Specification
Product Specifications
| Brand | Yunyisonic |
|---|---|
| Origin | Shenzhen City, China |
| Capacity | 19L |
| Frequency | 40/80/120kHz |
| Power | 0-500W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Extraction, Mixing, Separation, Washing |
| Function | Clean Thoroughly, Degassing, Digital Control, Heating, Noise Reduction, Power Adjustable, Pulse, Sweep, Timing |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | 19.9 kg |
|---|---|
| Package Dimensions | 46 × 41 × 45 cm |
Customer Reviews
You must be logged in to post a review.
Related Products
10L Single-Frequency Ultrasonic Bath, 33KHz, Adjustable Power 0–300W
In stock
$326.42piece
| Volumetric Weight | 12.5 kg |
|---|---|
| Package Dimensions | 43.5 × 36 × 40 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 10L |
| Frequency | 33kHz |
| Power | 0-300W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Extraction, Mixing, Separation, Washing |
| Function | Degassing, Digital Control, Noise Reduction, Power Adjustable, Pulse, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
14L Single-Frequency Ultrasonic Bath, 33KHz, Adjustable Power 0–300W
In stock
$340.67piece
| Volumetric Weight | 14.1 kg |
|---|---|
| Package Dimensions | 44 × 36 × 45 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 14L |
| Frequency | 33kHz |
| Power | 0-300W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Emulsification, Extraction, Homogenization, Mixing, Separation, Washing |
| Function | Degassing, Digital Control, Noise Reduction, Power Adjustable, Pulse, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
19L Single-Frequency Ultrasonic Bath, 20KHz, Adjustable Power 0–800W
In stock
$908.35piece
| Volumetric Weight | 48.20 kg |
|---|---|
| Package Dimensions | 53 × 45 × 53 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 19L |
| Frequency | 20kHz |
| Power | 0-800W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Emulsification, Extraction, Homogenization, Mixing, Separation, Washing |
| Function | Degassing, Digital Control, Noise Reduction, Power Adjustable, Pulse, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |

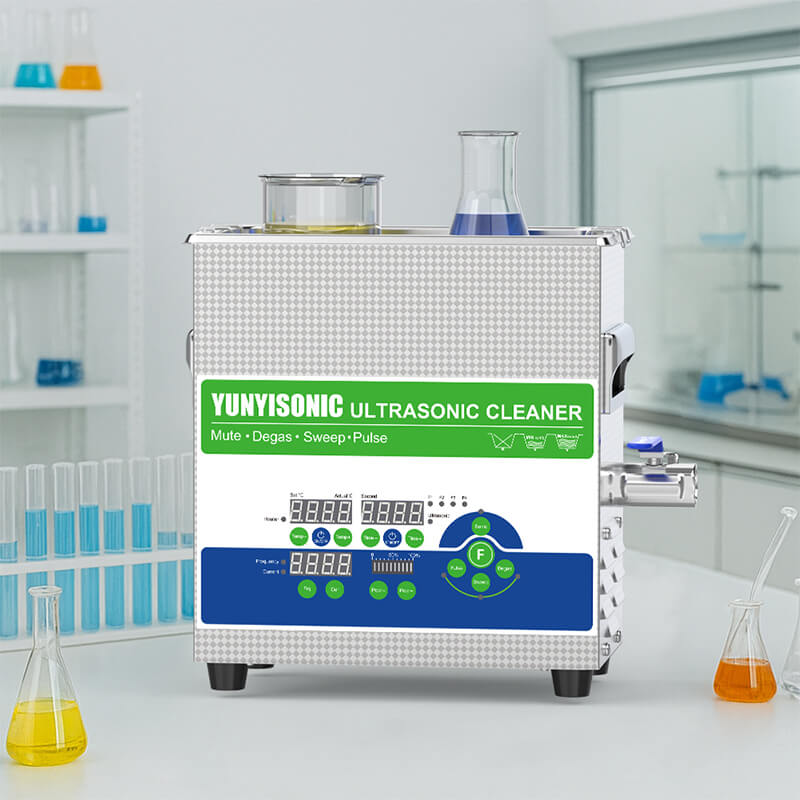

3.2L Single-Frequency Ultrasonic Bath, 25KHz, Adjustable Power 0–150W
In stock
$367.23piece
| Volumetric Weight | 12.5 kg |
|---|---|
| Package Dimensions | 43 × 24 × 40 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 3.2L |
| Frequency | 25kHz |
| Power | 0-150W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Emulsification, Extraction, Homogenization, Mixing, Separation, Washing |
| Function | Degassing, Digital Control, Noise Reduction, Power Adjustable, Pulse, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
4.5L Single-Frequency Ultrasonic Bath, 33KHz, Adjustable Power 0–150W
In stock
$210.35piece
| Volumetric Weight | 7.3 kg |
|---|---|
| Package Dimensions | 41 × 25.5 × 35 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 4.5L |
| Frequency | 33kHz |
| Power | 0-150W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Dispersion, Extraction, Homogenization, Mixing, Separation |
| Function | Clean Thoroughly, Degassing, Digital Control, Heating, Noise Reduction, Power Adjustable, Pulse, Semiwave, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
4.8L Single-Frequency Ultrasonic Bath, 25KHz, Adjustable Power 0–150W
In stock
$405.00piece
| Volumetric Weight | 14.6 kg |
|---|---|
| Package Dimensions | 40 × 27 × 45 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 4.8L |
| Frequency | 25kHz |
| Power | 0-150W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Emulsification, Extraction, Homogenization, Mixing, Separation, Washing |
| Function | Degassing, Digital Control, Noise Reduction, Power Adjustable, Pulse, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
Reviews
Clear filtersThere are no reviews yet.
