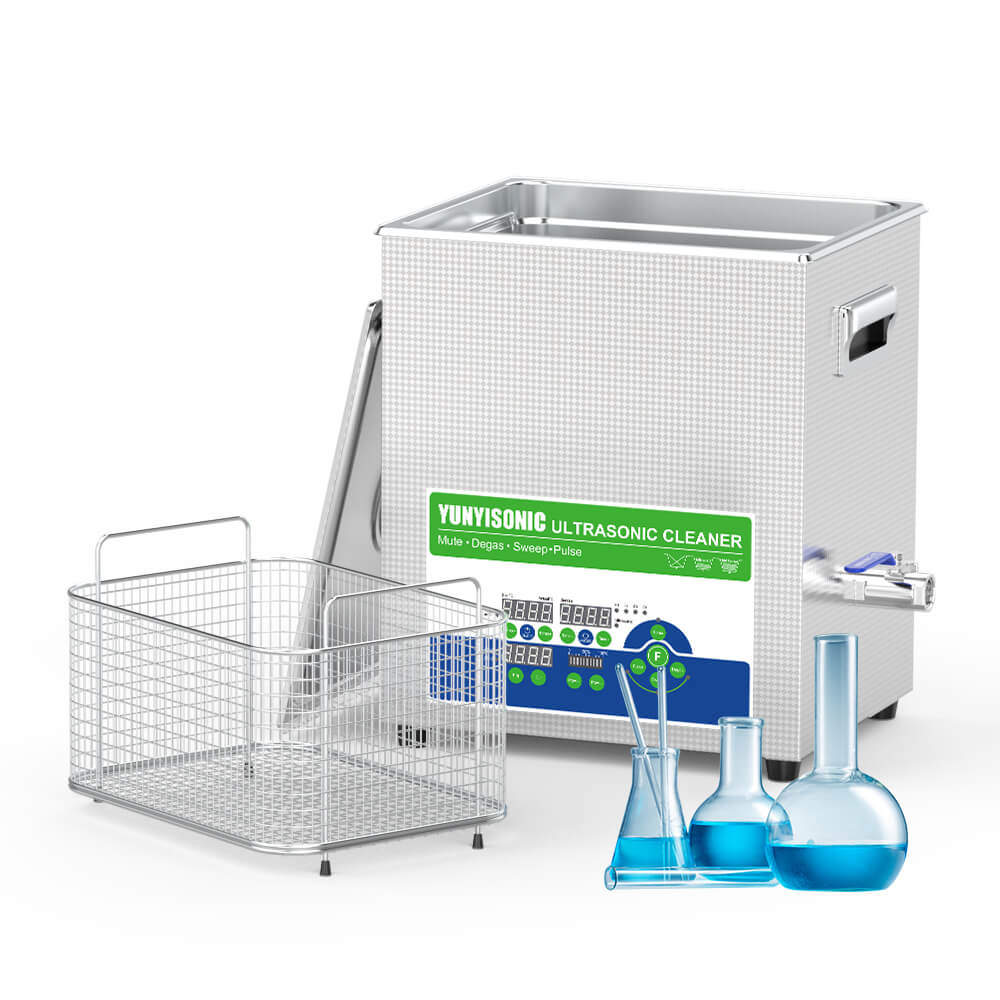

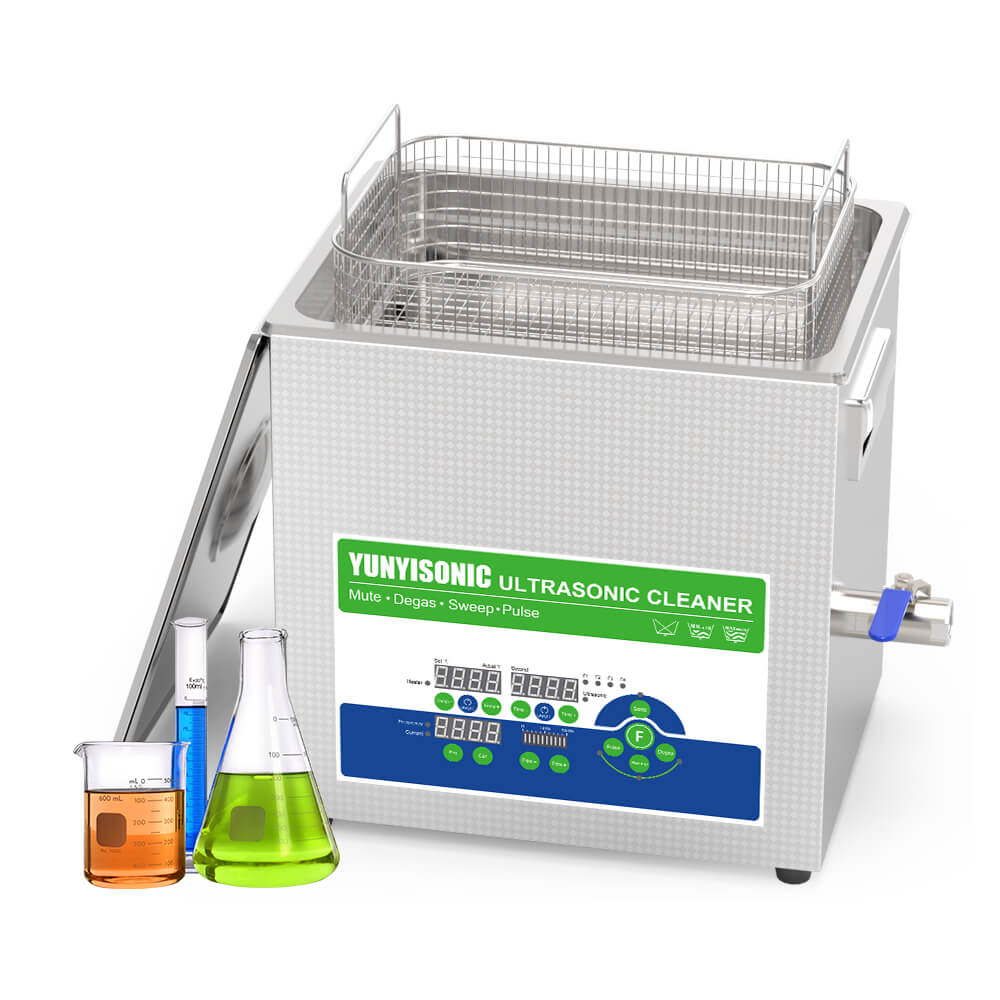

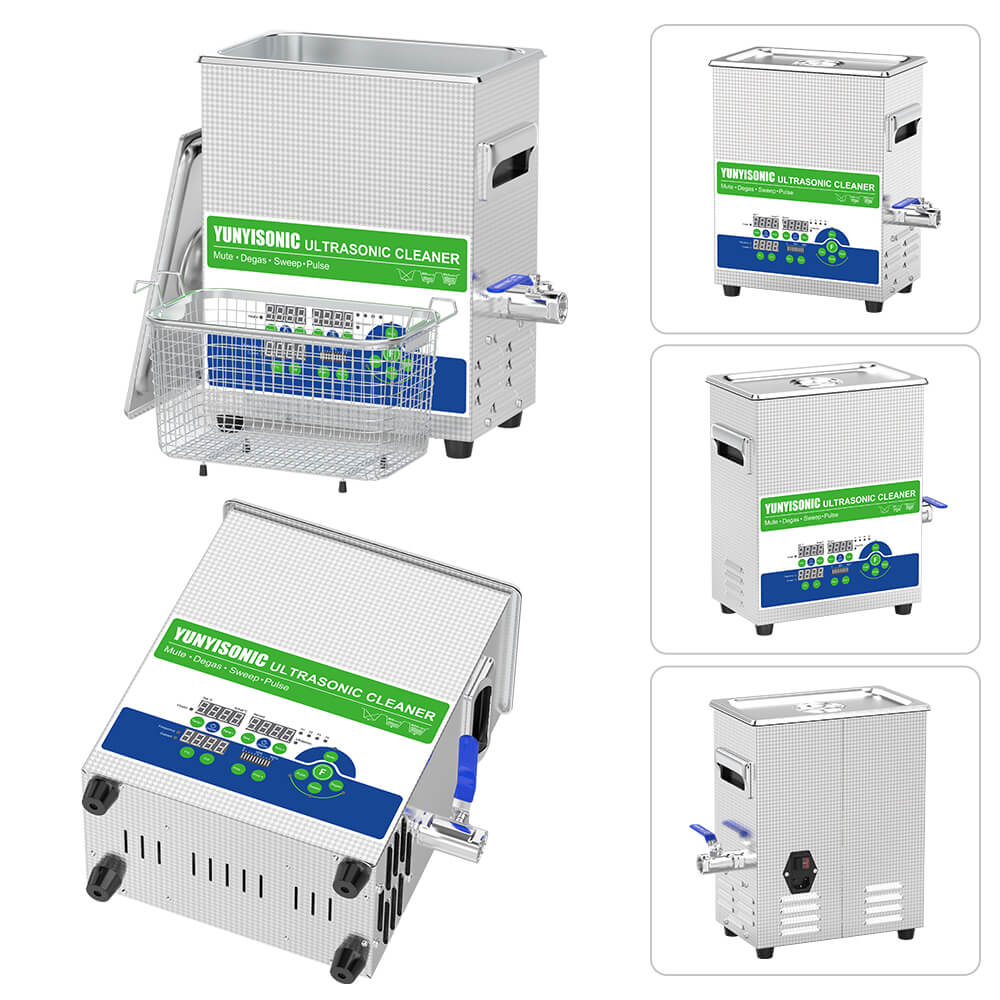

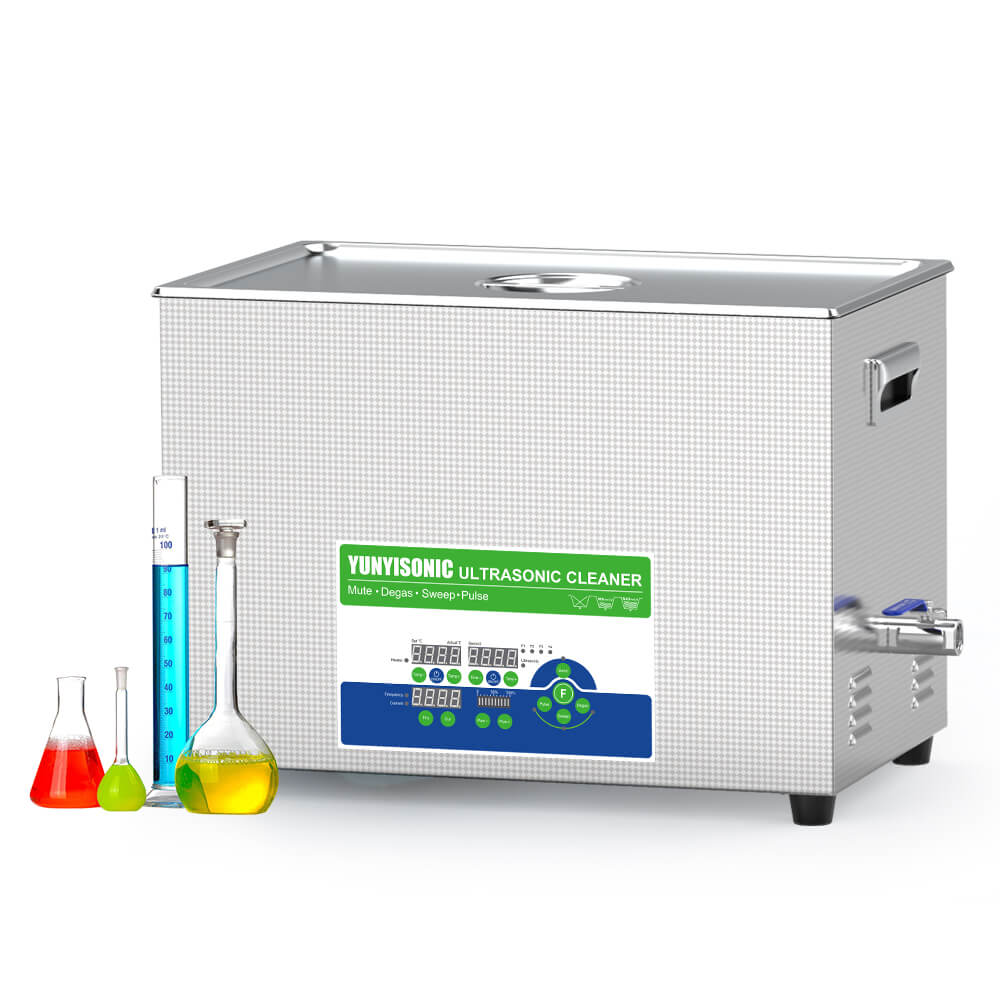

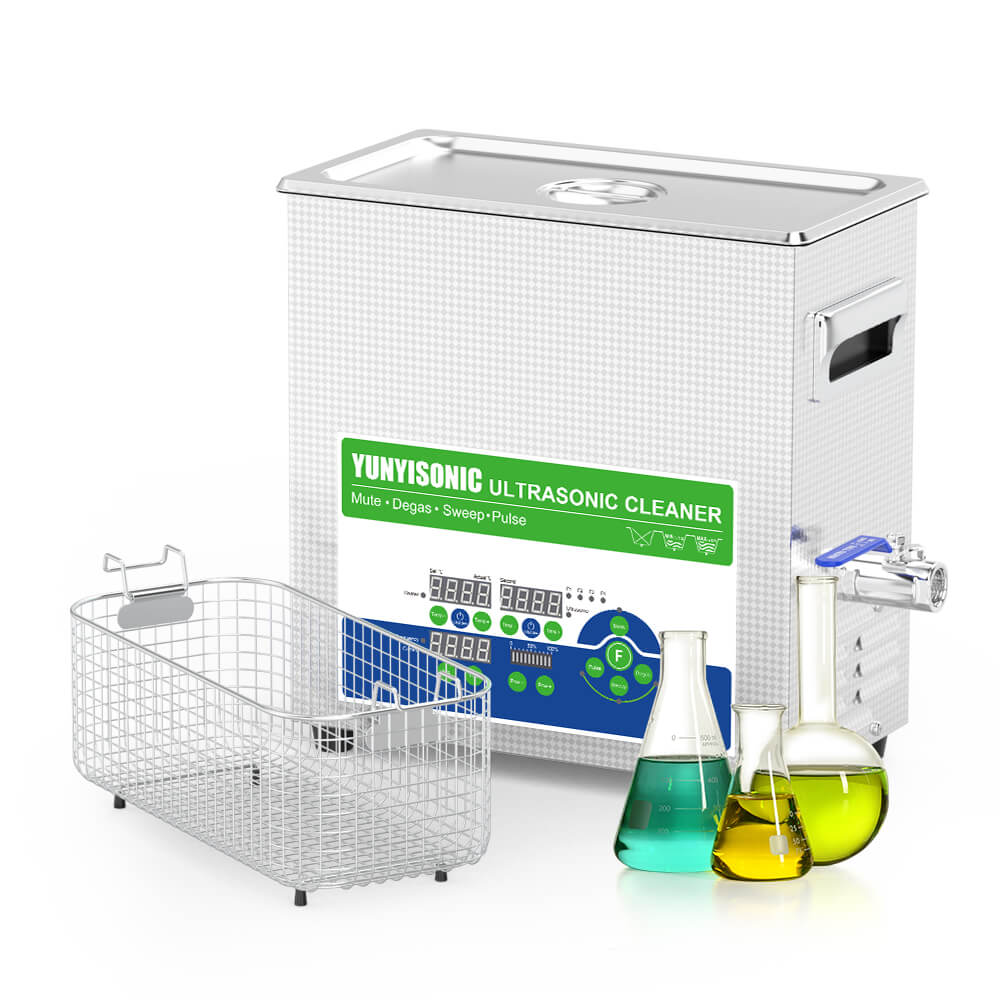

40/68kHz Dual-Frequency Lab Ultrasonic Bath, Functions: Mute, Sweep, Pulse, Degas, Adjustable Power

Product Features:

• 50 Watts @ 40/68kHz Two Frequency For Every Transducer
• Generous 3.2L – 30L Tank Capacity
• 1 – 9999s Digital Time Setting
• Heating Function Room Temperature – 80℃ Range
• Multi Mode: Noise Reduction Design, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control
• Robust  stainless steel construction: SUS304 Tank, SUS304 Housing, Drain Valve
• Secure Wire Cleaning Mesh Basket
• Logo/Pattern Silk screen printing, Laser Printing, UV printing, PVC, Operating Panel English Language, Other
• Yunyisonic ultrasonic cleaner meets CE + RoHS + FCC (“Limit the use of certain hazardous substances”) standards and comes with a 1-year “Free Parts” warranty

Box Contents:

1 x Professional Ultrasonic Cleaner
1 x Durable Mesh Cleaning Basket
One cover, one power cord, one manual warranty card certificate of conformity.

Packing type:

One unit filled with thick foam, then standard export corrugated carton or wooden box.

More Unit

40/68kHz Dual Frequency Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Ultrasonic Cleaning Objects

• Lab glassware: beakers, flasks, test tubes, pipettes, microscope slides (laboratory equipment often cleaned of chemical residues).
• Electronic components: printed circuit boards (PCBs), microchips, soldered assemblies (requires gentle cleaning to remove flux and debris).
• Automotive parts: engine blocks, carburetors, fuel injectors, valves (heavy grease and carbon deposits removed from metal components).
• Medical & dental instruments: surgical tools, dental handpieces, forceps, endoscope parts (cleaning removes blood, tissue, and contaminants before sterilization).
• Jewelry & watch components: rings, necklaces, bracelets, watch movements, gears (precious metal pieces cleaned of tarnish, oils, and dirt).
• Optical items: camera lenses, eyeglasses, microscope optics, glass filters (delicate surfaces cleaned of fingerprints and dust).
• Industrial hardware: molds, nozzles, bearings, firearm parts (machined metal parts with intricate crevices or carbon residue benefit from ultrasonic cleaning).

Ultrasonic Removing Contaminant

• Oil and grease: machine oil, lubricants, heavy grease deposits (common soils from engines and machinery).
• Dust and dirt: particulate matter, soil, general grime (accumulates on equipment surfaces).
• Fingerprints and oils: skin oils, smudges, light films (often found on lenses and precision parts).
• Polishing compounds: buffing rouge, lapping paste, polishing wax (residues from finishing processes).
• Rust and oxidation: corrosion, tarnish, oxide layers (metal parts with rust or oxidized film).
• Carbon residues: soot, burnt carbon deposits (from combustion engines or firing residues).
• Blood and biological stains: dried blood, tissue residue, biofilms (on medical and dental instruments).
• Flux and solder residue: solder paste, flux char, ionic residues (left on PCBs after soldering).

Recommended Frequency by Object/Contaminant (Frequency Guidance)

• 25–28 kHz (Low frequency): Strong cavitation for heavy-duty cleaning of robust metal parts with tenacious contaminants (e.g. engine blocks, injection molds).
• 40 kHz (Standard frequency): General-purpose cleaning for a wide range of materials and common contamination (the most widely used ultrasonic frequency for labware, tools, and general metal parts).
• 68–80 kHz (Higher frequency): Finer cleaning for delicate or complex items – smaller cavitation bubbles penetrate intricate crevices and blind holes (ideal for precision optics, small jewelry, and parts with complex geometry).
• 120 kHz (Ultrasonic/Megasonic): Ultra-fine cleaning for highly sensitive components – gentle cavitation used in microelectronics and precision optics to remove microscopic particles and dust without damage.
• Dual-frequency systems: e.g. 40/80 kHz switchable – offer versatility to handle both coarse and fine cleaning needs in one machine.

Note: High-frequency megasonic cleaners (>120 kHz) are often used for semiconductor wafers and final rinsing of ultra-delicate parts.

Ultrasonic Cleaner Application Industry

• Research laboratory: University and industrial labs cleaning glassware and experiment apparatus (fast removal of residues from beakers, test tubes, etc. for next use).
• Dental clinic: Cleaning of dental tools, drills, and molds – ensures instruments (burs, scalers, mirrors) are free of blood and debris before sterilization.
• Medical facility (Hospital CSSD): Pre-sterilization cleaning of surgical instruments and endoscopic equipment – thorough removal of bioburden to meet medical hygiene standards.
• Semiconductor fabrication: Cleanroom use for silicon wafers, masks, and precision parts – megasonic cleaners remove microscopic particles in chip manufacturing lines.
• Watchmaker & jewelry workshop: Precision cleaning of watch movements, clock parts, and jewelry pieces – restores shine and removes polishing compounds from intricate items.
• Aerospace maintenance: Overhaul shops for aerospace/aviation parts – ultrasonic baths clean turbine components, fuel system parts, and hydraulic valves of oils, carbon, and contaminants.
• Automotive repair garage: Service centers using ultrasonic parts washers for carburetors, fuel injectors, and engine components – quick removal of grease, varnish, and carbon buildup to improve performance

YL series Ultrasonic Cleaner Highlights

Brand: Yunyisonic

Frequency Range: Available in single/dual/triple/quad-frequency versions
e.g. 40kHz / 68kHz / 80kHz / 120kHz / 200kHz / 40-68kHz / 40-80-100kHz / 25-50-80-120kHz

Ultrasonic Power: Adjustable from 0–100% via digital control

Heating Power: Stable PID-controlled heating up to 80°C

Power Supply: AC 100–120V / 220–240V, 50/60Hz

Timer Range: 1–9999 seconds (programmable)

Tank Material: SUS304 / SUS316L stainless steel, corrosion resistant

Construction: Full steel chassis, lab-grade durability

Noise Reduction:
– Double-layer sound insulation structure (sound-damping foam + precision circuits)
– Operates <80dB for 68kHz+, ideal for quiet lab environments

Control System:
– Digital panel with LED display
– Adjustable temperature, power, timer, and frequency (in applicable models)

Functional Modes (standard for all lab models):
– Degas Mode: Intermittent cycle (5s on / 5s off) to efficiently remove dissolved gases from liquid
– Sweep Mode: ±1kHz frequency modulation to eliminate standing waves and ensure uniform cavitation
– Pulse Mode: Cyclic burst of max power (0–100%) to enhance cleaning of stubborn residues

Typical Cleaning Applications:
→ Beakers, pipettes, watch parts, PCBs, nozzles, syringes, fine surgical tools
→ Supports high-precision cleaning of blind holes, slits, deep cavities, and optical parts

Optional Functions / Add-ons:
– Multi-language interface / Liquid level sensor / Basket / Lid / Drain valve
– Custom tank size or power on request (OEM available)
