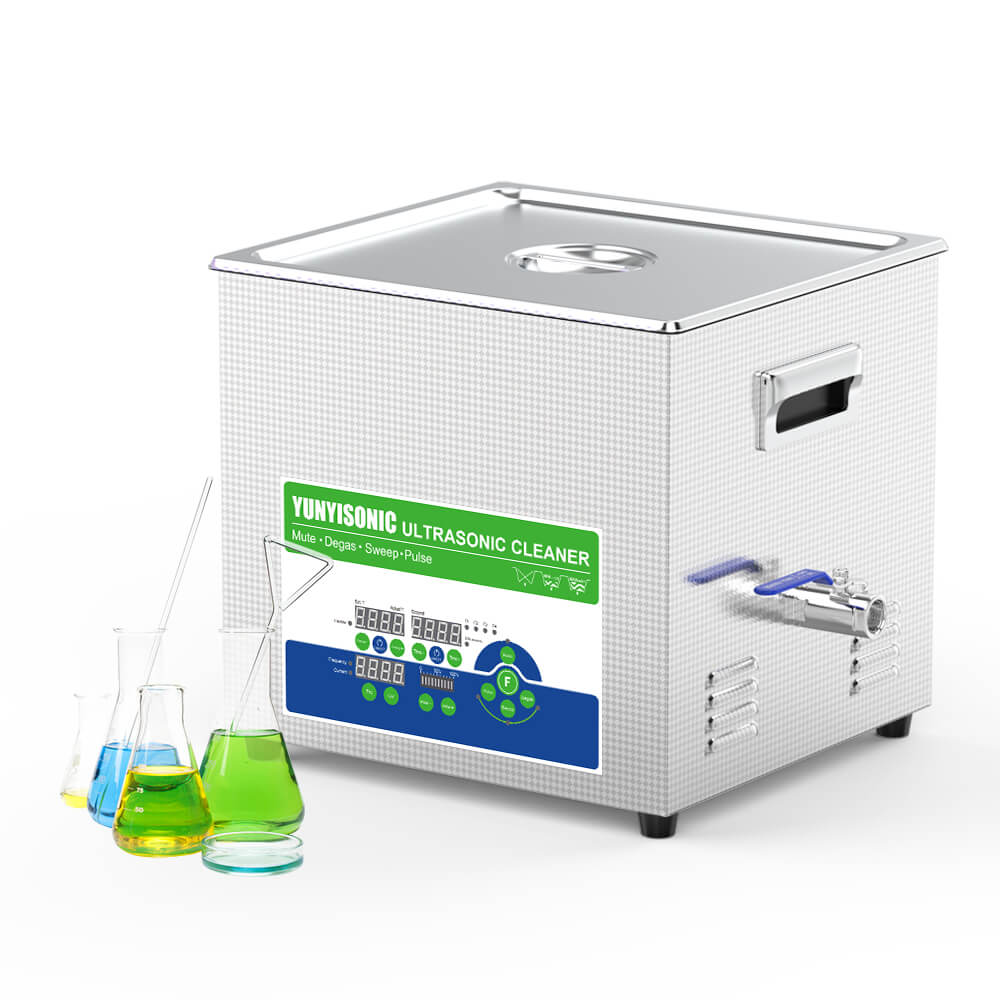

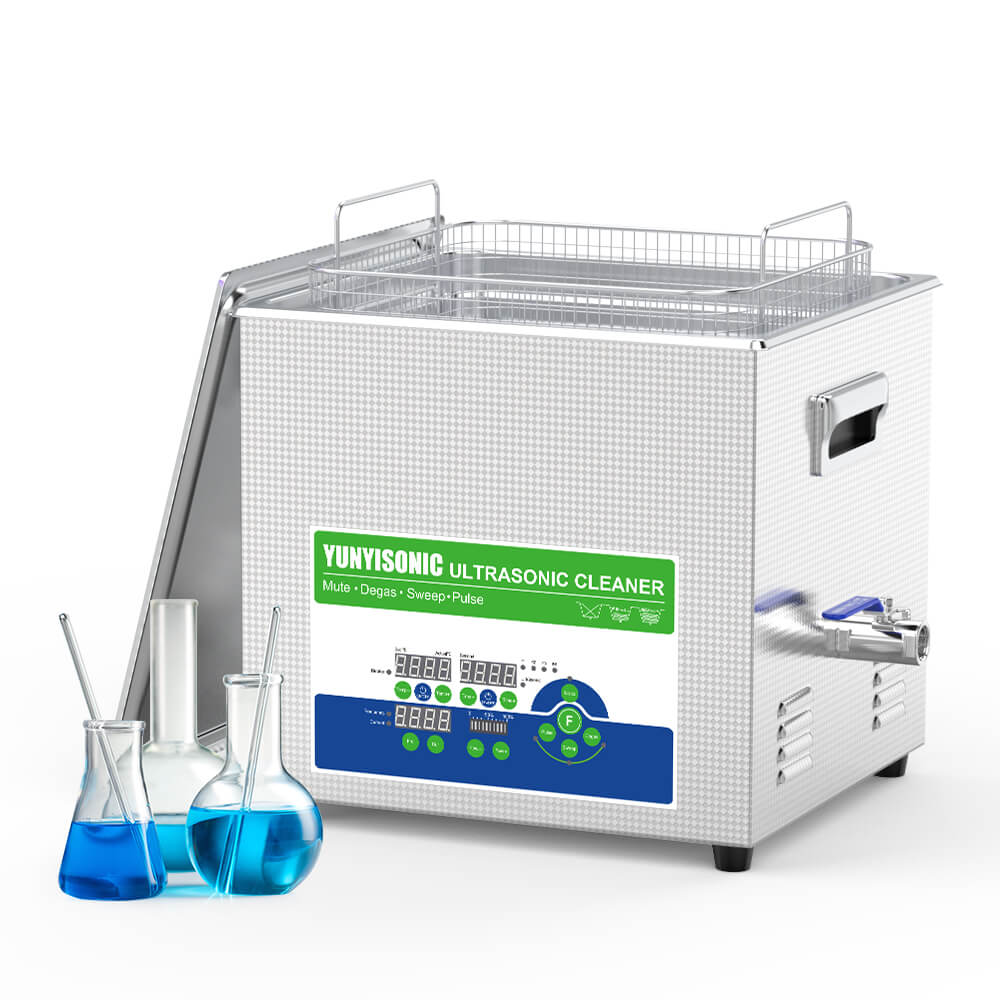

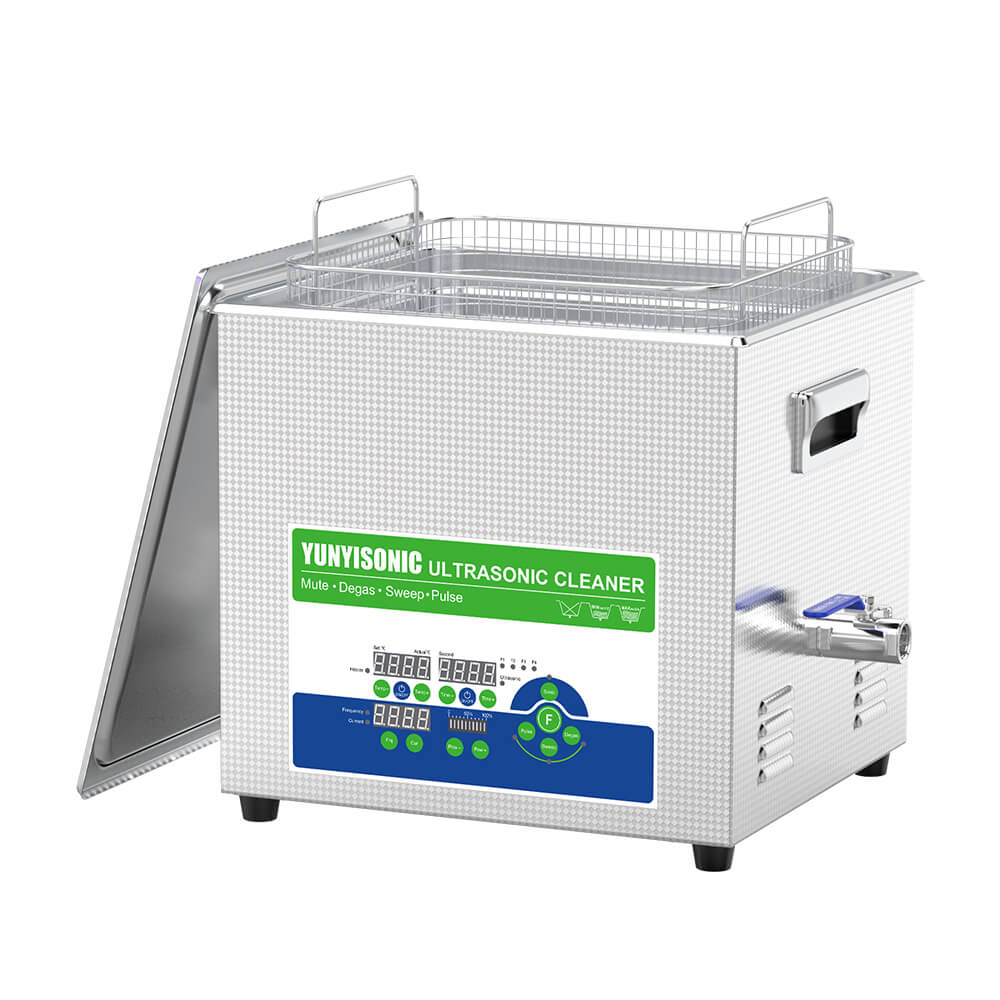

15L Triple-Frequency Ultrasonic Bath, 40/80/120kHz, Adjustable Power 0–500W
- Adaptive frequency control: Triple-frequency (40/80/120kHz) tuning allows adjustment for different cleaning intensities in one device.
- Even cleaning: Built-in sweep function prevents hot spots, ensuring uniform cleaning of complex items.
- Optimized process: Degassing mode quickly primes cleaning solutions, and adjustable power lets you fine-tune for delicate or robust cleaning needs.
$1,173.50piece
15
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description
15L Ultrasonic Bath for Diverse Academic and Student Research
Designed to meet the demands of universities, training labs, and student projects, the 15L triple-frequency ultrasonic bath (40/80/120kHz) offers unparalleled flexibility. The 40kHz setting efficiently cleans metal molds, while the 120kHz frequency enables nano-powder dispersion without harming delicate surfaces. A user-friendly digital control panel allows precise adjustments of time and temperature, ensuring accurate experiment replication.
The integrated degas, pulse, and sweep functions adapt to various experimental protocols: Degas mode optimizes ultrasonic transfer for high-purity solvents; Pulse mode intensifies power bursts to tackle stubborn residues; Sweep mode ensures even cleaning, especially in blind holes. Ideal for chemistry, physics, and materials science courses, the cleaner comes with lab-safe noise reduction features and a secure mesh basket, guaranteeing consistent and reliable results.
Product Features:
- Triple Frequency 40/80/120kHz: Tailored cleaning for graphite block residues, optical fiber debris, fragile print heads, and delicate glassware
- 10 x 50W Transducers – 500W stable ultrasonic power delivery
- 15L Tank (33×30×15cm) with reinforced SUS304 construction, and secure mesh basket.
- Degas Cleaning Mode: Improves ultrasonic transfer for high-purity lab solvents
- Pulse Cleaning Mode: Enhances power bursts for stubborn oil, carbon, wax residues
- Sweep Cleaning Mode: Smooths frequency peaks for uniform blind-hole cleaning
- Digital Heating and Timer Range: Room Temperature – 80℃, programmable up to 9999s
- Noise Reduced Design: Quieter operation <85dB, meets CE + RoHS + FCC compliance
- 1-year “Free Parts” warranty

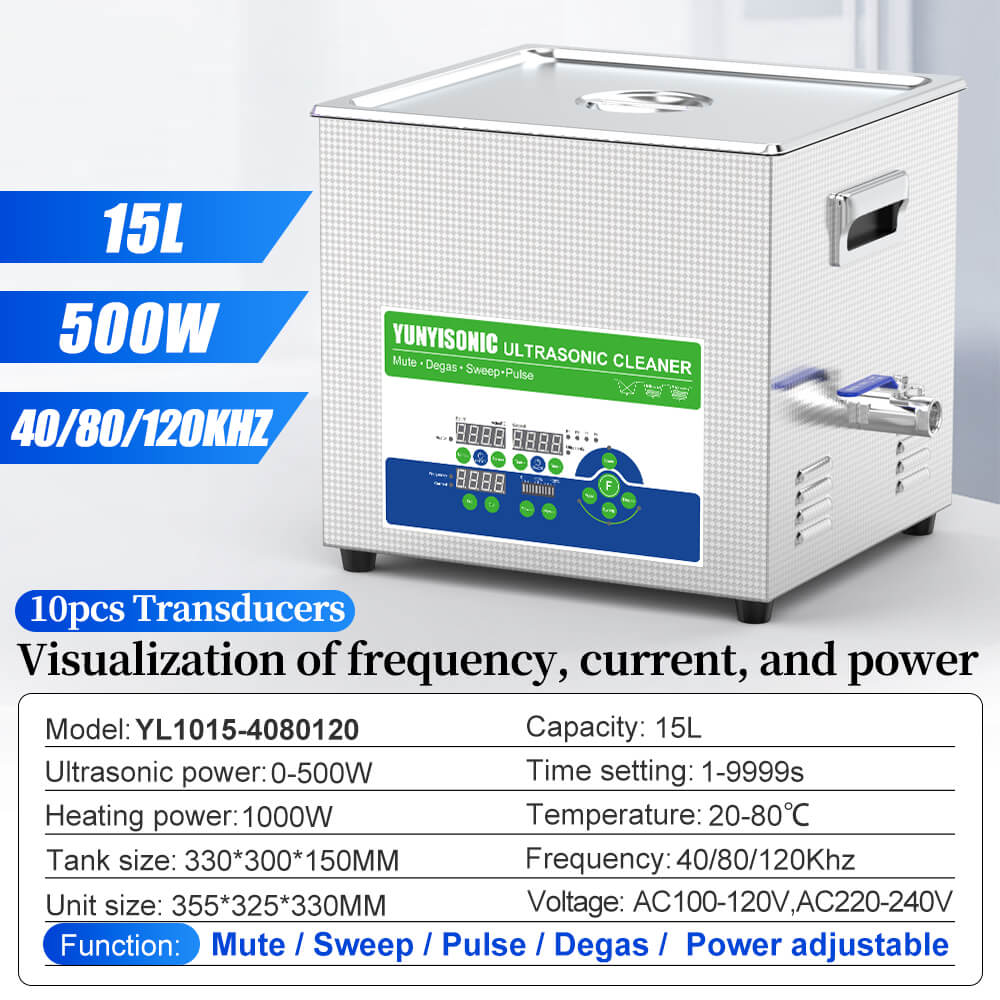

Specification:
| Model | YL1015-4080120 | Transducer No. | 10 pcs |
| Frequency | 40/80/120kHz | Ultrasonic Power | 0-500W |
| Capacity | 15L | Heating Power | 1000W |
| Timer | 1~9999s Adjustable | Tank Material | SUS304 |
| Heater | 20°C – 80°C | Housing Material | SUS304 |
| Tank Size(mm) | 330x300x150 | Unit Size(mm) | 355x325x330 |
| Drain Valve | Yes | Refurbished | No |
| Function | Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-language Panel Optional | ||
| Logo/Pattern | Silk screen printing, Laser Printing, UV printing, PVC, Other | ||
Box Contents:
1 x Professional Ultrasonic Cleaner 1 x Durable Mesh Cleaning Basket One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
One unit filled with thick foam, then standard export corrugated carton or wooden box.
More Units
40/80/120kHz Triple Frequency Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YL0404-4080120 | 4 | 4.5 | 40/80/120 | 0-200 | 450 | 300x150x100 | 325x175x280 |
| YL0406-4080120 | 4 | 6.5 | 40/80/120 | 0-200 | 450 | 300x150x150 | 325x175x330 |
| YL0810-4080120 | 8 | 10 | 40/80/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |

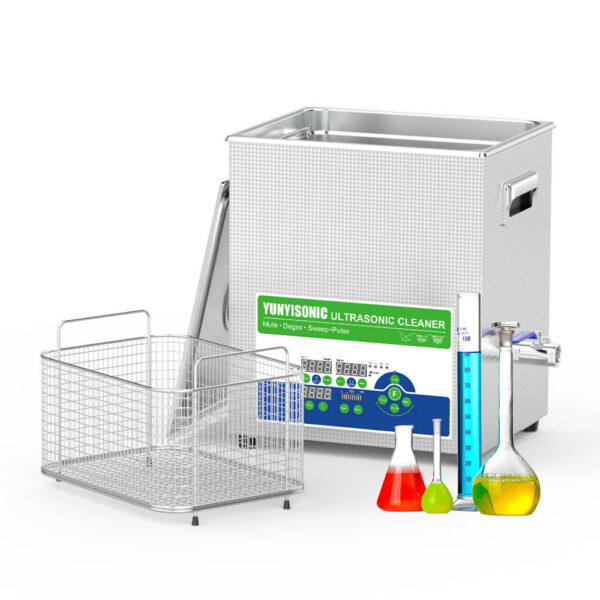

| YL0814-4080120 | 8 | 14 | 40/80/120 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL1015-4080120 | 10 | 15 | 40/80/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1019-4080120 | 10 | 19 | 40/80/120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1622-4080120 | 16 | 22 | 40/80/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1630-4080120 | 16 | 30 | 40/80/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
15L Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YNLH0815-17 | 8 | 15 | 17 | 0–640 | 1000 | 330x300x150 | 430x360x370 |
| YNLH0815-20 | 8 | 15 | 20 | 0-800 | 1000 | 330x300x150 | 430x360x370 |
| YNL1015-25 | 10 | 15 | 25 | 0-500 | 1000 | 330x300x150 | 430x360x370 |
| YL0815-28 | 8 | 15 | 28 | 0-400 | 1000 | 330x300x150 | 355x325x340 |
| YL0815-33 | 8 | 15 | 33 | 0-400 | 1000 | 330x300x150 | 355x325x340 |
| YL0615-40 | 6 | 15 | 40 | 0-300 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-40 | 10 | 15 | 40 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YLS2015-50 | 20 | 15 | 50 | 0–600 | 1000 | 330×300×150 | 355×325×330 |
| YLS2015-53 | 20 | 15 | 53 | 0–700 | 1000 | 330×300×150 | 355×325×330 |
| YL1015-68 | 10 | 15 | 68 | 0-500 | 1000 | 330x300x150 | 355x325x340 |
| YL1015-80 | 10 | 15 | 80 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-120 | 10 | 15 | 120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-130 | 10 | 15 | 130 | 0–600 | 1000 | 330×300×150 | 355×325×330 |
| YLS2015-200 | 20 | 15 | 200 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL0815-2840 | 8 | 15 | 28/40 | 0-400 | 1000 | 330x300x150 | 355x325x340 |
| YL1015-4068 | 10 | 15 | 40/68 | 0-500 | 1000 | 330x300x150 | 355x325x340 |
| YL1015-4080 | 10 | 15 | 40/80 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-40120 | 10 | 15 | 40/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-80120 | 10 | 15 | 80/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YNLH0615-20/40/60 | 6 | 15 | 20/40/60 | 0-720 | 1000 | 330x300x150 | 430x360x370 |
| YL1015-4080100 | 10 | 15 | 40/80/100 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-4080120 | 10 | 15 | 40/80/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-255080120 | 10 | 15 | 25/50/80/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-4080100160 | 10 | 15 | 40/80/100/160 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-4080120170 | 10 | 15 | 40/80/120/170 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
YL Ultrasonic Bath Features
Yunyisonic YL Series Support & FAQ
Precision cleaning is defined by Miniaturization (e.g., wafers, chips, micro-blind holes < 0.1mm) and Low Particle Residue (invisible to the naked eye).
Yunyisonic YL Series Recommendations:
• 200kHz: Dedicated for semiconductor wafers, silicon, and chips.
• 80kHz / 120kHz: Ideal for micro/nano blind holes, high-end optical lenses, and sensitive electronic components.
• 200kHz: Dedicated for semiconductor wafers, silicon, and chips.
• 80kHz / 120kHz: Ideal for micro/nano blind holes, high-end optical lenses, and sensitive electronic components.
Higher frequencies produce smaller, denser cavitation bubbles with high penetration, ensuring cleaning without damaging fragile structures.
Based on our YL Series switchable configurations (Single/Dual/Triple/Quad), we recommend:
| Process | Recommended Frequency | Application Context |
|---|---|---|
| Dispersion | 17-28kHz / 40kHz / 120kHz | 17-28k for large solids; 40k for powders; 120k for micron/nano particles. |
| Emulsification | 28kHz / 40kHz | 28kHz is preferred for higher shearing force. |
| Extraction | 40kHz / 120kHz | 120kHz is standard for intracellular substance extraction. |
| Mixing/Catalysis | 40kHz / 120kHz | 40kHz for routine; 120kHz for micro-particle homogenization. |
| Synthesis | 80kHz / 120kHz | Used for molecular aggregation and new material synthesis. |
| Environmental | 20kHz | Unified recommendation for sewage, sludge, and algae treatment. |
💡 Pro Tip: For dispersion, always identify if your particles are solid chunks, powders, or nano-scale before choosing.
We use high-grade stainless steel with different specifications based on the frequency to ensure durability and cavitation resistance:
| Frequency Range | Inner Tank (SUS304) | Outer Shell | Process Details |
|---|---|---|---|
| 28kHz - 200kHz | 1.5 mm Thickness | SUS304 (1.0 mm) | Precision industrial grade. |
| 25kHz | 2.0 mm Thickness | SUS201 (1.0 mm) | Thickened tank; Manual oxy-acetylene welding. |
| 17kHz & 20kHz | 3.0 mm Thickness | SUS201 (1.0 mm) | Ultra-thickened tank; Manual oxy-acetylene welding. |
The Manual oxy-acetylene welding process is specifically used for low-frequency units to withstand the intense cavitation energy generated by high-power transducers.
Our YL Series is equipped with advanced functions to enhance experimental accuracy:
- Sweep Mode: Automatically sweeps ±1kHz around the main frequency to eliminate standing waves and ensure every transducer operates at peak efficiency.
- Degas Mode: Uses pulse intervals (e.g., 5s on/off) to remove dissolved air and chlorine from reagents, crucial for HPLC and lab preparations.
- Pulse Mode: Cycles power from 100% to 0% repeatedly, creating a "blasting" effect to remove tough or baked-on residues.
The difference lies in the Full-Bridge Separately Excited PCB vs. cheap self-excited boards:
- Visualized Data: Our interface shows real-time Power, Frequency, and Current—essential for recording experimental data.
- High Power Density: We maintain a standard ≥ 0.3W/cm². Power Density = Output Power (W) / Radiation Area (cm²)
- Low-Noise Design: Advanced acoustic insulation keeps 68kHz+ units under 80dB, compared to 110dB+ in standard models.
- Reliability: Industrial-grade components ensure a near-zero failure rate even under heavy lab workloads.
Beaker Matching:
• Beaker ≤ 500mL → 3.2L to 6.5L Tank.
• Beaker ≥ 800mL → 10L to 30L Tank (10L is the most popular choice for lab efficiency).
Temperature Management:
Ultrasonic vibration naturally generates heat. While our YL series supports up to 80°C, cavitation effectiveness drops significantly above 80°C. Industry leaders like Branson and Elma also stop activity above 72°C for this reason. To maintain low temperatures, we recommend using ice packs or a cooling condensation system.
If the specific model is currently out of stock, the standard production lead times are as follows:
- 28kHz - 200kHz (Single, Dual, Triple, or Quad frequency): 3 - 5 business days for shipping.
- Low Frequency (17kHz, 20kHz, and 25kHz): 14 - 20 business days for shipping.
*Note: Lead times may vary slightly based on customization requirements (e.g., 485 ports or PLC integration). Please contact us for the most accurate shipping schedule.
Frequency determines the wavelength and the intensity of bubble collapse:
Wavelength (λ) = 1,450,000 (mm/s) / Frequency (Hz)
- 20kHz (λ ≈ 72.5mm): Large bubbles, brute force. Best for heavy rust/oil. Feel: Strong vibration.
- 40kHz (λ ≈ 36.2mm): Universal frequency. Best for general labware. Feel: Gentle tingling.
- 120kHz (λ ≈ 12.0mm): Micro bubbles, high penetration. Best for nano-scale work. Feel: Deep vibration felt in the bone.
Specification
Product Specifications
| Brand | Yunyisonic |
|---|---|
| Origin | Shenzhen City, China |
| Capacity | 15L |
| Frequency | 40/80/120kHz |
| Power | 0-500W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Dispersion, Dissolution, Extraction, Separation, Washing |
| Function | Clean Thoroughly, Degassing, Digital Control, Heating, Noise Reduction, Power Adjustable, Pulse, Sweep, Timing |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | 17.7 kg |
|---|---|
| Package Dimensions | 46 × 41 × 40 cm |
