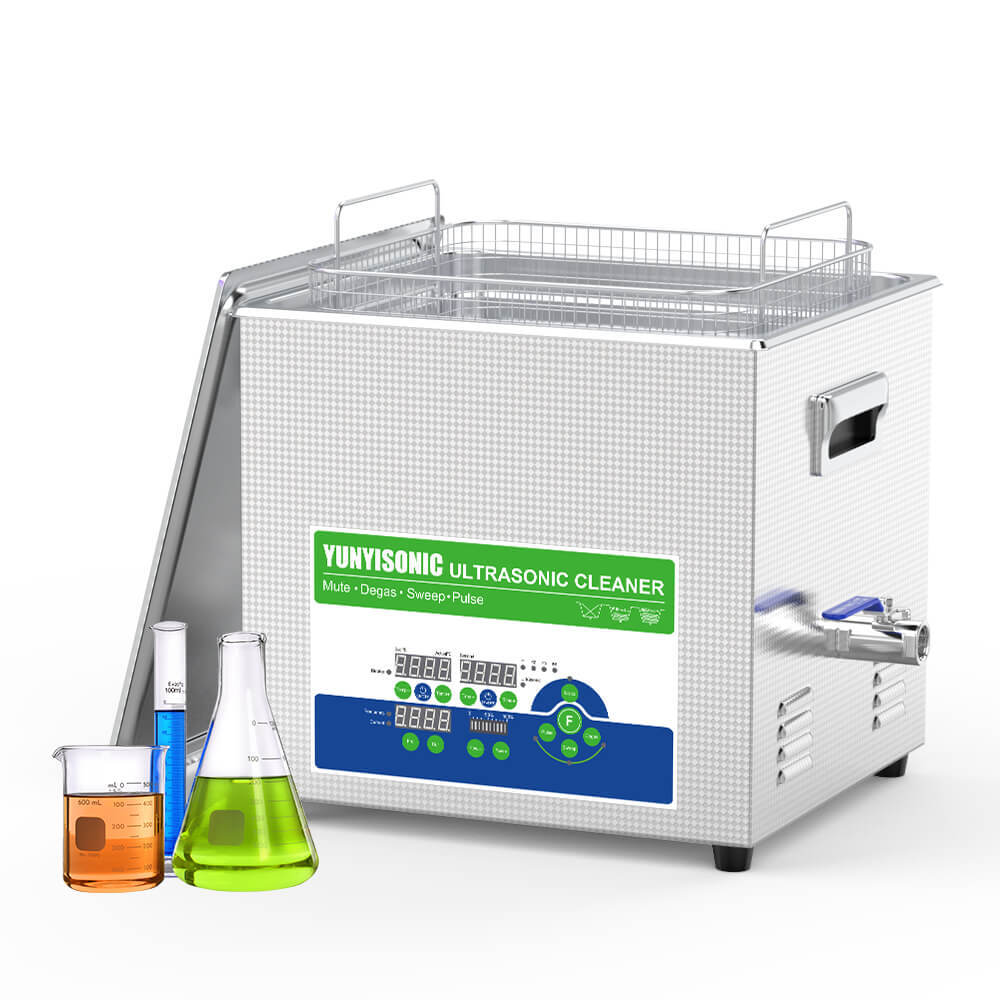

15L Quad-Frequency Ultrasonic Bath, 25/50/80/120kHz, Adjustable Power 0–500W
- Multi-frequency ultrasound supports precise control of emulsifying, homogenizing, and dispersing tasks.
- Effective for chemical reaction acceleration, nanoparticle dispersion, and preparation of stable suspensions.
- Digital temperature, timing, and robust SUS304 tank ensure consistency and repeatability.
$1,423.00piece
11
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description
In instructional laboratories, showcase sonochemical effects using the 15L YL1015-255080120. Begin at 25 kHz to remove soil from beakers, transition to 50 kHz for stable emulsions, then adjust to 80 kHz for routine glass slide cleaning, and conclude at 120 kHz to demonstrate microchannels in 3D-printed prototypes. Ten precision transducers deliver 500W of energy. Sweep and degas cycles enable students to explore frequency-dependent cavitation through an intuitive digital interface.
Product Features:
- Quad 25/50/80/120kHz Cleaning：From graphite block degreasing to fiber-optic strand dispersion
- 10 × 50W Transducers = 500W of adjusttable ultrasonic power
- 15L SUS304 Tank (330×300×150 mm) for batch-processing up to 30 small parts
- Durable basket (290 × 260 × 90mm) fits two 2000mL beakers (d=138mm h=195mm) side by side
- Degas Optimization enhances solvent purity for precise laboratory assays
- Pulse & Sweep Modes eliminate stubborn biofilms and oil residues
- Programmable timer (1–9999s) and heating control (20–80°C)
- Quieter Low noise operation and CE/RoHS/FCC compliance—perfect for OEM and volume orders

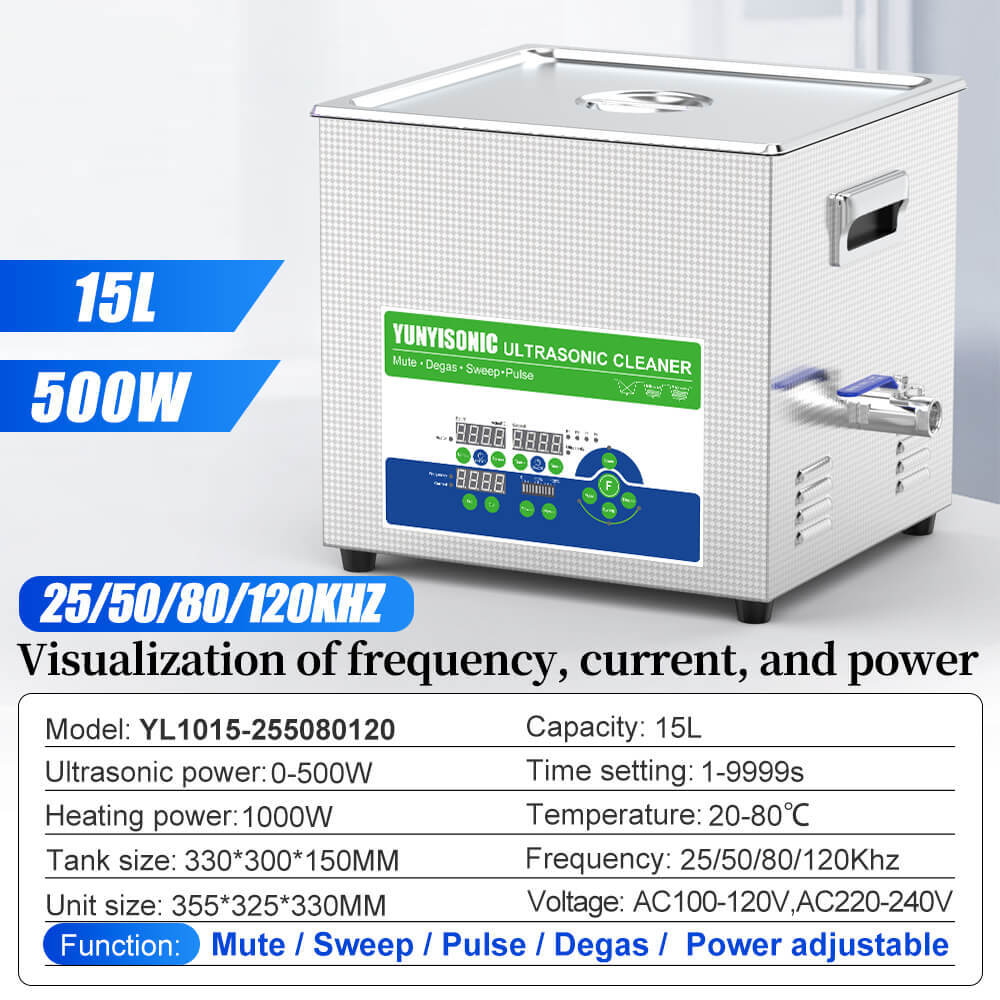

Specification:
| Model | YL1015-255080120 | Transducer No. | 10 pcs |
| Frequency | 25/50/80/120kHz | Ultrasonic Power | 0-500W |
| Capacity | 15L | Heating Power | 1000W |
| Timer | 1~9999s Adjustable | Tank Material | SUS304 |
| Heater | 20°C – 80°C | Housing Material | SUS304 |
| Tank Size(mm) | 330x300x150 | Unit Size(mm) | 355x325x330 |
| Drain Valve | Yes | Refurbished | No |
| Function | Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-Language Interface Optional | ||
| Logo/Pattern | Silk screen printing, Laser Printing, UV printing, PVC, Other | ||
Box Contents:
1 x Professional Ultrasonic Cleaner 1 x Durable Mesh Cleaning Basket One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
One unit filled with thick foam, then standard export corrugated carton or wooden box.
More Units
25/50/80/120kHz Four Frequency Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YL0810-255080120 | 8 | 10 | 25/50/80/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0814-255080120 | 8 | 14 | 25/50/80/120 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL1015-255080120 | 10 | 15 | 25/50/80/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1019-255080120 | 10 | 19 | 25/50/80/120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1622-255080120 | 16 | 22 | 25/50/80/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1630-255080120 | 16 | 30 | 25/50/80/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
15L Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YNLH0815-17 | 8 | 15 | 17 | 0–640 | 1000 | 330x300x150 | 430x360x370 |
| YNLH0815-20 | 8 | 15 | 20 | 0-800 | 1000 | 330x300x150 | 430x360x370 |
| YNL1015-25 | 10 | 15 | 25 | 0-500 | 1000 | 330x300x150 | 430x360x370 |
| YL0815-28 | 8 | 15 | 28 | 0-400 | 1000 | 330x300x150 | 355x325x340 |
| YL0815-33 | 8 | 15 | 33 | 0-400 | 1000 | 330x300x150 | 355x325x340 |
| YL0615-40 | 6 | 15 | 40 | 0-300 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-40 | 10 | 15 | 40 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YLS2015-50 | 20 | 15 | 50 | 0–600 | 1000 | 330×300×150 | 355×325×330 |
| YLS2015-53 | 20 | 15 | 53 | 0–700 | 1000 | 330×300×150 | 355×325×330 |
| YL1015-68 | 10 | 15 | 68 | 0-500 | 1000 | 330x300x150 | 355x325x340 |
| YL1015-80 | 10 | 15 | 80 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-120 | 10 | 15 | 120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-130 | 10 | 15 | 130 | 0–600 | 1000 | 330×300×150 | 355×325×330 |
| YLS2015-200 | 20 | 15 | 200 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL0815-2840 | 8 | 15 | 28/40 | 0-400 | 1000 | 330x300x150 | 355x325x340 |
| YL1015-4068 | 10 | 15 | 40/68 | 0-500 | 1000 | 330x300x150 | 355x325x340 |
| YL1015-4080 | 10 | 15 | 40/80 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-40120 | 10 | 15 | 40/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-80120 | 10 | 15 | 80/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YNLH0615-20/40/60 | 6 | 15 | 20/40/60 | 0-720 | 1000 | 330x300x150 | 430x360x370 |
| YL1015-4080100 | 10 | 15 | 40/80/100 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-4080120 | 10 | 15 | 40/80/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-255080120 | 10 | 15 | 25/50/80/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-4080100160 | 10 | 15 | 40/80/100/160 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1015-4080120170 | 10 | 15 | 40/80/120/170 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
YL Ultrasonic Bath Features
Specification
Product Specifications
| Brand |
Yunyisonic |
|---|---|
| Origin |
Shenzhen City, China |
| Capacity | |
| Frequency | |
| Power | |
| Timer |
1-9999s |
| Heater |
RT~80°C |
| Voltage |
AC 110V 60Hz；AC 220V 50Hz |
| Plug Type |
EU Plug ,US Plug ,AU Plug ,Other Plugs ,UK Plug |
| Certificates |
CE ,FCC ,ROHS |
| Warranty |
1 Year |
| Tank Material |
SUS304 Stainless Steel |
| Housing Material |
SUS304 Stainless Steel |
| Customization |
485 Port ,Frequency ,PLC System ,Tanks Numbers |
| Assisted Systems Yunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | , , , , , |
| Function | , , , , , , , , |
| Manufacturer |
Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | 18.1 kg |
|---|---|
| Package Dimensions | 46 × 41 × 40 cm |
