  1. Supports cell disruption, biochemical extraction, and precise sample preparation at various ultrasonic frequencies.
  2. Sweep and pulse modes deliver precise control over cavitation intensity.
  3. Ideal for universities, biochemical labs, and advanced research facilities.
SKU: YL1622-255080120

$1,718.50 piece

17 People watching this product now!
Standards
CEFCCRoHS
ISO Standard Quality Management
Global Safety Certified
Technical Manuals Download (PDF)
  • Warranty 1 year

More details

  • 30-Day returns

More details

Payment Methods:

Description

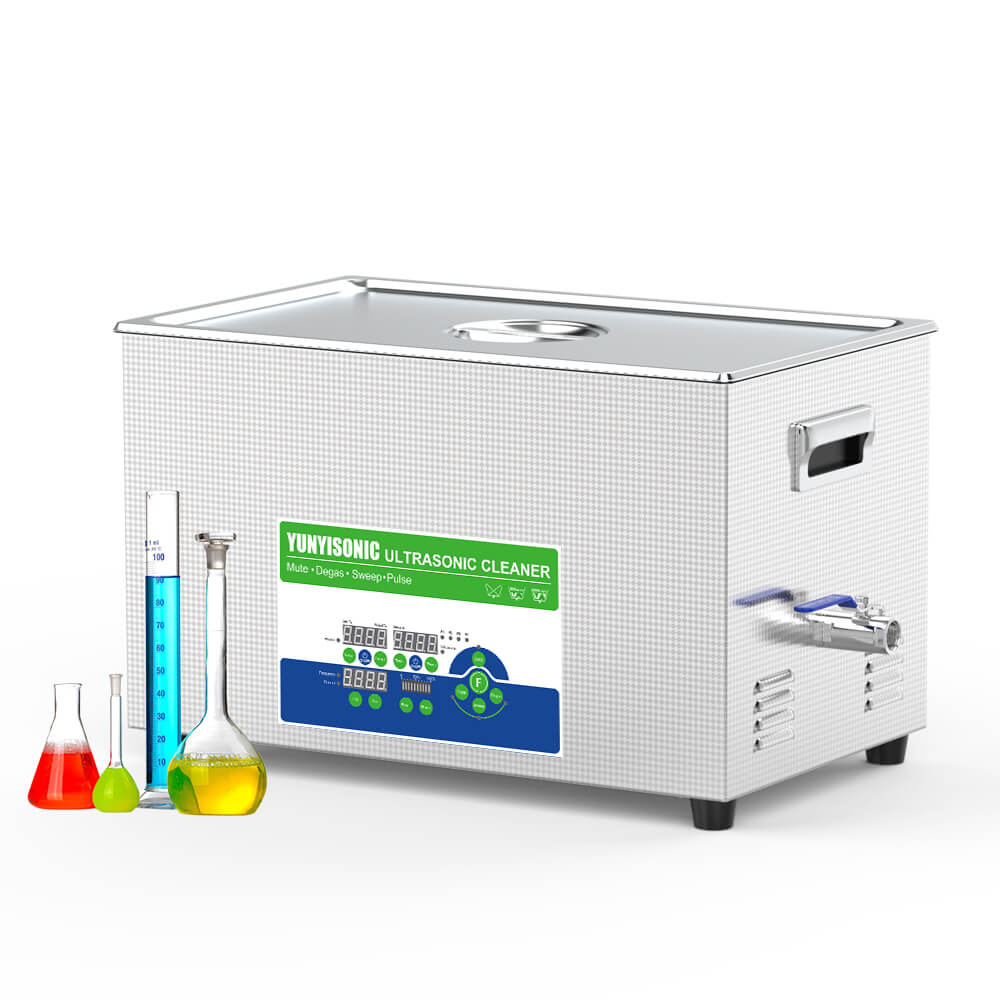

This 22L YL1622-255080120 ultrasonic cleaning system is a true all-in-one platform that handles dozens of  workloads with unmatched flexibility: the Quad frequencies (25/50/80/120 kHz) adapt to each cleaning phase: coarse oil removal, dye particle dispersion, gentle polishing, and nano-slot decontamination; 25 kHz breaks down heavy carbon deposits on machine parts; 50 kHz mixes reagents and emulsions; 80 kHz gently cleans jewelry, watches, and medical tools; and 120 kHz penetrates nano-blind holes in photonics and record-cleaning applications. Sixteen 50W transducers (800W total) plus power adjustable, digital timer and heater ensure every cycle is optimized. Degas-Sweep-Pulse trio Cleaning ensures uniform action in deep loads. Low noise (<90 dB) and robust construction make it perfect for batch QC, pilot studies, and continuous production lines under global compliance (CE/RoHS/FCC standards).

25/50/80/120kHz Switchable Quad-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power

Product Features:

  • Quad 25/50/80/120kHz Cleaning：From graphite block degreasing to fiber-optic strand dispersion
  • 16 × 50W Transducers = 800W of adjustable ultrasonic power
  • 30L SUS304 Tank (500×300×150 mm) for batch-processing up to 5 medium parts

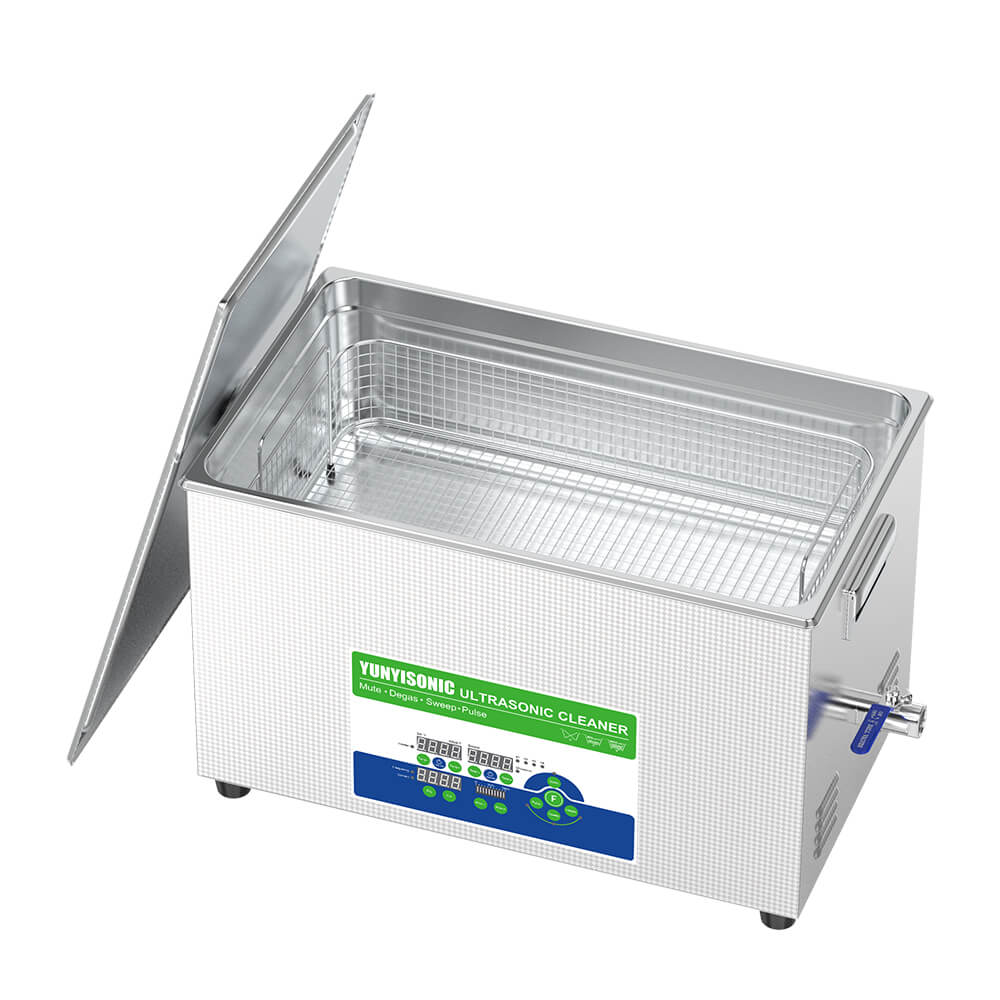

  • Durable basket (450 × 260 × 90mm) fits two 3000 mL beakers (d=160mm h=248mm) side by side
  • Dega-Sweep-Pulse trio Cleaning guarantees bubble-free solvents, uniform cavitation, and up to 30 % faster cycle times
  • Degas Optimization enhances solvent purity for precise laboratory assays
  • Pulse & Sweep Modes eliminate stubborn biofilms and oil residues
  • Programmable timer (1–9999s) and heating control (20–80°C)
  • Quieter Low noise operation — perfect for OEM and volume orders

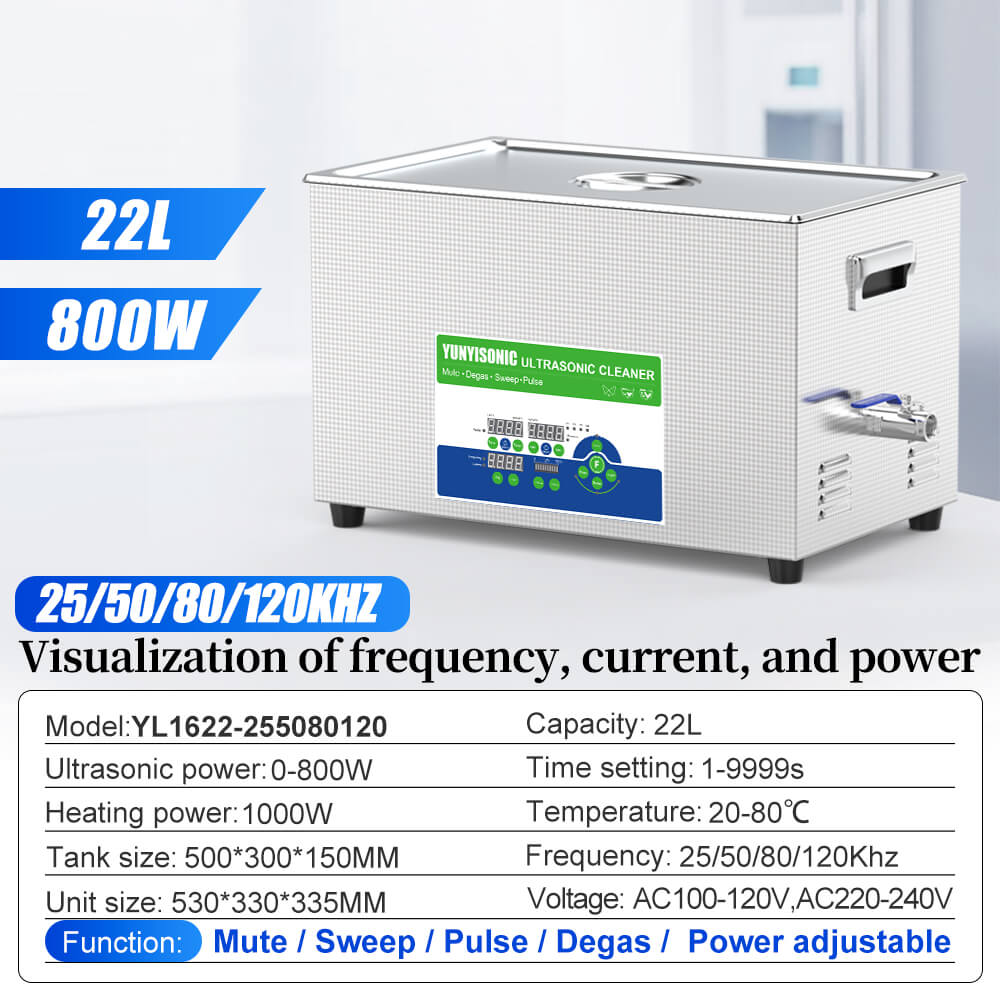

Specification:

Model YL1622-255080120 Transducer No. 16pcs
Frequency 25/50/80/120kHz Ultrasonic Power 0-800W
Capacity 22L Heating Power 1000W
Timer 1~9999s Adjustable Tank Material SUS304
Heater 20°C – 80°C Housing Material SUS304
Tank Size(mm) 500x300x150 Unit Size(mm) 530x330x335
Drain Valve Yes Refurbished No
Function Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-Language Interface Optional
Logo/Pattern Silk screen printing, Laser Printing, UV printing, PVC, Other

Box Contents:

1 x Professional Ultrasonic Cleaner

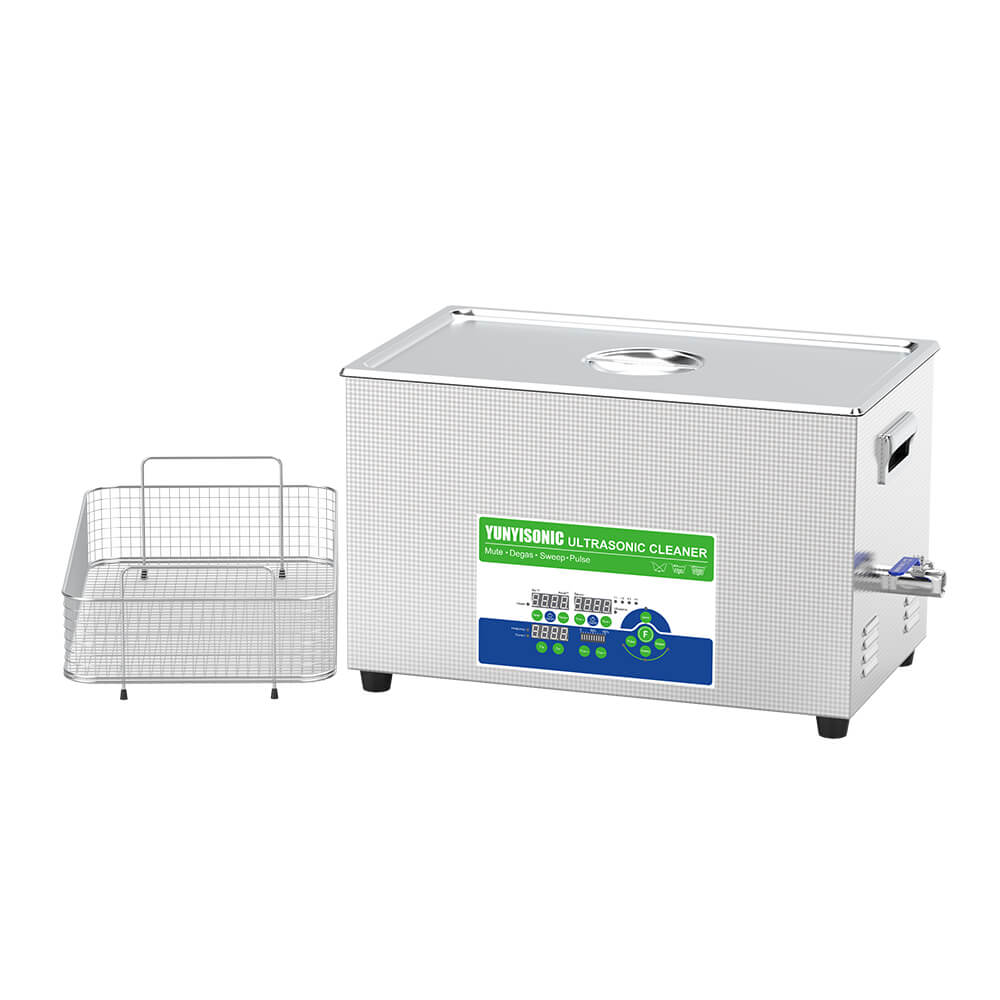

1 x Durable Mesh Cleaning Basket
One cover, one power cord, one manual warranty card certificate of conformity.

Packing type:

One unit filled with thick foam, then standard export corrugated carton or wooden box.

More Units

25/50/80/120kHz Switchable Quad-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power

25/50/80/120kHz Four Frequency Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model Transducers Cap Frequency UT Power Heat Pwr Size(LxWxH mm)
(PCS) (L) (kHz) (W) (W) Tank Unit
YL0810-255080120 8 10 25/50/80/120 0-400 600 300x240x150 325x265x330
YL0814-255080120 8 14 25/50/80/120 0-400 600 300x240x200 325x265x380
YL1015-255080120 10 15 25/50/80/120 0-500 1000 330x300x150 355x325x330
YL1019-255080120 10 19 25/50/80/120 0-500 1000 330x300x200 355x325x380
YL1622-255080120 16 22 25/50/80/120 0-800 1000 500x300x150 530x330x335
YL1630-255080120 16 30 25/50/80/120 0-800 1000 500x300x200 530x330x385

22L Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model Transducers Cap Frequency UT Power Heat Pwr Size(LxWxH mm)
(PCS) (L) (kHz) (W) (W) Tank Unit
YNLH1422-17 14 22 17 0–1120 1000 500x300x150 600x360x380
YNLH1422-20 14 22 20 0-1400 1000 500x300x150 600x360x380
YNL1622-25 16 22 25 0-800 1000 500x300x150 600x360x380
YL1422-28 14 22 28 0-700 1000 500x300x150 530x330x345
YL1422-33 14 22 33 0-700 1000 500x300x150 530x330x345
YL1022-40 10 22 40 0-500 1000 500x300x150 530x330x335
YL1622-40 16 22 40 0-800 1000 500x300x150 530x330x335
YLS3222-50 32 22 50 0–960 1000 500×300×150 530×330×335
YLS3222-53 32 22 53 0–1120 1000 500×300×150 530×330×335
YL1622-68 16 22 68 0-800 1000 500x300x150 530x330x345
YL1622-80 16 22 80 0-800 1000 500x300x150 530x330x335
YL1622-120 16 22 120 0-800 1000 500x300x150 530x330x335
YL1622-130 16 22 130 0–960 1000 500×300×150 530×330×335
YLS3222-200 32 22 200 0-800 1000 500x300x150 530x330x335
YL1422-2840 14 22 28/40 0-700 1000 500x300x150 530x330x345
YL1622-4068 16 22 40/68 0-800 1000 500x300x150 530x330x345
YL1622-4080 16 22 40/80 0-800 1000 500x300x150 530x330x335
YL1622-40120 16 22 40/120 0-800 1000 500x300x150 530x330x335
YL1622-80120 16 22 80/120 0-800 1000 500x300x150 530x330x335
YNLH1022-20/40/60 10 22 20/40/60 0-1200 1000 500x300x150 600x360x380
YL1622-4080100 16 22 40/80/100 0-800 1000 500x300x150 530x330x335
YL1622-4080120 16 22 40/80/120 0-800 1000 500x300x150 530x330x335
YL1622-255080120 16 22 25/50/80/120 0-800 1000 500x300x150 530x330x335
YL1622-4080100160 16 22 40/80/100/160 0-800 1000 500x300x150 530x330x335
YL1622-4080120170 16 22 40/80/120/170 0-800 1000 500x300x150 530x330x335

YL Ultrasonic Bath Features

  • 25/50/80/120kHz Switchable Quad-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • YL Series ultrasonic cleaner features summary
  • 25/50/80/120kHz Switchable Quad-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 25/50/80/120kHz Switchable Quad-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 25/50/80/120kHz Switchable Quad-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 25/50/80/120kHz Switchable Quad-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 25/50/80/120kHz Switchable Quad-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 25/50/80/120kHz Switchable Quad-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power
  • 25/50/80/120kHz Switchable Quad-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power

Technical Documents & Catalogues

Yunyisonic YL-Lab Multi-function Bath Spec Sheet - Low Noise | Sweep | Pulse | Degas | 17-200kHz [Download]

Yunyisonic YL Series Support & FAQ

Precision cleaning is defined by Miniaturization (e.g., wafers, chips, micro-blind holes < 0.1mm) and Low Particle Residue (invisible to the naked eye).

Yunyisonic YL Series Recommendations:
• 200kHz: Dedicated for semiconductor wafers, silicon, and chips.
• 80kHz / 120kHz: Ideal for micro/nano blind holes, high-end optical lenses, and sensitive electronic components.

Higher frequencies produce smaller, denser cavitation bubbles with high penetration, ensuring cleaning without damaging fragile structures.

Based on our YL Series switchable configurations (Single/Dual/Triple/Quad), we recommend:

ProcessRecommended FrequencyApplication Context
Dispersion17-28kHz / 40kHz / 120kHz17-28k for large solids; 40k for powders; 120k for micron/nano particles.
Emulsification28kHz / 40kHz28kHz is preferred for higher shearing force.
Extraction40kHz / 120kHz120kHz is standard for intracellular substance extraction.
Mixing/Catalysis40kHz / 120kHz40kHz for routine; 120kHz for micro-particle homogenization.
Synthesis80kHz / 120kHzUsed for molecular aggregation and new material synthesis.
Environmental20kHzUnified recommendation for sewage, sludge, and algae treatment.

💡 Pro Tip: For dispersion, always identify if your particles are solid chunks, powders, or nano-scale before choosing.

We use high-grade stainless steel with different specifications based on the frequency to ensure durability and cavitation resistance:

Frequency RangeInner Tank (SUS304)Outer ShellProcess Details
28kHz - 200kHz 1.5 mm Thickness SUS304 (1.0 mm) Precision industrial grade.
25kHz 2.0 mm Thickness SUS201 (1.0 mm) Thickened tank; Manual oxy-acetylene welding.
17kHz & 20kHz 3.0 mm Thickness SUS201 (1.0 mm) Ultra-thickened tank; Manual oxy-acetylene welding.

The Manual oxy-acetylene welding process is specifically used for low-frequency units to withstand the intense cavitation energy generated by high-power transducers.

Our YL Series is equipped with advanced functions to enhance experimental accuracy:

  • Sweep Mode: Automatically sweeps ±1kHz around the main frequency to eliminate standing waves and ensure every transducer operates at peak efficiency.
  • Degas Mode: Uses pulse intervals (e.g., 5s on/off) to remove dissolved air and chlorine from reagents, crucial for HPLC and lab preparations.
  • Pulse Mode: Cycles power from 100% to 0% repeatedly, creating a "blasting" effect to remove tough or baked-on residues.

The difference lies in the Full-Bridge Separately Excited PCB vs. cheap self-excited boards:

  1. Visualized Data: Our interface shows real-time Power, Frequency, and Current—essential for recording experimental data.
  2. High Power Density: We maintain a standard ≥ 0.3W/cm². Power Density = Output Power (W) / Radiation Area (cm²)
  3. Low-Noise Design: Advanced acoustic insulation keeps 68kHz+ units under 80dB, compared to 110dB+ in standard models.
  4. Reliability: Industrial-grade components ensure a near-zero failure rate even under heavy lab workloads.

Beaker Matching:
• Beaker ≤ 500mL → 3.2L to 6.5L Tank.
• Beaker ≥ 800mL → 10L to 30L Tank (10L is the most popular choice for lab efficiency).

Temperature Management:
Ultrasonic vibration naturally generates heat. While our YL series supports up to 80°C, cavitation effectiveness drops significantly above 80°C. Industry leaders like Branson and Elma also stop activity above 72°C for this reason. To maintain low temperatures, we recommend using ice packs or a cooling condensation system.

If the specific model is currently out of stock, the standard production lead times are as follows:

  • 28kHz - 200kHz (Single, Dual, Triple, or Quad frequency): 3 - 5 business days for shipping.
  • Low Frequency (17kHz, 20kHz, and 25kHz): 14 - 20 business days for shipping.

*Note: Lead times may vary slightly based on customization requirements (e.g., 485 ports or PLC integration). Please contact us for the most accurate shipping schedule.

Frequency determines the wavelength and the intensity of bubble collapse:

Wavelength (λ) = 1,450,000 (mm/s) / Frequency (Hz)
  • 20kHz (λ ≈ 72.5mm): Large bubbles, brute force. Best for heavy rust/oil. Feel: Strong vibration.
  • 40kHz (λ ≈ 36.2mm): Universal frequency. Best for general labware. Feel: Gentle tingling.
  • 120kHz (λ ≈ 12.0mm): Micro bubbles, high penetration. Best for nano-scale work. Feel: Deep vibration felt in the bone.

Not sure which frequency fits your needs?

Our technical engineers are ready to provide a customized solution for your specific application.

Get Expert Advice

Bulk Orders & Business Support

Need assistance with bulk orders, OEM customization, international freight, or lead times?

  • Volume pricing for bulk purchases
  • International freight & pallet shipping
  • OEM / private label support
  • Production lead time information

Specification

Product Specifications

BrandYunyisonic
OriginShenzhen City, China
Capacity
Frequency
Power
Timer1-9999s
HeaterRT~80°C
Tank MaterialSUS304 Stainless Steel
Housing MaterialSUS304 Stainless Steel
VoltageAC 110V 60Hz；AC 220V 50Hz
Plug TypeAU Plug, EU Plug, Other Plugs, UK Plug, US Plug
CertificatesCE, FCC, RoHS
Warranty1 Year
Customization485 Port, Frequency, PLC System, Tanks Numbers
Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing
Function
ManufacturerYunyisonic Shenzhen Co., Ltd.

Packaging

Volumetric Weight24.6 kg
Package Dimensions63.5 × 40.5 × 40 cm

Customer Reviews

0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “25/50/80/120kHz Switchable Quad-Frequency Ultrasonic Bath, 22L Capacity, 0–800W Adjustable Power”

Related Products

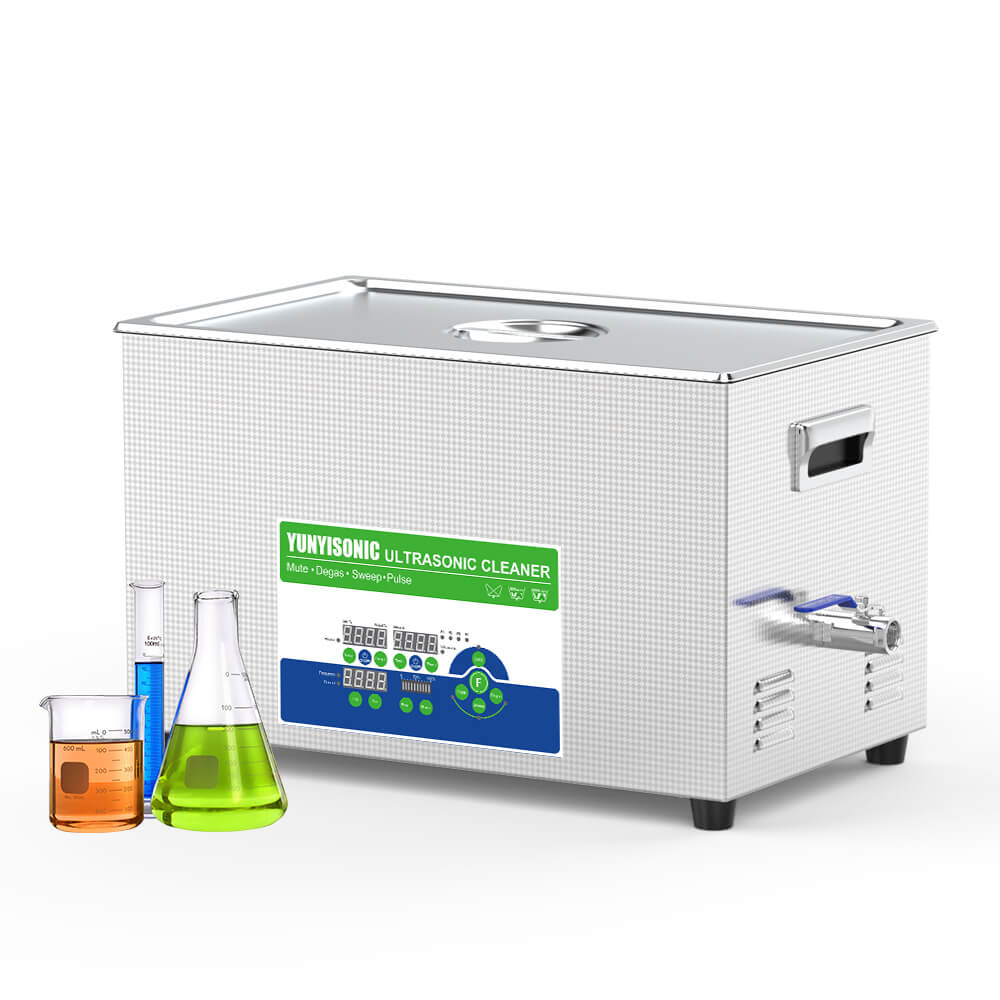

Multi-Frequency ultrasonic cleaning system assisted dispersion separation dissolution
Quick view

20kHz Single-Frequency Ultrasonic Bath, 15L Capacity, 0–800W Adjustable Power

In stock

$869.67 piece
Add to cart
Volumetric Weight44.25 kg
Package Dimensions53 × 45 × 45 cm
BrandYunyisonic
OriginShenzhen City, China
Capacity
Frequency
Power
Timer1-9999s
HeaterRT~80°C
VoltageAC 110V 60Hz；AC 220V 50Hz
Plug TypeAU Plug, EU Plug, Other Plugs, UK Plug, US Plug
CertificatesCE, FCC, RoHS
Warranty1 Year
Tank MaterialSUS304 Stainless Steel
Housing MaterialSUS304 Stainless Steel
Customization485 Port, Frequency, PLC System, Tanks Numbers
Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing
Function
ManufacturerYunyisonic Shenzhen Co., Ltd.
4.8L 200W 20kHz ultrasonic assisted system with homogenization and cleaning view in lab setting
Quick view

20kHz Single-Frequency Ultrasonic Bath, 4.8L Capacity, 0–200W Adjustable Power

In stock

$423.00 piece
Add to cart
Volumetric Weight14.60 kg
Package Dimensions40 × 27 × 45 cm
BrandYunyisonic
OriginShenzhen City, China
Capacity
Frequency
Power
Timer1-9999s
HeaterRT~80°C
Tank MaterialSUS304 Stainless Steel
Housing MaterialSUS304 Stainless Steel
VoltageAC 110V 60Hz；AC 220V 50Hz
Plug TypeAU Plug, EU Plug, Other Plugs, UK Plug, US Plug
CertificatesCE, FCC, RoHS
Warranty1 Year
Customization485 Port, Frequency, PLC System, Tanks Numbers
Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing
Function
ManufacturerYunyisonic Shenzhen Co., Ltd.
YL series 19L 500W 25kHz ultrasonic assisted emulsification and mixing equipment
Quick view

25kHz Single-Frequency Ultrasonic Bath, 19L Capacity, 0–500W Adjustable Power

In stock

$852.35 piece
Add to cart
Volumetric Weight46 kg
Package Dimensions53 × 45 × 53 cm
BrandYunyisonic
OriginShenzhen City, China
Capacity
Frequency
Power
Timer1-9999s
HeaterRT~80°C
Tank MaterialSUS304 Stainless Steel
Housing MaterialSUS304 Stainless Steel
VoltageAC 110V 60Hz；AC 220V 50Hz
Plug TypeAU Plug, EU Plug, Other Plugs, UK Plug, US Plug
CertificatesCE, FCC, RoHS
Warranty1 Year
Customization485 Port, Frequency, PLC System, Tanks Numbers
Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing
Function
ManufacturerYunyisonic Shenzhen Co., Ltd.
Yunyisonic laboratory 3.2L 150W 25kHz ultrasonic assisted mixing emulsifying system view in lab setting
Quick view

25kHz Single-Frequency Ultrasonic Bath, 3.2L Capacity, 0–150W Adjustable Power

In stock

$367.23 piece
Add to cart
Volumetric Weight12.5 kg
Package Dimensions43 × 24 × 40 cm
BrandYunyisonic
OriginShenzhen City, China
Capacity
Frequency
Power
Timer1-9999s
HeaterRT~80°C
Tank MaterialSUS304 Stainless Steel
Housing MaterialSUS304 Stainless Steel
VoltageAC 110V 60Hz；AC 220V 50Hz
Plug TypeAU Plug, EU Plug, Other Plugs, UK Plug, US Plug
CertificatesCE, FCC, RoHS
Warranty1 Year
Customization485 Port, Frequency, PLC System, Tanks Numbers
Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing
Function
ManufacturerYunyisonic Shenzhen Co., Ltd.
3.2L 100W 33kHz Laboratory Cleaning Glassware
Quick view

33kHz Single-Frequency Ultrasonic Bath, 3.2L Capacity, 0–100W Adjustable Power

In stock

$182.45 piece
Add to cart
Volumetric Weight6.0 kg
Package Dimensions35 × 24.5 × 35 cm
BrandYunyisonic
OriginShenzhen City, China
Capacity
Frequency
Power
Timer1-9999s
HeaterRT~80°C
Tank MaterialSUS304 Stainless Steel
Housing MaterialSUS304 Stainless Steel
VoltageAC 110V 60Hz；AC 220V 50Hz
Plug TypeAU Plug, EU Plug, Other Plugs, UK Plug, US Plug
CertificatesCE, FCC, RoHS
Warranty1 Year
Customization485 Port, Frequency, PLC System, Tanks Numbers
Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing
Function
ManufacturerYunyisonic Shenzhen Co., Ltd.
Laboratory Equipment 4.8L 100W Ultrasonic Assisted Mixing Liquid Washing Surgical Scissors Extraction
Quick view

33kHz Single-Frequency Ultrasonic Bath, 4.8L Capacity, 0–100W Adjustable Power

In stock

$198.73 piece
Add to cart
Volumetric Weight6.9 kg
Package Dimensions35 × 25 × 40 cm
BrandYunyisonic
OriginShenzhen City, China
Capacity
Frequency
Power
Timer1-9999s
HeaterRT~80°C
Tank MaterialSUS304 Stainless Steel
Housing MaterialSUS304 Stainless Steel
VoltageAC 110V 60Hz；AC 220V 50Hz
Plug TypeAU Plug, EU Plug, Other Plugs, UK Plug, US Plug
CertificatesCE, FCC, RoHS
Warranty1 Year
Customization485 Port, Frequency, PLC System, Tanks Numbers
Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing
Function
ManufacturerYunyisonic Shenzhen Co., Ltd.
