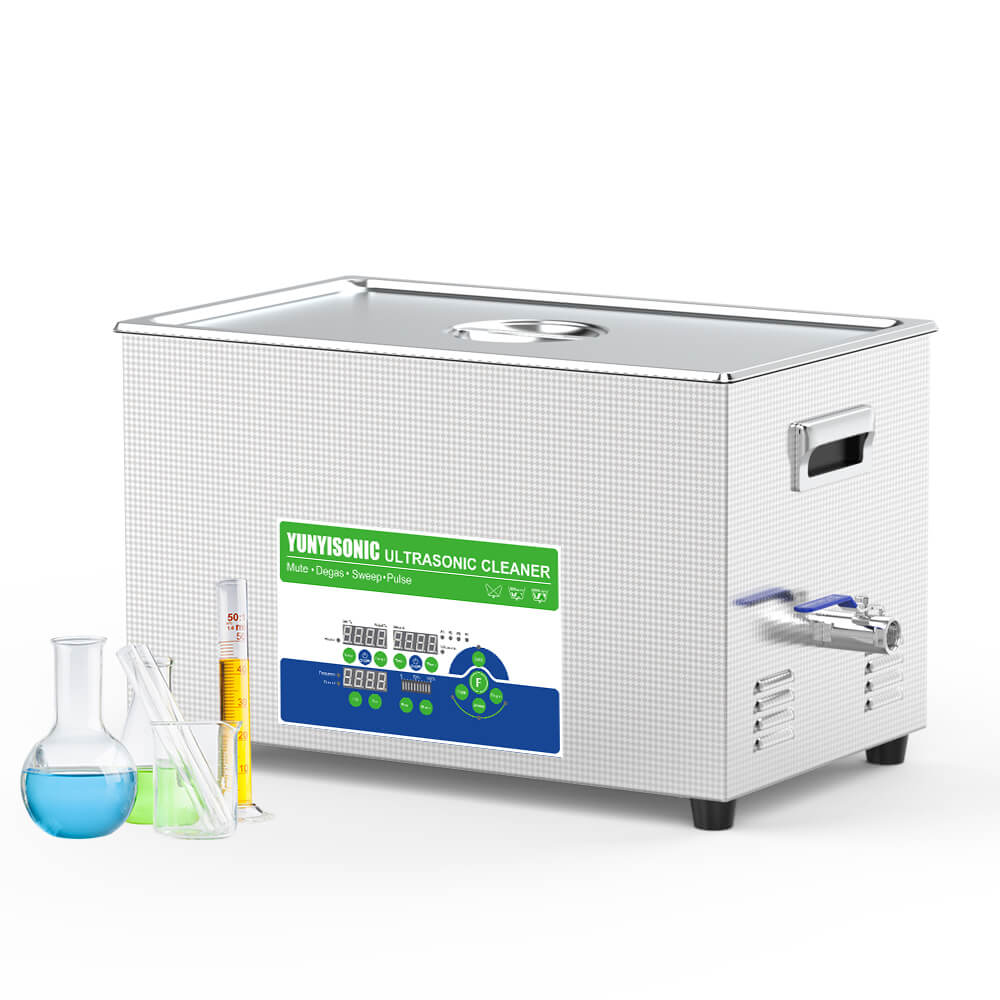

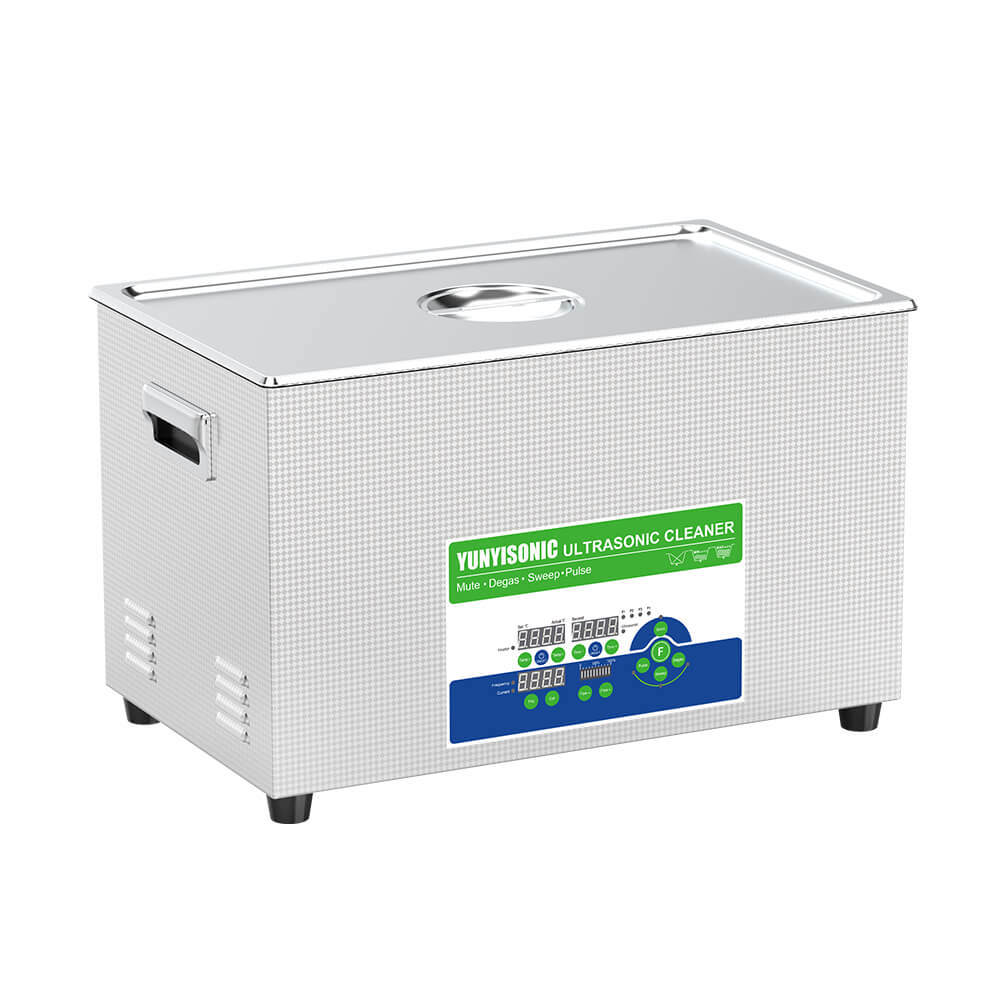

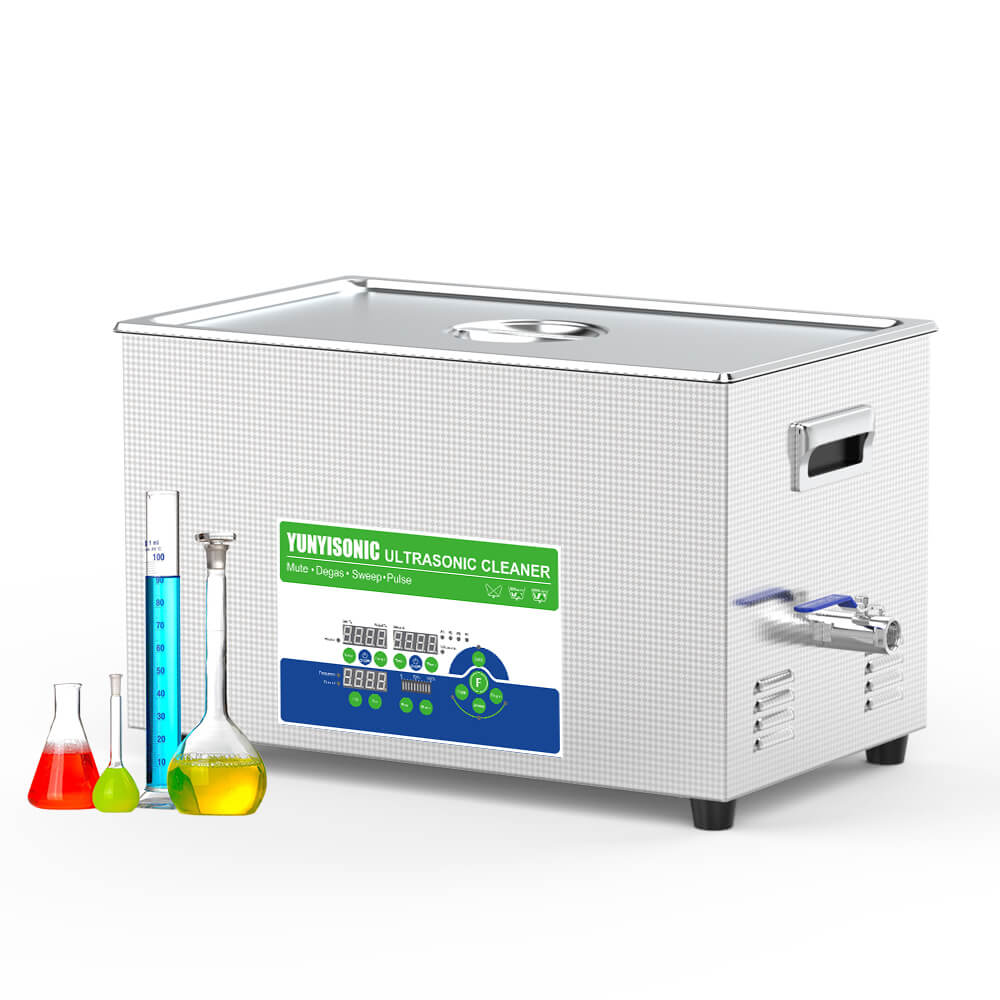

22L Switchable Multi-Frequency Ultrasonic Cleaner, 40/80/100/160kHz, Adjustable Power 0–800W - Image 1

22L Switchable Multi-Frequency Ultrasonic Cleaner, 40/80/100/160kHz, Adjustable Power 0–800W - Image 2

Click to enlarge

22L Switchable Multi-Frequency Ultrasonic Cleaner, 40/80/100/160kHz, Adjustable Power 0–800W

Multi-frequency versatility tackles tough automotive contaminants and lab residues.
High-capacity tank (22L) ideal for batch cleaning with advanced sweep, degas, and pulse functions.
Stainless steel SUS304 construction ensures durability and ease of maintenance.

SKU: YL1622-4080100160

$1,736.33piece

10 People watching this product now!

Warranty 1 year

30-Day returns

Make offer

Need a custom quote or worried about shipping cost? Share your budget, address, and requirements—we’ll review and see if we can offer a better solution. (Direct purchase also available above.)

Payment Methods:

Description

Sixteen 50W transducers (800W power) deliver industry-leading performance for semiconductor fabs: 40kHz strips photoresist, 80kHz performs mid-stage cleaning, 100kHz rinses components, and 160kHz ensures particle-free finishing. Auto-Degas Optimization enhances solvent purity for precise laboratory assays. Pulse & Sweep Modes eliminate stubborn biofilms and oil residues. The 22L capacity accelerates wafer cassette turnover, with full CE/RoHS/FCC compliance for global export to 24/7 production lines.

Product Features:

Quad 40/80/100/160kHz Cleaning: covers full cleaning spectrums from coarse degreasing to nano-scale decontamination
800W peak power via 16×50W piezo transducers, suitable for batch processing of surgical instruments or watch parts

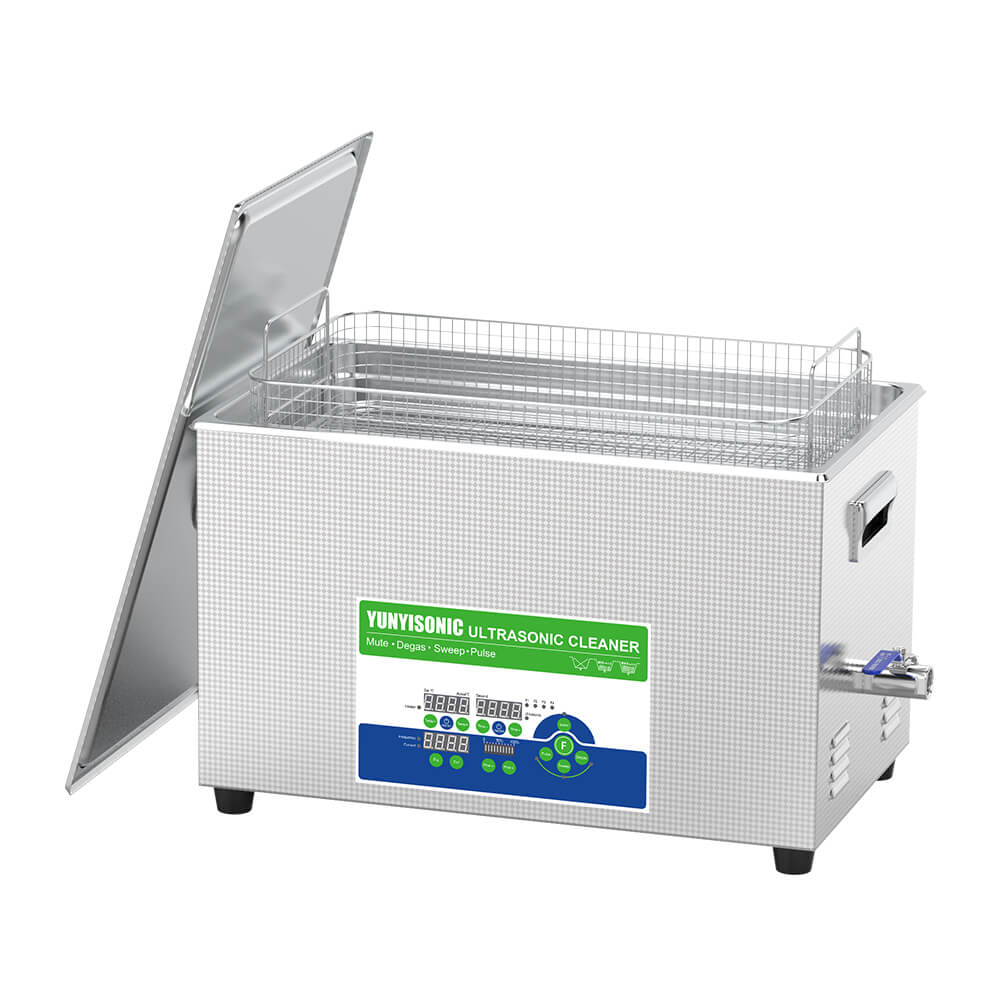

Durable basket (450 × 260 × 90mm) fits two 3000 mL beakers (d=160mm h=248mm) side by side
Dega-Sweep-Pulse trio Cleaning Mode: Degas mode accelerates solvent turnover, Pulse disrupts tenacious flux residues, and Sweep eliminates blind-spot cleaning
Digital PID heating (20–80°C) and 9999s timer support unattended overnight operations, with <85dB noise reduced design for OEM bulk orders

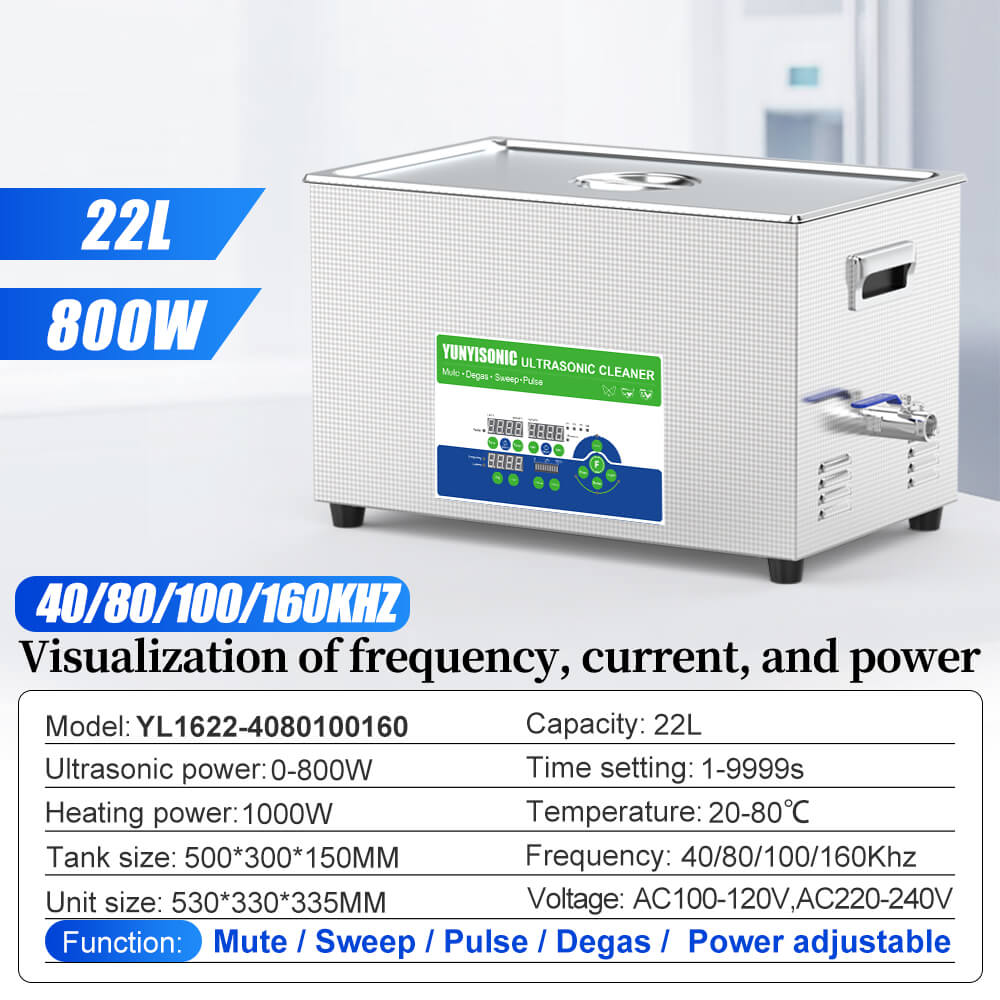

Specification:

Model	YL1622-4080100160	Transducer No.	16pcs
Frequency	40/80/100/160kHz	Ultrasonic Power	0-800W
Capacity	22L	Heating Power	1000W
Timer	1~9999s Adjustable	Tank Material	SUS304
Heater	20°C – 80°C	Housing Material	SUS304
Tank Size(mm)	500x300x150	Unit Size(mm)	530x330x335
Drain Valve	Yes	Refurbished	No
Function	Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-Language Interface Optional
Logo/Pattern	Silk screen printing, Laser Printing, UV printing, PVC, Other

Box Contents:

1 x Professional Ultrasonic Cleaner
1 x Durable Mesh Cleaning Basket
One cover, one power cord, one manual warranty card certificate of conformity.

Packing type:

One unit filled with thick foam, then standard export corrugated carton or wooden box.

More Units

40/80/100/160kHz Four Frequency Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model	Transducers	Cap	Frequency	UT Power	Heat Pwr	Size(LxWxH mm)
Model	(PCS)	(L)	(kHz)	(W)	(W)	Tank	Unit
YL0810-4080100160	8	10	40/80/100/160	0-400	600	300x240x150	325x265x330
YL0814-4080100160	8	14	40/80/100/160	0-400	600	300x240x200	325x265x380

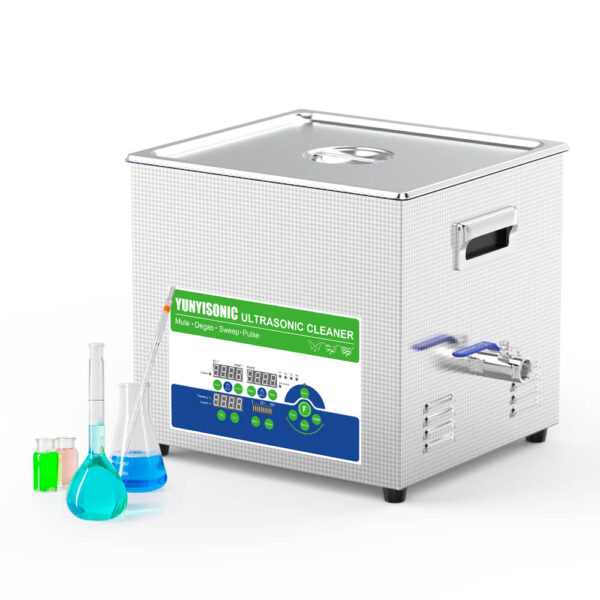

YL1015-4080100160	10	15	40/80/100/160	0-500	1000	330x300x150	355x325x330
YL1019-4080100160	10	19	40/80/100/160	0-500	1000	330x300x200	355x325x380
YL1622-4080100160	16	22	40/80/100/160	0-800	1000	500x300x150	530x330x335
YL1630-4080100160	16	30	40/80/100/160	0-800	1000	500x300x200	530x330x385

22L Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model	Transducers	Cap	Frequency	UT Power	Heat Pwr	Size(LxWxH mm)
Model	(PCS)	(L)	(kHz)	(W)	(W)	Tank	Unit
YNLH1422-17	14	22	17	0–1120	1000	500x300x150	600x360x380
YNLH1422-20	14	22	20	0-1400	1000	500x300x150	600x360x380
YNL1622-25	16	22	25	0-800	1000	500x300x150	600x360x380
YL1422-28	14	22	28	0-700	1000	500x300x150	530x330x345
YL1422-33	14	22	33	0-700	1000	500x300x150	530x330x345
YL1022-40	10	22	40	0-500	1000	500x300x150	530x330x335
YL1622-40	16	22	40	0-800	1000	500x300x150	530x330x335
YLS3222-50	32	22	50	0–960	1000	500×300×150	530×330×335
YLS3222-53	32	22	53	0–1120	1000	500×300×150	530×330×335
YL1622-68	16	22	68	0-800	1000	500x300x150	530x330x345
YL1622-80	16	22	80	0-800	1000	500x300x150	530x330x335
YL1622-120	16	22	120	0-800	1000	500x300x150	530x330x335
YL1622-130	16	22	130	0–960	1000	500×300×150	530×330×335
YLS3222-200	32	22	200	0-800	1000	500x300x150	530x330x335
YL1422-2840	14	22	28/40	0-700	1000	500x300x150	530x330x345
YL1622-4068	16	22	40/68	0-800	1000	500x300x150	530x330x345
YL1622-4080	16	22	40/80	0-800	1000	500x300x150	530x330x335
YL1622-40120	16	22	40/120	0-800	1000	500x300x150	530x330x335
YL1622-80120	16	22	80/120	0-800	1000	500x300x150	530x330x335
YNLH1022-20/40/60	10	22	20/40/60	0-1200	1000	500x300x150	600x360x380
YL1622-4080100	16	22	40/80/100	0-800	1000	500x300x150	530x330x335
YL1622-4080120	16	22	40/80/120	0-800	1000	500x300x150	530x330x335
YL1622-255080120	16	22	25/50/80/120	0-800	1000	500x300x150	530x330x335
YL1622-4080100160	16	22	40/80/100/160	0-800	1000	500x300x150	530x330x335
YL1622-4080120170	16	22	40/80/120/170	0-800	1000	500x300x150	530x330x335

YL Ultrasonic Bath Features

Specification

Product Specifications

Brand	Yunyisonic
Origin	Shenzhen City, China
Capacity	22L
Frequency	40/80/100/160kHz
Power	0-800W
Timer	1-9999s
Heater	RT~80°C
Tank Material	SUS304 Stainless Steel
Housing Material	SUS304 Stainless Steel
Voltage	AC 110V 60Hz；AC 220V 50Hz
Plug Type	EU Plug , US Plug , AU Plug , Other Plugs , UK Plug
Certificates	CE , FCC , ROHS
Warranty	1 Year
Customization	485 Port , Frequency , PLC System , Tanks Numbers
Assisted Systems Yunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing	Cleaning , Defoaming , Dispersion , Dissolution , Extraction , Mixing , Separation , Washing
Function	Clean Thoroughly , Degassing , Digital Control , Heating , Noise Reduction , Power Adjustable , Pulse , Sweep , Timing
Manufacturer	Yunyisonic Shenzhen Co., Ltd.

Packaging

Volumetric Weight	24.6 kg
Package Dimensions	63.5 × 40.5 × 40 cm
