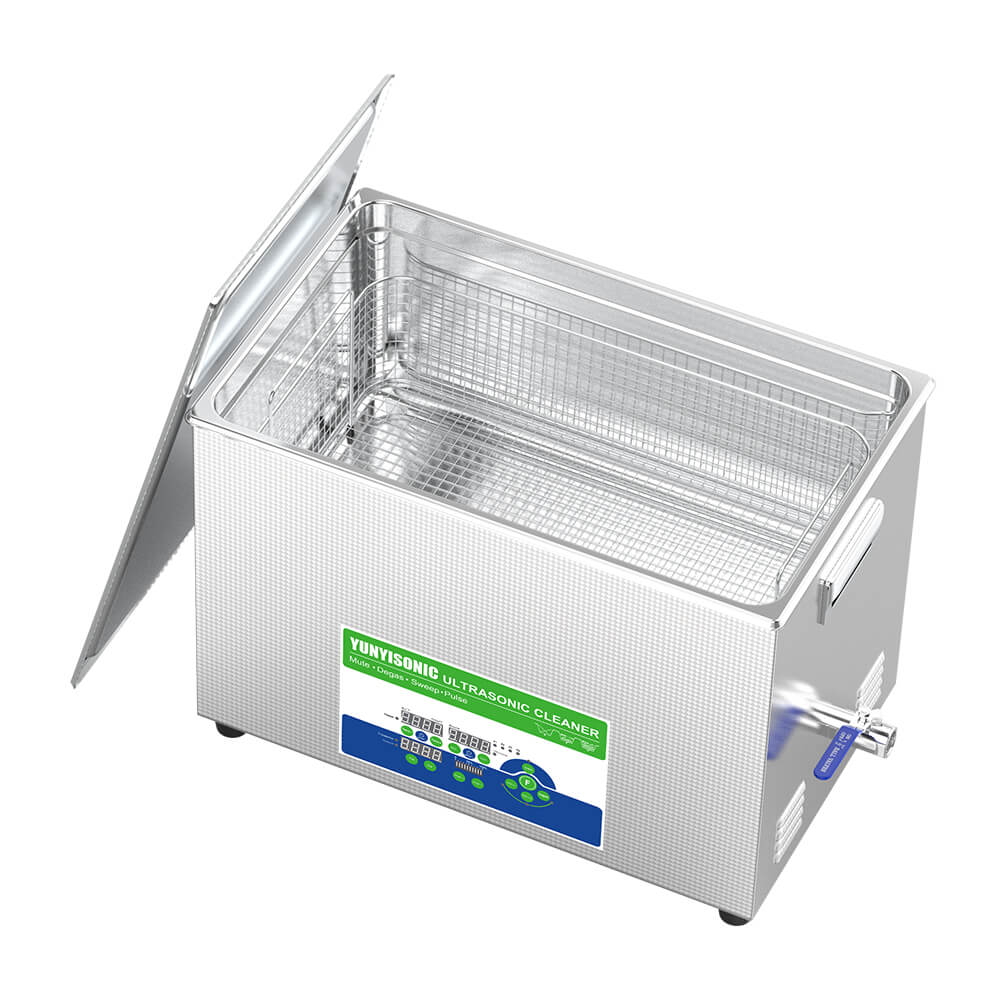

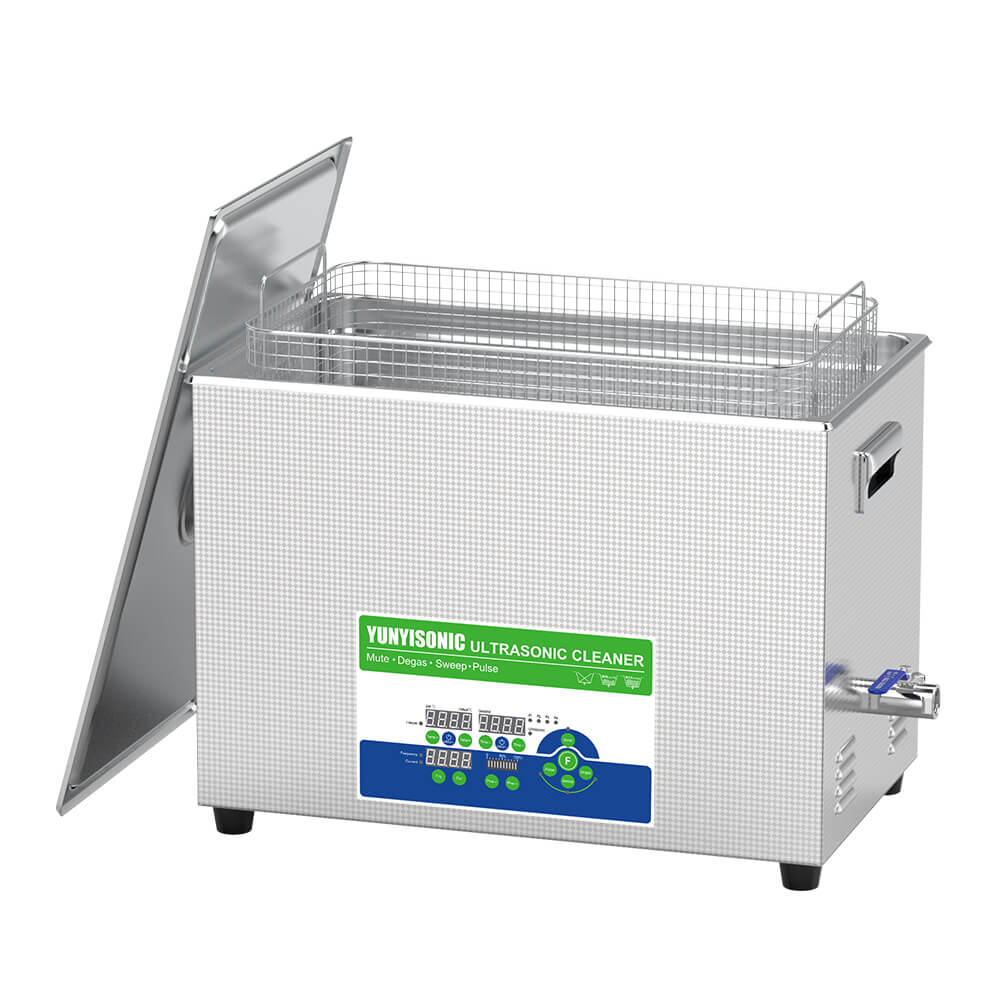

30L Ultrasonic Cleaning System Quad-Frequency 40/80/100/160kHz | Sweep, Pulse, Degas Modes & Digital Timer Heater Control
- Features advanced modes (sweep, pulse, degas) enhancing ultrasonic cleaning efficacy.
- Precise digital temperature and time controls tailored for lab and industrial cleaning tasks.
- Quad-frequency versatility for comprehensive contaminant removal in one system.
$1,769.50piece
13
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description
The 30L large four-frequency ultrasonic cleaning machine serves industrial QA, tailored for assisted labs applications and industrial premium cleaning needs: 40kHz removes carbon from turbo housings, 80kHz polishes brass instruments, 100kHz cleans vinyl record grooves, and 160kHz decontaminates fiber bundles safely. Dual 1000W heaters reach 80°C rapidly, while Degas-Pulse-Sweep trio functions maximize throughput. With <85dB quiet operation, a SUS304 basket, and 1-year warranty, it’s the premier choice for p recision cleaning.
Product Features:
- Quad 40/80/100/160kHz Cleaning: covers full cleaning spectrums from coarse degreasing to nano-scale decontamination
- 800W peak power via 16×50W piezo transducers, suitable for batch processing of surgical instruments or watch parts
- Durable basket (450 × 260 × 120mm) fits beakers size from 250mL (d=71mm h=97mm) to 5000mL (d=170mm h=270mm) side by side
- Dega-Sweep-Pulse trio Cleaning Mode: Degas mode accelerates solvent turnover, Pulse disrupts tenacious flux residues, and Sweep eliminates blind-spot cleaning
- Digital PID heating (20–80°C) and 9999s timer support unattended overnight operations, with <85dB noise reduced design for OEM bulk orders

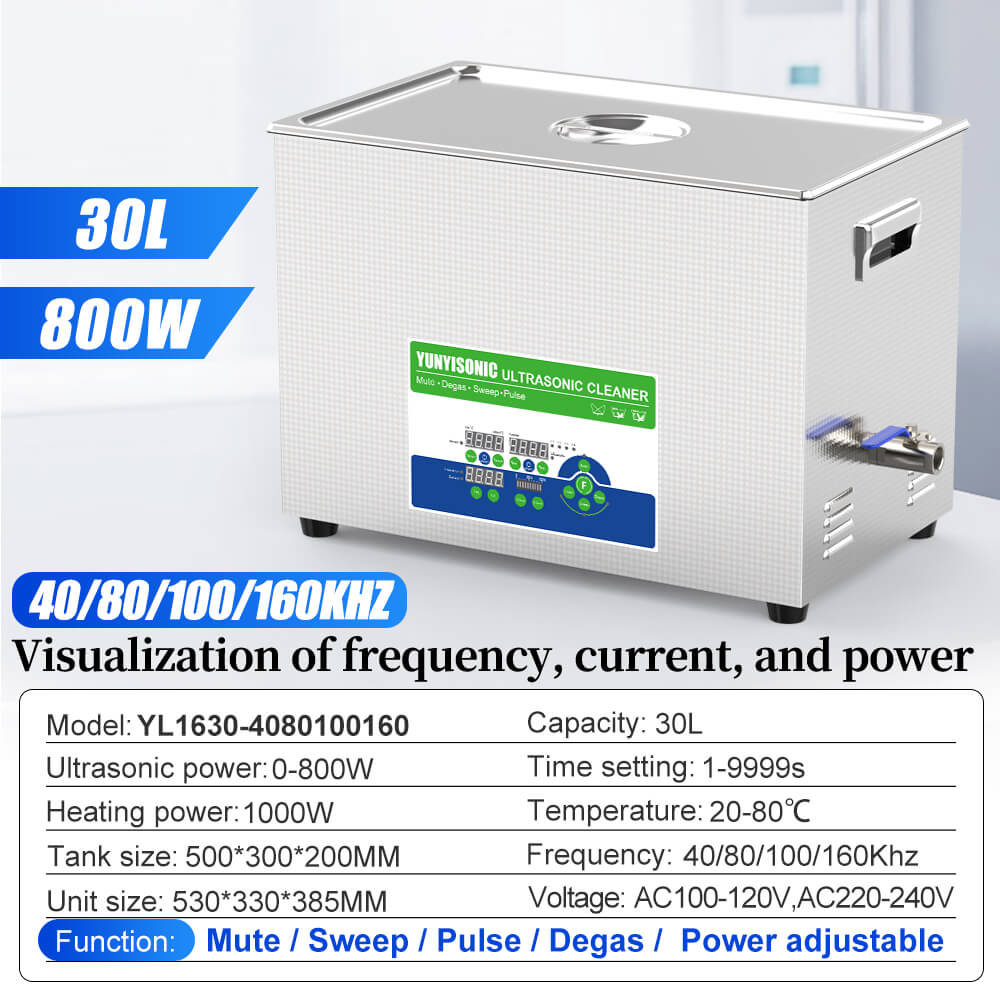

Specification:
| Model | YL1630-4080100160 | Transducer No. | 16 pcs |
| Frequency | 40/80/100/160kHz | Ultrasonic Power | 0-800W |
| Capacity | 30L | Heating Power | 1000W |
| Timer | 1~9999s Adjustable | Tank Material | SUS304 |
| Heater | 20°C – 80°C | Housing Material | SUS304 |
| Tank Size(mm) | 500x300x200 | Unit Size(mm) | 530x330x385 |
| Drain Valve | Yes | Refurbished | No |
| Function | Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-Language Interface Optional | ||
| Logo/Pattern | Silk screen printing, Laser Printing, UV printing, PVC, Other | ||

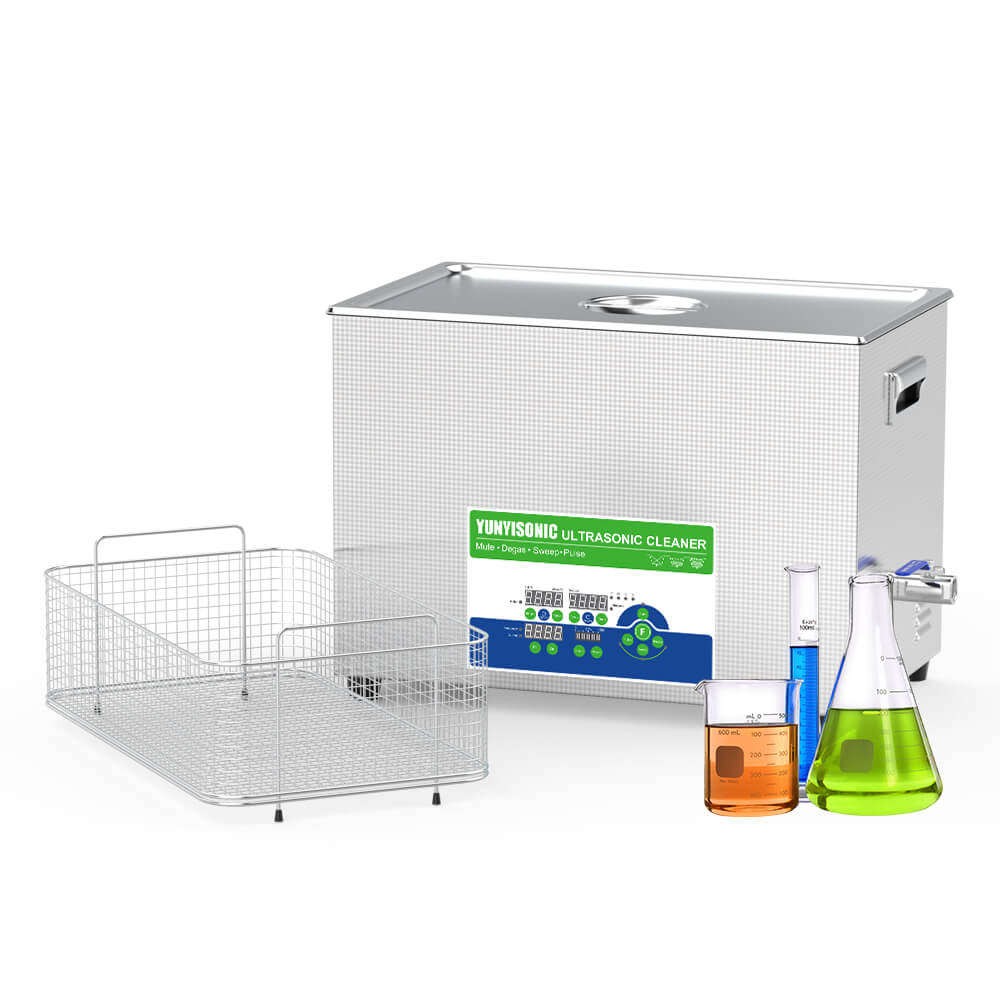

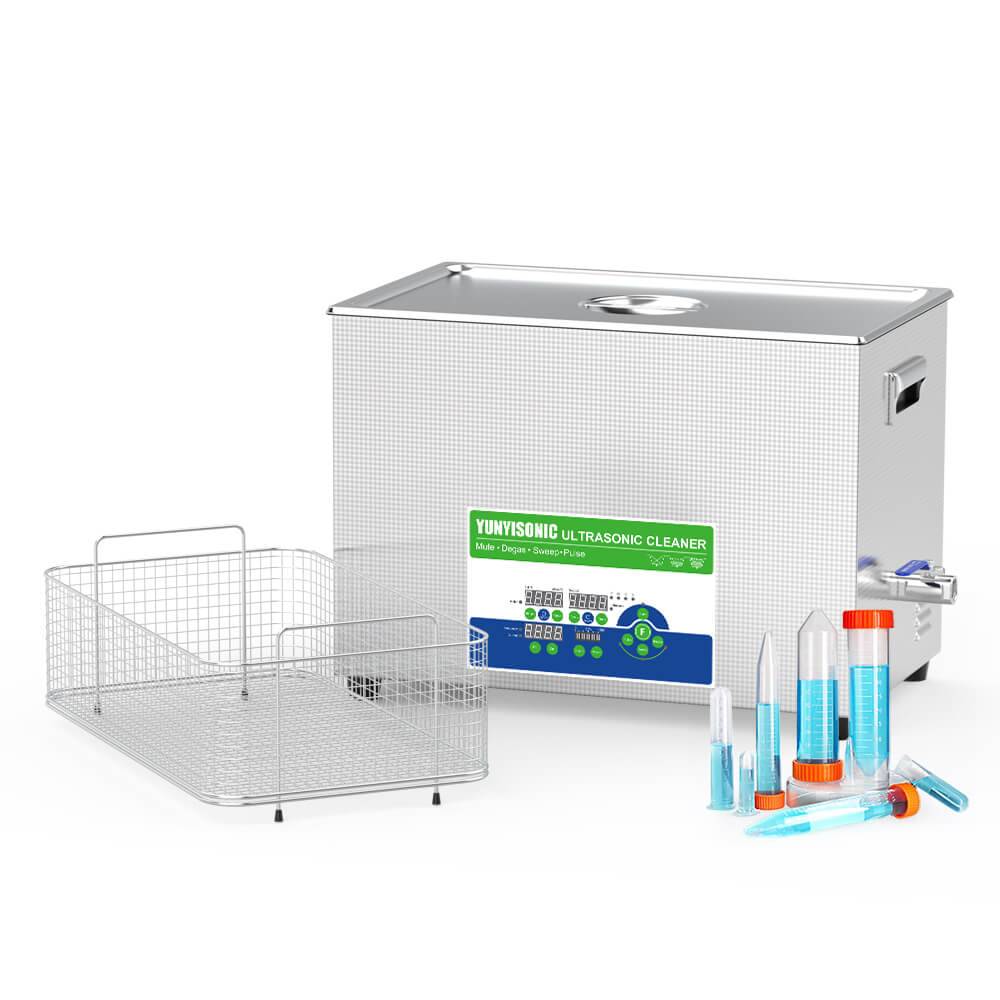

Box Contents:
1 x Professional Ultrasonic Cleaner 1 x Durable Mesh Cleaning Basket One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
One unit filled with thick foam, then standard export corrugated carton or wooden box.
More Units
40/80/100/160kHz Four Frequency Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YL0810-4080100160 | 8 | 10 | 40/80/100/160 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0814-4080100160 | 8 | 14 | 40/80/100/160 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL1015-4080100160 | 10 | 15 | 40/80/100/160 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1019-4080100160 | 10 | 19 | 40/80/100/160 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1622-4080100160 | 16 | 22 | 40/80/100/160 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1630-4080100160 | 16 | 30 | 40/80/100/160 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
30L Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YNLH1430-17 | 14 | 30 | 17 | 0–1120 | 1000 | 500x300x200 | 600x360x430 |
| YNLH1430-20 | 14 | 30 | 20 | 0-1400 | 1000 | 500x300x200 | 600x360x430 |
| YNL1630-25 | 16 | 30 | 25 | 0-800 | 1000 | 500x300x200 | 600x360x430 |
| YL1430-28 | 14 | 30 | 28 | 0-700 | 1000 | 500x300x200 | 530x330x395 |
| YL1430-33 | 14 | 30 | 33 | 0-700 | 1000 | 500x300x200 | 530x330x395 |
| YL1030-40 | 10 | 30 | 40 | 0-500 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-40 | 16 | 30 | 40 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YLS3230-50 | 32 | 30 | 50 | 0–960 | 1000 | 500×300×200 | 530×330×385 |
| YLS3230-53 | 32 | 30 | 53 | 0–1120 | 1000 | 500×300×200 | 530×330×385 |
| YL1630-68 | 16 | 30 | 68 | 0-800 | 1000 | 500x300x200 | 530x330x395 |
| YL1630-80 | 16 | 30 | 80 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-120 | 16 | 30 | 120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-130 | 16 | 30 | 130 | 0–960 | 1000 | 500×300×200 | 530×330×385 |
| YLS3230-200 | 32 | 30 | 200 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1430-2840 | 14 | 30 | 28/40 | 0-700 | 1000 | 500x300x200 | 530x330x395 |
| YL1630-4068 | 16 | 30 | 40/68 | 0-800 | 1000 | 500x300x200 | 530x330x395 |
| YL1630-4080 | 16 | 30 | 40/80 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-40120 | 16 | 30 | 40/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-80120 | 16 | 30 | 80/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YNLH1030-20/40/60 | 10 | 30 | 20/40/60 | 0-1200 | 1000 | 500x300x200 | 600x360x430 |
| YL1630-4080100 | 16 | 30 | 40/80/100 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-4080120 | 16 | 30 | 40/80/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-255080120 | 16 | 30 | 25/50/80/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-4080100160 | 16 | 30 | 40/80/100/160 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-4080120170 | 16 | 30 | 40/80/120/170 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
YL Ultrasonic Bath Features
Specification
Product Specifications
| Brand |
Yunyisonic |
|---|---|
| Origin |
Shenzhen City, China |
| Capacity | |
| Frequency | |
| Power | |
| Timer |
1-9999s |
| Heater |
RT~80°C |
| Tank Material |
SUS304 Stainless Steel |
| Housing Material |
SUS304 Stainless Steel |
| Voltage |
AC 110V 60Hz；AC 220V 50Hz |
| Plug Type |
EU Plug ,US Plug ,AU Plug ,Other Plugs ,UK Plug |
| Certificates |
CE ,FCC ,ROHS |
| Warranty |
1 Year |
| Customization |
485 Port ,Frequency ,PLC System ,Tanks Numbers |
| Assisted Systems Yunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | , , , , , , , |
| Function | , , , , , , , , |
| Manufacturer |
Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | 27.7 kg |
|---|---|
| Package Dimensions | 63.5 × 40.5 × 45 cm |
