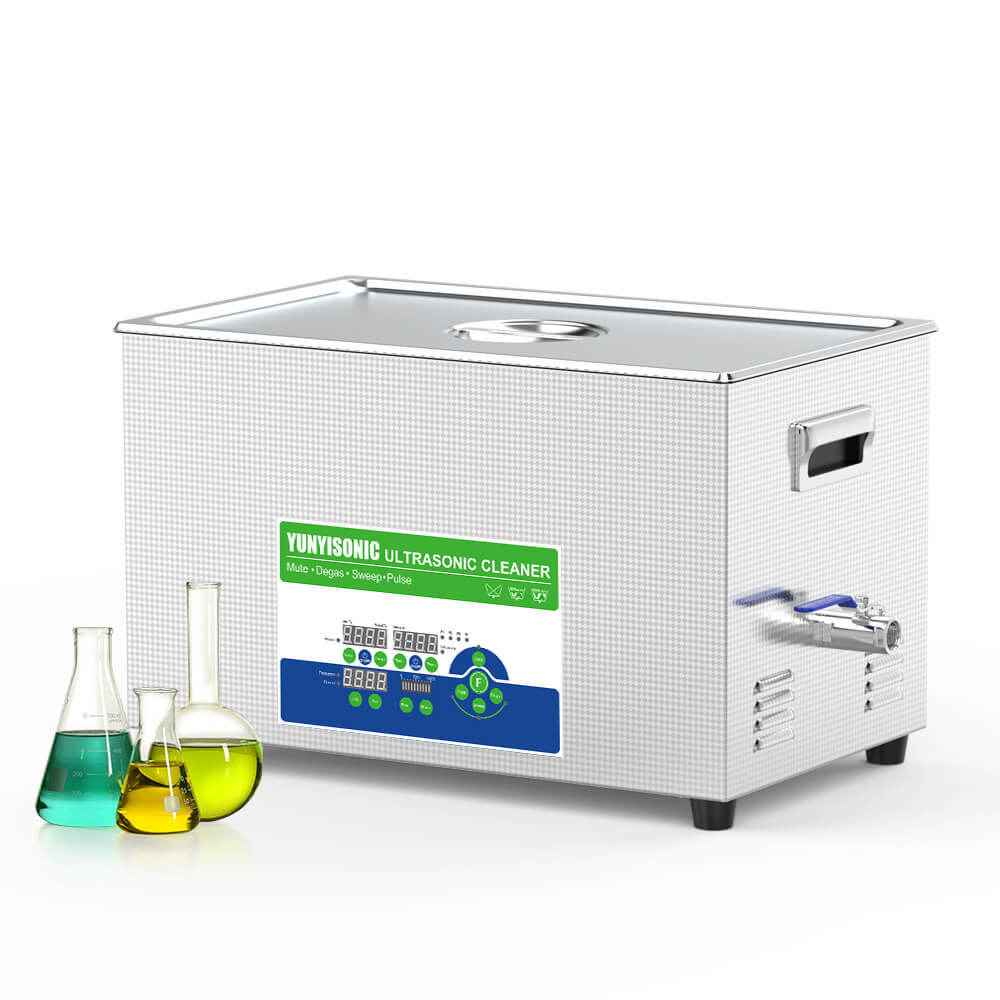

Engineered for semiconductor fabs and clean-rooms, this 22 L planner supports wafer cassette cleaning with 80 kHz degreasing followed by 120 kHz nanocontaminant removal from blind holes and slits. Sixteen 50 W transducers (800 W total) deliver adjustable ultrasonic energy; vacuum-grade degas cycles prep ultrapure water; sweep mode distributes cavitation evenly. Digital temperature/timer control and low outgassing construction meet ISO 14644-1 requirements.
Product Features:
- Dual 80/120 kHz: 80 kHz restores mechanical tools; 120 kHz tackles blind-hole residues in fiber optics and print heads
- 16 × 50 W Transducers = 800 W of modulated ultrasonic energy
- 22L SUS304 Tank (500 x 300 × 150 mm) handles multiple components
- Durable basket (450 × 260 × 90mm) fits two 3000 mL beakers(d=160mm h=248mm) side by side
- Degas Cycle Cleaning prevents cavitation shielding, boosting efficiency by 25 %
- Degas & Sweep & Pulse Modes trio Cleaning ensure complete coverage in deep slots
- Digital Timer & Thermostat: 1–9999 s @ 20–80 °C
- Quieter Operating (< 85 dB) and compliant—ideal for bulk OEM lab deployments

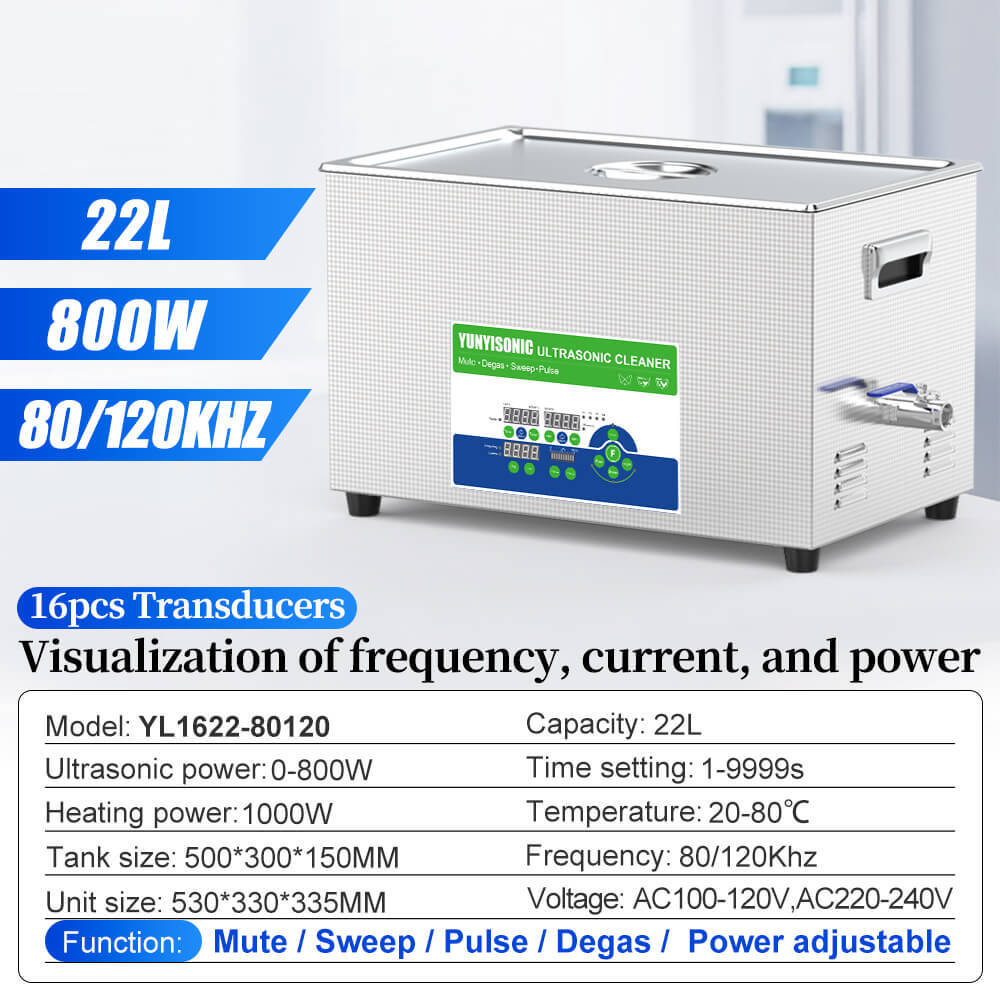

Specification:
| Model | YL1622-80120 | Transducer No. | 16pcs |
| Frequency | 80/120kHz | Ultrasonic Power | 0-800W |
| Capacity | 22L | Heating Power | 1000W |
| Timer | 1~9999s Adjustable | Tank Material | SUS304 |
| Heater | 20°C – 80°C | Housing Material | SUS304 |
| Tank Size(mm) | 500x300x150 | Unit Size(mm) | 530x330x335 |
| Drain Valve | Yes | Refurbished | No |
| Function | Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-Language Interface Optional | ||
| Logo/Pattern | Silk screen printing, Laser Printing, UV printing, PVC, Other | ||
Box Contents:

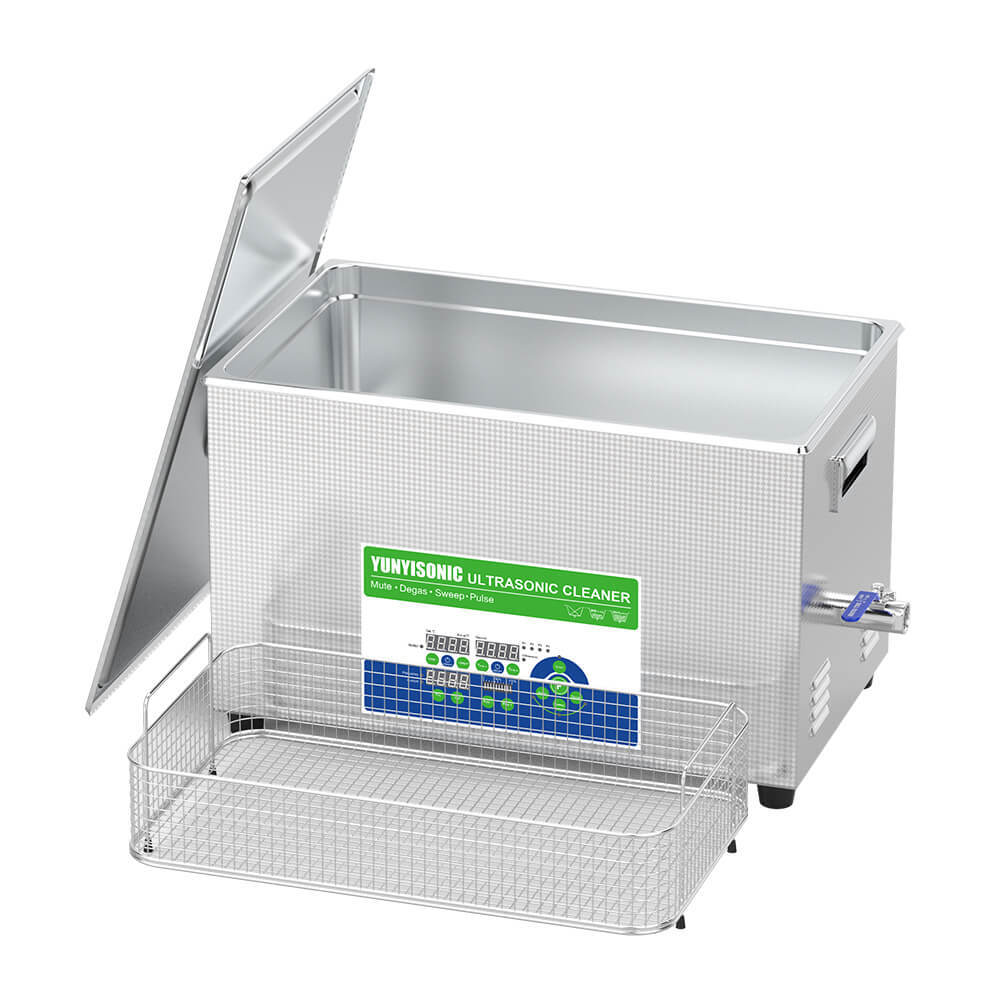

1 x Professional Ultrasonic Cleaner 1 x Durable Mesh Cleaning Basket One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
One unit filled with thick foam, then standard export corrugated carton or wooden box.
More Units
80/120kHz Dual Frequency Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YL0404-80120 | 4 | 4.5 | 80/120 | 0-200 | 450 | 300x150x100 | 325x175x280 |
| YL0406-80120 | 4 | 6.5 | 80/120 | 0-200 | 450 | 300x150x150 | 325x175x330 |
| YL0810-80120 | 8 | 10 | 80/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0814-80120 | 8 | 14 | 80/120 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL1015-80120 | 10 | 15 | 80/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |

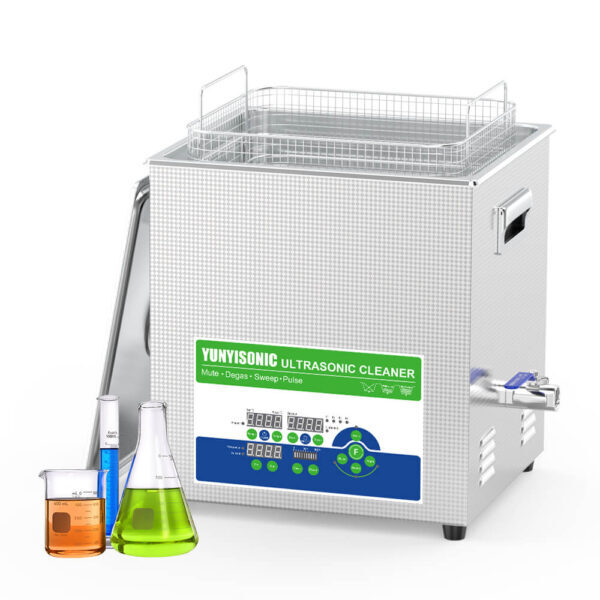

| YL1019-80120 | 10 | 19 | 80/120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1622-80120 | 16 | 22 | 80/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |

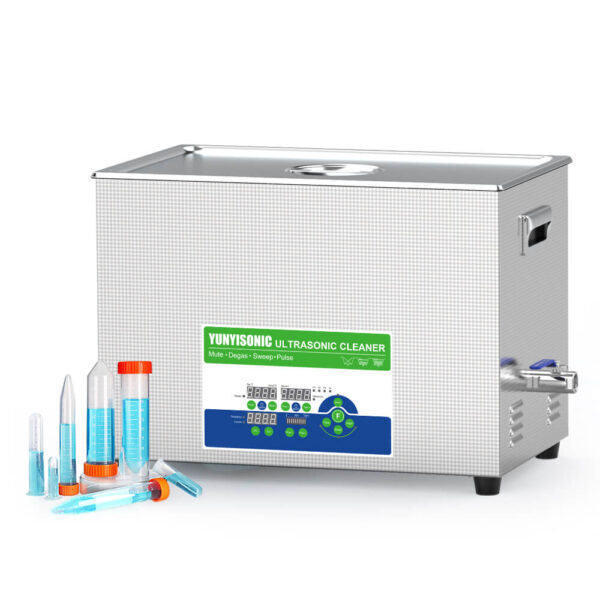

| YL1630-80120 | 16 | 30 | 80/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
22L Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YNLH1422-17 | 14 | 22 | 17 | 0–1120 | 1000 | 500x300x150 | 600x360x380 |
| YNLH1422-20 | 14 | 22 | 20 | 0-1400 | 1000 | 500x300x150 | 600x360x380 |
| YNL1622-25 | 16 | 22 | 25 | 0-800 | 1000 | 500x300x150 | 600x360x380 |
| YL1422-28 | 14 | 22 | 28 | 0-700 | 1000 | 500x300x150 | 530x330x345 |
| YL1422-33 | 14 | 22 | 33 | 0-700 | 1000 | 500x300x150 | 530x330x345 |
| YL1022-40 | 10 | 22 | 40 | 0-500 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-40 | 16 | 22 | 40 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YLS3222-50 | 32 | 22 | 50 | 0–960 | 1000 | 500×300×150 | 530×330×335 |
| YLS3222-53 | 32 | 22 | 53 | 0–1120 | 1000 | 500×300×150 | 530×330×335 |
| YL1622-68 | 16 | 22 | 68 | 0-800 | 1000 | 500x300x150 | 530x330x345 |
| YL1622-80 | 16 | 22 | 80 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-120 | 16 | 22 | 120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-130 | 16 | 22 | 130 | 0–960 | 1000 | 500×300×150 | 530×330×335 |
| YLS3222-200 | 32 | 22 | 200 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1422-2840 | 14 | 22 | 28/40 | 0-700 | 1000 | 500x300x150 | 530x330x345 |
| YL1622-4068 | 16 | 22 | 40/68 | 0-800 | 1000 | 500x300x150 | 530x330x345 |
| YL1622-4080 | 16 | 22 | 40/80 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-40120 | 16 | 22 | 40/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-80120 | 16 | 22 | 80/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YNLH1022-20/40/60 | 10 | 22 | 20/40/60 | 0-1200 | 1000 | 500x300x150 | 600x360x380 |
| YL1622-4080100 | 16 | 22 | 40/80/100 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-4080120 | 16 | 22 | 40/80/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-255080120 | 16 | 22 | 25/50/80/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-4080100160 | 16 | 22 | 40/80/100/160 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-4080120170 | 16 | 22 | 40/80/120/170 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
