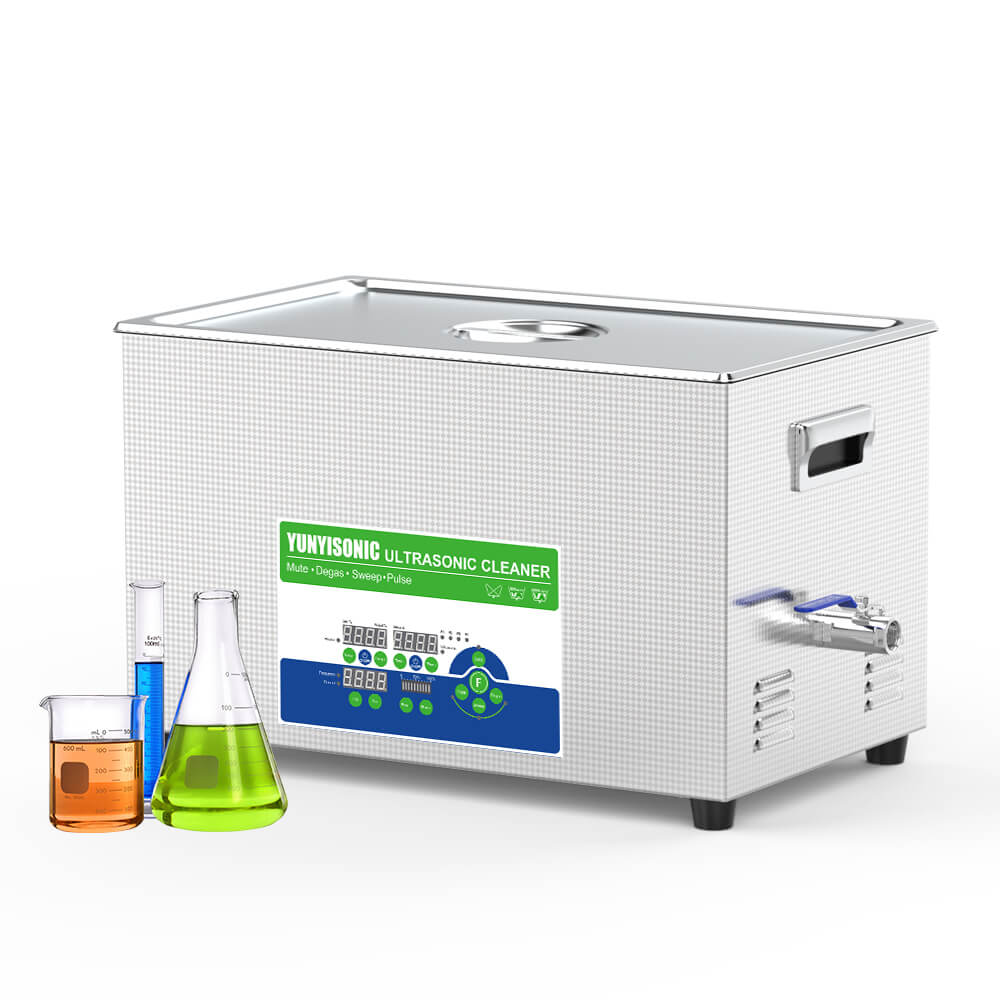

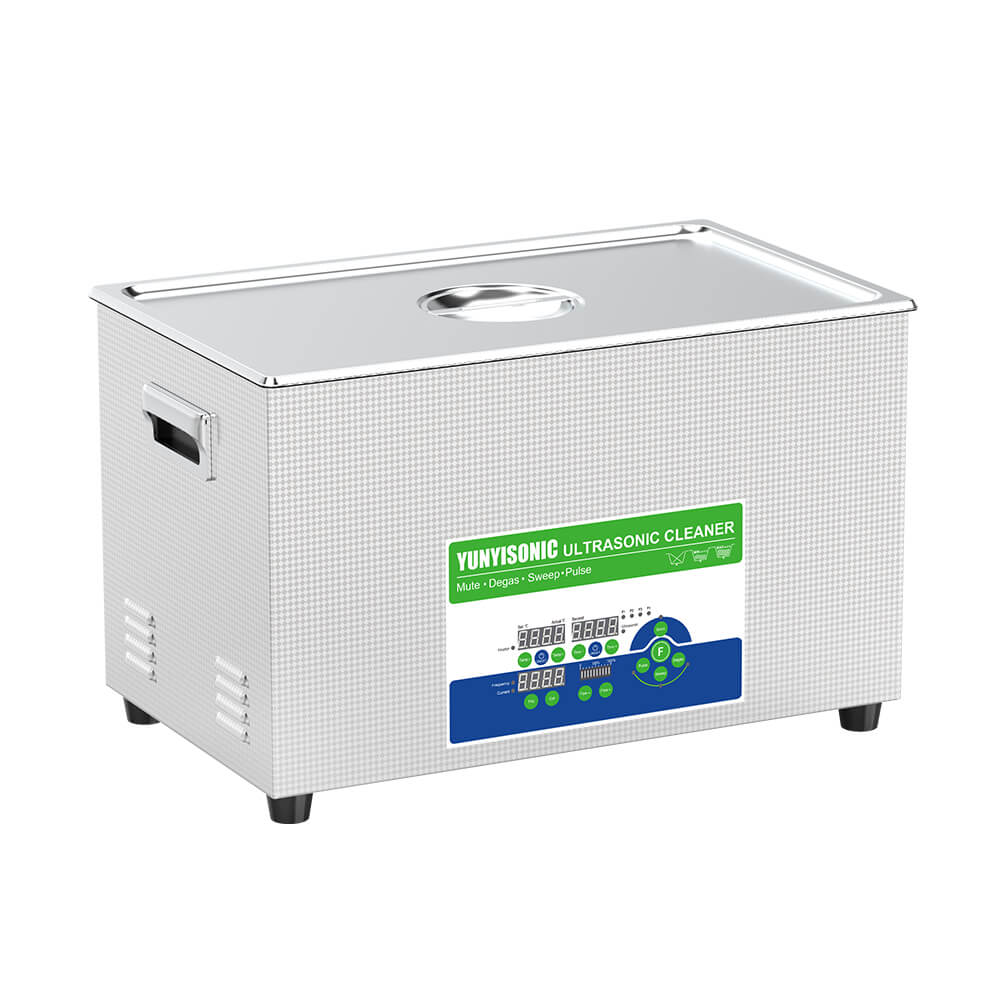

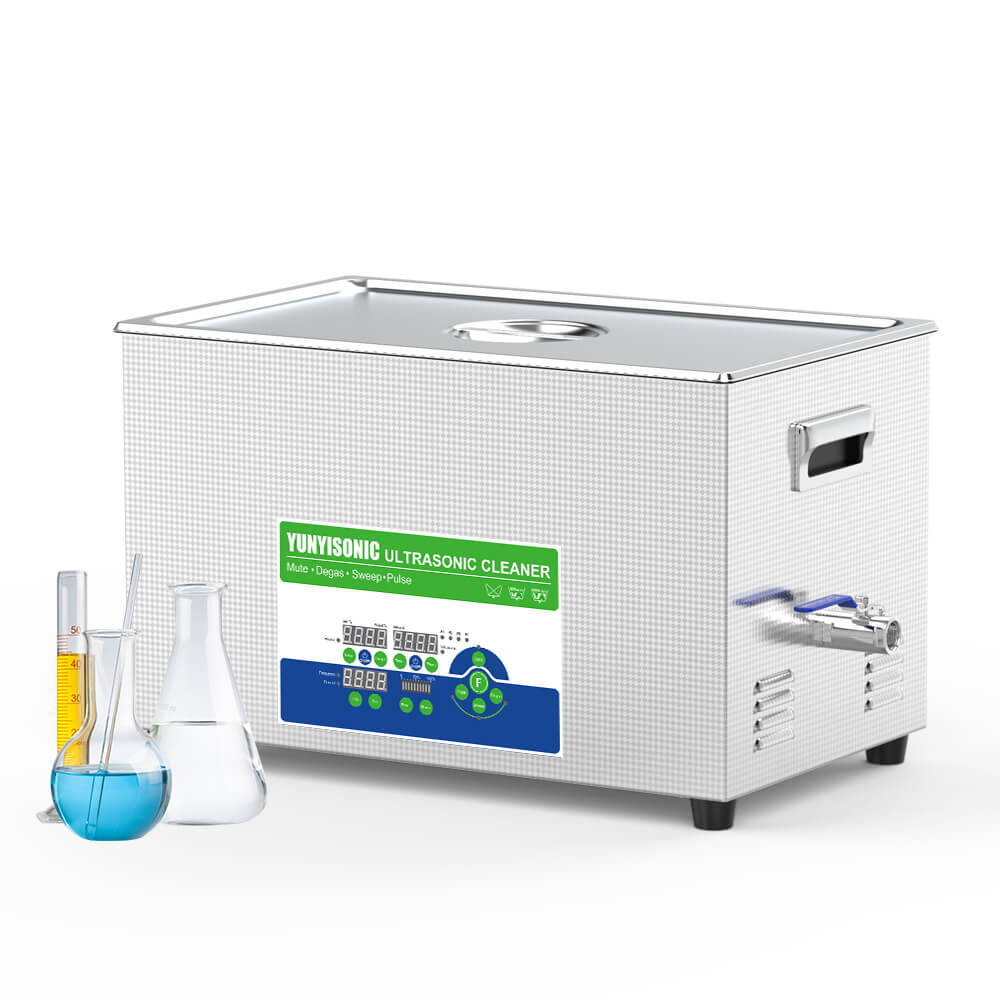

22L 28/40kHz Ultrasonic Lab Cleaning Machine700W Bath for Extraction, Emulsification, and Intensive Sample Glass Substrate Washing
- 28/40kHz dual-frequency for extraction, dispersion, emulsification, and homogenization
- 22L SUS304 tank, 700W power, digital controls, large sample capacity
- Perfect for university labs, analytical chemistry, and research sample prep
$811.50piece
13
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description
The 28/40kHz dual-frequency capability of the YL1422-2840 enables users to switch between coarse and fine sonication modes, making it ideal for labs handling a range of tasks—from dislodging oil deposits to dispersing liquid materials like Acrylic Pigment. The unit supports both short cycles for quick cleaning and long-duration ultrasonic treatments required in sample prep, extraction, and chemical processing. Combined with 700W total output, a 22L volume, and support for degas, pulse, and sweep features, this cleaner adapts to complex research routines. CE, FCC, and RoHS certified, it ensures safety and performance for global research use.
Product Features:
- 14 x 50 Watts Transducers – 700 Watts Efficient
- Generous 22L Tank Capacity & Dimensions 50x30x15cm
- 1 – 9999s Digital Time Setting
- Heating Function Room Temperature – 80℃ Range
- Secure Wire Cleaning Mesh Basket
- Yunyisonic ultrasonic cleaner meets a 1-year “Free Parts” warranty

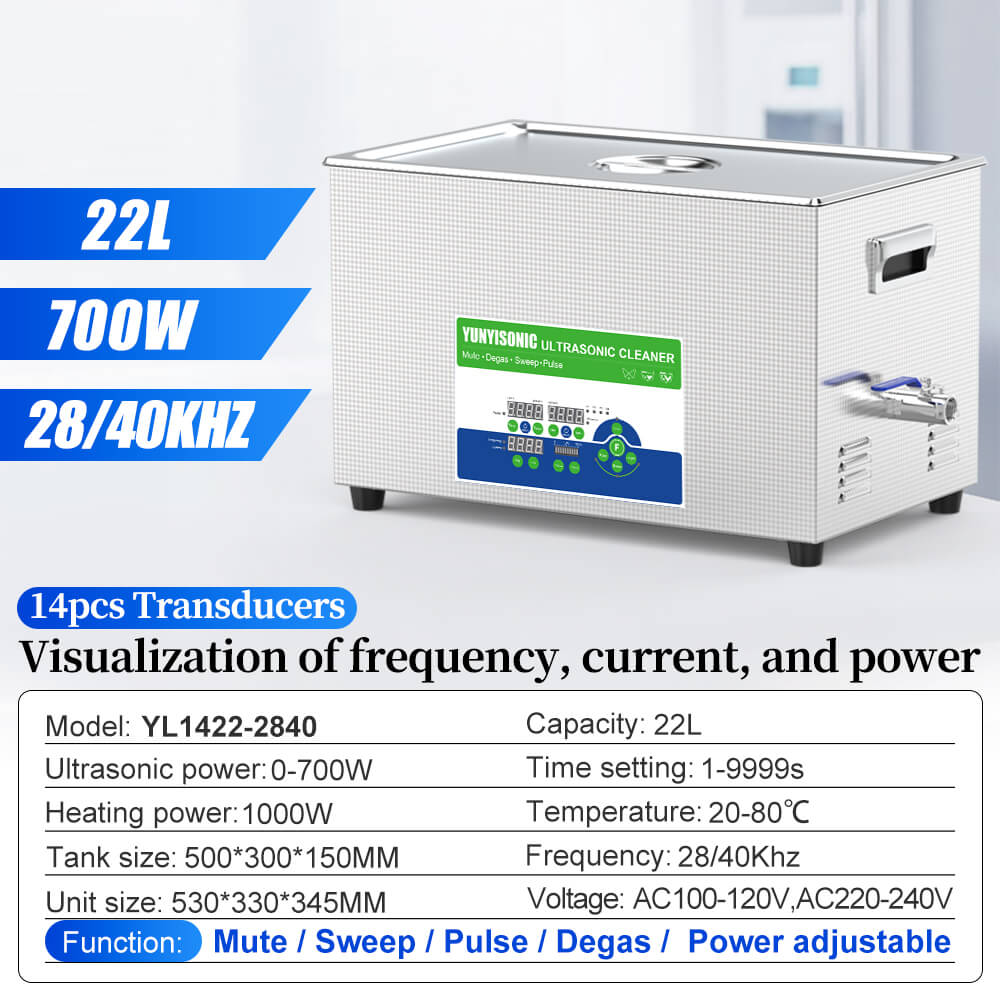

Specification:
| Model | YL1422-2840 | Transducer No. | 14 pcs |
| Frequency | 28/40kHz | Ultrasonic Power | 0-700W |
| Capacity | 22L | Heating Power | 1000W |
| Timer | 1~9999s Adjustable | Tank Material | SUS304 |
| Heater | 20°C – 80°C | Housing Material | SUS304 |
| Tank Size(mm) | 500x300x150 | Unit Size(mm) | 530x330x345 |
| Drain Valve | Yes | Refurbished | No |
| Function | Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Panel Optional Multi-language Support | ||
| Logo/Pattern | Silk screen printing, Laser Printing, UV printing, PVC, Other | ||
Box Contents:
1 x Professional Ultrasonic Cleaner 1 x Durable Mesh Cleaning Basket One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
One unit filled with thick foam, then standard export corrugated carton or wooden box.
More Units
28/40kHz Dual Frequency Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YL0203-2840 | 2 | 3.2 | 28/40 | 0-100 | 300 | 240x135x100 | 265x165x290 |
| YL0205-2840 | 2 | 4.8 | 28/40 | 0-100 | 300 | 240x135x150 | 265x165x340 |
| YL0304-2840 | 3 | 4.5 | 28/40 | 0-150 | 450 | 300x150x100 | 325x175x290 |
| YL0306-2840 | 3 | 6.5 | 28/40 | 0-150 | 450 | 300x150x150 | 325x175x340 |
| YL0610-2840 | 6 | 10 | 28/40 | 0-300 | 600 | 300x240x150 | 325x265x340 |
| YL0614-2840 | 6 | 14 | 28/40 | 0-300 | 600 | 300x240x200 | 325x265x390 |
| YL0815-2840 | 8 | 15 | 28/40 | 0-400 | 1000 | 330x300x150 | 355x325x340 |
| YL0819-2840 | 8 | 19 | 28/40 | 0-400 | 1000 | 330x300x200 | 355x325x390 |
| YL1422-2840 | 14 | 22 | 28/40 | 0-700 | 1000 | 500x300x150 | 530x330x345 |
| YL1430-2840 | 14 | 30 | 28/40 | 0-700 | 1000 | 500x300x200 | 530x330x395 |
22L Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YNLH1422-17 | 14 | 22 | 17 | 0–1120 | 1000 | 500x300x150 | 600x360x380 |
| YNLH1422-20 | 14 | 22 | 20 | 0-1400 | 1000 | 500x300x150 | 600x360x380 |
| YNL1622-25 | 16 | 22 | 25 | 0-800 | 1000 | 500x300x150 | 600x360x380 |
| YL1422-28 | 14 | 22 | 28 | 0-700 | 1000 | 500x300x150 | 530x330x345 |
| YL1422-33 | 14 | 22 | 33 | 0-700 | 1000 | 500x300x150 | 530x330x345 |
| YL1022-40 | 10 | 22 | 40 | 0-500 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-40 | 16 | 22 | 40 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YLS3222-50 | 32 | 22 | 50 | 0–960 | 1000 | 500×300×150 | 530×330×335 |
| YLS3222-53 | 32 | 22 | 53 | 0–1120 | 1000 | 500×300×150 | 530×330×335 |
| YL1622-68 | 16 | 22 | 68 | 0-800 | 1000 | 500x300x150 | 530x330x345 |
| YL1622-80 | 16 | 22 | 80 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-120 | 16 | 22 | 120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-130 | 16 | 22 | 130 | 0–960 | 1000 | 500×300×150 | 530×330×335 |
| YLS3222-200 | 32 | 22 | 200 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1422-2840 | 14 | 22 | 28/40 | 0-700 | 1000 | 500x300x150 | 530x330x345 |
| YL1622-4068 | 16 | 22 | 40/68 | 0-800 | 1000 | 500x300x150 | 530x330x345 |
| YL1622-4080 | 16 | 22 | 40/80 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-40120 | 16 | 22 | 40/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-80120 | 16 | 22 | 80/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YNLH1022-20/40/60 | 10 | 22 | 20/40/60 | 0-1200 | 1000 | 500x300x150 | 600x360x380 |
| YL1622-4080100 | 16 | 22 | 40/80/100 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-4080120 | 16 | 22 | 40/80/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-255080120 | 16 | 22 | 25/50/80/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-4080100160 | 16 | 22 | 40/80/100/160 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1622-4080120170 | 16 | 22 | 40/80/120/170 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
YL Ultrasonic Bath Features
Specification
Product Specifications
| Brand |
Yunyisonic |
|---|---|
| Origin |
Shenzhen City, China |
| Capacity | |
| Frequency | |
| Power | |
| Timer |
1-9999s |
| Heater |
RT~80°C |
| Tank Material |
SUS304 Stainless Steel |
| Housing Material |
SUS304 Stainless Steel |
| Voltage |
AC 110V 60Hz；AC 220V 50Hz |
| Plug Type |
EU Plug ,US Plug ,AU Plug ,Other Plugs ,UK Plug |
| Certificates |
CE ,FCC ,ROHS |
| Warranty |
1 Year |
| Customization |
485 Port ,Frequency ,PLC System ,Tanks Numbers |
| Assisted Systems Yunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | , , , , , , , |
| Function | , , , , , , , , |
| Manufacturer |
Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | 32.5 kg |
|---|---|
| Package Dimensions | 63.5 × 40.5 × 40 cm |
