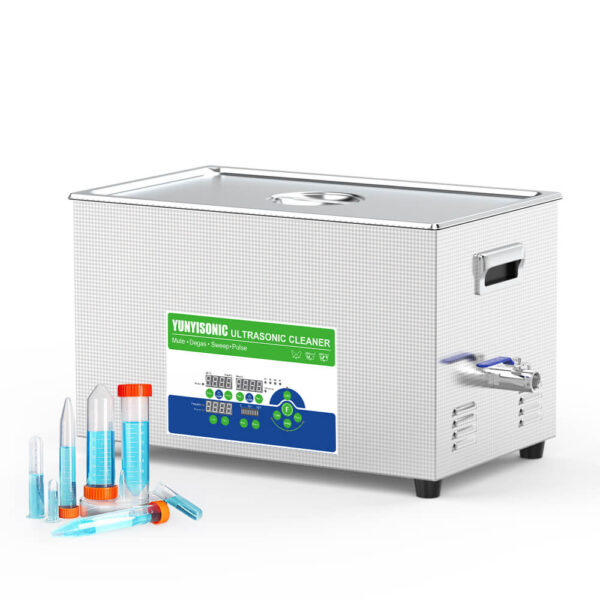

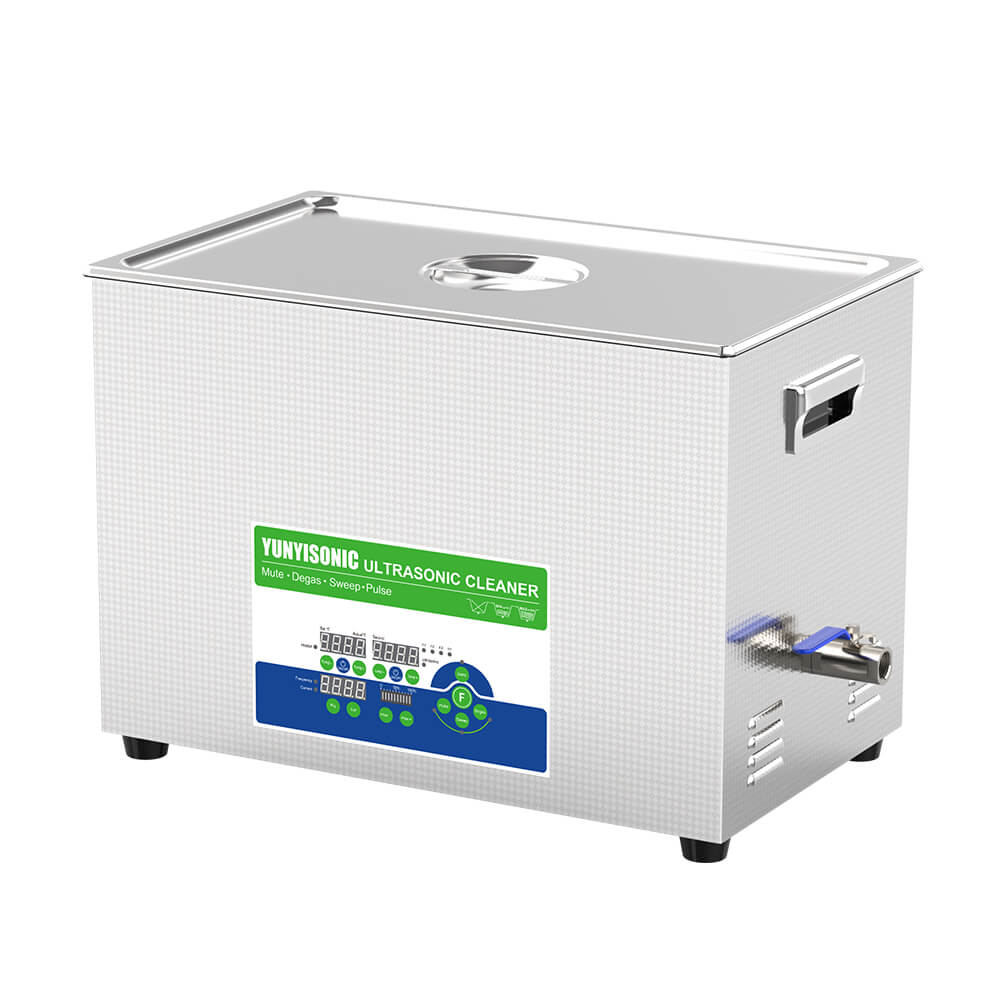

30L Triple-Frequency Ultrasonic Bath, 40/80/120kHz, Adjustable Power 0–800W
- Large 30L tank meets high-volume industrial and labs cleaning demands.
- Flexible ultrasonic frequencies (40/80/120kHz) to clean automotive, aerospace, and precision parts.
- Direct OEM supplier from China ensures competitive pricing, custom options, and robust construction.
$1,503.10piece
19
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description
30L Multi-Frequency Cleaner: High Power Large Capacity for Busy Lab Environments
Engineered for heavy-duty lab operations, the 30L ultrasonic cleaner with 40/80/120kHz frequencies excels at removing tenacious contaminants like oil, graphite debris, wax, and biofilms. Its degas function purges dissolved gases from solutions, enhancing ultrasonic efficiency, while the sweep mode eliminates cleaning dead zones during large-scale processing. The pulse mode delivers powerful bursts to break down compact residues.
Featuring digital controls for temperature (ranging from 20–80℃) and timing (1–9999s), a durable SUS304 tank (size 50x30x20cm), and a secure mesh basket, this cleaner ensures both functionality and longevity. Certified to CE, RoHS, and FCC standards, it is well-suited for OEM bulk orders and continuous high-volume use, making it a reliable workhorse for any bustling research facility.

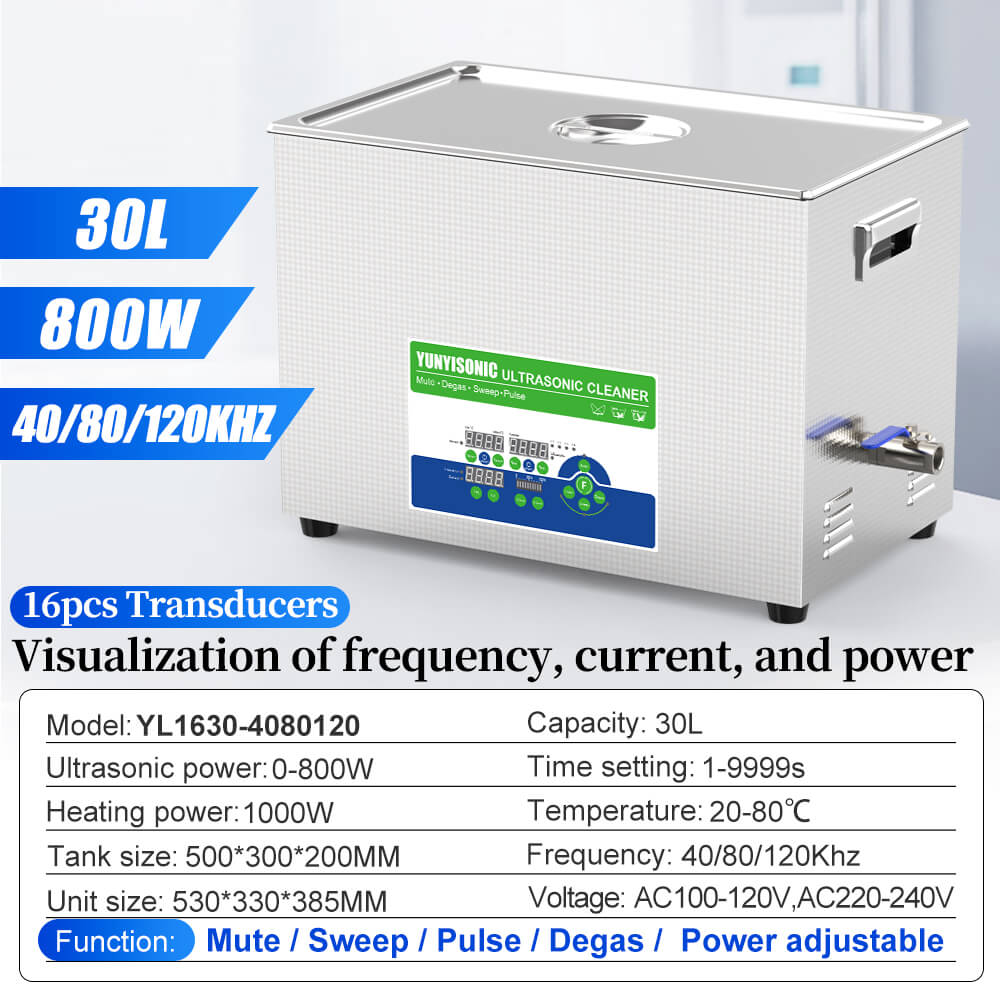

Specification:
| Model | YL1630-4080120 | Transducer No. | 16 pcs |
| Frequency | 40/80/120kHz | Ultrasonic Power | 0-800W |
| Capacity | 30L | Heating Power | 1000W |
| Timer | 1~9999s Adjustable | Tank Material | SUS304 |
| Heater | 20°C – 80°C | Housing Material | SUS304 |
| Tank Size(mm) | 500x300x200 | Unit Size(mm) | 530x330x385 |
| Drain Valve | Yes | Refurbished | No |
| Function | Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-language Panel Optional | ||
| Logo/Pattern | Silk screen printing, Laser Printing, UV printing, PVC, Other | ||

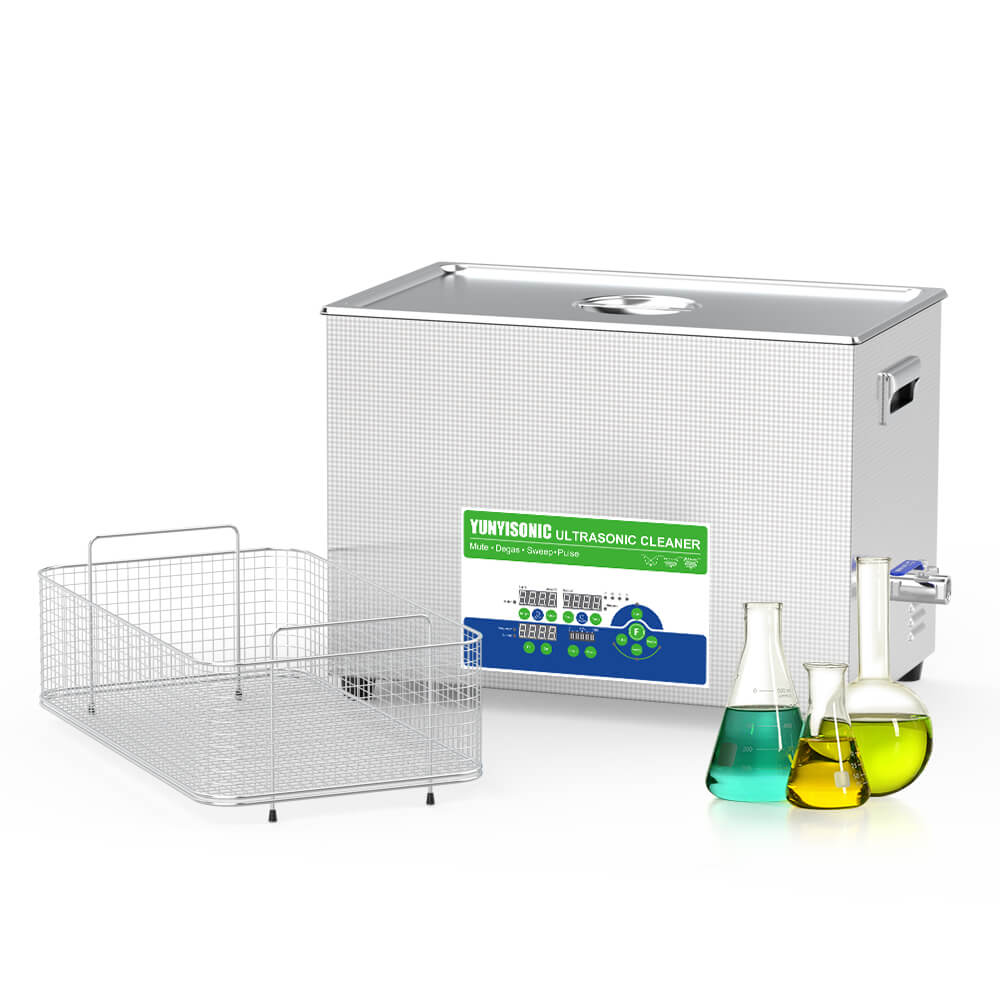

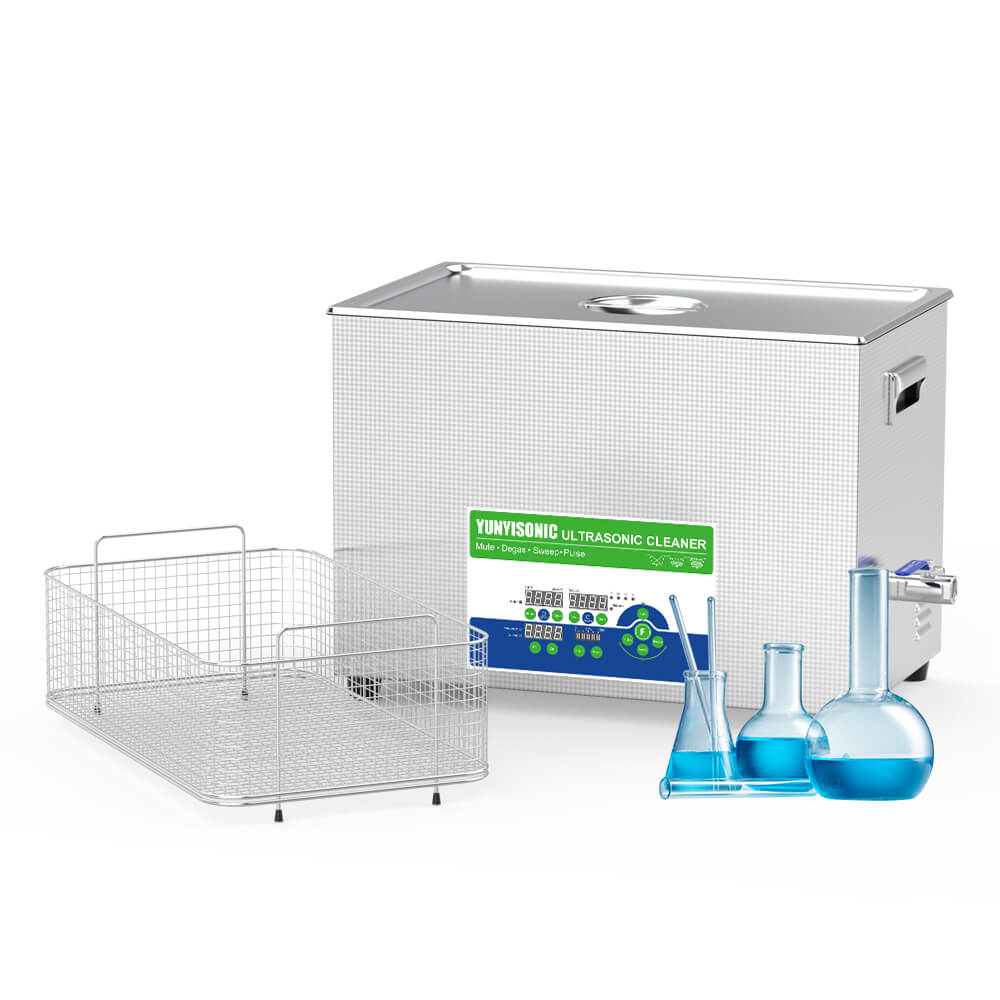

Box Contents:
1 x Professional Ultrasonic Cleaner 1 x Durable Mesh Cleaning Basket One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
One unit filled with thick foam, then standard export corrugated carton or wooden box.
More Units
40/80/120kHz Triple Frequency Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YL0404-4080120 | 4 | 4.5 | 40/80/120 | 0-200 | 450 | 300x150x100 | 325x175x280 |
| YL0406-4080120 | 4 | 6.5 | 40/80/120 | 0-200 | 450 | 300x150x150 | 325x175x330 |
| YL0810-4080120 | 8 | 10 | 40/80/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0814-4080120 | 8 | 14 | 40/80/120 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL1015-4080120 | 10 | 15 | 40/80/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1019-4080120 | 10 | 19 | 40/80/120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1622-4080120 | 16 | 22 | 40/80/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1630-4080120 | 16 | 30 | 40/80/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
30L Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YNLH1430-17 | 14 | 30 | 17 | 0–1120 | 1000 | 500x300x200 | 600x360x430 |
| YNLH1430-20 | 14 | 30 | 20 | 0-1400 | 1000 | 500x300x200 | 600x360x430 |
| YNL1630-25 | 16 | 30 | 25 | 0-800 | 1000 | 500x300x200 | 600x360x430 |
| YL1430-28 | 14 | 30 | 28 | 0-700 | 1000 | 500x300x200 | 530x330x395 |
| YL1430-33 | 14 | 30 | 33 | 0-700 | 1000 | 500x300x200 | 530x330x395 |
| YL1030-40 | 10 | 30 | 40 | 0-500 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-40 | 16 | 30 | 40 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YLS3230-50 | 32 | 30 | 50 | 0–960 | 1000 | 500×300×200 | 530×330×385 |
| YLS3230-53 | 32 | 30 | 53 | 0–1120 | 1000 | 500×300×200 | 530×330×385 |
| YL1630-68 | 16 | 30 | 68 | 0-800 | 1000 | 500x300x200 | 530x330x395 |
| YL1630-80 | 16 | 30 | 80 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-120 | 16 | 30 | 120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-130 | 16 | 30 | 130 | 0–960 | 1000 | 500×300×200 | 530×330×385 |
| YLS3230-200 | 32 | 30 | 200 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1430-2840 | 14 | 30 | 28/40 | 0-700 | 1000 | 500x300x200 | 530x330x395 |
| YL1630-4068 | 16 | 30 | 40/68 | 0-800 | 1000 | 500x300x200 | 530x330x395 |
| YL1630-4080 | 16 | 30 | 40/80 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-40120 | 16 | 30 | 40/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-80120 | 16 | 30 | 80/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YNLH1030-20/40/60 | 10 | 30 | 20/40/60 | 0-1200 | 1000 | 500x300x200 | 600x360x430 |
| YL1630-4080100 | 16 | 30 | 40/80/100 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-4080120 | 16 | 30 | 40/80/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-255080120 | 16 | 30 | 25/50/80/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-4080100160 | 16 | 30 | 40/80/100/160 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
| YL1630-4080120170 | 16 | 30 | 40/80/120/170 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
YL Ultrasonic Bath Features
Engineered as a versatile high-capacity ultrasonic solution for pilot-scale research, this 30L triple-frequency ultrasonic system combines robust performance with precision cleaning capabilities. Boasting 16 industrial-grade transducers (50W each) that deliver 800W of combined power across 40/80/120kHz frequencies, the platform enables fast turnaround for multi-sample processing, graphite block decontamination, and wafer cassette preparation(Recommended 200kHz frequency ultrasonic cleaning machine). The 40kHz mode tackles heavy-duty grease and debris on industrial components, while 80kHz balances cleaning efficiency with material safety for biological residue removal. Meanwhile, the 120kHz setting achieves sub-micron level precision in blind holes and slits, critical for advanced semiconductor R&D and nano-particle dispersion.
Key functional modules enhance operational flexibility: Pulse mode disrupts tenacious organic deposits, Sweep frequency eliminates cavitation dead zones in dense loadouts, and Degas cycles prime solvents for optimal ultrasonic transfer. A digital control interface allows precise adjustment of timing (1–9999s) and temperature (20–80℃), while the robust SUS304 stainless steel tank withstands continuous use in rigorous lab environments. Trusted by research teams for batch-scale processing under strict process controls, this CE-certified system serves as an all-in-one platform for applications ranging from graphite block maintenance to advanced microchannel cleaning in semiconductor manufacturing.
Yunyisonic YL Series Support & FAQ
Precision cleaning is defined by Miniaturization (e.g., wafers, chips, micro-blind holes < 0.1mm) and Low Particle Residue (invisible to the naked eye).
Yunyisonic YL Series Recommendations:
• 200kHz: Dedicated for semiconductor wafers, silicon, and chips.
• 80kHz / 120kHz: Ideal for micro/nano blind holes, high-end optical lenses, and sensitive electronic components.
• 200kHz: Dedicated for semiconductor wafers, silicon, and chips.
• 80kHz / 120kHz: Ideal for micro/nano blind holes, high-end optical lenses, and sensitive electronic components.
Higher frequencies produce smaller, denser cavitation bubbles with high penetration, ensuring cleaning without damaging fragile structures.
Based on our YL Series switchable configurations (Single/Dual/Triple/Quad), we recommend:
| Process | Recommended Frequency | Application Context |
|---|---|---|
| Dispersion | 17-28kHz / 40kHz / 120kHz | 17-28k for large solids; 40k for powders; 120k for micron/nano particles. |
| Emulsification | 28kHz / 40kHz | 28kHz is preferred for higher shearing force. |
| Extraction | 40kHz / 120kHz | 120kHz is standard for intracellular substance extraction. |
| Mixing/Catalysis | 40kHz / 120kHz | 40kHz for routine; 120kHz for micro-particle homogenization. |
| Synthesis | 80kHz / 120kHz | Used for molecular aggregation and new material synthesis. |
| Environmental | 20kHz | Unified recommendation for sewage, sludge, and algae treatment. |
💡 Pro Tip: For dispersion, always identify if your particles are solid chunks, powders, or nano-scale before choosing.
We use high-grade stainless steel with different specifications based on the frequency to ensure durability and cavitation resistance:
| Frequency Range | Inner Tank (SUS304) | Outer Shell | Process Details |
|---|---|---|---|
| 28kHz - 200kHz | 1.5 mm Thickness | SUS304 (1.0 mm) | Precision industrial grade. |
| 25kHz | 2.0 mm Thickness | SUS201 (1.0 mm) | Thickened tank; Manual oxy-acetylene welding. |
| 17kHz & 20kHz | 3.0 mm Thickness | SUS201 (1.0 mm) | Ultra-thickened tank; Manual oxy-acetylene welding. |
The Manual oxy-acetylene welding process is specifically used for low-frequency units to withstand the intense cavitation energy generated by high-power transducers.
Our YL Series is equipped with advanced functions to enhance experimental accuracy:
- Sweep Mode: Automatically sweeps ±1kHz around the main frequency to eliminate standing waves and ensure every transducer operates at peak efficiency.
- Degas Mode: Uses pulse intervals (e.g., 5s on/off) to remove dissolved air and chlorine from reagents, crucial for HPLC and lab preparations.
- Pulse Mode: Cycles power from 100% to 0% repeatedly, creating a "blasting" effect to remove tough or baked-on residues.
The difference lies in the Full-Bridge Separately Excited PCB vs. cheap self-excited boards:
- Visualized Data: Our interface shows real-time Power, Frequency, and Current—essential for recording experimental data.
- High Power Density: We maintain a standard ≥ 0.3W/cm². Power Density = Output Power (W) / Radiation Area (cm²)
- Low-Noise Design: Advanced acoustic insulation keeps 68kHz+ units under 80dB, compared to 110dB+ in standard models.
- Reliability: Industrial-grade components ensure a near-zero failure rate even under heavy lab workloads.
Beaker Matching:
• Beaker ≤ 500mL → 3.2L to 6.5L Tank.
• Beaker ≥ 800mL → 10L to 30L Tank (10L is the most popular choice for lab efficiency).
Temperature Management:
Ultrasonic vibration naturally generates heat. While our YL series supports up to 80°C, cavitation effectiveness drops significantly above 80°C. Industry leaders like Branson and Elma also stop activity above 72°C for this reason. To maintain low temperatures, we recommend using ice packs or a cooling condensation system.
If the specific model is currently out of stock, the standard production lead times are as follows:
- 28kHz - 200kHz (Single, Dual, Triple, or Quad frequency): 3 - 5 business days for shipping.
- Low Frequency (17kHz, 20kHz, and 25kHz): 14 - 20 business days for shipping.
*Note: Lead times may vary slightly based on customization requirements (e.g., 485 ports or PLC integration). Please contact us for the most accurate shipping schedule.
Frequency determines the wavelength and the intensity of bubble collapse:
Wavelength (λ) = 1,450,000 (mm/s) / Frequency (Hz)
- 20kHz (λ ≈ 72.5mm): Large bubbles, brute force. Best for heavy rust/oil. Feel: Strong vibration.
- 40kHz (λ ≈ 36.2mm): Universal frequency. Best for general labware. Feel: Gentle tingling.
- 120kHz (λ ≈ 12.0mm): Micro bubbles, high penetration. Best for nano-scale work. Feel: Deep vibration felt in the bone.
Specification
Product Specifications
| Brand | Yunyisonic |
|---|---|
| Origin | Shenzhen City, China |
| Capacity | 30L |
| Frequency | 40/80/120kHz |
| Power | 0-800W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Extraction, Mixing, Separation, Washing |
| Function | Clean Thoroughly, Degassing, Digital Control, Heating, Noise Reduction, Power Adjustable, Pulse, Sweep, Timing |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | 27.2 kg |
|---|---|
| Package Dimensions | 63.5 × 40.5 × 45 cm |
