22L Versatile Triple-Freq 40/80/120kHz China Ultrasonic Cleaner for Lab Manufacturers, Nanoparticle Dispersion & Instrument Cleaning

  1. Triple frequency (40/80/120kHz) supports diverse lab applications from nanoparticle dispersion to deep-hole cleaning.

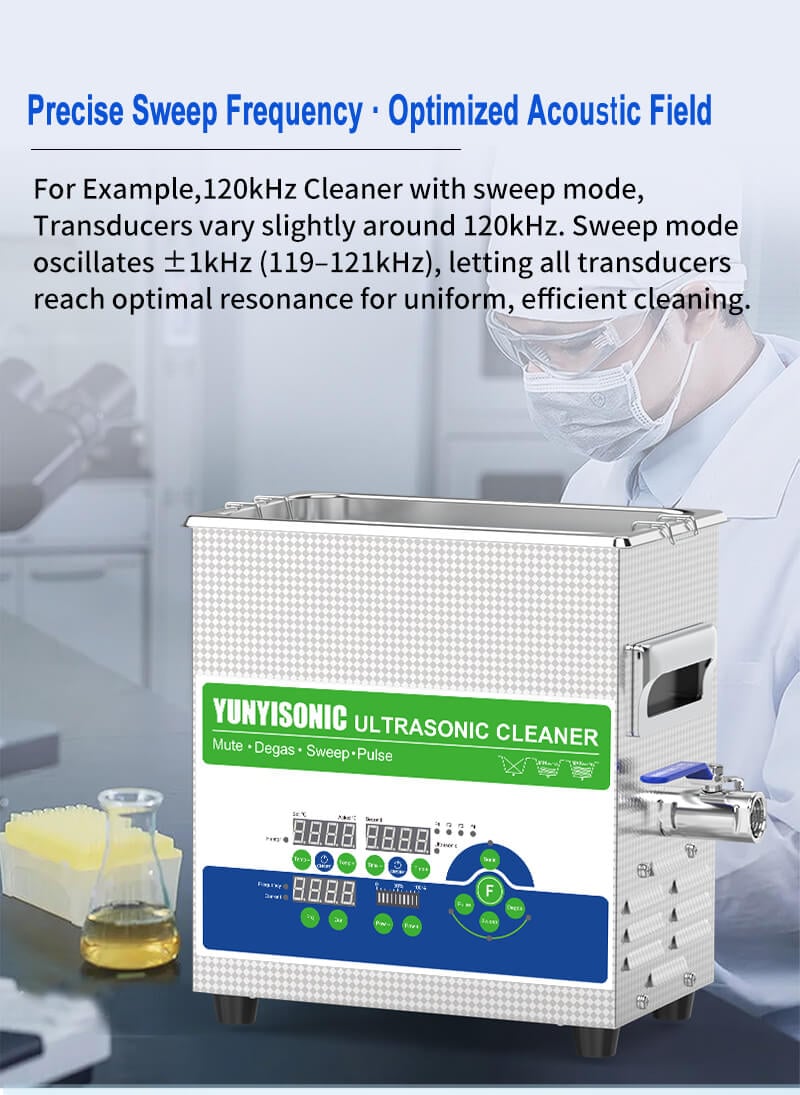

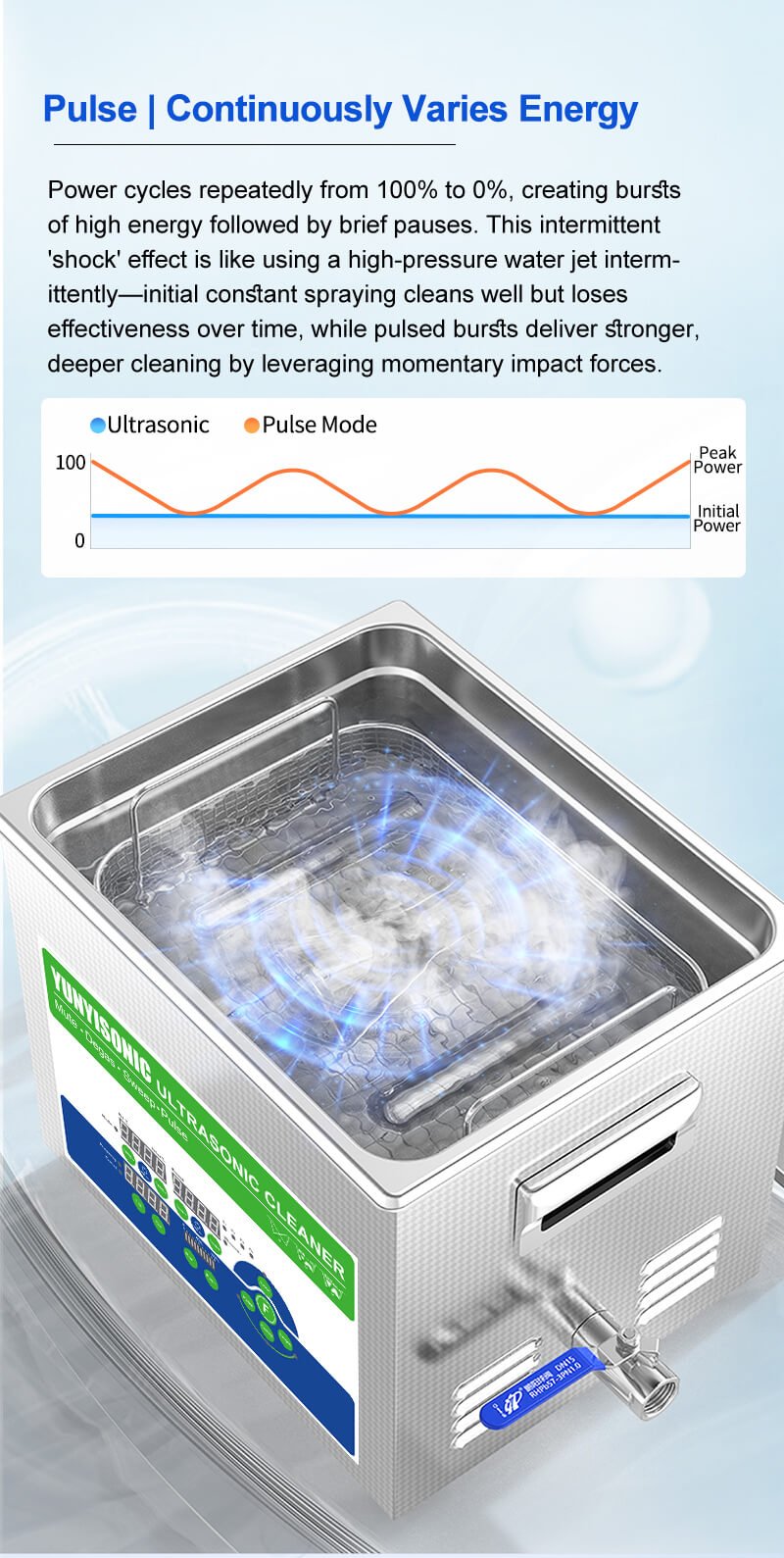

  2. Pulse, degas & sweep functions enhance cleaning efficacy and uniformity.

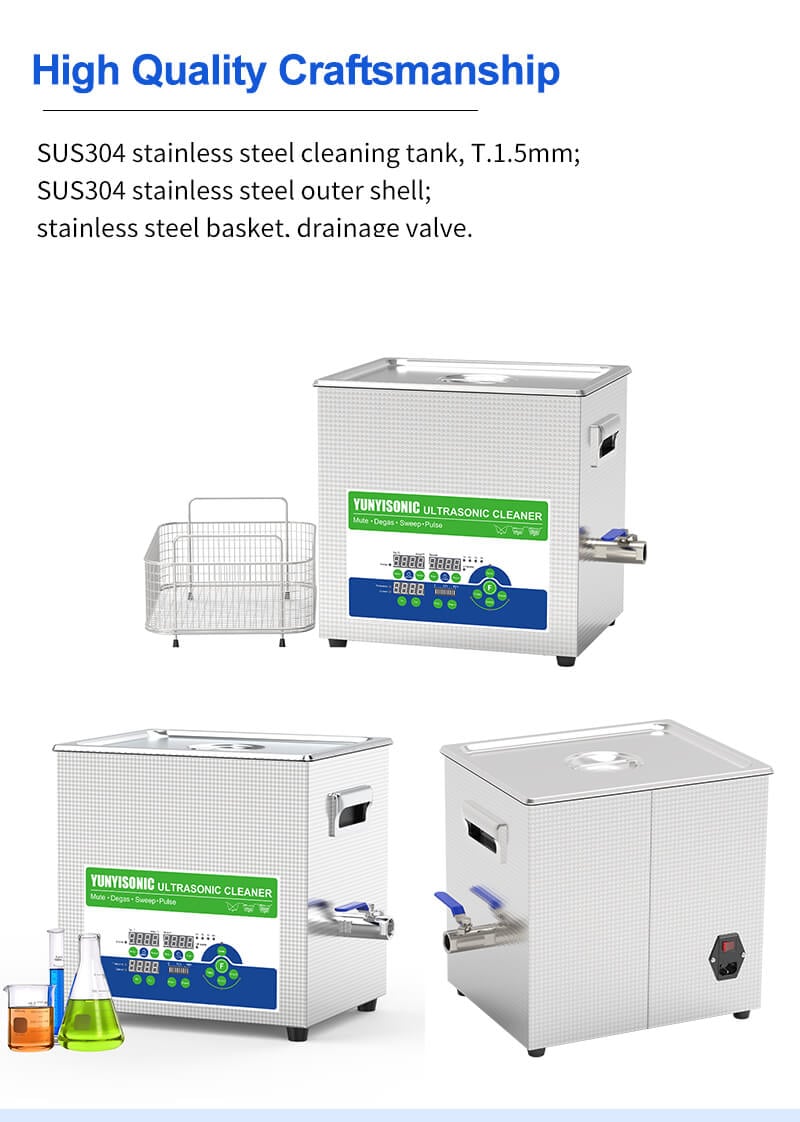

  3. SUS304 stainless steel construction ensures reliable performance in rigorous lab environments.
SKU: YL1622-4080120

$1,298.29piece

14 People watching this product now!

No minimum order required. Enjoy discounts on larger quantities


Quantity ( piece ) 1 – 10 11 – 50 51 – 100 >100
Produce (days) 2 5 10 Negotiable
  • Warranty 1 year
  • 30-Day returns

Payment Methods:

Description

Designed as a multi-purpose, high-capacity ultrasonic cleaning machine 22L for semiconductor cleanrooms and pilot-scale studies, this triple-frequency system offers fast turnaround on multiple samples, graphite block cleaning, or wafer cassette preparation. It leverages 16 industrial-grade transducers (50W each) delivering 800W combined power across 40/80/120kHz ranges. Pulse cleaning mode helps break down tough organic residues; sweep cleaning ensures uniform cleaning in dense loadouts; 120kHz mode achieves sub-micron level blind-hole and slit cleaning critical for advanced R&D. CE-certified and built to withstand continuous use cycles.

22L Versatile Triple-Freq 40/80/120kHz China Ultrasonic Cleaner for Lab Manufacturers, Nanoparticle Dispersion & Instrument Cleaning

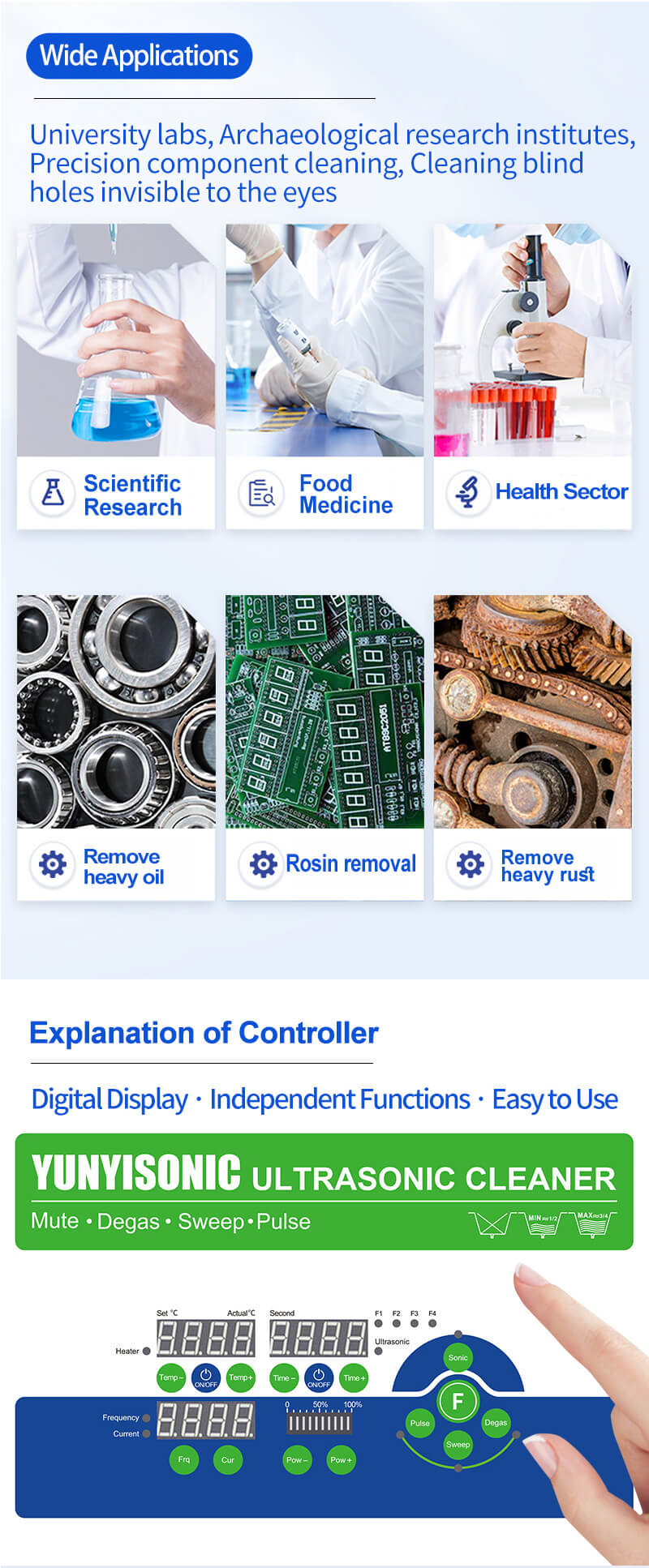

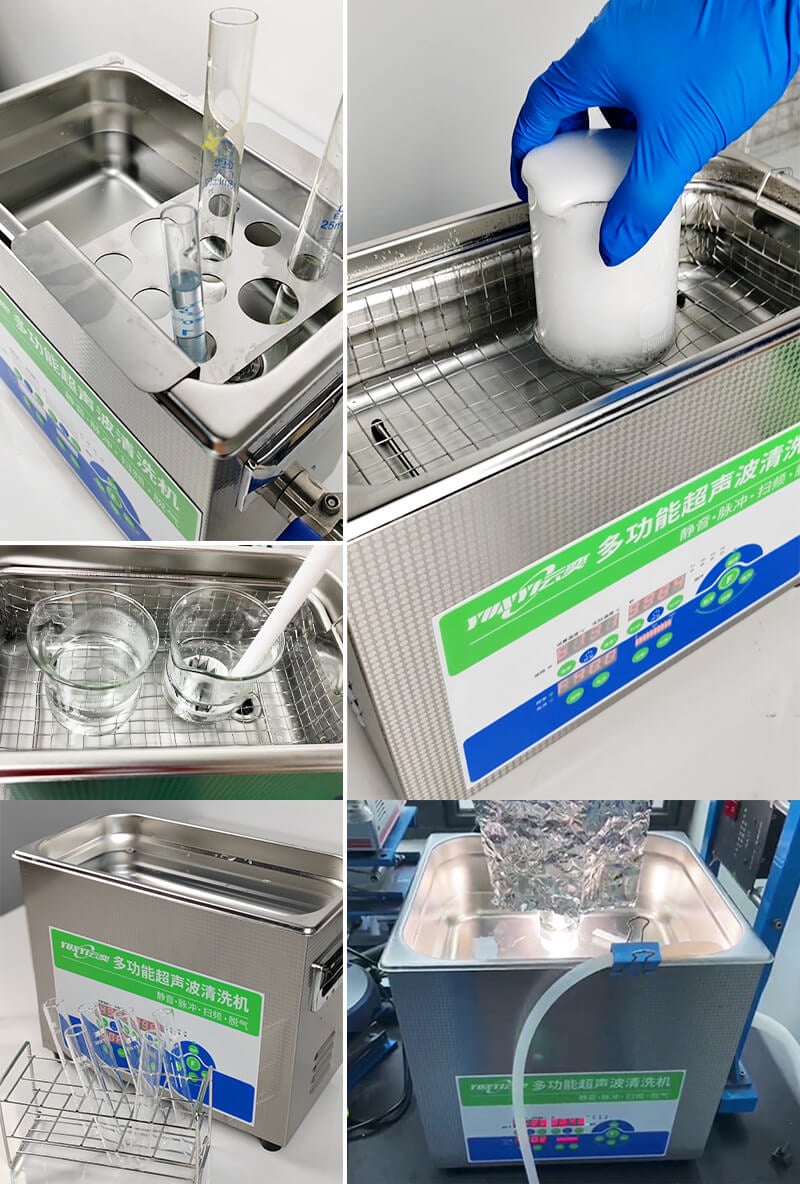

Application Scenarios

🌱 Algae Removal
🧫 Sample Prep HPLC/LC-MS
🧴 Nanoparticle Dispersion
🍲 Emulsion Breaking
🛢 Grease Removal
🌊 Immiscible Mixing
🌿 Bioactive Extraction
🔬 Sonochemistry

Product Features:

  • Three Frequency 40/80/120kHz: Sample preparation applications in the lab. dispersion, extraction, degassing, solubilization, and sonochemical treatments
  • 16 x 50 Watts Transducers – 800 Watts Efficient
  • Generous 22L Tank Capacity & Dimensions 50x30x15cm
  • 1 – 9999s Digital Time Setting
  • Heating Function Room Temperature – 80℃ Range
  • Secure Wire Cleaning Mesh Basket
  • Yunyisonic ultrasonic cleaner meets CE + RoHS + FCC (“Limit the use of certain hazardous substances”) standards and comes with a 1-year Free Parts” warranty

Specification:

Model YL1622-4080120 Transducer No. 16pcs
Frequency 40/80/120kHz Ultrasonic Power 0-800W
Capacity 22L Heating Power 1000W
Timer 1~9999s Adjustable Tank Material SUS304
Heater 20°C – 80°C Housing Material SUS304
Tank Size(mm) 500x300x150 Unit Size(mm) 530x330x335
Drain Valve Yes Refurbished No

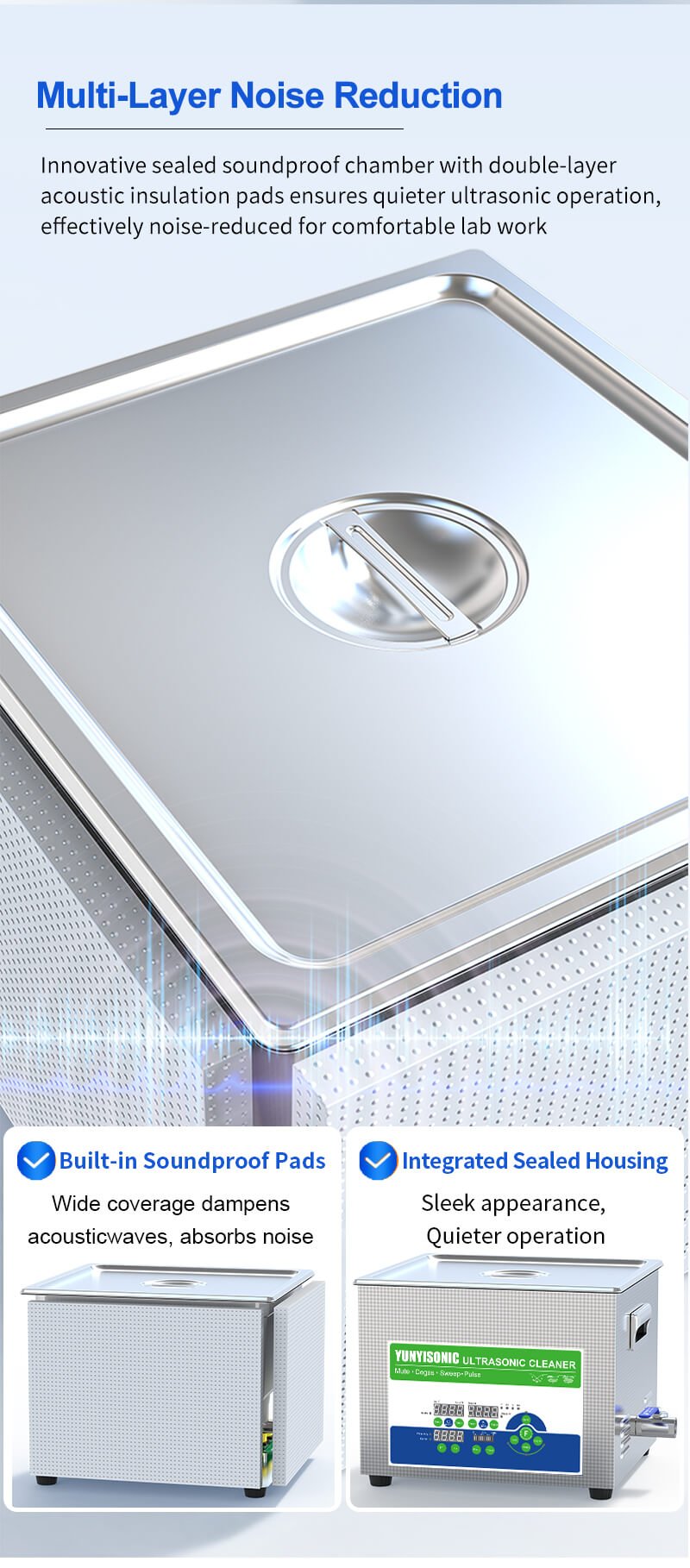

Function Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-Language Interface Optional
Logo/Pattern Silk screen printing, Laser Printing, UV printing, PVC, Other

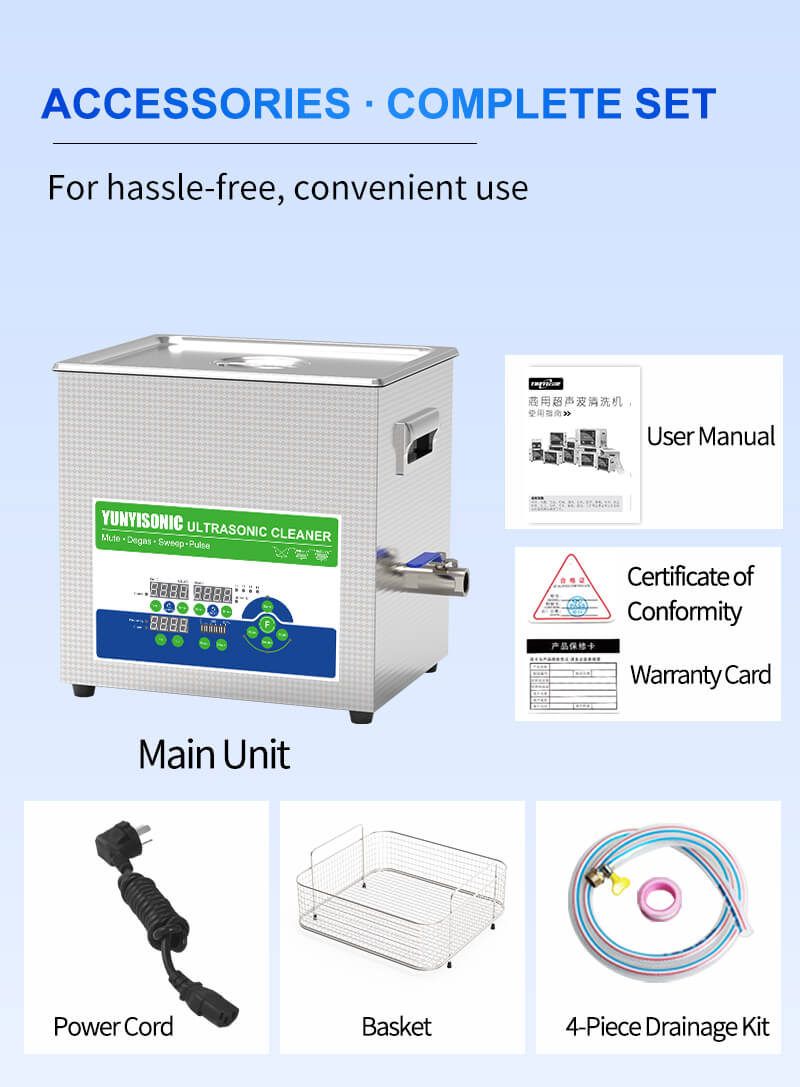

Box Contents:

1 x Professional Ultrasonic Cleaner
1 x Durable Mesh Cleaning Basket
One cover, one power cord, one manual warranty card certificate of conformity.

Packing type:

One unit filled with thick foam, then standard export corrugated carton or wooden box.

More Units

22L Versatile Triple-Freq 40/80/120kHz China Ultrasonic Cleaner for Lab Manufacturers, Nanoparticle Dispersion & Instrument Cleaning

40/80/120kHz Triple Frequency Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model Transducers Cap Frequency UT Power Heat Pwr Size(LxWxH mm)
(PCS) (L) (kHz) (W) (W) Tank Unit
YL0404-4080120 4 4.5 40/80/120 0-200 450 300x150x100 325x175x280
YL0406-4080120 4 6.5 40/80/120 0-200 450 300x150x150 325x175x330
YL0810-4080120 8 10 40/80/120 0-400 600 300x240x150 325x265x330
YL0814-4080120 8 14 40/80/120 0-400 600 300x240x200 325x265x380
YL1015-4080120 10 15 40/80/120 0-500 1000 330x300x150 355x325x330
YL1019-4080120 10 19 40/80/120 0-500 1000 330x300x200 355x325x380
YL1622-4080120 16 22 40/80/120 0-800 1000 500x300x150 530x330x335
YL1630-4080120 16 30 40/80/120 0-800 1000 500x300x200 530x330x385

22L Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model Transducers Cap Frequency UT Power Heat Pwr Size(LxWxH mm)
(PCS) (L) (kHz) (W) (W) Tank Unit
YNLH1422-17 14 22 17 0–1120 1000 500x300x150 600x360x380
YNLH1422-20 14 22 20 0-1400 1000 500x300x150 600x360x380
YNL1622-25 16 22 25 0-800 1000 500x300x150 600x360x380
YL1422-28 14 22 28 0-700 1000 500x300x150 530x330x345
YL1422-33 14 22 33 0-700 1000 500x300x150 530x330x345
YL1022-40 10 22 40 0-500 1000 500x300x150 530x330x335
YL1622-40 16 22 40 0-800 1000 500x300x150 530x330x335
YLS3222-50 32 22 50 0–960 1000 500×300×150 530×330×335
YLS3222-53 32 22 53 0–1120 1000 500×300×150 530×330×335
YL1622-68 16 22 68 0-800 1000 500x300x150 530x330x345
YL1622-80 16 22 80 0-800 1000 500x300x150 530x330x335
YL1622-120 16 22 120 0-800 1000 500x300x150 530x330x335
YL1622-130 16 22 130 0–960 1000 500×300×150 530×330×335
YLS3222-200 32 22 200 0-800 1000 500x300x150 530x330x335
YL1422-2840 14 22 28/40 0-700 1000 500x300x150 530x330x345
YL1622-4068 16 22 40/68 0-800 1000 500x300x150 530x330x345
YL1622-4080 16 22 40/80 0-800 1000 500x300x150 530x330x335
YL1622-40120 16 22 40/120 0-800 1000 500x300x150 530x330x335
YL1622-80120 16 22 80/120 0-800 1000 500x300x150 530x330x335
YNLH1022-20/40/60 10 22 20/40/60 0-1200 1000 500x300x150 600x360x380
YL1622-4080100 16 22 40/80/100 0-800 1000 500x300x150 530x330x335
YL1622-4080120 16 22 40/80/120 0-800 1000 500x300x150 530x330x335
YL1622-255080120 16 22 25/50/80/120 0-800 1000 500x300x150 530x330x335
YL1622-4080100160 16 22 40/80/100/160 0-800 1000 500x300x150 530x330x335
YL1622-4080120170 16 22 40/80/120/170 0-800 1000 500x300x150 530x330x335

YL Ultrasonic Bath Features

Specification

Product Specifications

Brand

Yunyisonic

Origin

Shenzhen City, China

Capacity

Frequency

Power

0-800W

Timer

1-9999s

Heater

RT~80°C

Tank Material

SUS304 Stainless Steel

Housing Material

SUS304 Stainless Steel

Voltage

AC 110V 60Hz;AC 220V 50Hz

Plug Type

EU Plug

,

US Plug

,

AU Plug

,

Other Plugs

,

UK Plug

Certificates

CE

,

FCC

,

ROHS

Warranty

1 Year

Customization

485 Port

,

Frequency

,

PLC System

,

Tanks Numbers

Assisted Systems Yunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing

,

,

,

,

,

,

,

Function

,

,

,

,

,

,

,

,

Manufacturer

Yunyisonic Shenzhen Co., Ltd.

Packaging

Volumetric Weight 24.2 kg
Package Dimensions 63.5 × 40.5 × 40 cm
