40KHz 50W Piezoelectric Ultrasonic Transducer with Weld Nail Mount for DIY Cleaning Tank | High Quality Ultrasonic Cleaning Parts

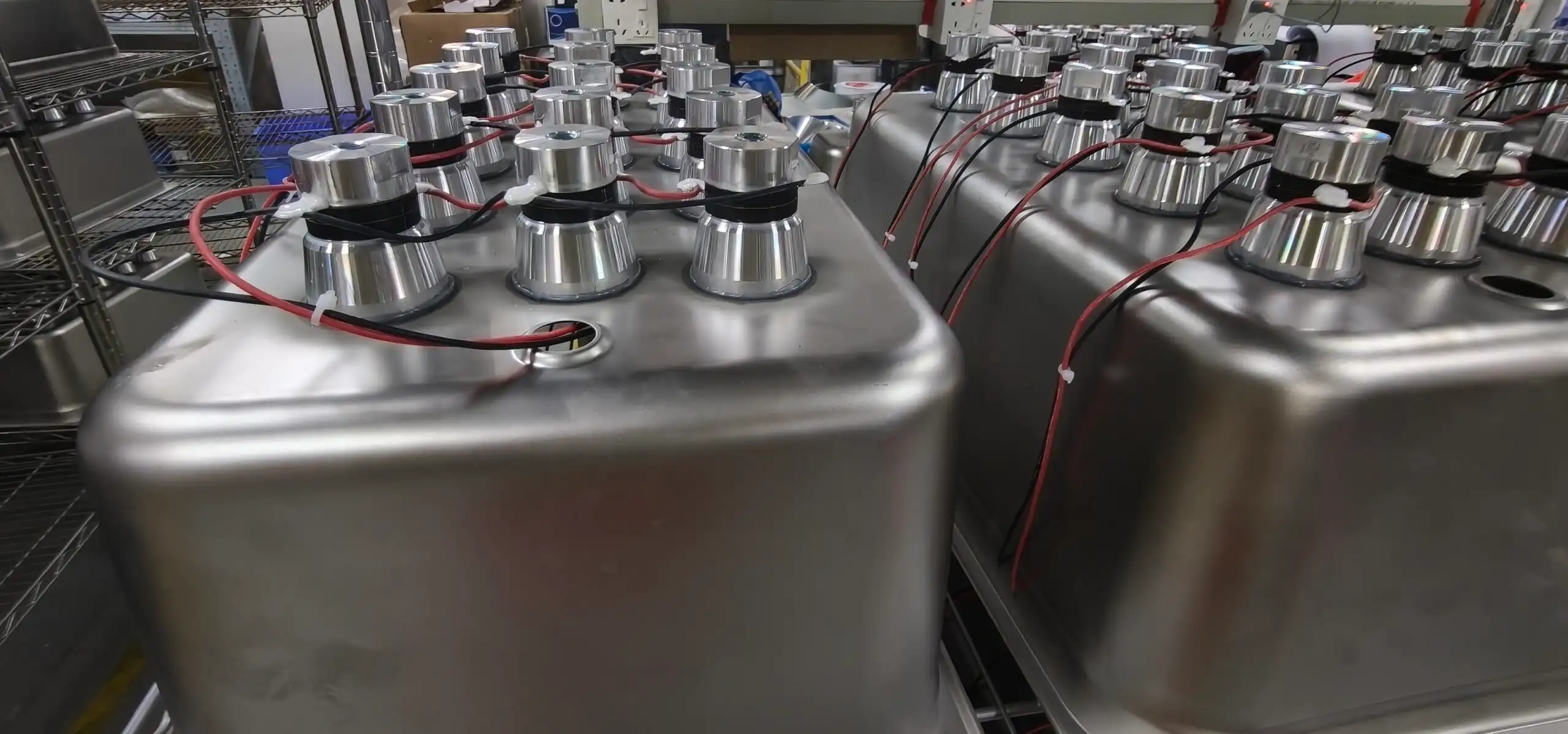

Transducer Installation Advice:

1. Welding plus adhesive: Spot-weld the transducer first, then seal the edges with epoxy glue for extra reinforcement. This combination resists long-term ultrasonic vibration without peeling.

2. Glue only (no welding): Grind off all paint completely to expose bare metal on the tank wall. Spread epoxy evenly, press the transducer tightly in place. Let it cure naturally at room temperature for 24–36 hours. Do not power on the machine until the adhesive is fully hardened, to avoid the transducer falling off from vibration.
Note: Polarity rule for transducers: the middle pin is positive (+), and the two side pins are negative (-). Please connect positive terminals together and negative terminals together strictly.

1. Digital Ultrasonic DIY Kit
1 main digital control board + multiple slave mechanical control boards.
Requires a digital display panel; operation via panel buttons + external physical switches.
Can be rewired with jumper wires for direct switch control if needed.

2. Mechanical Ultrasonic DIY Kit
1 main mechanical control board + multiple slave mechanical control boards.
No digital display needed. It can be wired directly to a power switch for on/off operation.

Transducer Piezoelectric of Ultrasonic Cleaner can be used for DIY ultrasonic machine

Key Features and Benefits

The 40KHz 50W ultrasonic transducer is a key component for those building or repairing ultrasonic cleaning tanks. With weld nail mounting for secure installation, this piezoelectric transducer ensures reliable and efficient cleaning performance.

1. Optimized Frequency for Effective Cleaning
Operating at 40KHz, this transducer produces medium-sized cavitation bubbles, making it suitable for both general cleaning tasks and precision applications.

2. 50W Power Output for Efficient Performance
With a 50W power rating, this transducer delivers sufficient energy to generate strong cavitation effects, ensuring thorough contaminant removal.

3. Piezoelectric Technology for Stable Performance
The transducer employs piezoelectric ceramic discs, which provide high sensitivity and long service life. This design ensures that the transducer maintains consistent ultrasonic output with minimal energy loss, enhancing the overall cleaning effectiveness and durability of the ultrasonic system.

4. Weld Nail Mounting for Secure Installation
Equipped with weld nail mounting, this ultrasonic transducer offers stable and reliable attachment to the cleaning tank. The mounting method prevents movement during operation, ensuring that ultrasonic waves are evenly distributed across the cleaning solution for uniform results.

5. Versatile Applications for DIY Ultrasonic Cleaning Machines
DIY ultrasonic cleaning machines for different applications, including:
Jewelry and watch repair
Optical lenses and glasses
Automotive parts and tools
Medical and dental instruments
PCB and electronics cleaning

Why Choose Yunyisonic?

Choose Yunyisonic for high-performance ultrasonic cleaning solutions. As an original manufacturer, we offer advanced technology, efficient cleaning, and strong R&D capabilities. Our industrial-grade piezoelectric ultrasonic transducers ensure powerful and reliable performance, making them ideal for industrial, commercial, and laboratory ultrasonic machines applications.
