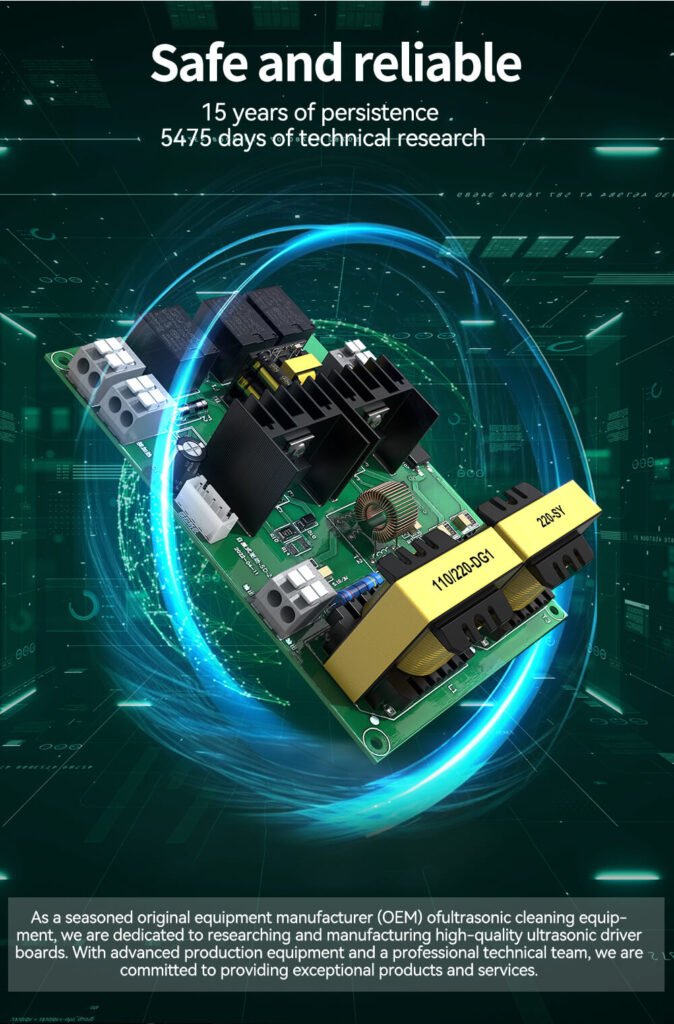

40kHz 60/120/180W Ultrasonic Cleaner Drive Board Digital Control for DIY Ultrasonic Machine

Digital control board: Must be used with the digital display panel. Start & stop is controlled jointly by panel buttons and an external physical switch.
Note: It can be rewired with jumper wires to support direct switch control.

Mechanical control board: No digital display needed. It can be wired directly to a power switch for on/off operation.

Click here for the Digital Ultrasonic Driver Board Set (extra accessories included)

Click here for the Mechanical Ultrasonic Driver Board Set (extra accessories included)

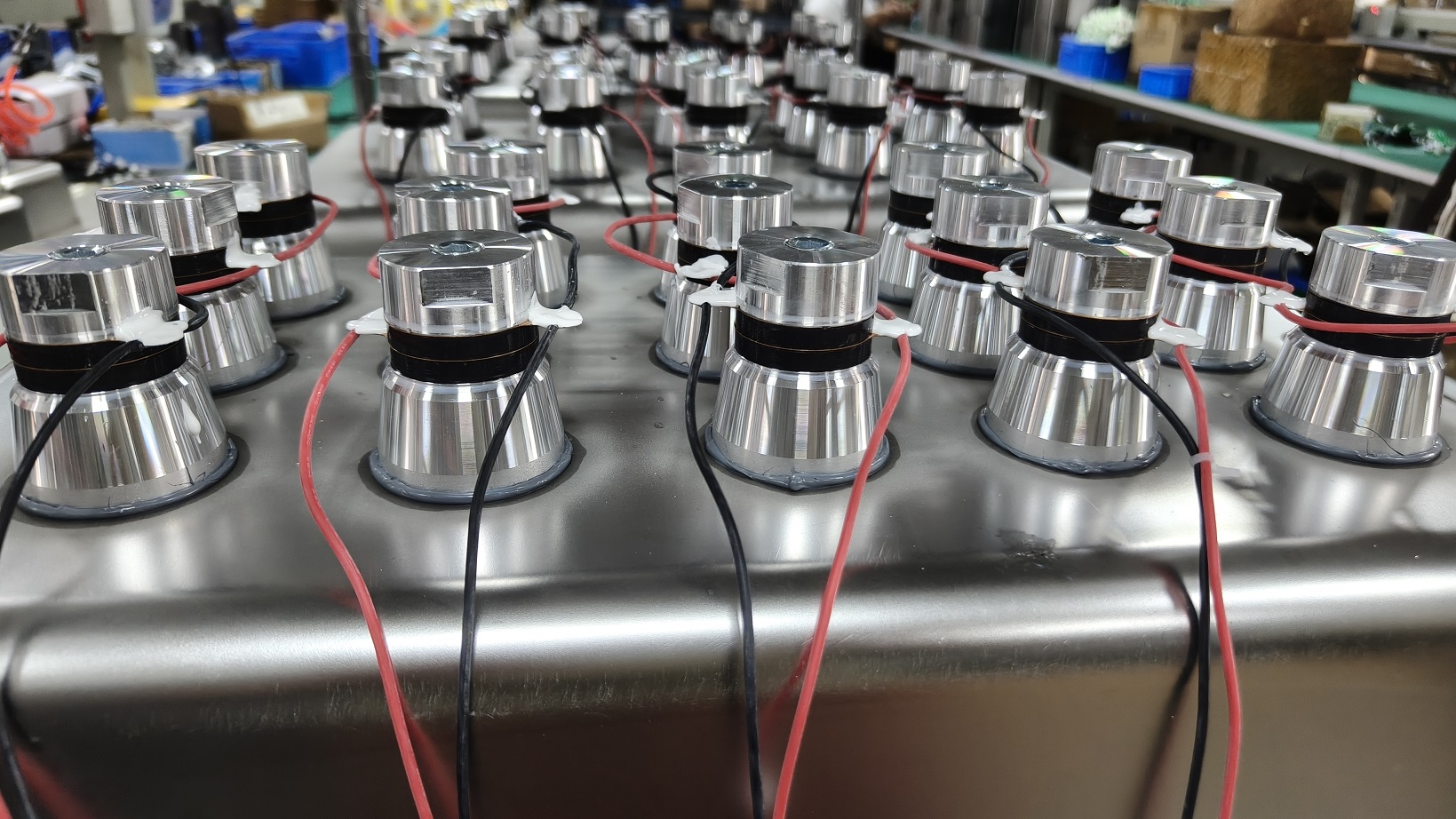

Transducer Installation Advice
1. Welding plus adhesive: Spot-weld the transducer first, then seal the edges with epoxy glue for extra reinforcement. This combination resists long-term ultrasonic vibration without peeling.
2. Glue only (no welding): Grind off all paint completely to expose bare metal on the tank wall. Spread epoxy evenly, press the transducer tightly in place. Let it cure naturally at room temperature for 24–36 hours. Do not power on the machine until the adhesive is fully hardened, to avoid the transducer falling off from vibration.

Datasheet:

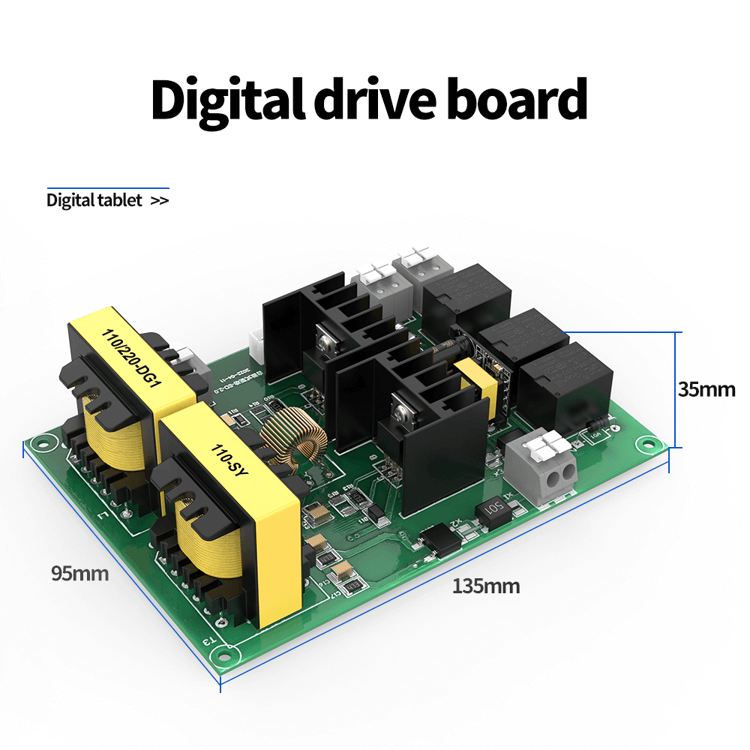

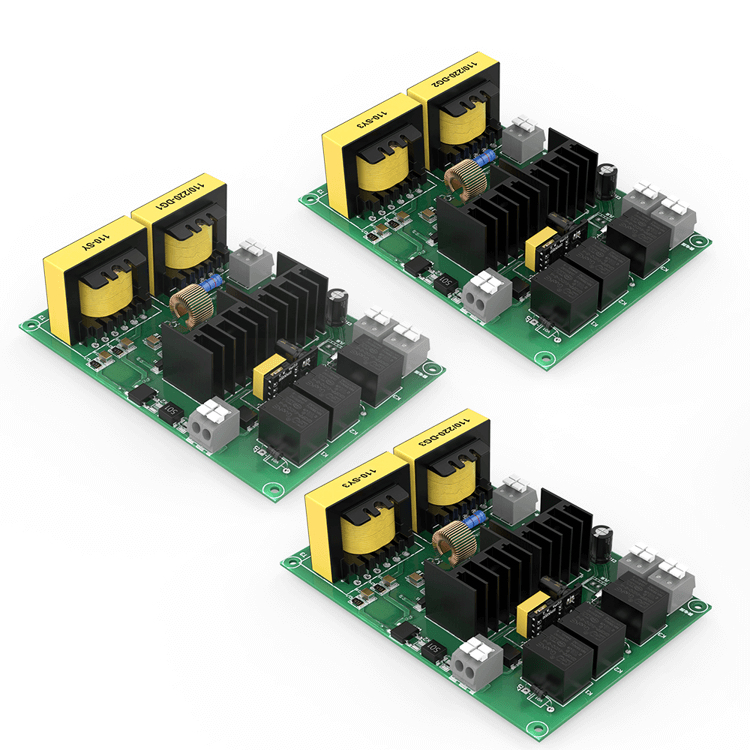

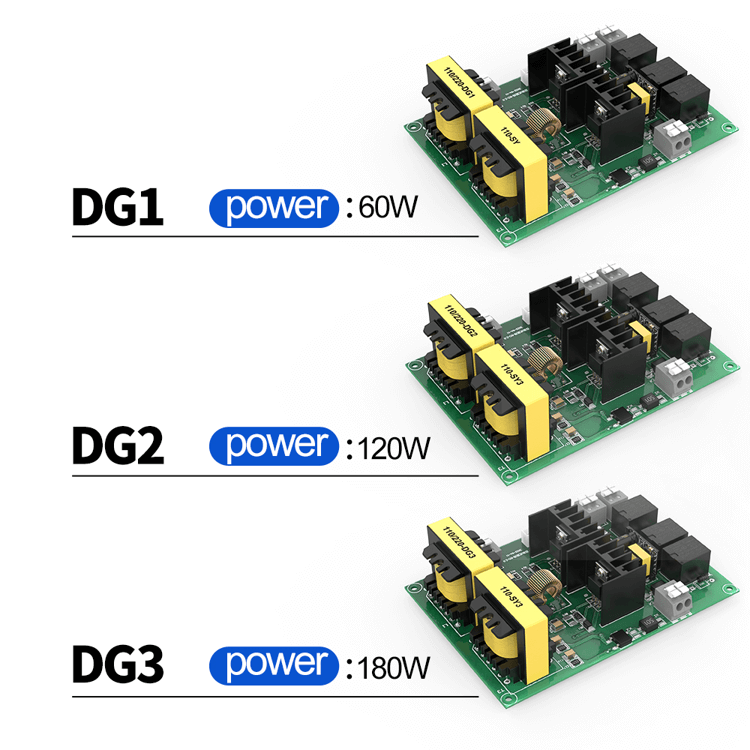

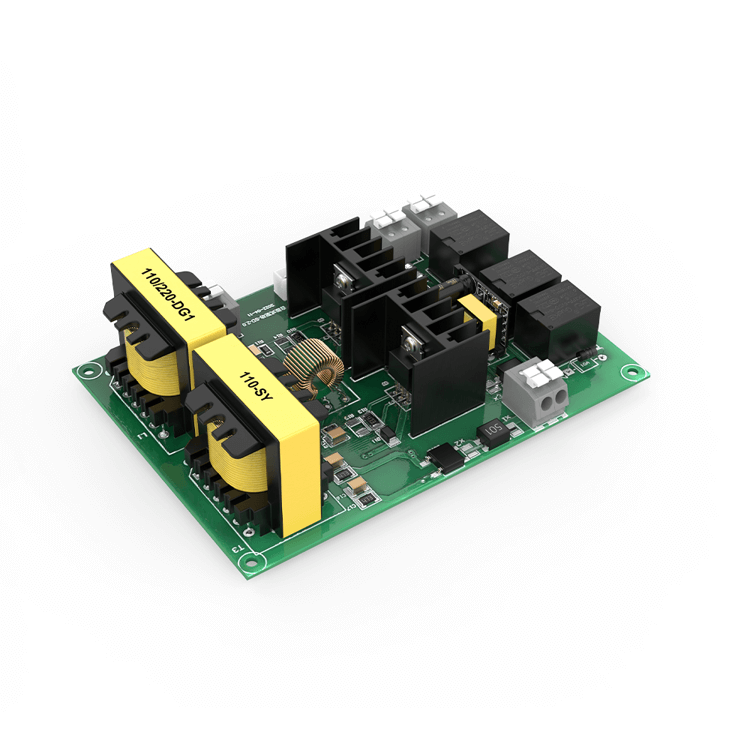

Single digital circuit drivere board can be used for 60~180W connection DIY ultrasonic machine

Key Features of the 40kHz Ultrasonic Cleaner Drive Board

DIY ultrasonic machine projects or seeking to repair existing ultrasonic equipment, selecting a high-quality drive board is important. Then comes the Yunyisonic 40kHz 60W/120W/180W Ultrasonic Cleaner Drive Board with Digital Control product.

Integrating the 40kHz Ultrasonic Cleaner Drive Board into an ultrasonic cleaning system involves connecting it to the appropriate transducers and power supply. Given its compact size and versatile interface, the board can be seamlessly incorporated into both new and existing cleaning systems. Users should ensure that the transducer’s specifications match the drive board’s output to achieve optimal performance.

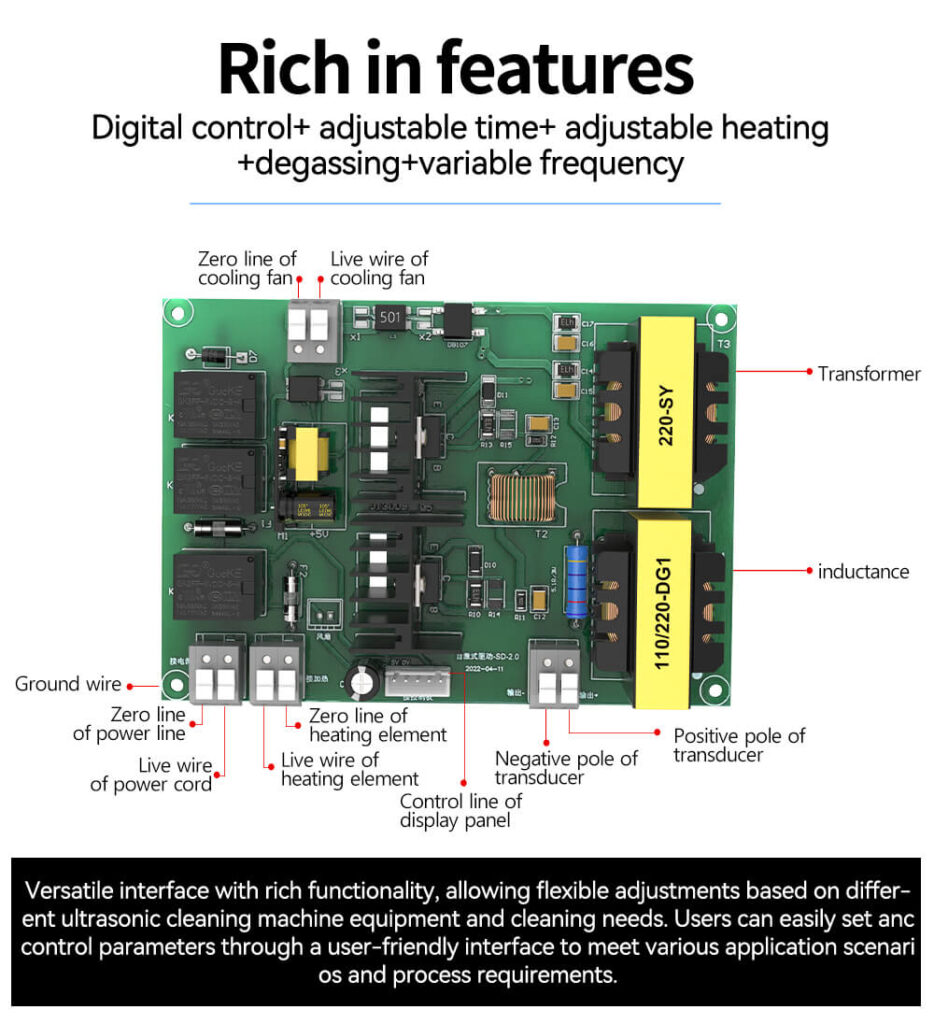

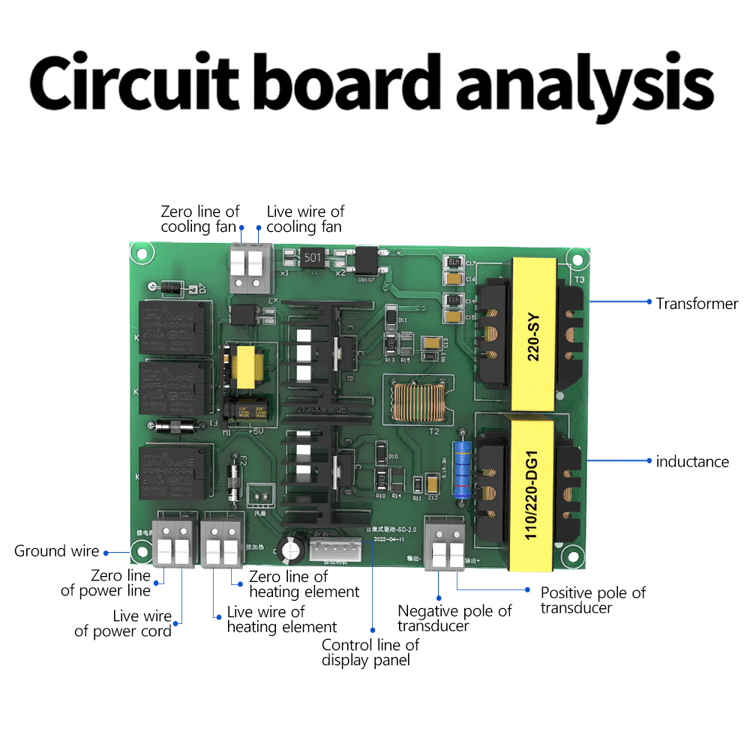

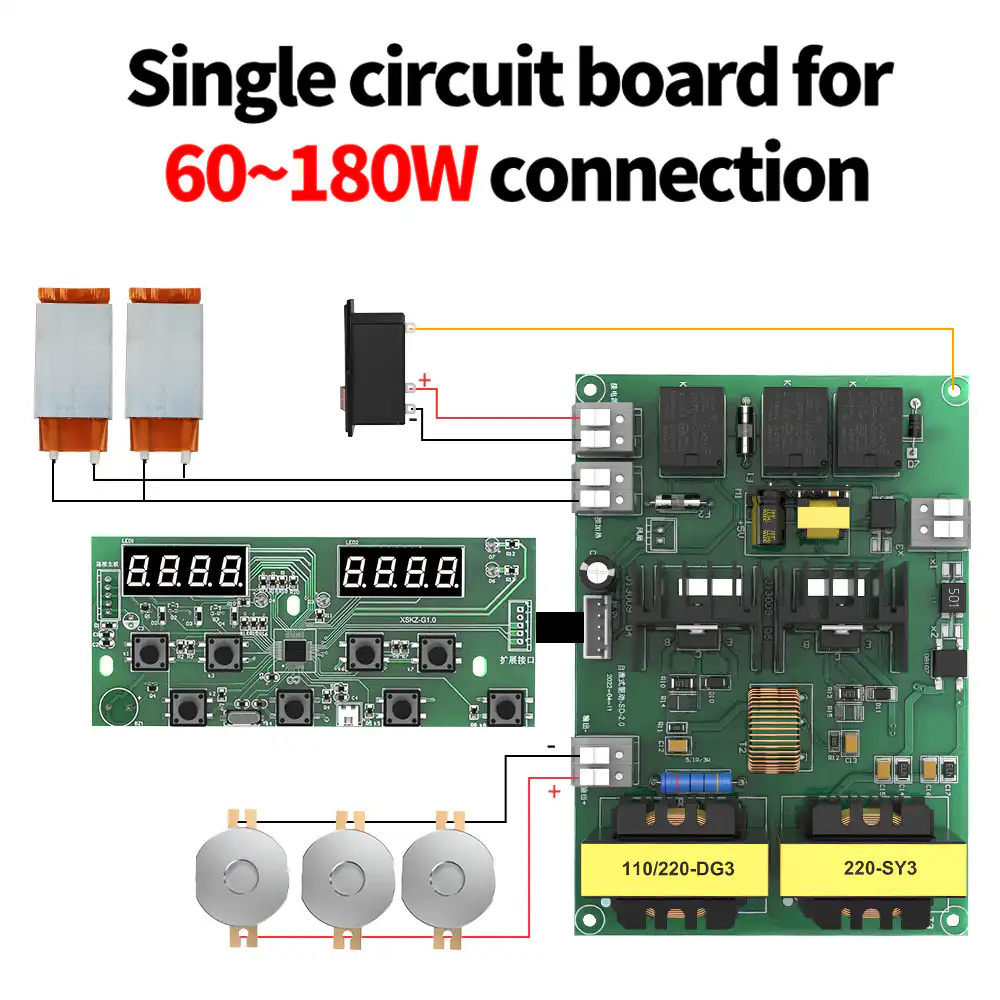

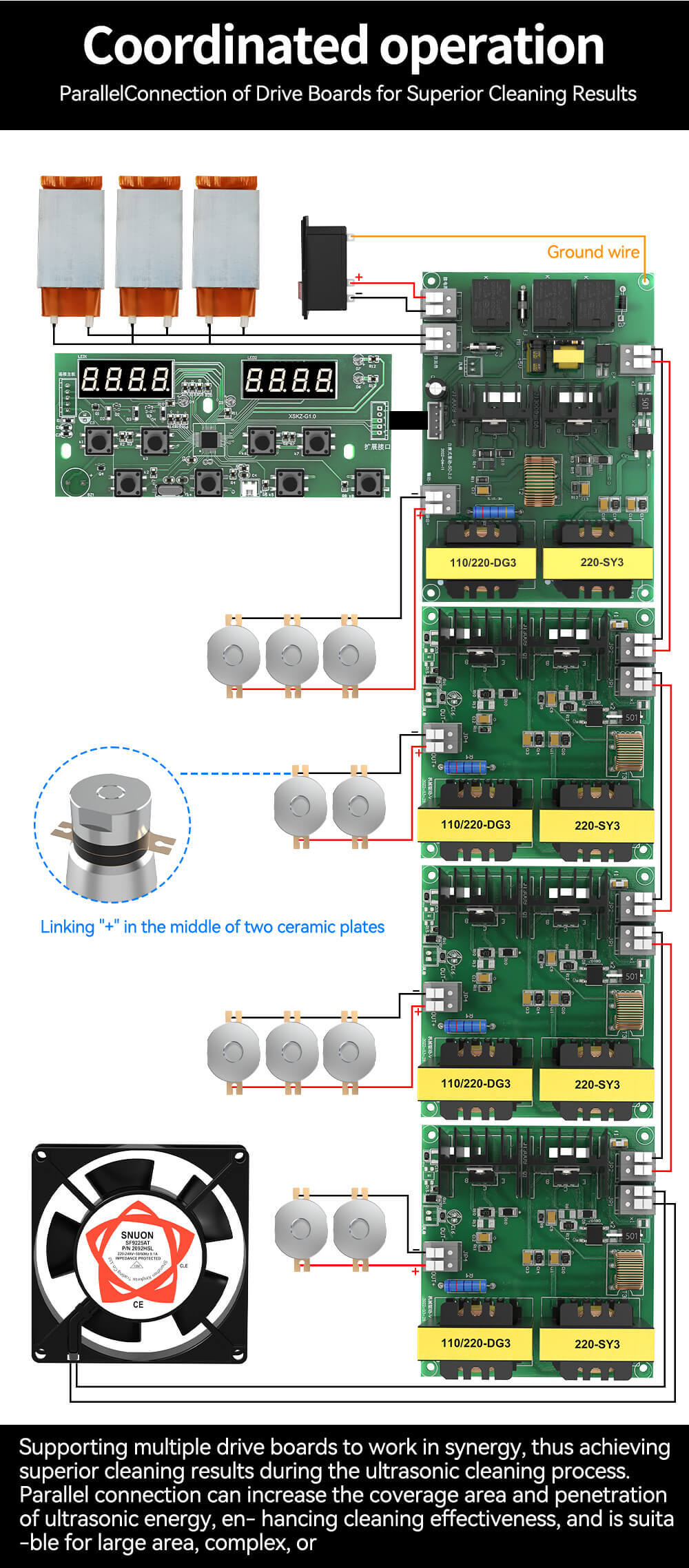

Instructions for wiring between circuit board and transducer：
1. The 60W drive board is a transducer and is connected to theterminal of the circuit board.
One circuit board and one transducer are used together
2. The 120W drive board is two transducer and is connected tothe terminal of the circuit board.
One circuit board and two transducer are used together
3. The 180W drive board is three transducer and is connectedto the terminal of the circuit board.
One circuit board and three transducer are used together

Our Advantages:
1. Multiple Power Options
2. Digital Control Interface
Equipped with a user-friendly digital control panel
3. Adjustable Timer and Heating Functions
The inclusion of adjustable timers (ranging from 1 to 99 minutes) and heating capabilities (up to 80°C) enhances the cleaning efficiency.
4. Compact and Customizable Design
