1. Digital Ultrasonic Driver Board Set
Must pair with a digital display panel. Start and stop is controlled jointly by panel buttons and external physical switches.
Optional modification: Jumper wires can be added to enable direct switch operation without the display.

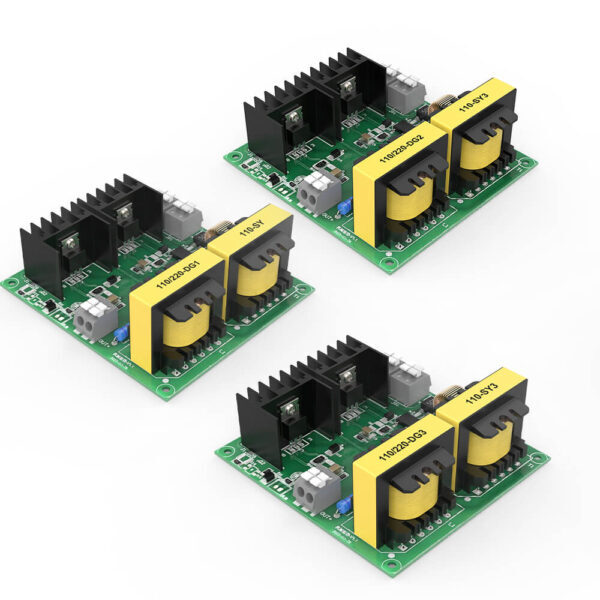

2. Mechanical Ultrasonic Driver Board Set
No digital display panel required.
It can be wired directly to a power switch for simple on/off operation.
Click here for the digital driver board (no extra accessories included)
Click here for the mechanical driver board (no extra accessories included)

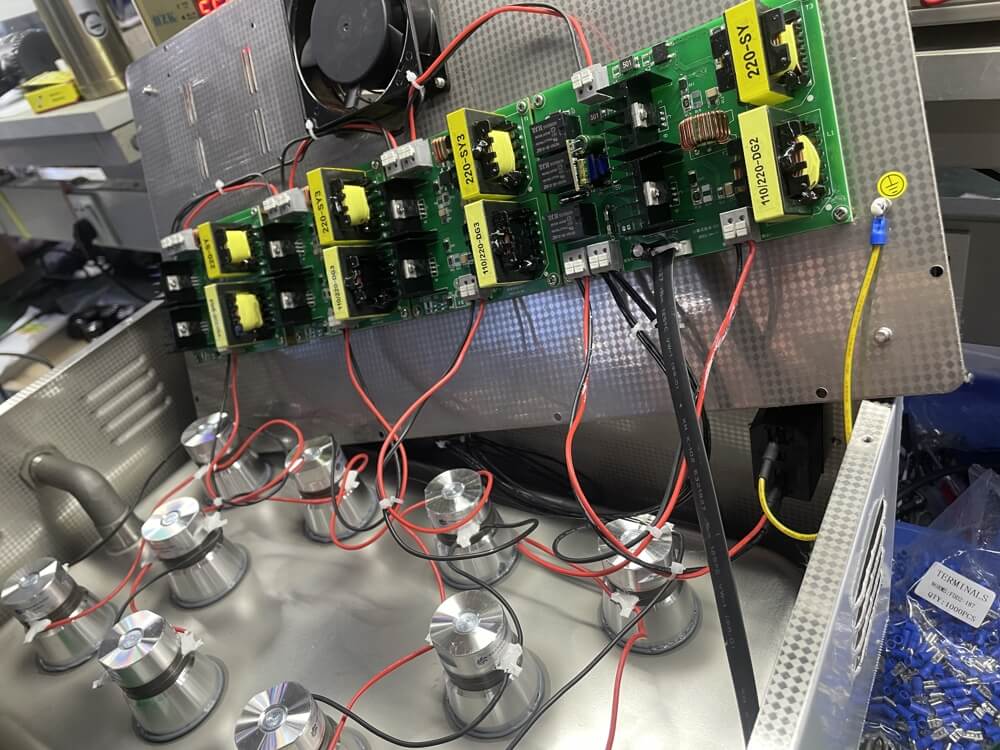

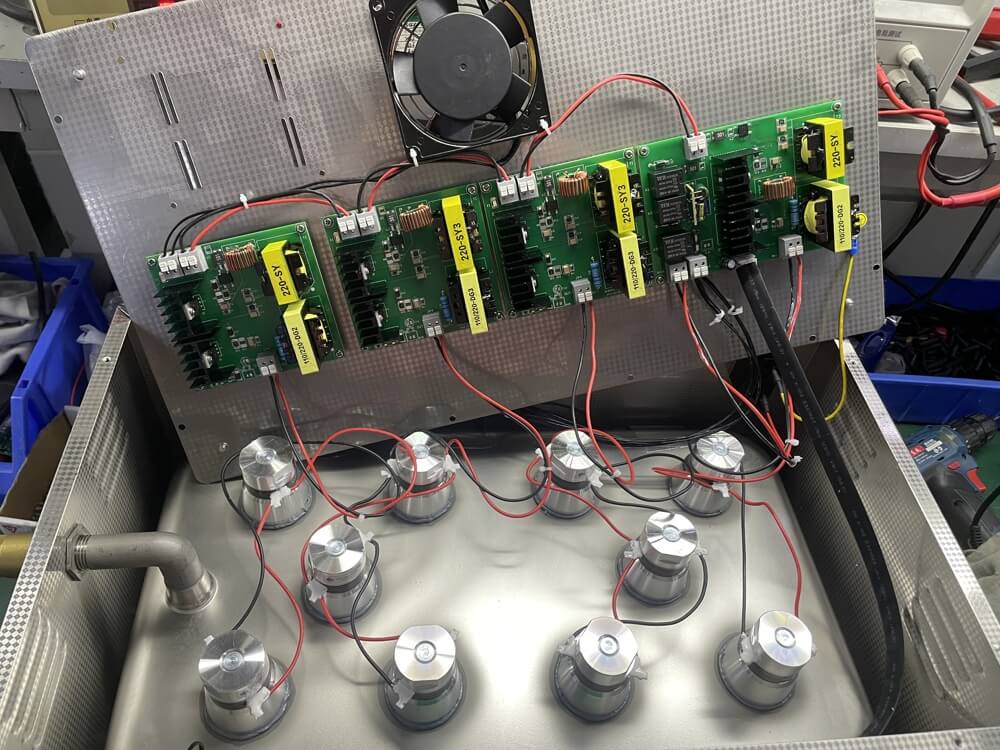

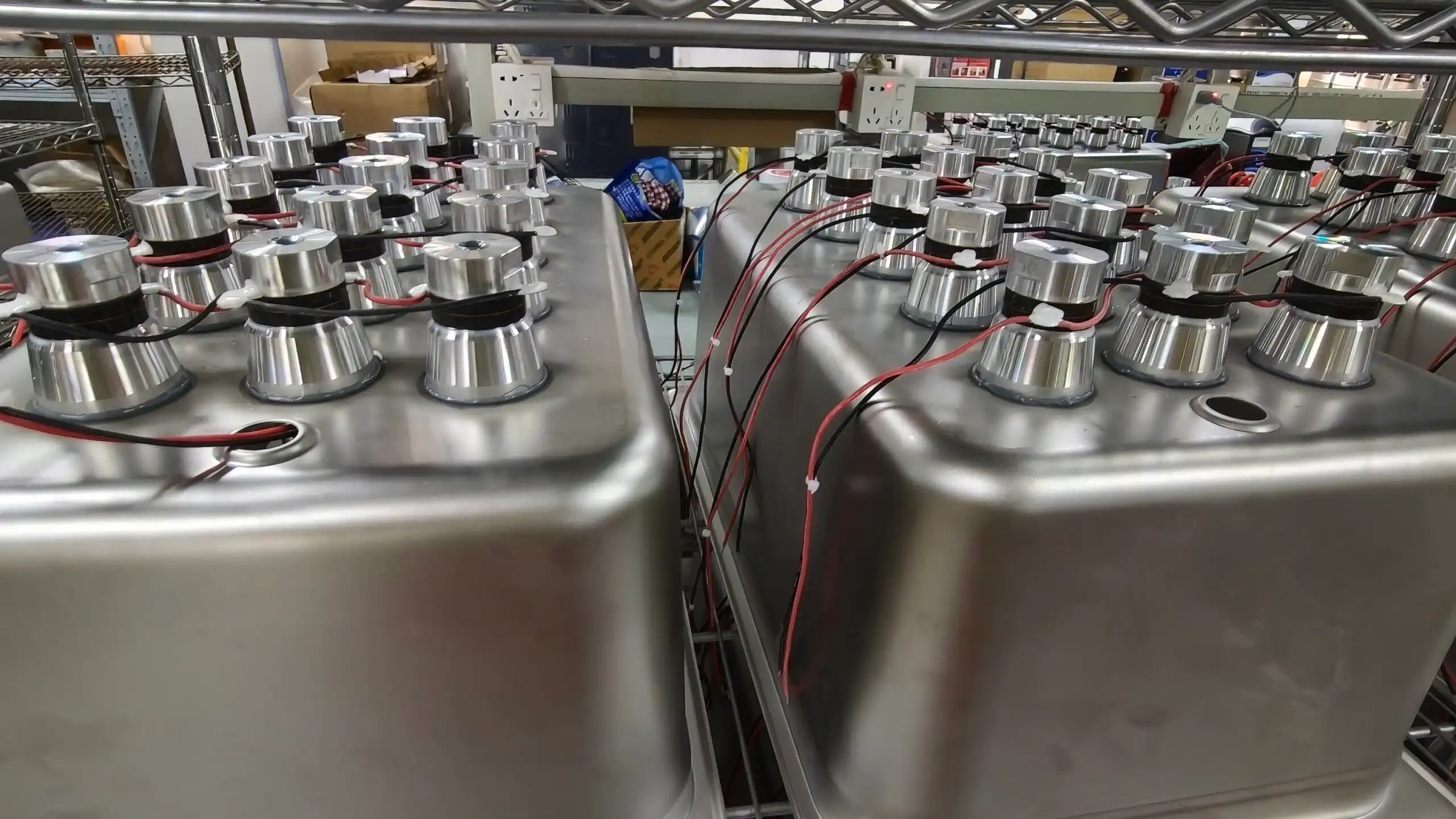

Transducer Installation Advice
1. Welding plus adhesive: Spot-weld the transducer first, then seal the edges with epoxy glue for extra reinforcement. This combination resists long-term ultrasonic vibration without peeling.
2. Glue only (no welding): Grind off all paint completely to expose bare metal on the tank wall. Spread epoxy evenly, press the transducer tightly in place. Let it cure naturally at room temperature for 24–36 hours. Do not power on the machine until the adhesive is fully hardened, to avoid the transducer falling off from vibration.
Datasheet
| Model | Type | Power Output | Compatible Transducers | Freq. | Control Method | Recommended Application |
|---|---|---|---|---|---|---|
| YY-D1-60W | Digital | 60W | 1 × 60W | 40kHz | Digital Panel | Jewelry, Lab, Dental |
| YY-D2-120W | Digital | 120W | 2 × 60W | 40kHz | Digital Panel | Small Tanks, DIY Cleaners |
| YY-D3-180W | Digital | 180W | 3 × 60W | 40kHz | Digital Panel | Watch Repair, PCBs |
| YY-D4-240W | Digital | 240W | 4 × 60W | 40kHz | Digital Panel | Medical Tool Cleaning |
| YY-D5-300W | Digital | 300W | 5 × 60W | 40kHz | Digital Panel | Labware, Filter Membranes |
| YY-D6-360W | Digital | 360W | 6 × 60W | 40kHz | Digital Panel | Food Industry Parts |
| YY-D7-420W | Digital | 420W | 7 × 60W | 40kHz | Digital Panel | Automotive Fuel Injectors |
| YY-D8-480W | Digital | 480W | 8 × 60W | 40kHz | Digital Panel | Tooling Parts, Metal Debris |
| YY-D9-540W | Digital | 540W | 9 × 60W | 40kHz | Digital Panel | Optical Components |
| YY-D10-600W | Digital | 600W | 10 × 60W | 40kHz | Digital Panel | Laboratory & Industrial Tanks |
| YY-D11-660W | Digital | 660W | 11 × 60W | 40kHz | Digital Panel | High-load Cleaning Systems |
| YY-D12-720W | Digital | 720W | 12 × 60W | 40kHz | Digital Panel | Assembly Line Ultrasonic Units |
| YY-D13-780W | Digital | 780W | 13 × 60W | 40kHz | Digital Panel | Precision Electronics Cleaning |
| YY-D14-840W | Digital | 840W | 14 × 60W | 40kHz | Digital Panel | Manufacturing Workshop Use |
| YY-D15-900W | Digital | 900W | 15 × 60W | 40kHz | Digital Panel | Multi-tank Industrial Systems |

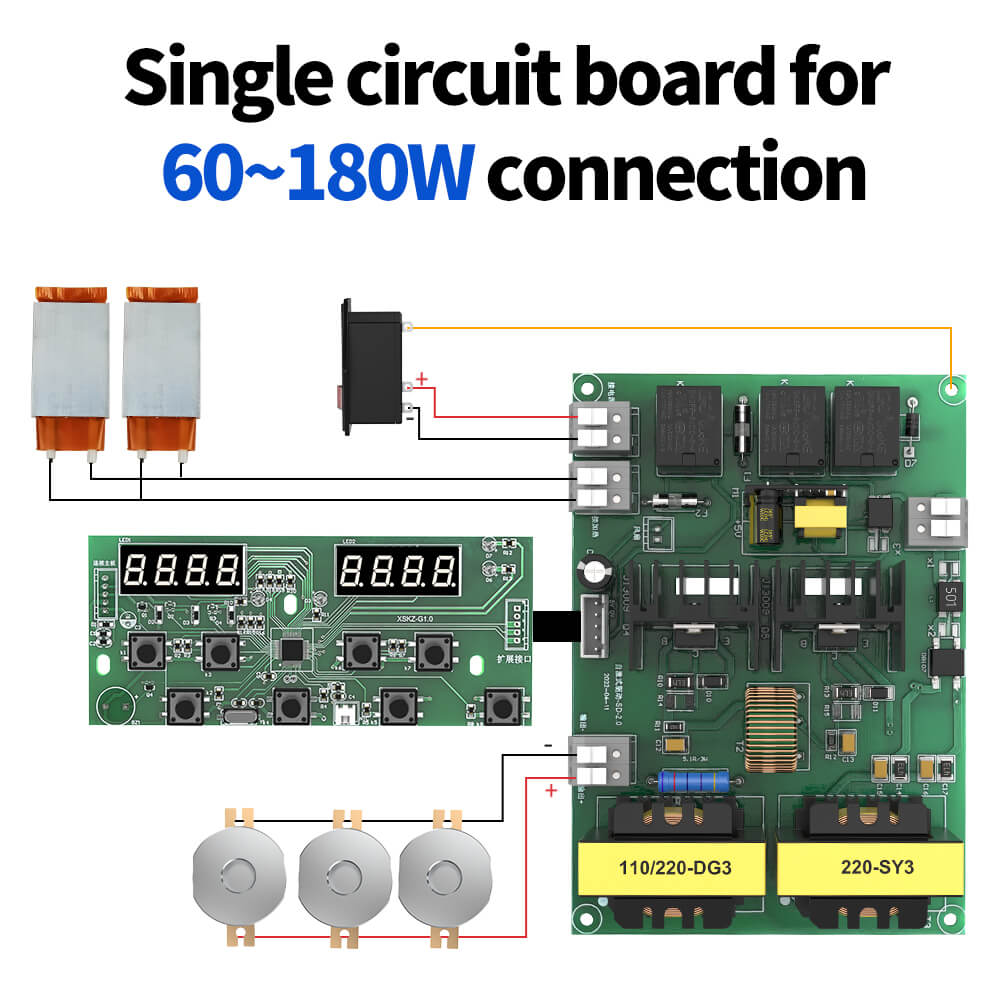

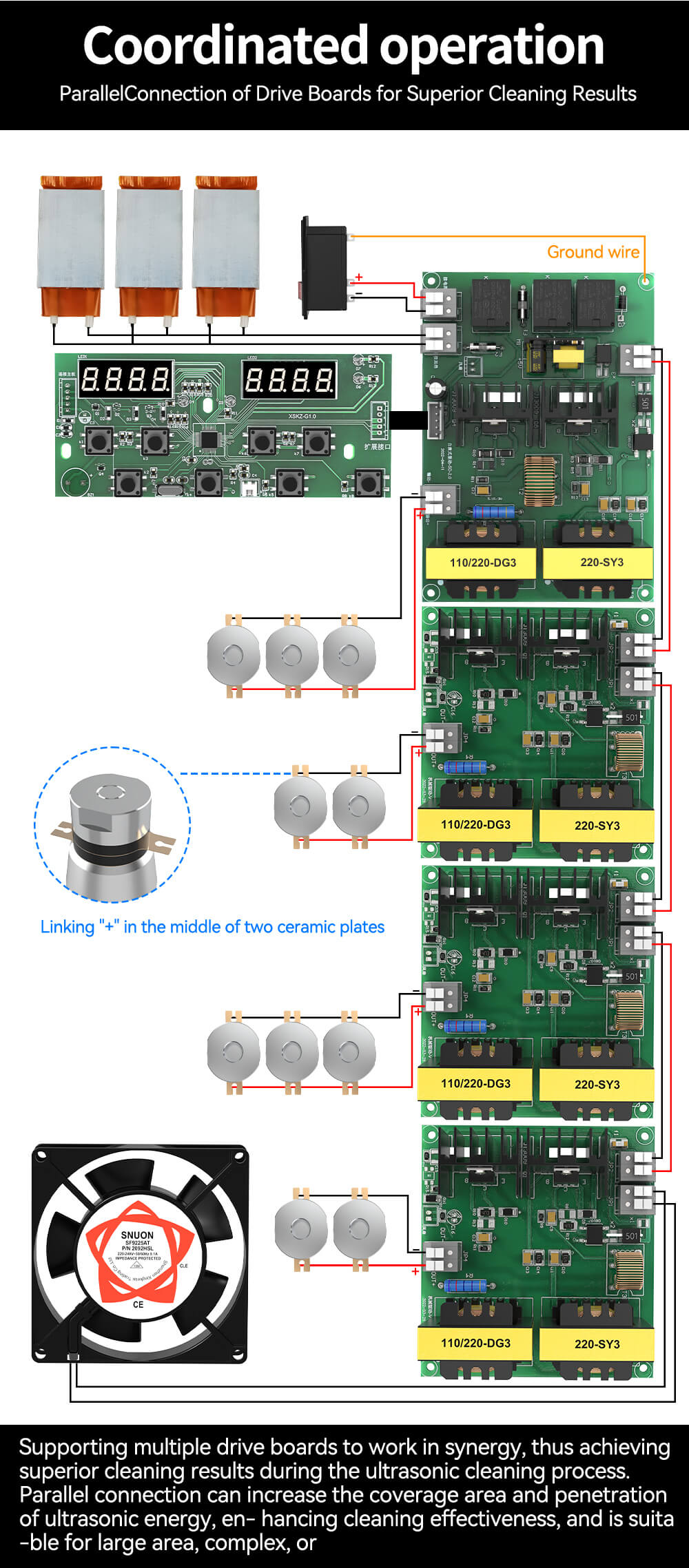

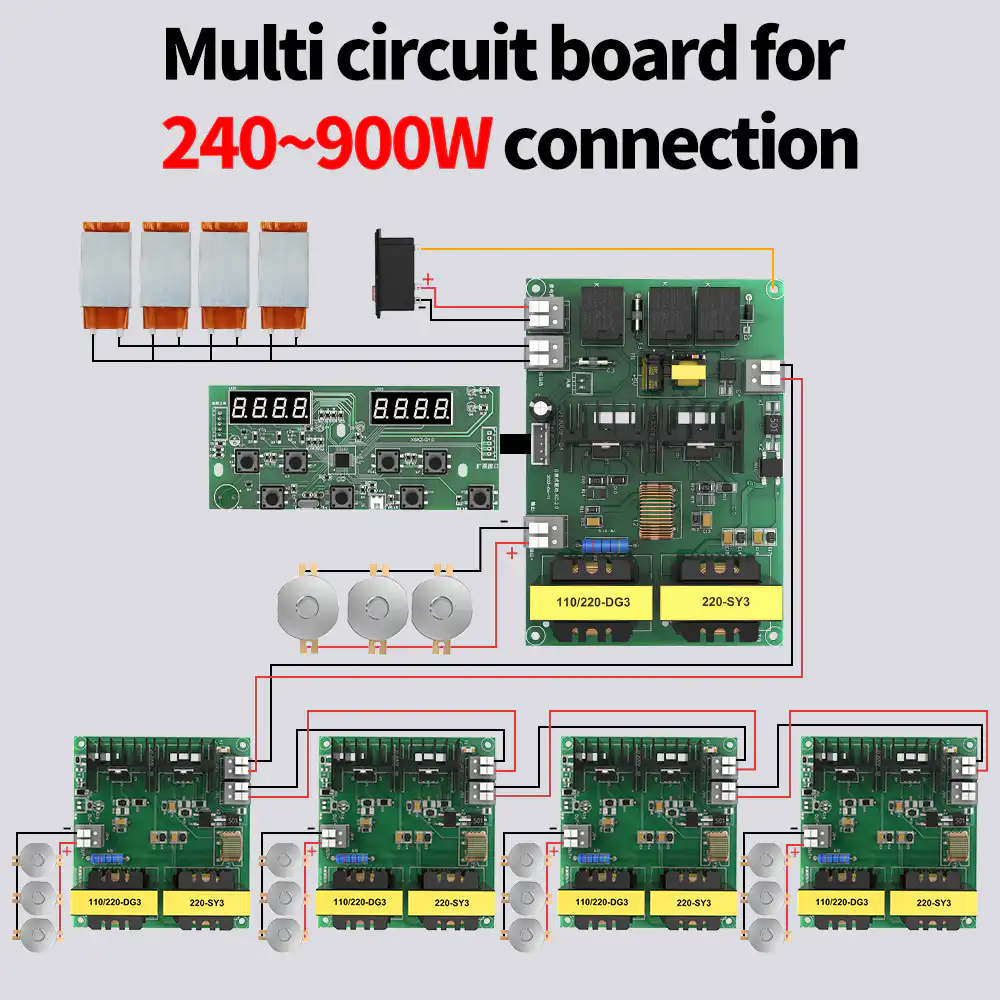

Installation Guide And Connection Diagrams

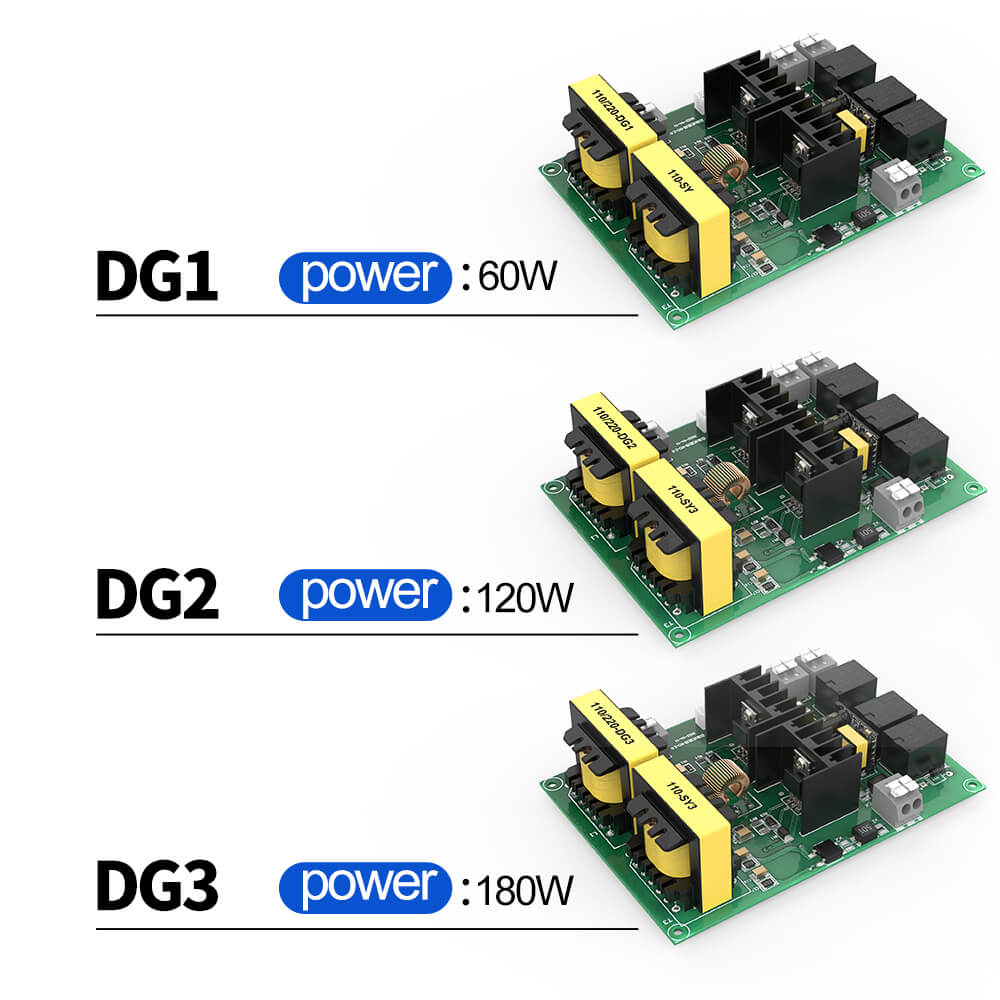

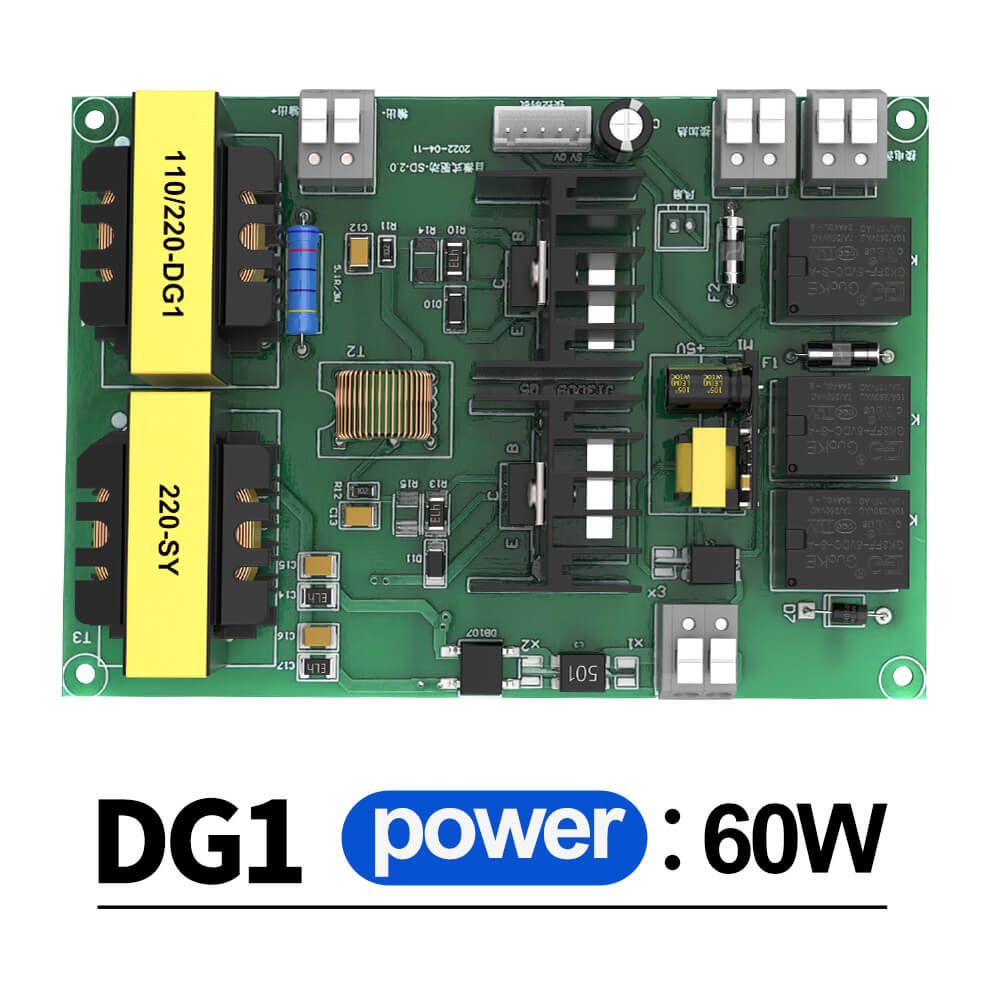

60W Board

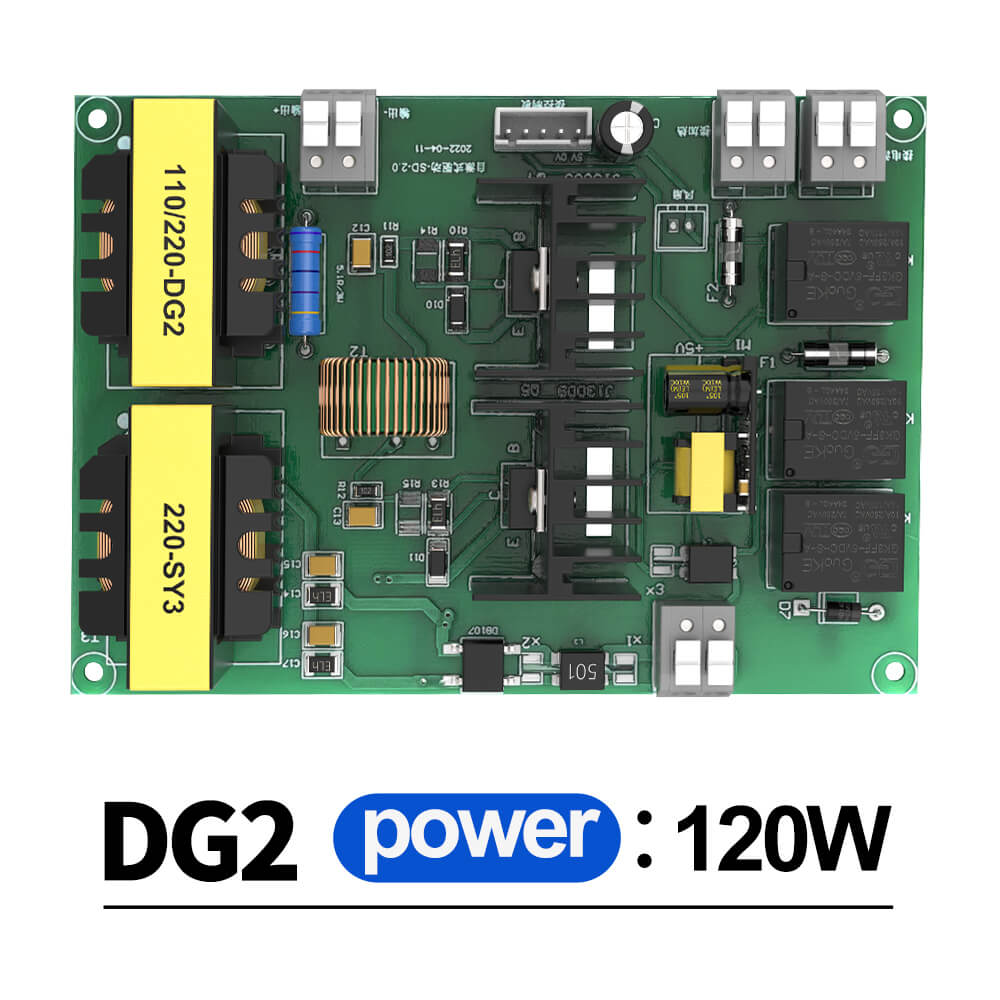

120W Board

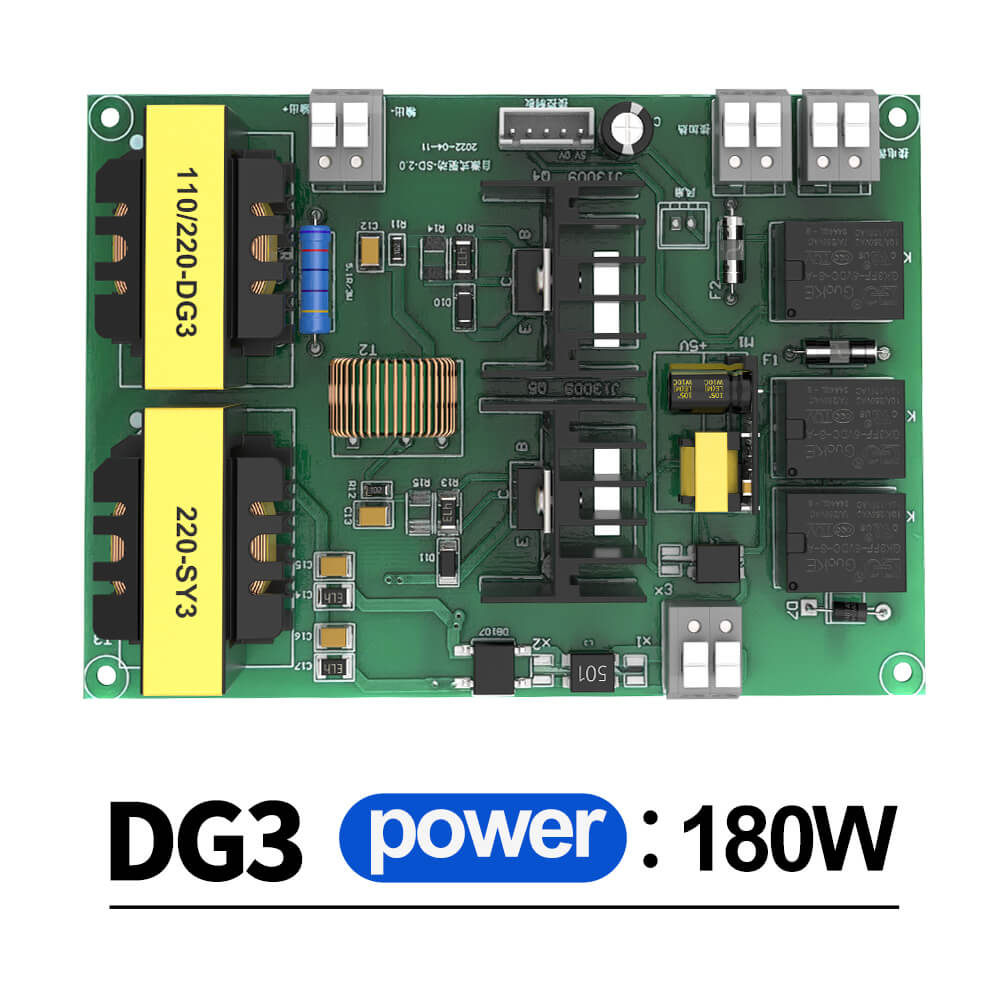

180W Board

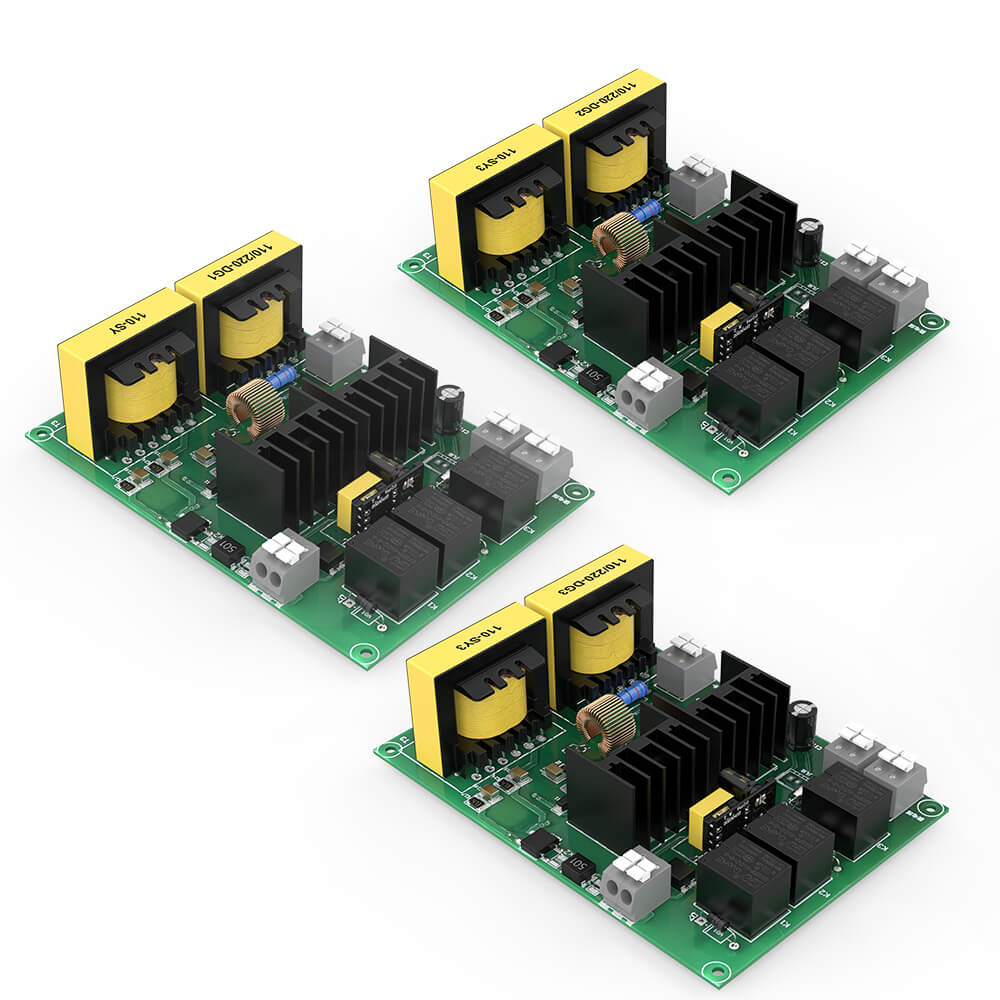

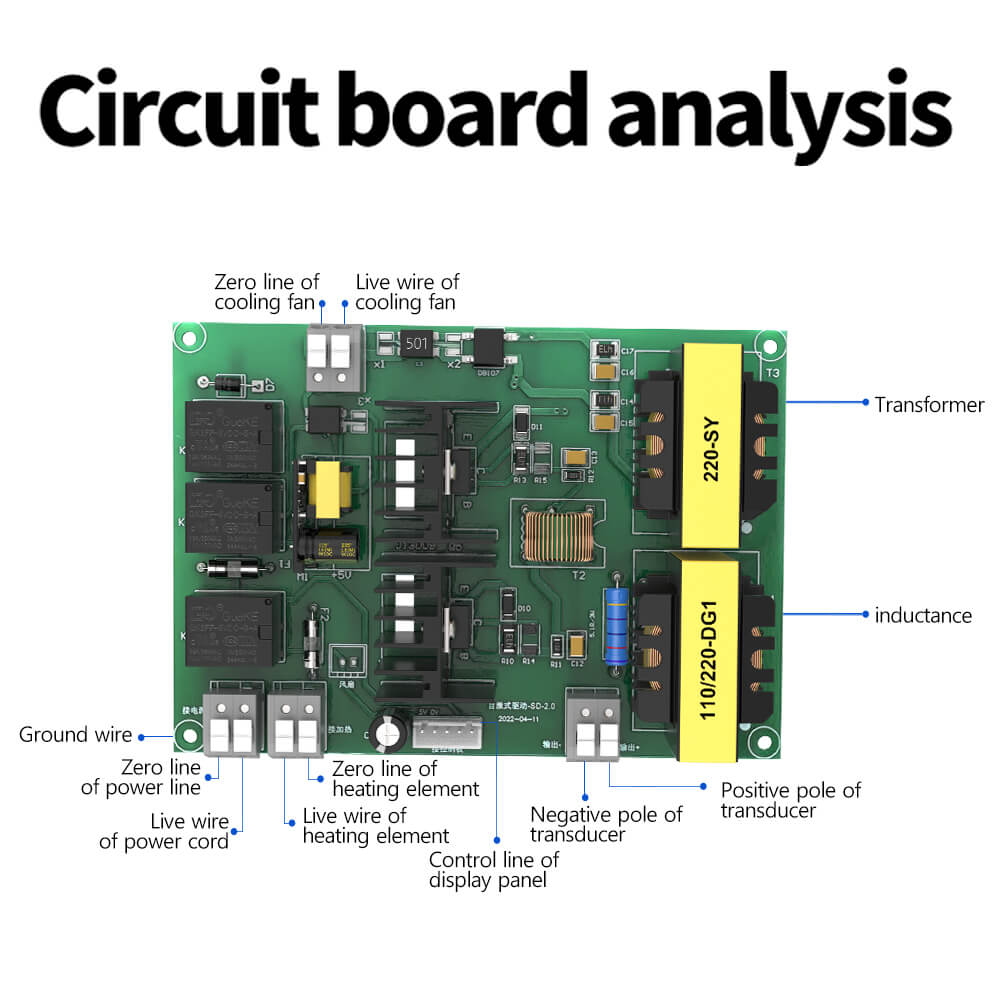

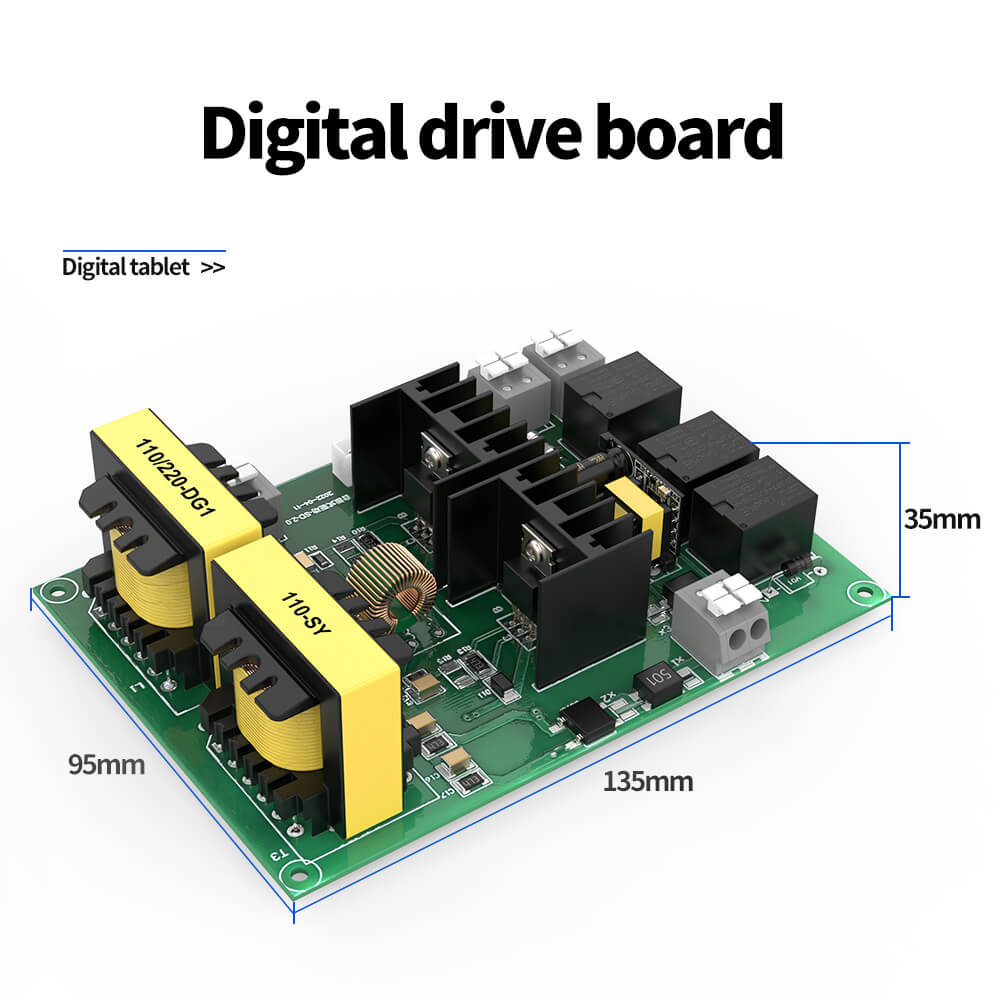

Digital Board

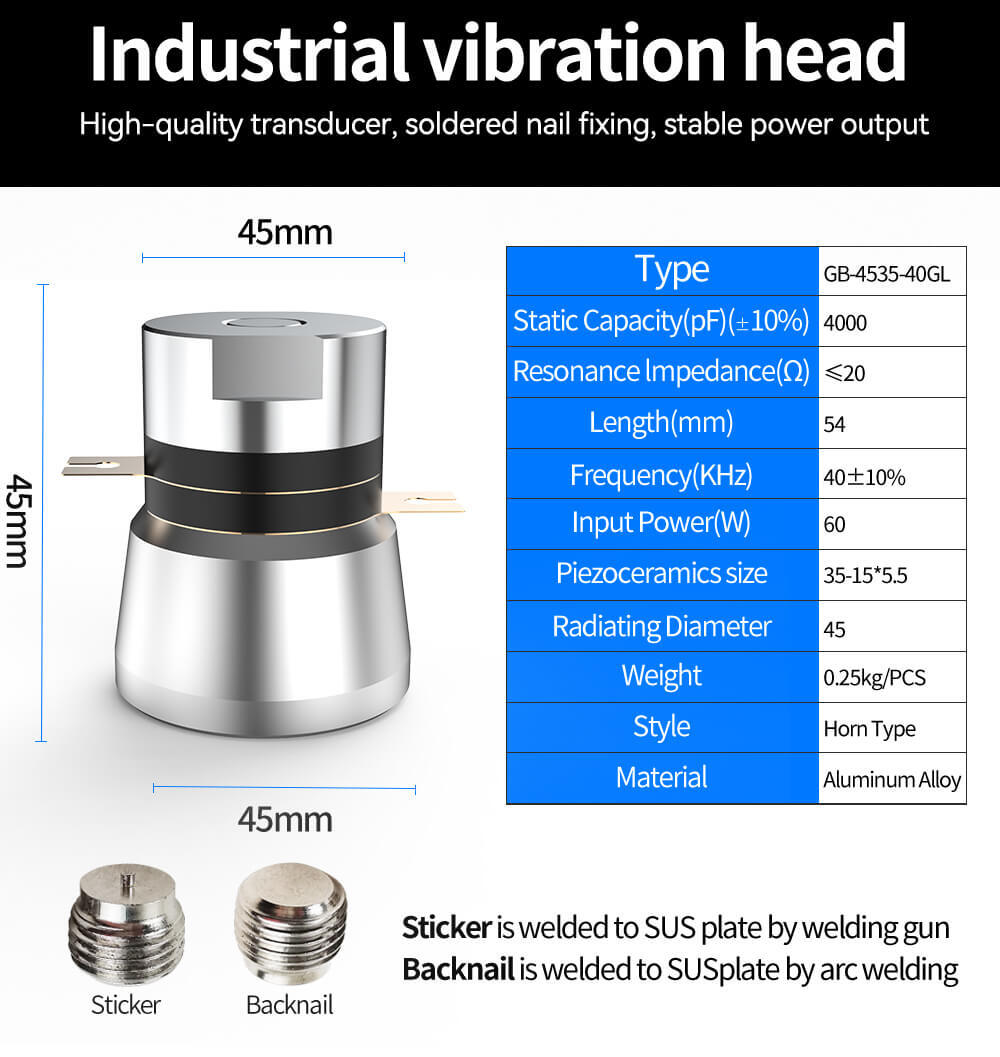

Piezoelectric Transducers

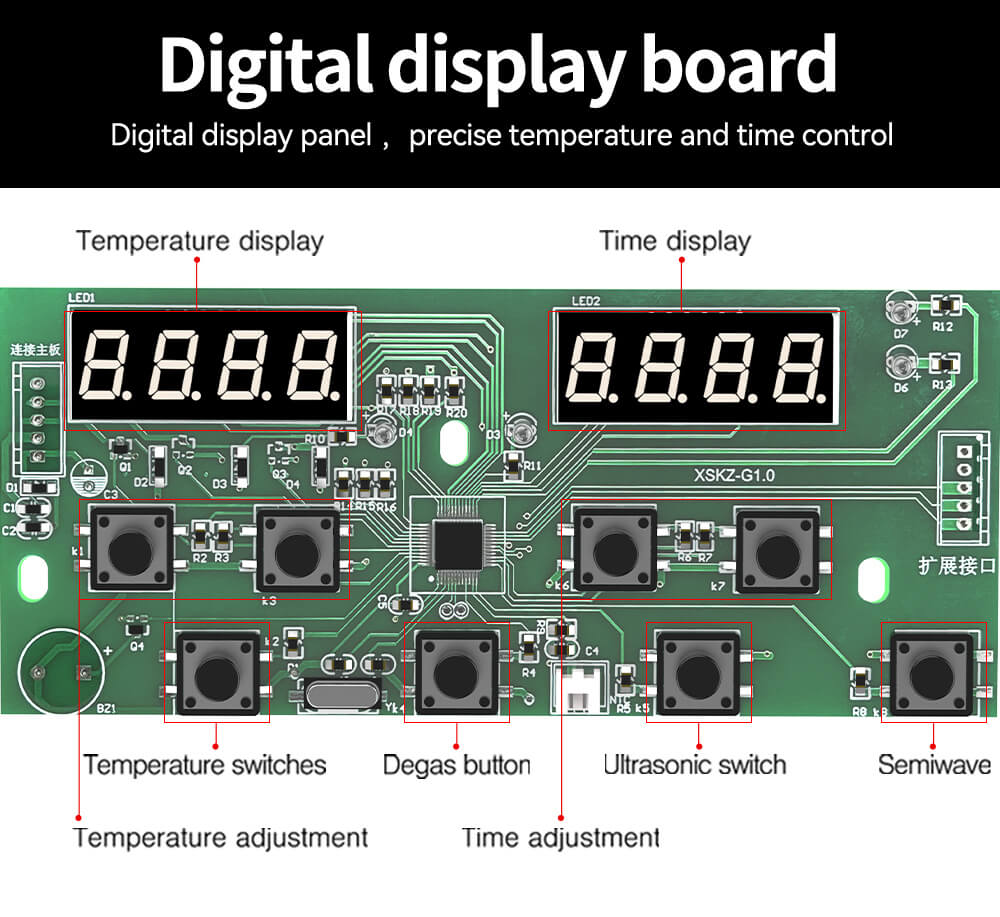

Digital Display Control Panel

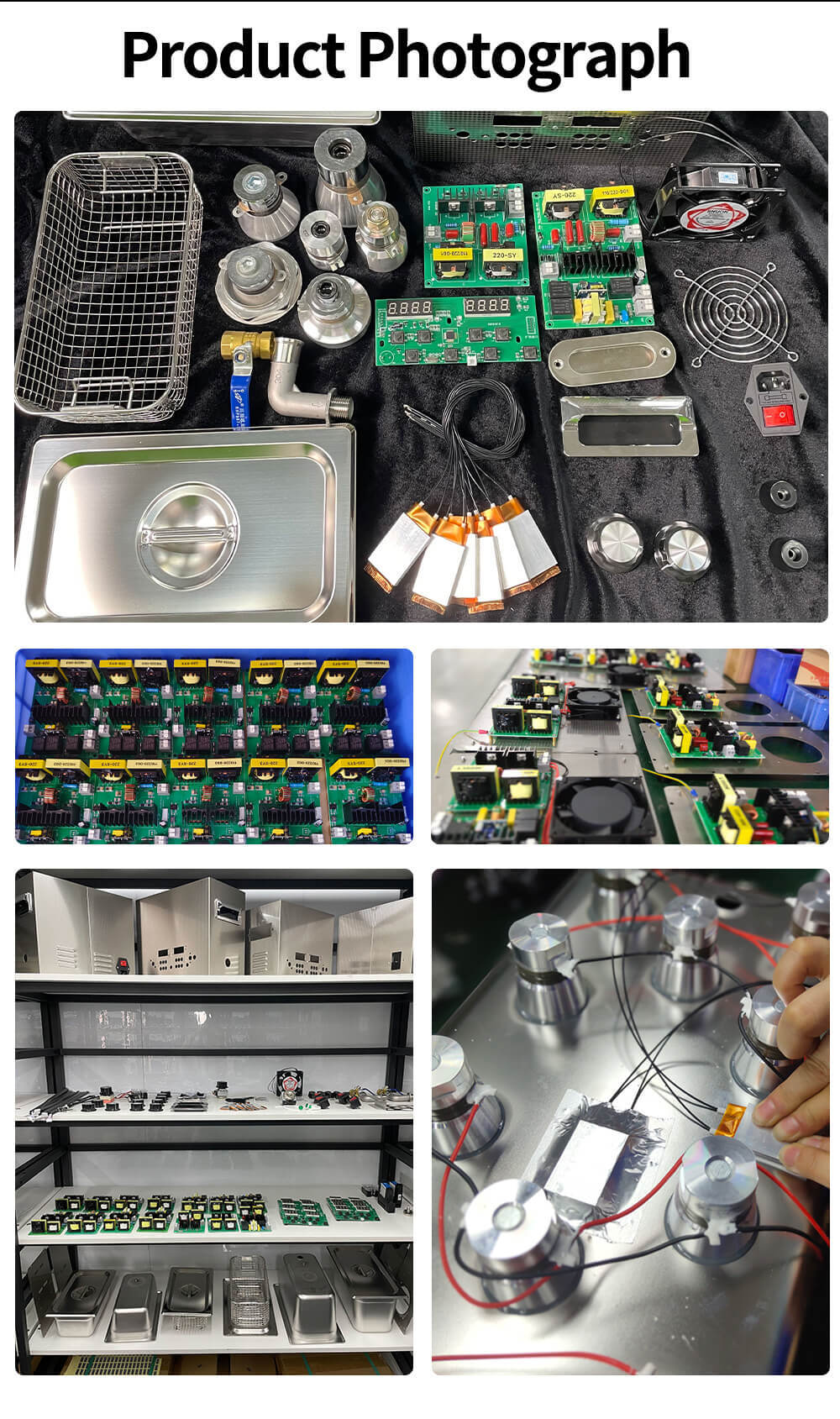

DIY Accessories Family
Why Choose Yunyisonic?
Understanding Ultrasonic Cleaning Technology
Ultrasonic cleaning uses high-frequency sound waves (40kHz) to produce microscopic bubbles that effectively clean various objects by removing contaminants.

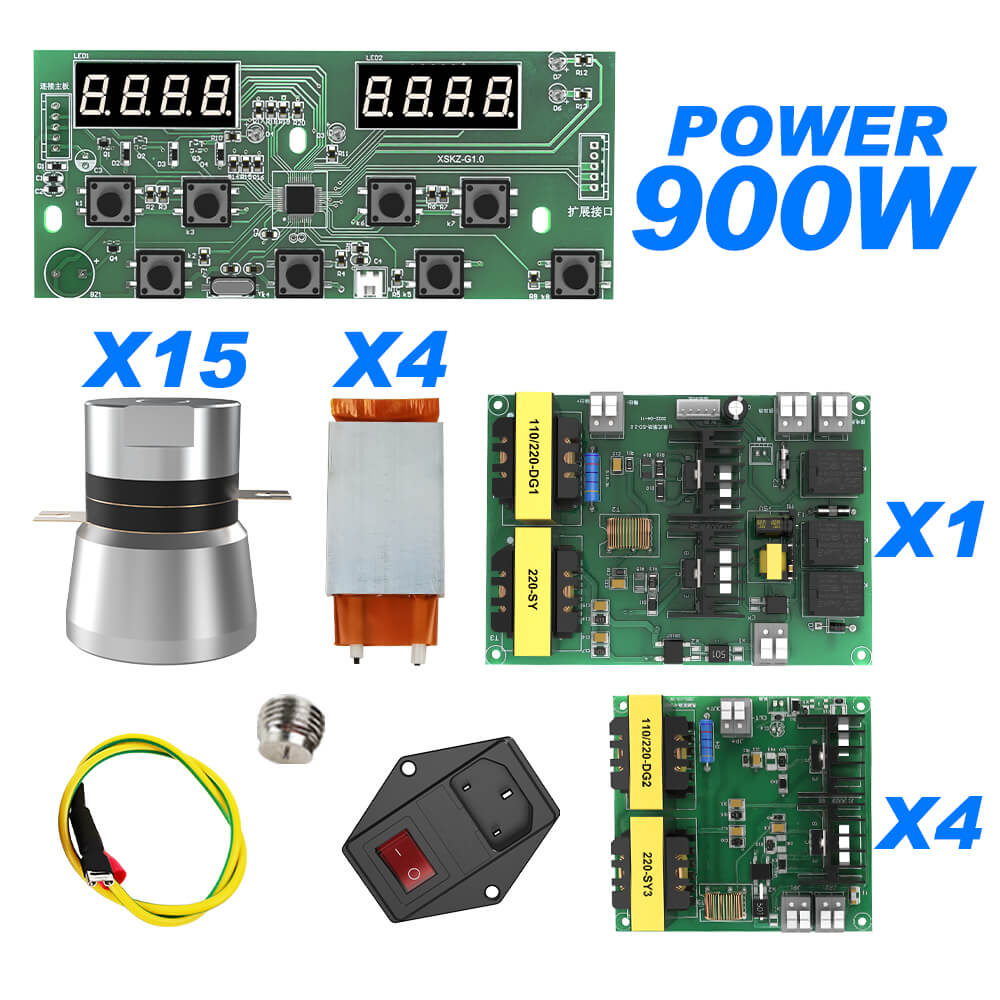

Essential Components for DIY Ultrasonic Cleaning Kit
Our DIY ultrasonic cleaning kit includes a drive board, transducer, heater, and digital control panel, designed specifically for stable and reliable ultrasonic cleaning setups.
Features of the 40kHz Digital Drive Board
The drive board provides consistent ultrasonic energy, digital controls for timer and temperature, ensuring precise cleaning conditions for diverse applications.
Benefits of Using a Complete DIY Ultrasonic Kit
The comprehensive DIY ultrasonic kit simplifies building your ultrasonic cleaner, offering professional results for industrial, laboratory, or home use.
How to Assemble and Operate Your DIY Ultrasonic Cleaner
Step-by-step instructions ensure smooth assembly and reliable operation, enabling anyone to quickly master ultrasonic cleaning technology.
