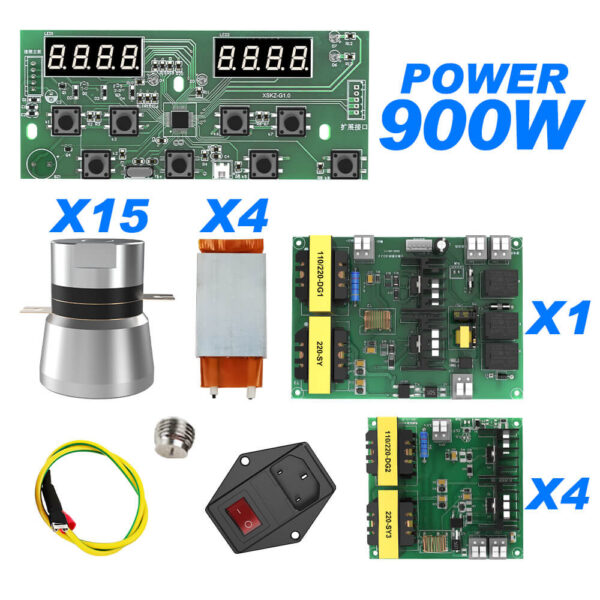

1. Digital Board Kit (1 Main Digital Boards + Multiple Slave Mechanical Boards)
Needs digital display; controlled by panel buttons + physical switches.
Jumper wire modification is available to convert the digital board into direct switch control mode.
2. Mechanical Board Kit (1 Main Mechanical + Multiple Slave Mechanical Boards)
No digital display required.
Direct wiring to a switch for on/off control.
Click here for the digital driver board (no extra accessories included)
Click here for the mechanical driver board (no extra accessories included)

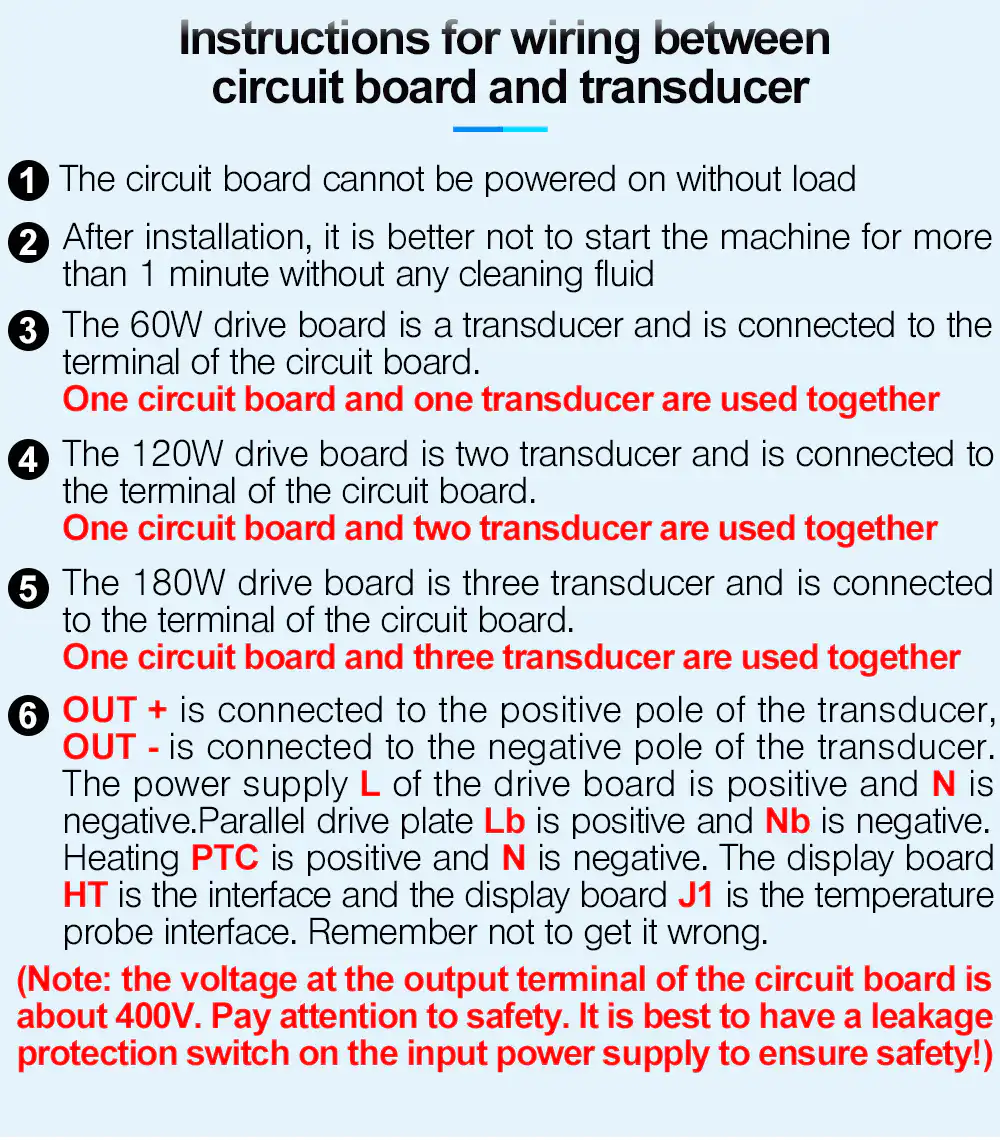

Transducer Installation Advice：
Welding + glue: Spot weld first, then edge sealing with epoxy for durable anti-vibration bonding.
Glue only: Sand off all paint, stick transducers with epoxy, and cure for 24–36 hours before powering up.
Datasheet
| Model | Type | Power Output | Compatible Transducers | Freq. | Control Method | Application |
|---|---|---|---|---|---|---|
| YY-M1-60W | Mechanical | 60W | 1 × 60W | 40kHz | Knob Control | Entry-level DIY |
| YY-M2-120W | Mechanical | 120W | 2 × 60W | 40kHz | Knob Control | Lab, Home Workshop |
| YY-M3-180W | Mechanical | 180W | 3 × 60W | 40kHz | Knob Control | Lab, Commercial |
| YY-M4-240W | Mechanical | 240W | 4 × 60W | 40kHz | Knob Control | Medium Tank System |
| YY-M5-300W | Mechanical | 300W | 5 × 60W | 40kHz | Knob Control | Industrial Use |
| YY-M6-360W | Mechanical | 360W | 6 × 60W | 40kHz | Knob Control | Multi-part Cleaning |
| YY-M7-420W | Mechanical | 420W | 7 × 60W | 40kHz | Knob Control | Auto Parts, Workshop |
| YY-M8-480W | Mechanical | 480W | 8 × 60W | 40kHz | Knob Control | Factory Integration |
| YY-M9-540W | Mechanical | 540W | 9 × 60W | 40kHz | Knob Control | Commercial Lab |
| YY-M10-600W | Mechanical | 600W | 10 × 60W | 40kHz | Knob Control | Industrial Tanks |
| YY-M11-660W | Mechanical | 660W | 11 × 60W | 40kHz | Knob Control | High-capacity Use |

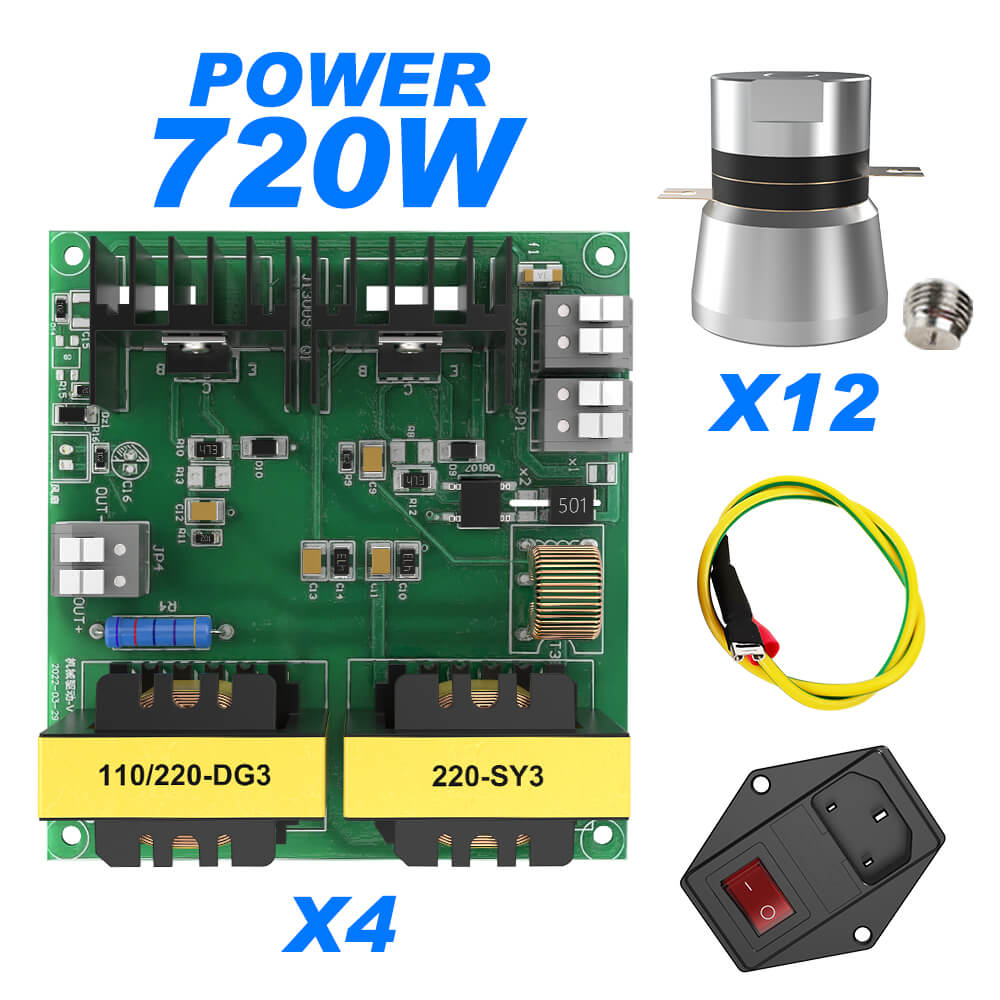

| YY-M12-720W | Mechanical | 720W | 12 × 60W | 40kHz | Knob Control | Electronics Plant |
| YY-M13-780W | Mechanical | 780W | 13 × 60W | 40kHz | Knob Control | Heavy-Duty Cleaning |
| YY-M14-840W | Mechanical | 840W | 14 × 60W | 40kHz | Knob Control | Automotive, Tooling |
| YY-M15-900W | Mechanical | 900W | 15 × 60W | 40kHz | Knob Control | Industrial Production |

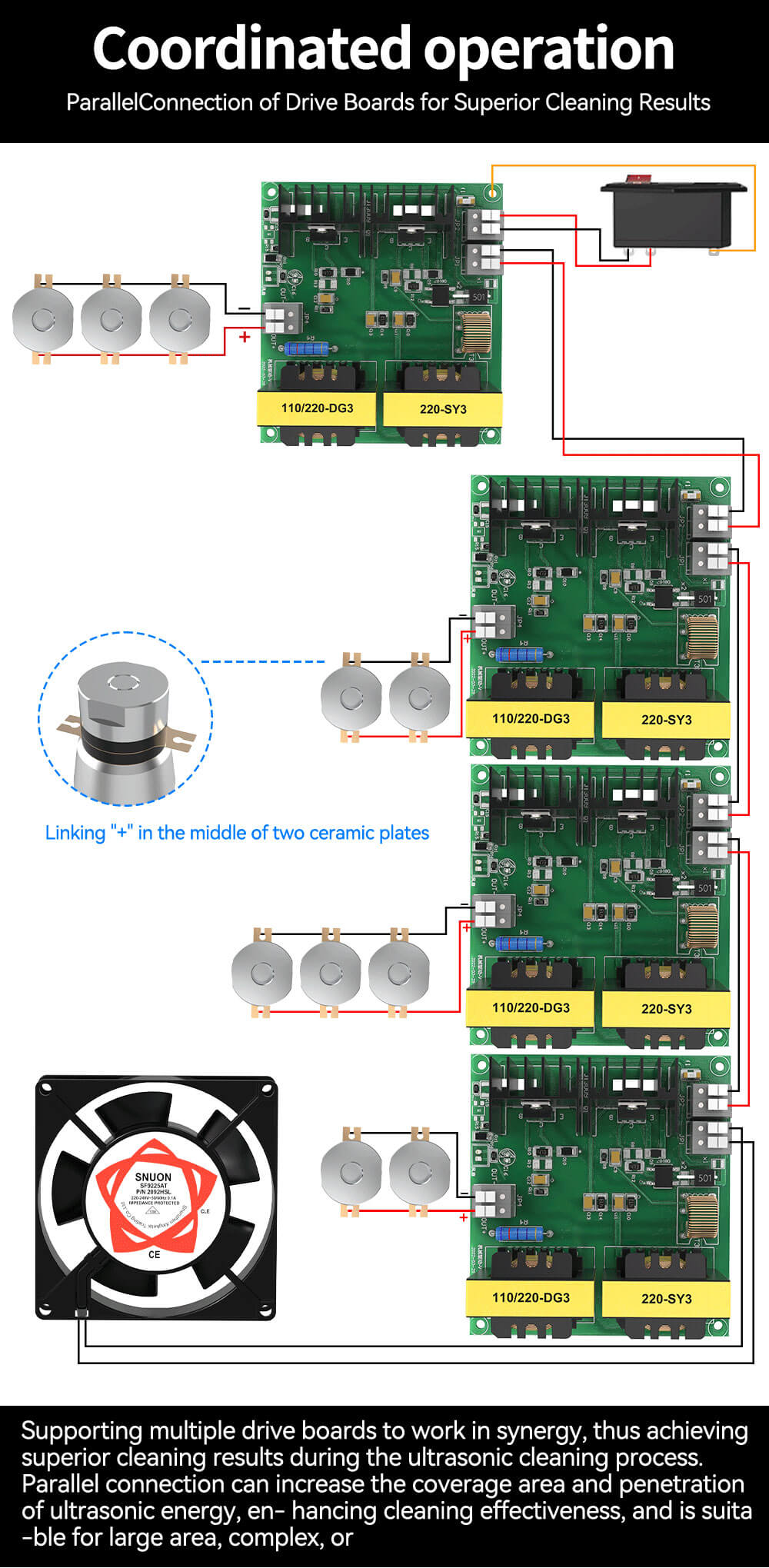

Ultrasonic DIY Kit Installation Layout

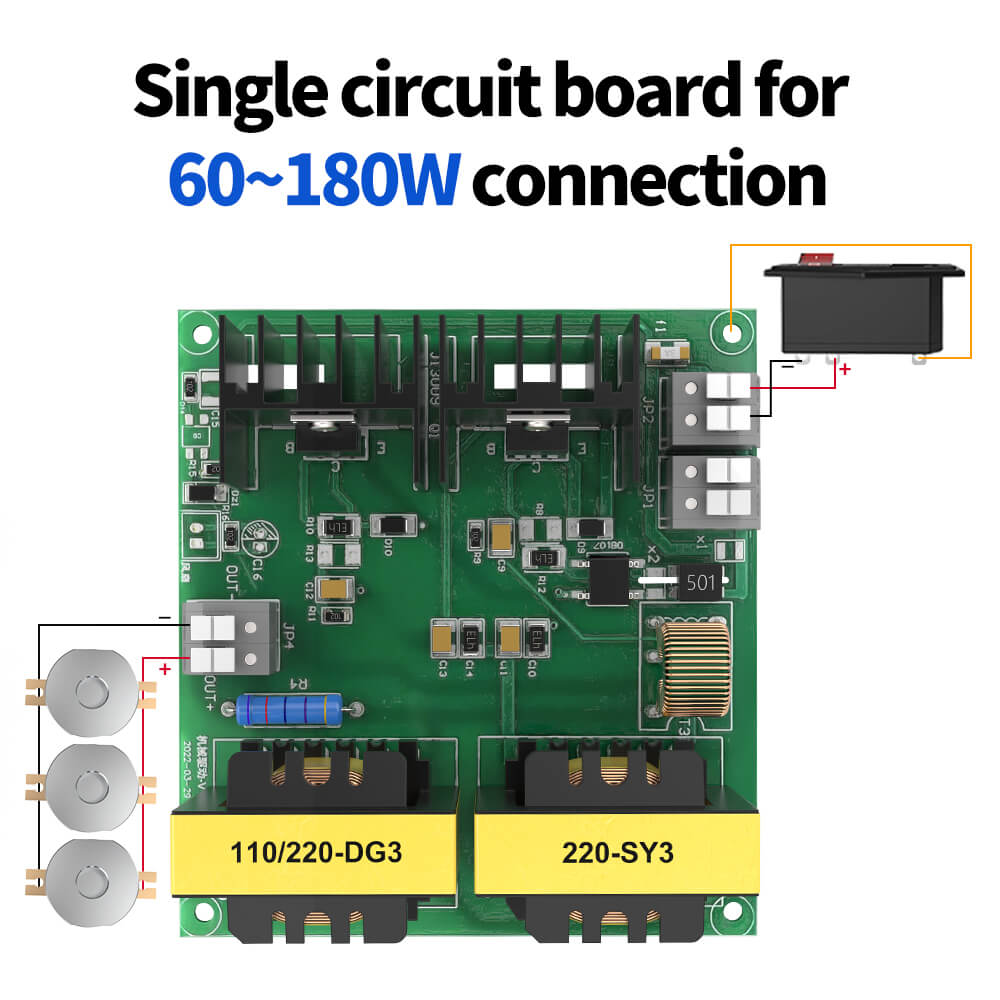

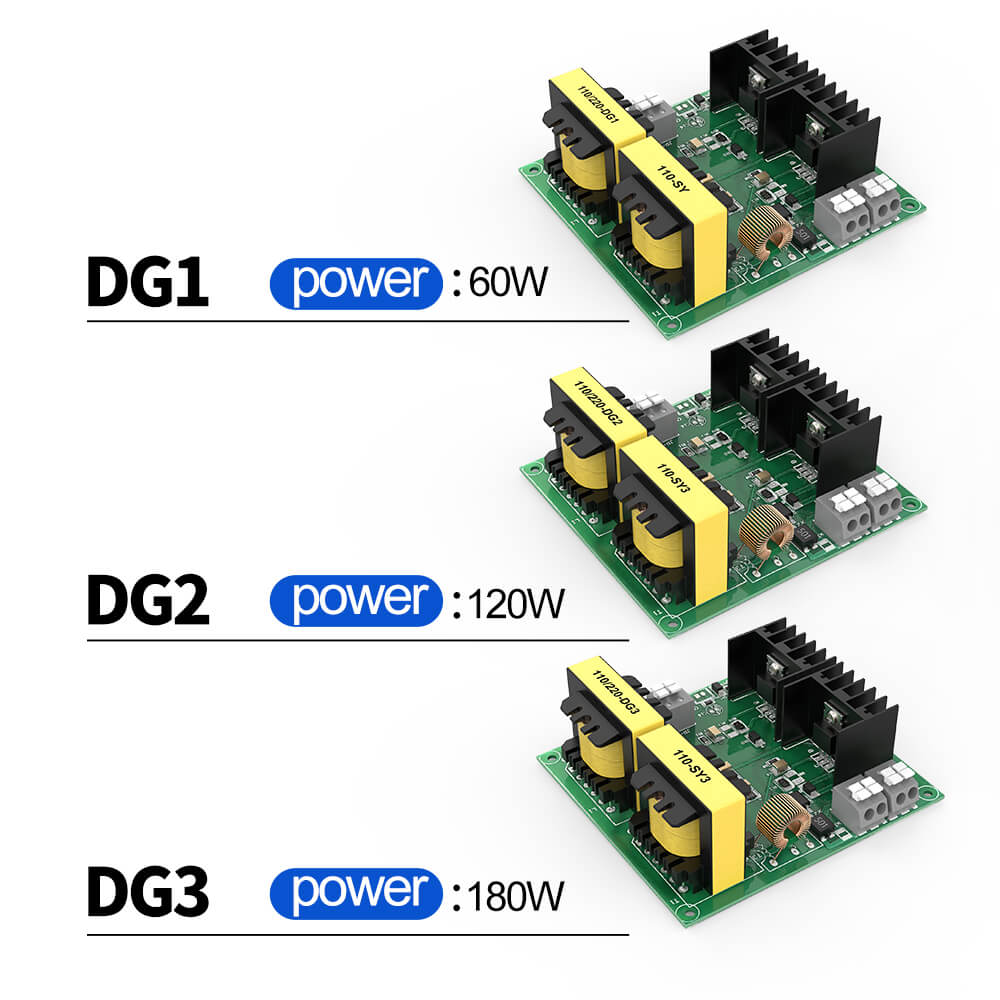

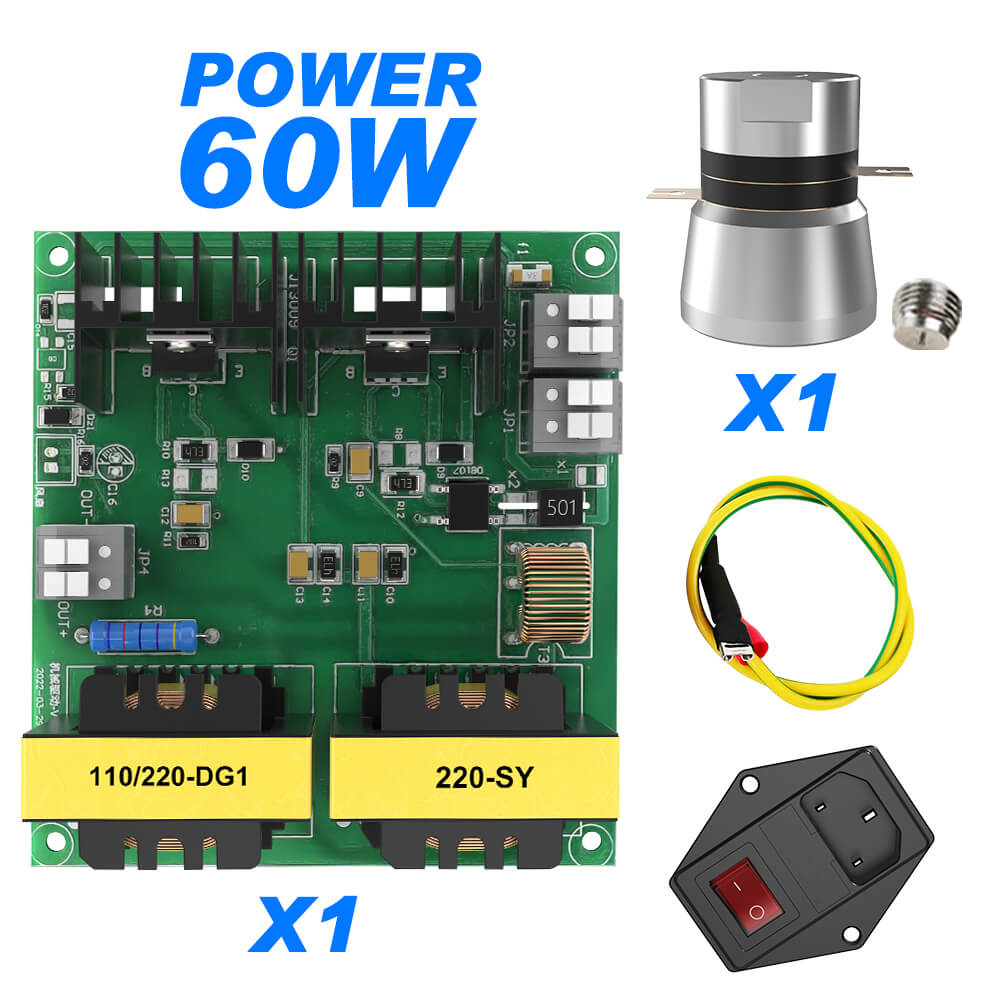

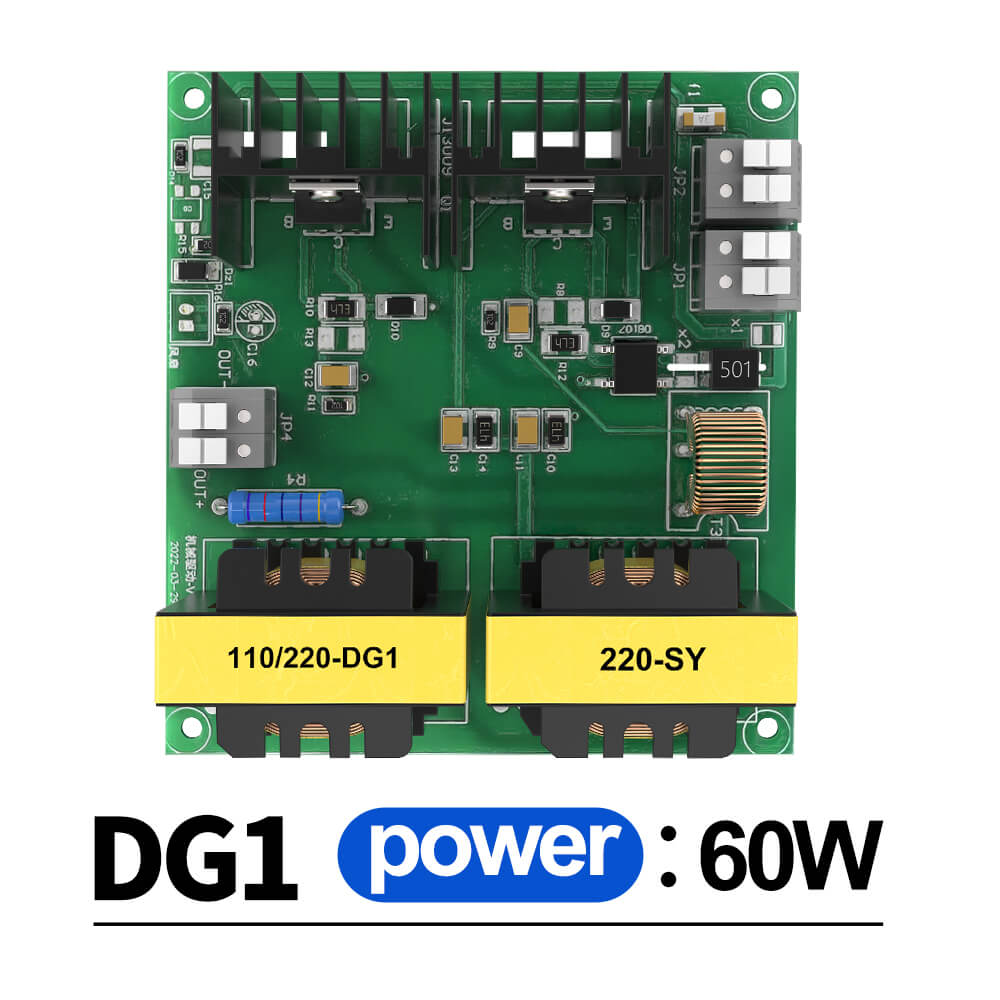

Mechanical 60W Board

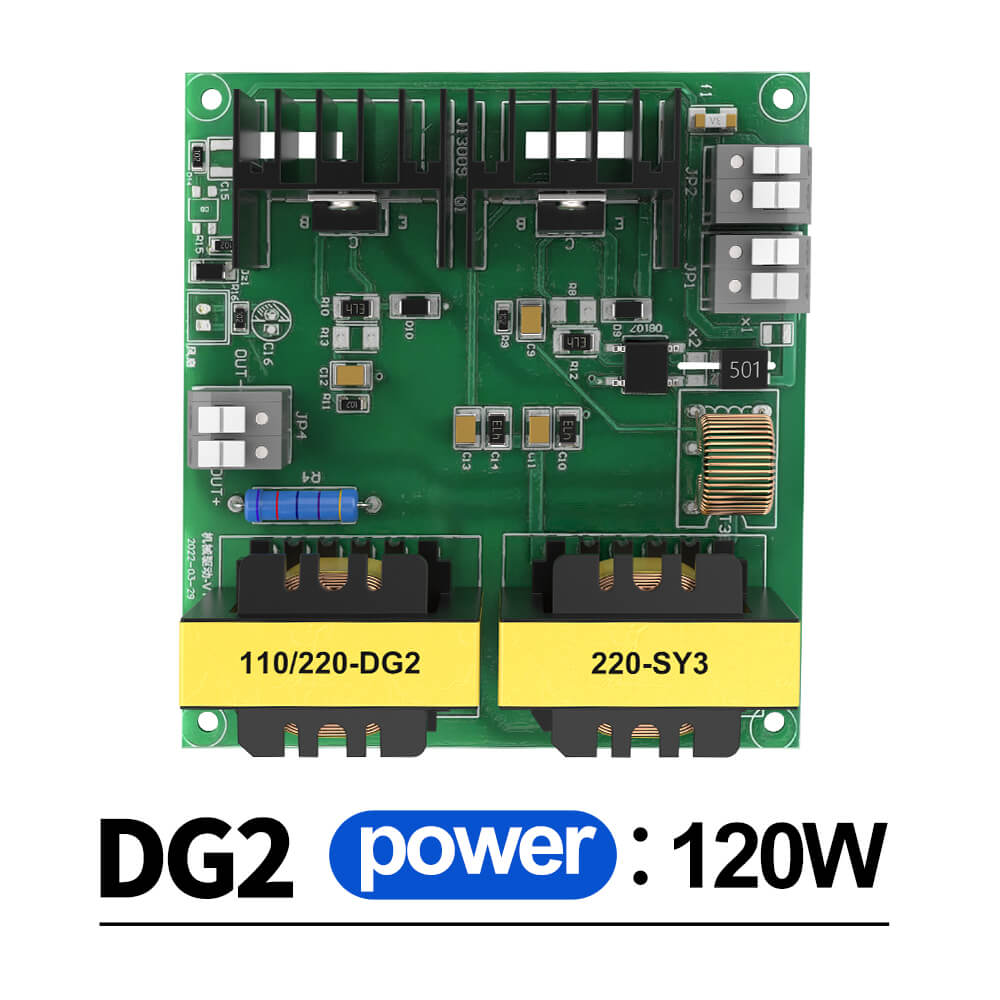

Mechanical 120W Board

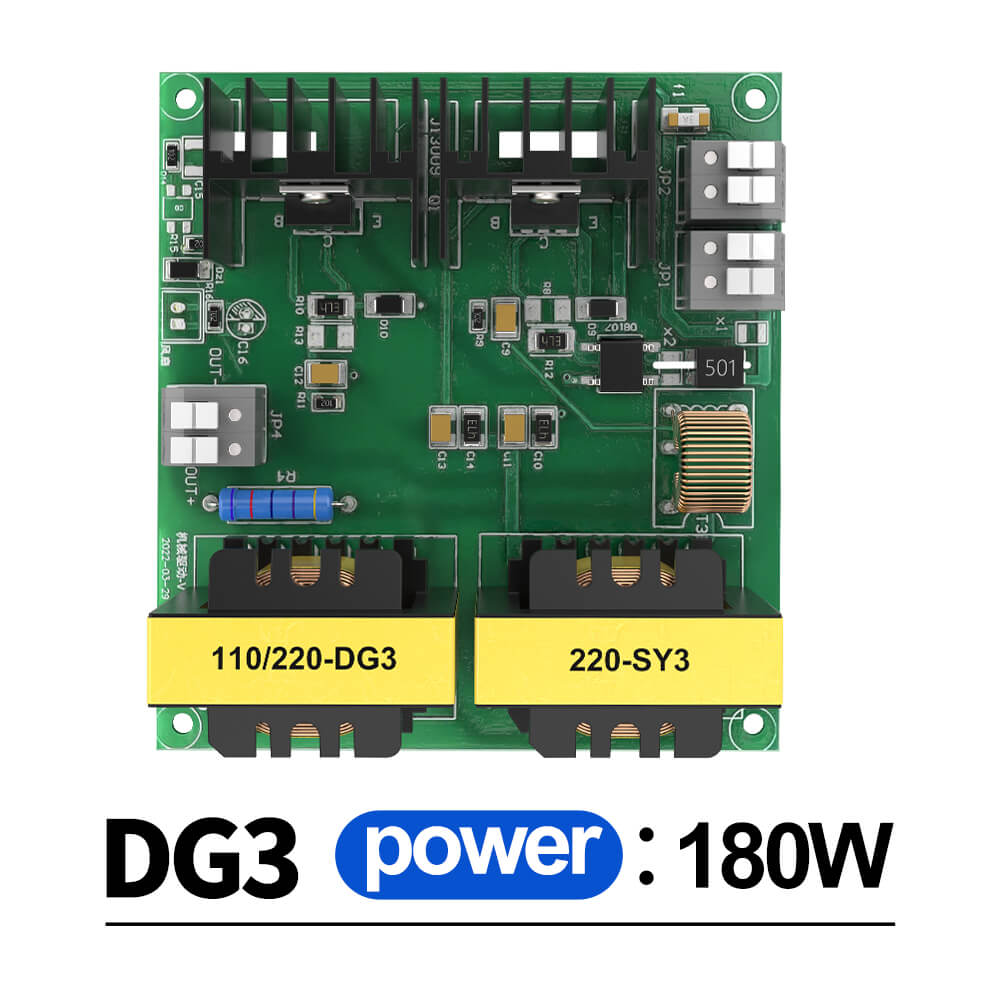

Mechanical 180W Board

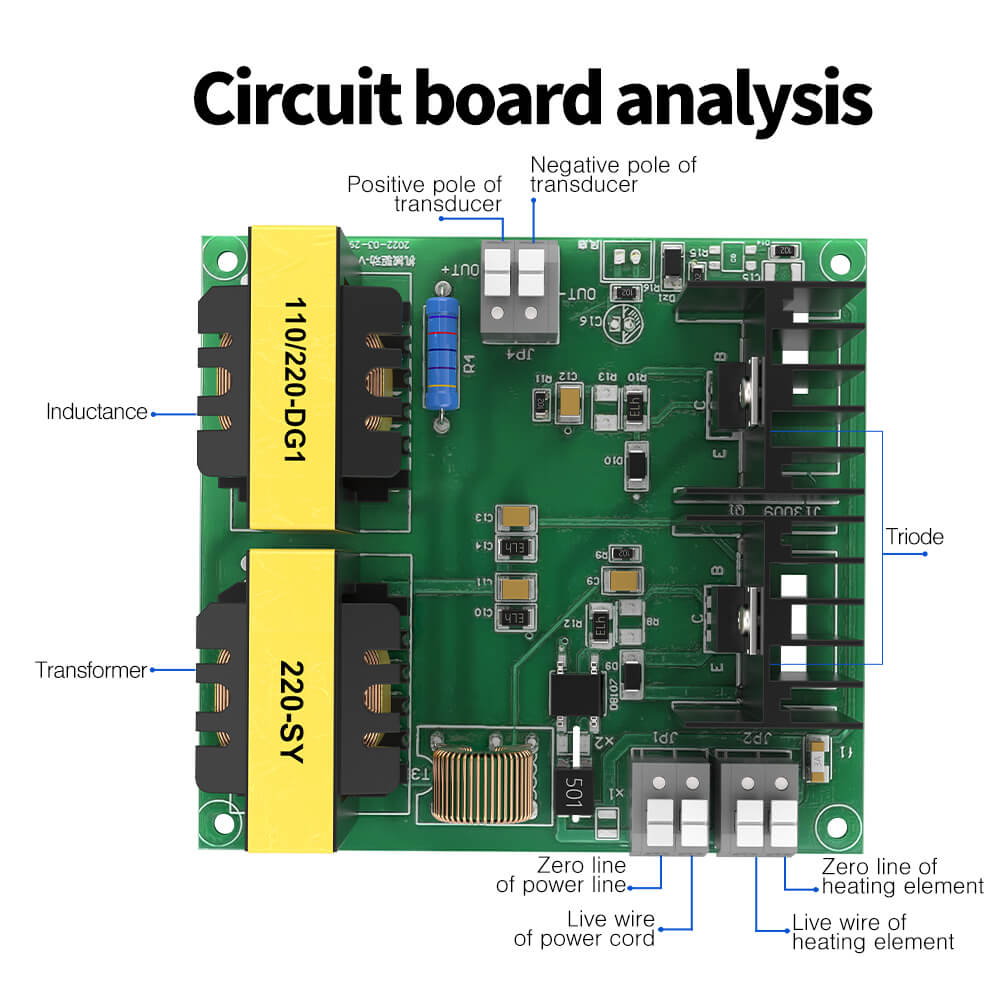

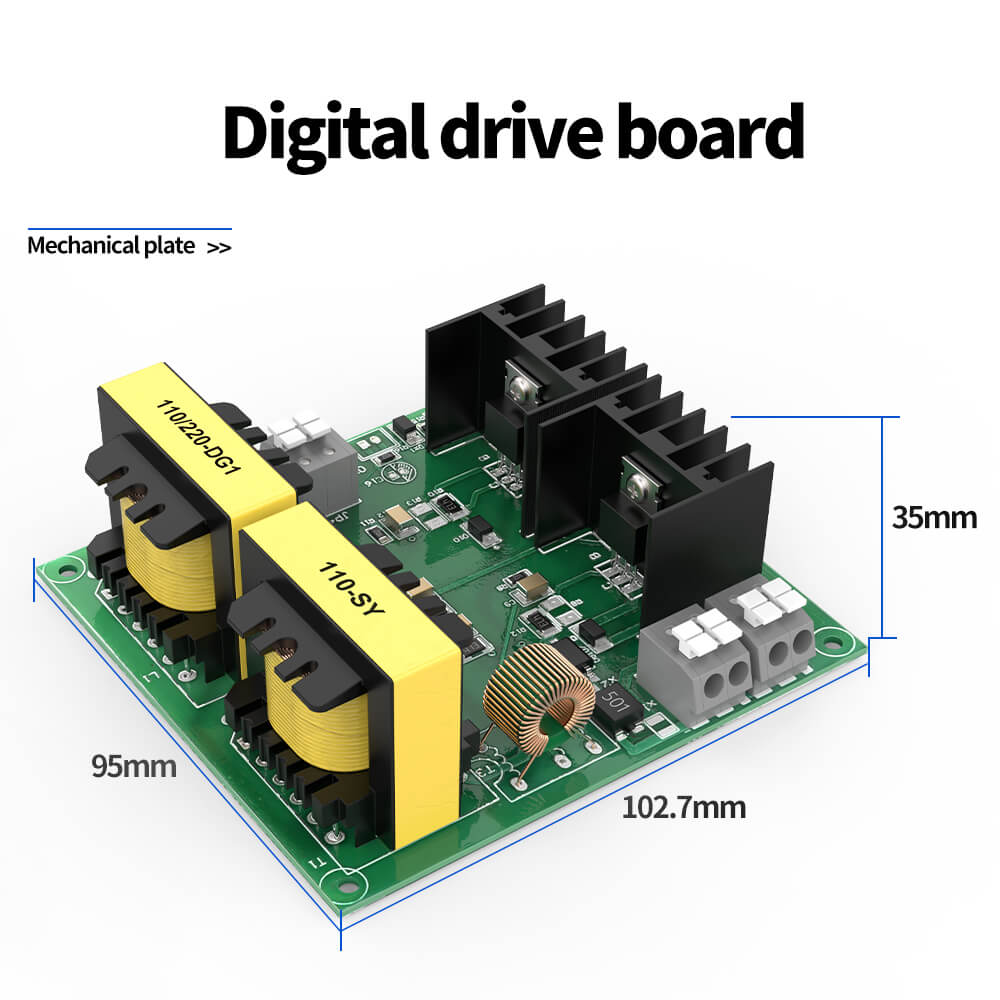

Mechanical PCB Circuit Board

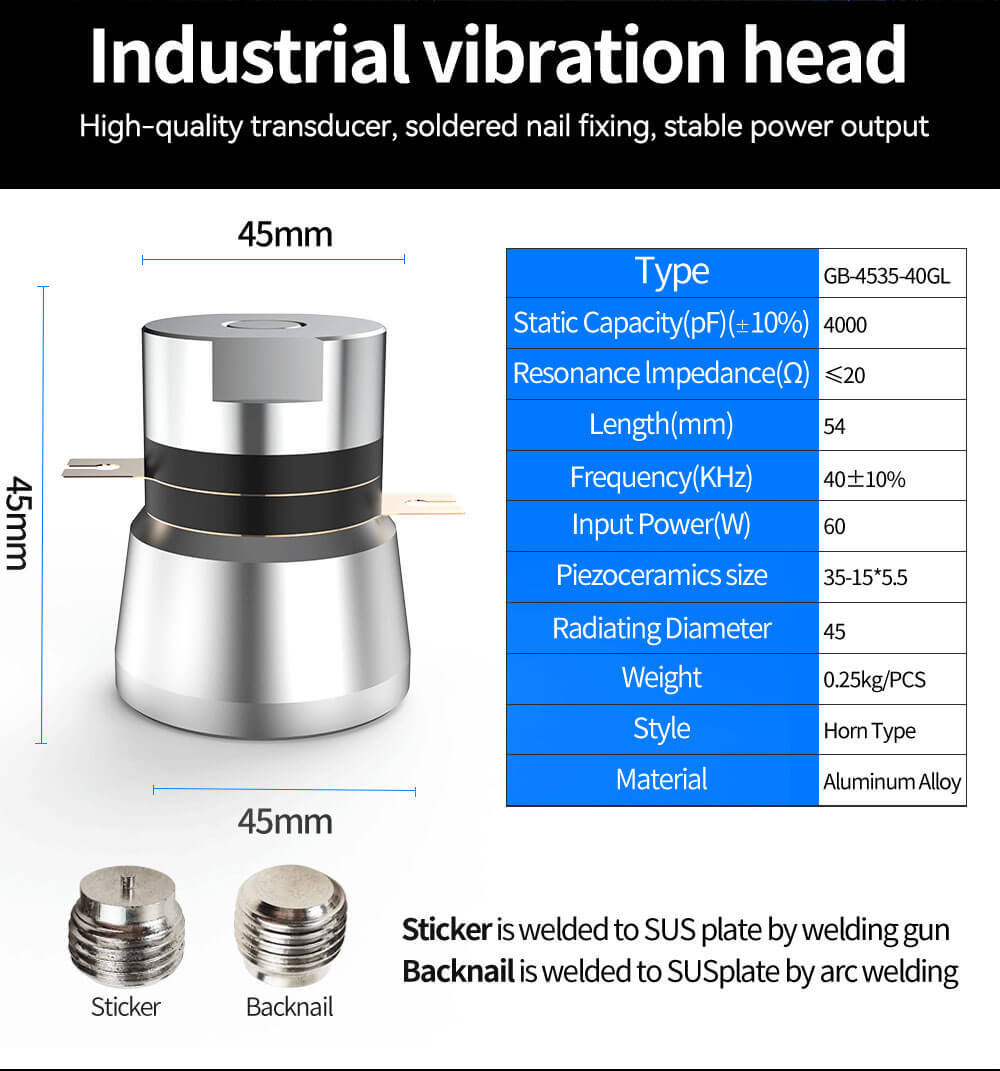

Piezoelectric Transducers

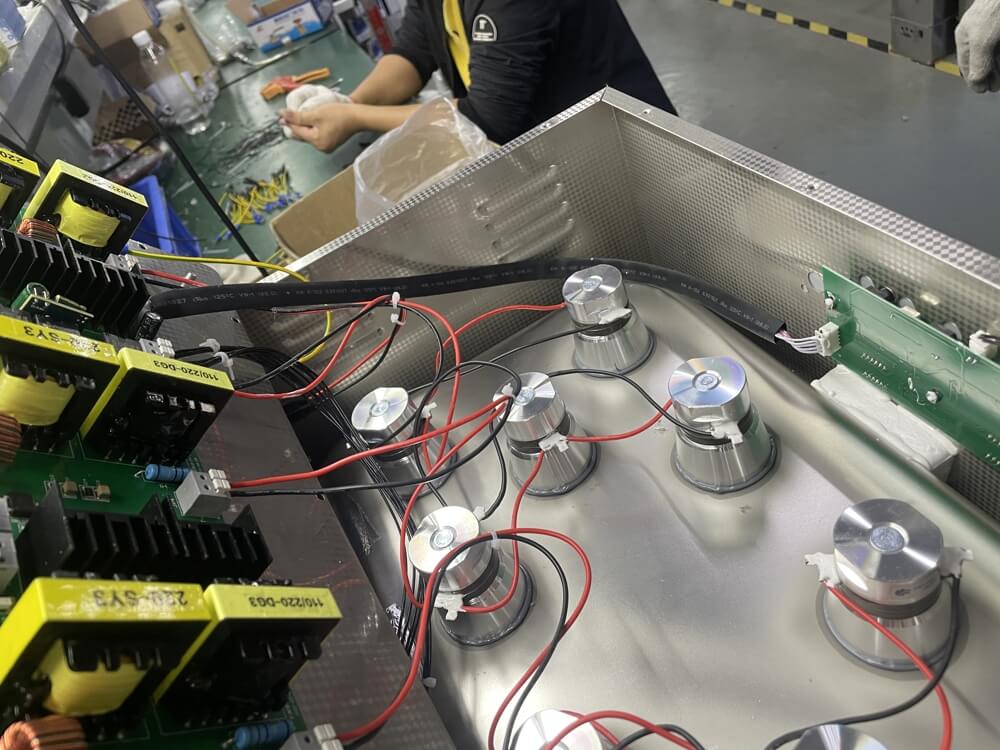

How to Assemble Your DIY Ultrasonic Cleaner
Why Choose Yunyisonic?
Understanding Ultrasonic Cleaning Technology
Ultrasonic cleaning uses high-frequency sound waves (40kHz) to produce microscopic bubbles that effectively clean various objects by removing contaminants.
Essential Components for DIY Ultrasonic Cleaning Kit
Our DIY ultrasonic cleaning kit includes a drive board, transducer, heater, and mechanical control panel, designed specifically for stable and reliable ultrasonic cleaning setups.
Features of the 40kHz Mechanical Drive Board
The drive board provides consistent ultrasonic energy, mechanical knob controls for timer and temperature, ensuring precise cleaning conditions for diverse applications.
Benefits of Using a Complete DIY Ultrasonic Kit
The comprehensive DIY ultrasonic kit simplifies building your ultrasonic cleaner, offering professional results for industrial, laboratory, or home use.
How to Assemble and Operate Your DIY Ultrasonic Cleaner
Step-by-step instructions ensure smooth assembly and reliable operation, enabling anyone to quickly master ultrasonic cleaning technology.

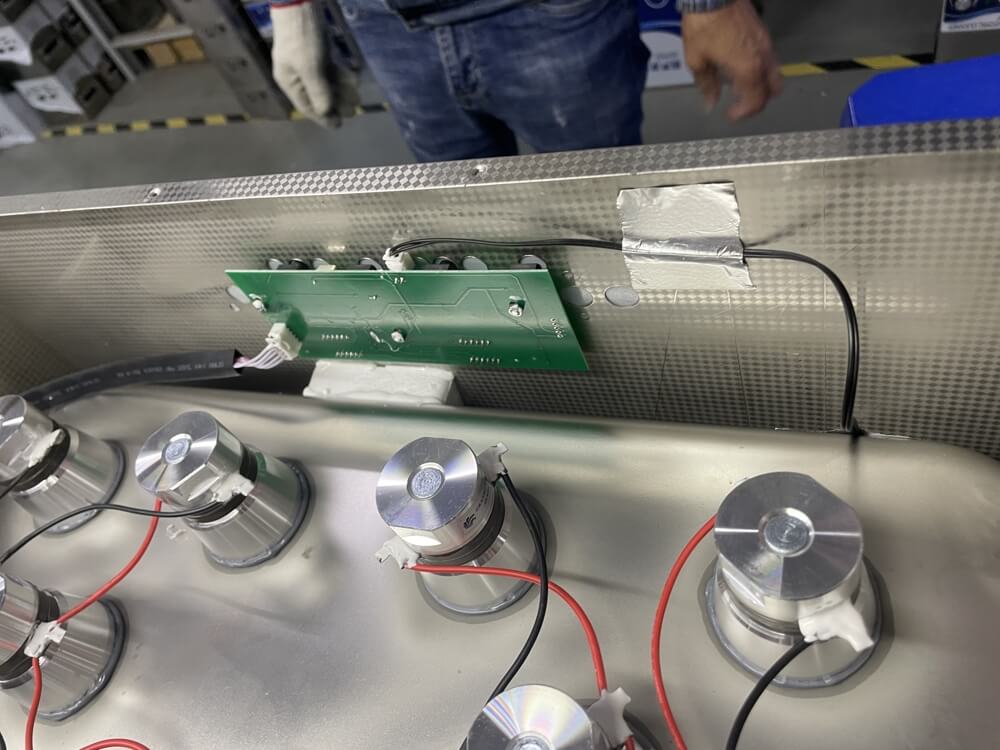

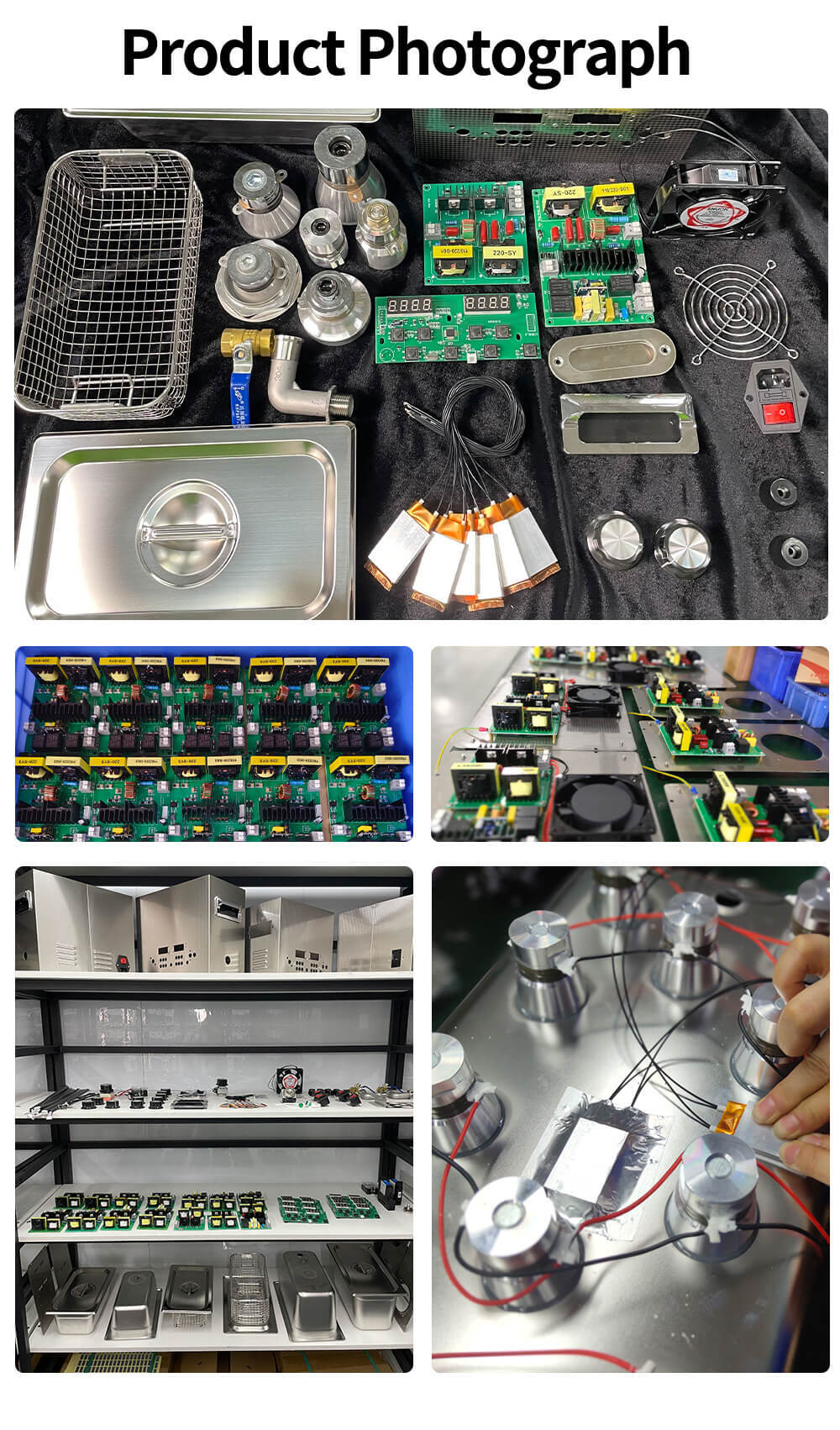

DIY Ultrasonic Accessory Kit Overview
