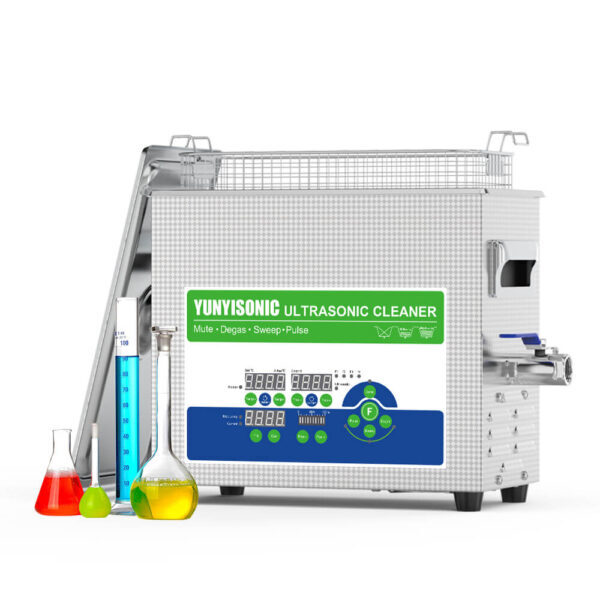

30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts

  1. Large 30L 800W dual-frequency cleaner for industrial tools, research materials, and electronic assemblies
  2. Advanced lab support: extraction, dispersion, emulsification, homogenization, solid-liquid mixing, separation, defoaming
  3. Digital control, robust SUS304 tank, low-noise performance, OEM solutions, reliable China manufacturer



SKU: YL1630-40120

$932.06piece

15 People watching this product now!

No minimum order required. Enjoy discounts on larger quantities

Quantity ( piece ) 1 – 10 11 – 50 51 – 100 >100
Produce (days) 2 5 10 Negotiable
  • Warranty 1 year

More details

  • 30-Day returns

More details

Payment Methods:

Description

30L Multi-function Ultrasonic Cleaner For Large-Batch Solution

The  30L dual-frequency bath handles bulky optics, chip cassettes, or multi-rack test tubes.

40kHz tackles oil, flux, and graphite wax; 120kHz polishes micro-lenses and fibre bundles.

800W adjustable output, twin 1000W heaters, and three-mode cavitation control deliver unmatched throughput for industrial R&D centres.

Quiet insulation (< 85 dB) and full CE/RoHS/FCC compliance secure global deployment.

30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts

Product Features:

  • Dual 40/120 kHz: 40kHz punch-cleans watch parts & dental tips; 120kHz restores ink-jet print heads and polishes optical glass
  • 800W peak power via 16×50W piezo transducers, mirroring the large 30L’s efficient design
  • Durable basket (450 × 260 × 120mm) fits beakers size from 250mL (d=71mm h=97mm) to 5000mL (d=170mm h=270mm) side by side
  • Dega-Sweep-Pulse trio Cleaning guarantees bubble-free solvents, uniform cavitation, and up to 30 % faster cycle times
  • 1–9999 s programmable timer & 20–80 °C heater for digital runs
  • Noise-reduced casing (< 85 dB) and global compliance (CE/RoHS/FCC) with 1-year parts warranty—ready for OEM bulk orders and UPS/DHL/SF Express delivery

Specification:

Model YL1630-40120 Transducer No. 16 pcs
Frequency 40/120kHz Ultrasonic Power 0-800W
Capacity 30L Heating Power 1000W
Timer 1~9999s Adjustable Tank Material SUS304
Heater 20°C – 80°C Housing Material SUS304
Tank Size(mm) 500x300x200 Unit Size(mm) 530x330x385
Drain Valve Yes Refurbished No
Function Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-language Panel Optional
Logo/Pattern Silk screen printing, Laser Printing, UV printing, PVC, Other

Box Contents:

1 x Professional Ultrasonic Cleaner
1 x Durable Mesh Cleaning Basket
One cover, one power cord, one manual warranty card certificate of conformity.

Packing type:

One unit filled with thick foam, then standard export corrugated carton or wooden box.

More Units

30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts

40/120kHz Dual Frequency Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model Transducers Cap Frequency UT Power Heat Pwr Size(LxWxH mm)
(PCS) (L) (kHz) (W) (W) Tank Unit
YL0404-40120 4 4.5 40/120 0-200 450 300x150x100 325x175x280
YL0406-40120 4 6.5 40/120 0-200 450 300x150x150 325x175x330
YL0810-40120 8 10 40/120 0-400 600 300x240x150 325x265x330
YL0814-40120 8 14 40/120 0-400 600 300x240x200 325x265x380
YL1015-40120 10 15 40/120 0-500 1000 330x300x150 355x325x330
YL1019-40120 10 19 40/120 0-500 1000 330x300x200 355x325x380
YL1622-40120 16 22 40/120 0-800 1000 500x300x150 530x330x335
YL1630-40120 16 30 40/120 0-800 1000 500x300x200 530x330x385

30L Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model Transducers Cap Frequency UT Power Heat Pwr Size(LxWxH mm)
(PCS) (L) (kHz) (W) (W) Tank Unit
YNLH1430-17 14 30 17 0–1120 1000 500x300x200 600x360x430
YNLH1430-20 14 30 20 0-1400 1000 500x300x200 600x360x430
YNL1630-25 16 30 25 0-800 1000 500x300x200 600x360x430
YL1430-28 14 30 28 0-700 1000 500x300x200 530x330x395
YL1430-33 14 30 33 0-700 1000 500x300x200 530x330x395
YL1030-40 10 30 40 0-500 1000 500x300x200 530x330x385
YL1630-40 16 30 40 0-800 1000 500x300x200 530x330x385
YLS3230-50 32 30 50 0–960 1000 500×300×200 530×330×385
YLS3230-53 32 30 53 0–1120 1000 500×300×200 530×330×385
YL1630-68 16 30 68 0-800 1000 500x300x200 530x330x395
YL1630-80 16 30 80 0-800 1000 500x300x200 530x330x385
YL1630-120 16 30 120 0-800 1000 500x300x200 530x330x385
YL1630-130 16 30 130 0–960 1000 500×300×200 530×330×385
YLS3230-200 32 30 200 0-800 1000 500x300x200 530x330x385
YL1430-2840 14 30 28/40 0-700 1000 500x300x200 530x330x395
YL1630-4068 16 30 40/68 0-800 1000 500x300x200 530x330x395
YL1630-4080 16 30 40/80 0-800 1000 500x300x200 530x330x385
YL1630-40120 16 30 40/120 0-800 1000 500x300x200 530x330x385
YL1630-80120 16 30 80/120 0-800 1000 500x300x200 530x330x385
YNLH1030-20/40/60 10 30 20/40/60 0-1200 1000 500x300x200 600x360x430
YL1630-4080100 16 30 40/80/100 0-800 1000 500x300x200 530x330x385
YL1630-4080120 16 30 40/80/120 0-800 1000 500x300x200 530x330x385
YL1630-255080120 16 30 25/50/80/120 0-800 1000 500x300x200 530x330x385
YL1630-4080100160 16 30 40/80/100/160 0-800 1000 500x300x200 530x330x385
YL1630-4080120170 16 30 40/80/120/170 0-800 1000 500x300x200 530x330x385

Yunyisonic UT Cleaning Machine Features

  • YL ultrasonic cleaner for lab cleaning
  • YL ultrasonic cleaner features summary and function introduce
  • 30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts
  • 30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts
  • 30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts
  • 30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts
  • 30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts
  • 30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts
  • 30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts
  • 30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts
  • 30L 800W 40/120kHz Dual-Frequency Ultrasonic Cleaner Large Capacity Precision Cleaning for Lab Research Industrial Parts

Specification

Product Specifications

Brand

Yunyisonic
Origin

Shenzhen City, China
Capacity

Frequency

Power

Timer

1-9999s
Heater

RT~80°C
Tank Material

SUS304 Stainless Steel
Housing Material

SUS304 Stainless Steel
Voltage

AC 110V 60Hz；AC 220V 50Hz
Plug Type

EU Plug

,

US Plug

,

AU Plug

,

Other Plugs

,

UK Plug
Certificates

CE

,

FCC

,

ROHS
Warranty

1 Year
Customization

485 Port

,

Frequency

,

PLC System

,

Tanks Numbers
Assisted Systems Yunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing

,

,

,

,

,

,

,

Function

,

,

,

,

,

,

,

,

Manufacturer

Yunyisonic Shenzhen Co., Ltd.

Packaging

Volumetric Weight 24.3 kg
Package Dimensions 63.5 × 40.5 × 45 cm
