10L 200W Dual-Frequency Ultrasonic Cleaner 40/120kHz | China OEM Lab Washing Machine for Cavities, Crevices, Precision Parts
High quality 10L ultrasonic cleaning machine with 40/120kHz dual frequency, ideal for fine cleaning of blind holes, crevices, jewelry, and lab tools. OEM support.
$702.50piece
18
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description

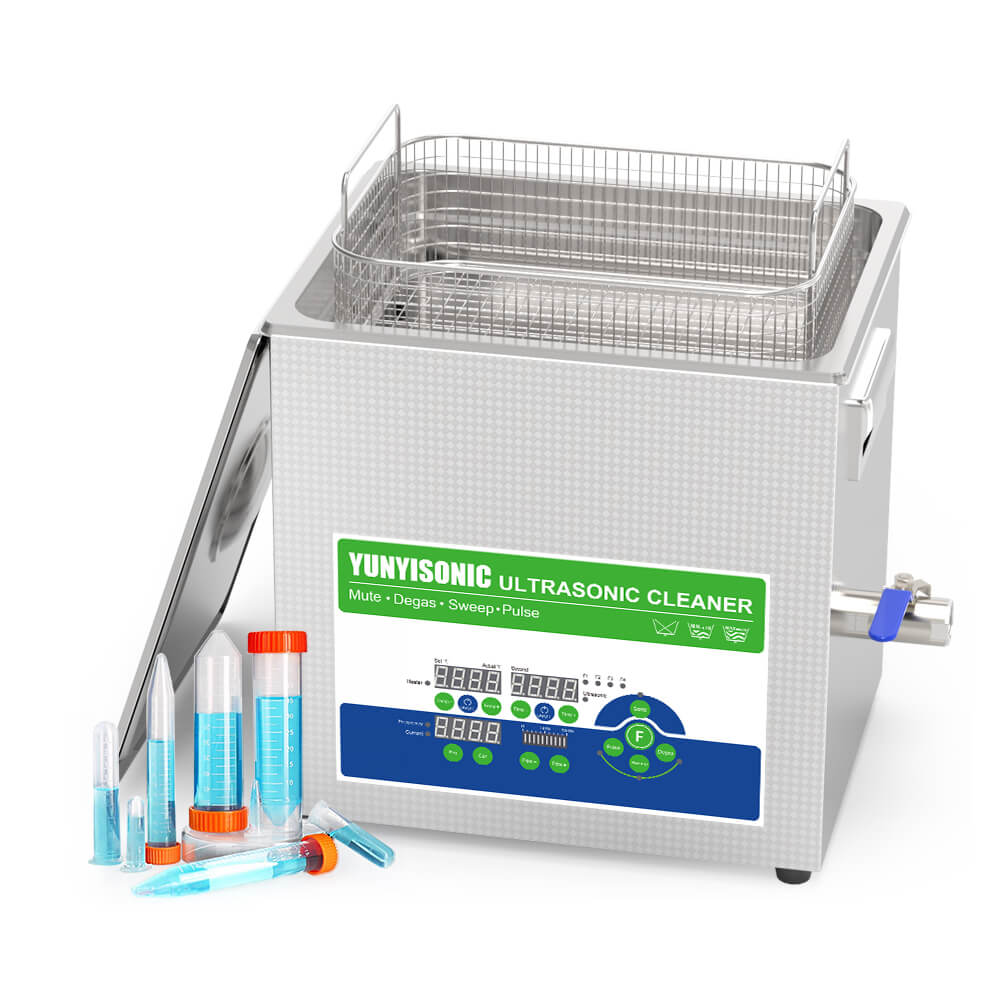

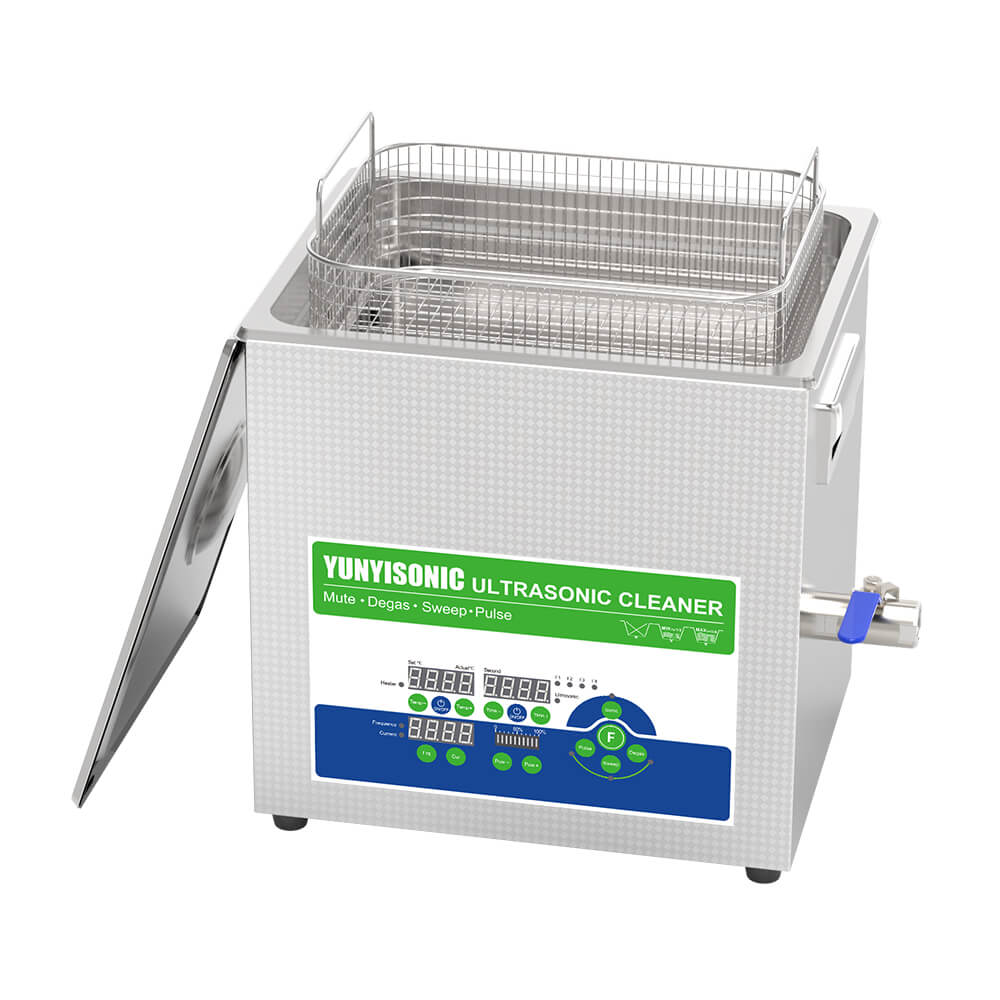

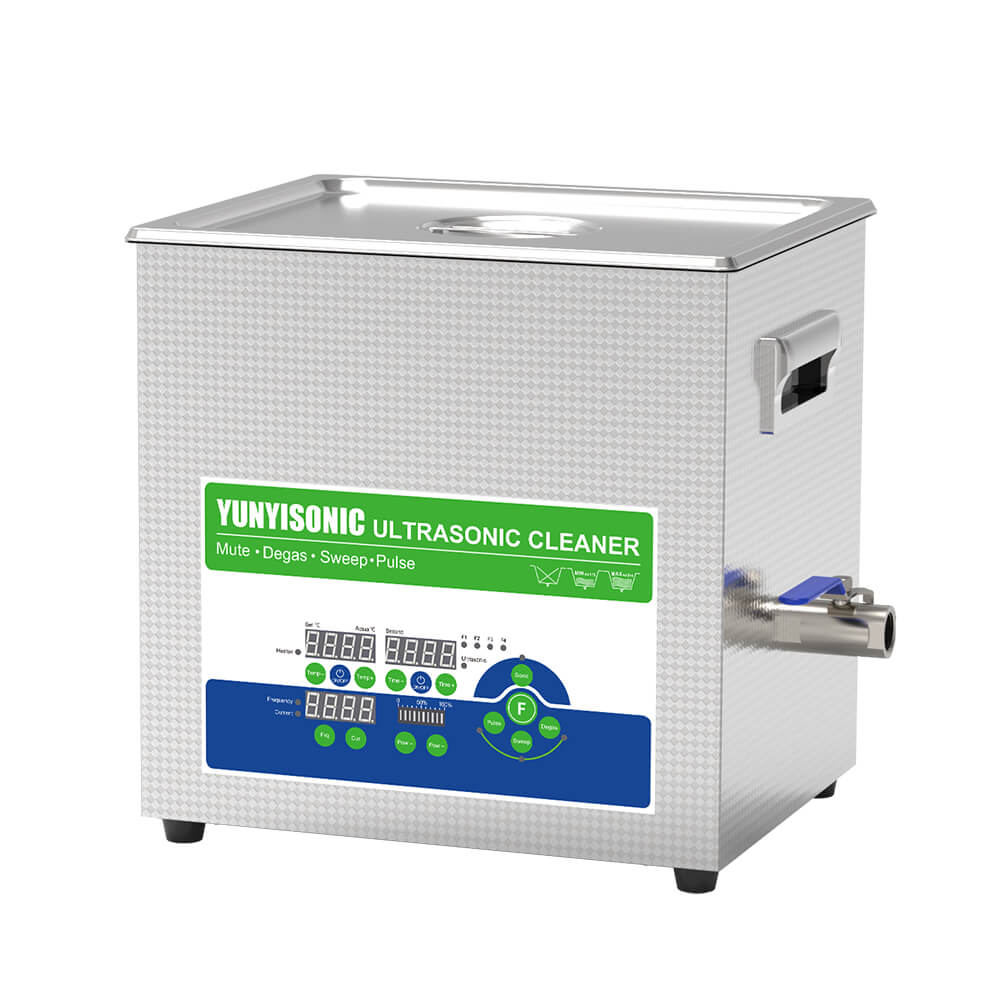

The 10L YL0810-40120 unit Professional Parts-Cleaning Machine – Eight transducers blast 400 W into a 10 L bath—perfect for graphite blocks, turbo-charger vanes, or watch bracelets. Degas cleaning prevents pitting on aluminium, and 120 kHz gently finishes sapphire lenses. Timer Heater Power Digital memory stores three custom recipes for repetitive QA line.
Product Features:
- Dual 40/120 kHz: 40 kHz punch-cleans watch parts & dental tips; 120 kHz restores ink-jet print heads and polishes optical glass
- 400W peak power via 8×50W piezo transducers, mirroring the medium 10 L’s efficient design
- Durable basket (260 × 200 × 90mm) fits two 1000 mL beakers (d=112mm h=155mm) side by side
- Dega-Sweep-Pulse trio Cleaning guarantees bubble-free solvents, uniform cavitation, and up to 30 % faster cycle times
- 1–9999 s programmable timer & 20–80 °C heater for digital runs
- Noise-reduced casing (< 85 dB) and global compliance (CE/RoHS/FCC) with 1-year parts warranty—ready for OEM bulk orders and UPS/DHL/SF Express delivery

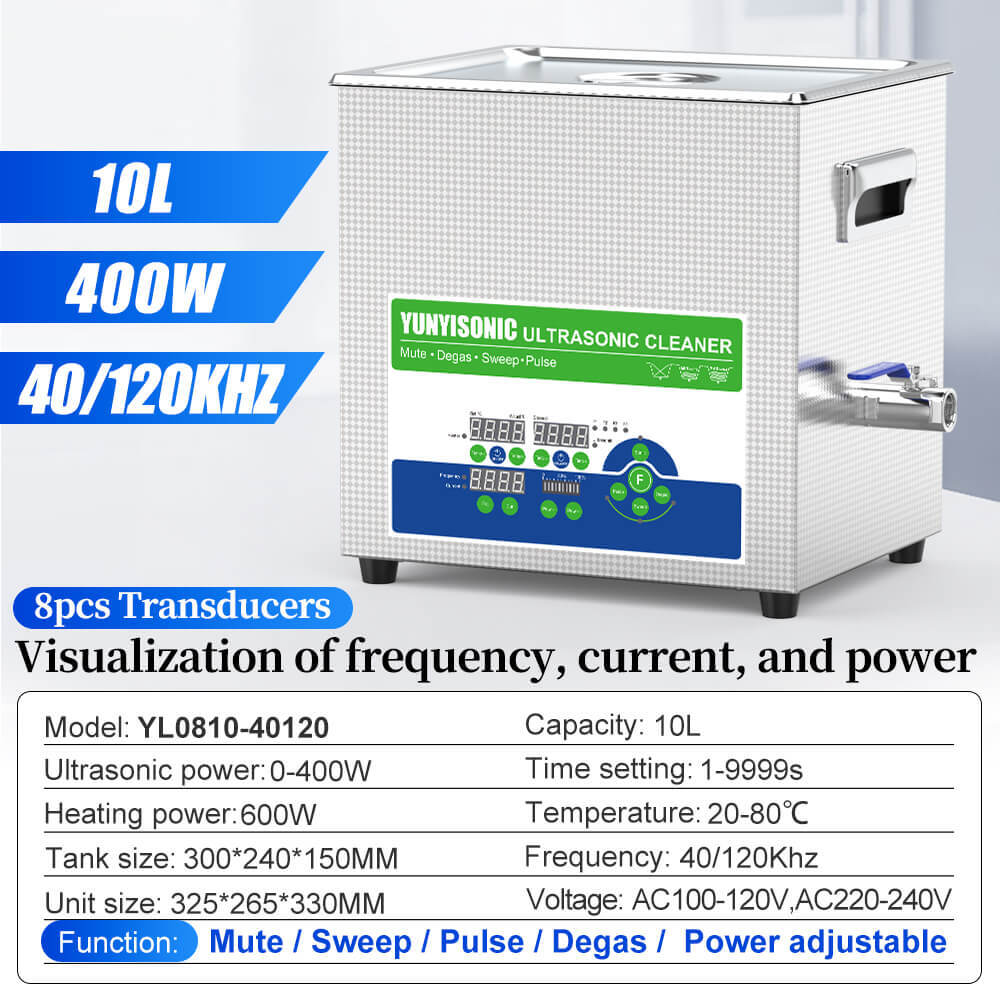

Specification:
| Model | YL0810-40120 | Transducer No. | 8 pcs |
| Frequency | 40/120kHz | Ultrasonic Power | 0-400W |
| Capacity | 10L | Heating Power | 600W |
| Timer | 1~9999s Adjustable | Tank Material | SUS304 |
| Heater | 20°C – 80°C | Housing Material | SUS304 |
| Tank Size(mm) | 300x240x150 | Unit Size(mm) | 325x265x330 |
| Drain Valve | Yes | Refurbished | No |
| Function | Noise Reduction, Sweep Frequency, Pulse Cleaning, Degas Cleaning, Adjustable Power, Digital Control, Heating, Multi-language Panel Optional | ||
| Logo/Pattern | Silk screen printing, Laser Printing, UV printing, PVC, Other | ||
Box Contents:
1 x Professional Ultrasonic Cleaner 1 x Durable Mesh Cleaning Basket One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
One unit filled with thick foam, then standard export corrugated carton or wooden box.
More Units
40/120kHz Dual Frequency Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YL0404-40120 | 4 | 4.5 | 40/120 | 0-200 | 450 | 300x150x100 | 325x175x280 |
| YL0406-40120 | 4 | 6.5 | 40/120 | 0-200 | 450 | 300x150x150 | 325x175x330 |
| YL0810-40120 | 8 | 10 | 40/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0814-40120 | 8 | 14 | 40/120 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL1015-40120 | 10 | 15 | 40/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1019-40120 | 10 | 19 | 40/120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1622-40120 | 16 | 22 | 40/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1630-40120 | 16 | 30 | 40/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
10L Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YNLH0610-17 | 6 | 10 | 17 | 0–480 | 600 | 300x240x150 | 400x300x370 |
| YNLH0610-20 | 6 | 10 | 20 | 0-600 | 600 | 300x240x150 | 400x300x370 |
| YNL0810-25 | 8 | 10 | 25 | 0-400 | 600 | 300x240x150 | 400x300x370 |
| YL0610-28 | 6 | 10 | 28 | 0-300 | 600 | 300x240x150 | 325x265x340 |
| YL0610-33 | 6 | 10 | 33 | 0-300 | 600 | 300x240x150 | 325x265x340 |
| YL0410-40 | 4 | 10 | 40 | 0-200 | 600 | 300x240x150 | 325x265x330 |
| YL0810-40 | 8 | 10 | 40 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YLS1610-50 | 16 | 10 | 50 | 0–480 | 600 | 300×240×150 | 325×265×330 |
| YLS1610-53 | 16 | 10 | 53 | 0–560 | 600 | 300×240×150 | 325×265×330 |
| YL0810-68 | 8 | 10 | 68 | 0-400 | 600 | 300x240x150 | 325x265x340 |
| YL0810-80 | 8 | 10 | 80 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-120 | 8 | 10 | 120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-130 | 8 | 10 | 130 | 0–480 | 600 | 300×240×150 | 325×265×330 |
| YLS1610-200 | 16 | 10 | 200 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0610-2840 | 6 | 10 | 28/40 | 0-300 | 600 | 300x240x150 | 325x265x340 |
| YL0810-4068 | 8 | 10 | 40/68 | 0-400 | 600 | 300x240x150 | 325x265x340 |
| YL0810-4080 | 8 | 10 | 40/80 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-40120 | 8 | 10 | 40/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-80120 | 8 | 10 | 80/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YNLH0410-20/40/60 | 4 | 10 | 20/40/60 | 0-480 | 600 | 300x240x150 | 400x300x370 |
| YL0810-4080100 | 8 | 10 | 40/80/100 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-4080120 | 8 | 10 | 40/80/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-255080120 | 8 | 10 | 25/50/80/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-4080100160 | 8 | 10 | 40/80/100/160 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-4080120170 | 8 | 10 | 40/80/120/170 | 0-400 | 600 | 300x240x150 | 325x265x330 |
YL UT Cleaning Equipment Features
Specification
Product Specifications
| Brand |
Yunyisonic |
|---|---|
| Origin |
Shenzhen City, China |
| Capacity | |
| Frequency | |
| Power | |
| Timer |
1-9999s |
| Heater |
RT~80°C |
| Tank Material |
SUS304 Stainless Steel |
| Housing Material |
SUS304 Stainless Steel |
| Voltage |
AC 110V 60Hz；AC 220V 50Hz |
| Plug Type |
EU Plug ,US Plug ,AU Plug ,Other Plugs ,UK Plug |
| Certificates |
CE ,FCC ,ROHS |
| Warranty |
1 Year |
| Customization |
485 Port ,Frequency ,PLC System ,Tanks Numbers |
| Assisted Systems Yunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | , , , , , , , |
| Function | , , , , , , , , |
| Manufacturer |
Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | 12.5 kg |
|---|---|
| Package Dimensions | 43.5 × 36 × 40 cm |
