10L Quad-Frequency Ultrasonic Bath, 40/80/120/170kHz, Adjustable Power 0–400W
- Supports biochemical, pharmaceutical, and nanotechnology labs with multiple ultrasonic modes.
- Four-frequency options precisely meet varying experimental requirements.
- Robust stainless steel tank and digital controls ensure reliable lab operation.
$1,336.60piece
10
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description
The Yunyisonic YL series UT cleaning equpment is ultrasonic cleaning solutions tailored for every lab need. Engineered as a compact yet potent solution for academic and institutional research, the 10L YL0810-4080120170 ultrasonic cleaner harnesses the versatility of 40/80/120/170 kHz frequencies. The 40 kHz setting excels at dislodging heavy residues from mechanical parts, while 80 kHz proves ideal for emulsification studies. The 120 kHz frequency is a perfect fit for dispersing delicate optical fibers and cleaning microfluidic channels, and the 170 kHz mode penetrates nano – scale blind holes in holographic gratings with ease.
Powered by eight 50W transducers that deliver a total of 400W output, it offers robust ultrasonic performance. Key features like Degas, Pulse, and Sweep functions enable highly tunable sonochemical synthesis, make it a top choice for cutting – edge research labs and scientific center.
Product Features:
- Quad 40/80/120/170kHz Cleaning: covers full cleaning spectrums from PCB, watches, parts to new material nano-scale decontamination
- 400W peak power via 8×50W piezo transducers, suitable for batch liquid processing, sample prep, dispersion, degassing, surgical tools, auto parts, production lines
- Durable basket (260 × 200 × 90mm) fits two 1000 mL beakers (d=112mm h=155mm) side by side
- Dega-Sweep-Pulse trio Cleaning Mode: Degas mode accelerates solvent turnover, Pulse disrupts tenacious flux residues, and Sweep eliminates blind-spot cleaning
- Visualization of power, current, and frequency for surface treatment of sensitive items and experimental parameters
- Convenient 1–9999s timer and 20–80°C heater ensure precise sample preparation
- < 85 dB Noise reduced operation, SUS304 tank & shell construction, ideal for OEM bulk orders

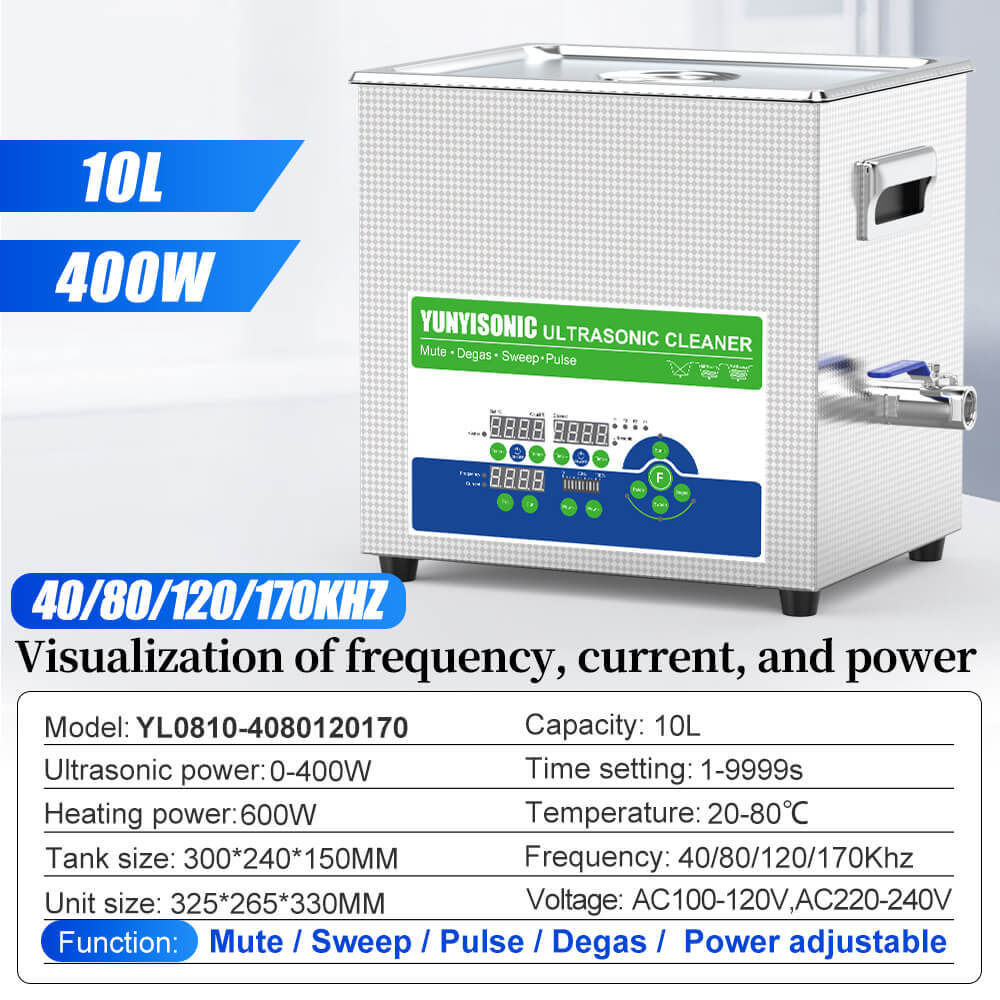

Specification:
| Model | YL0810-4080120170 | Transducer No. | 8 pcs |
| Frequency | 40/80/120/170kHz | Ultrasonic Power | 0-400W |
| Capacity | 10L | Heating Power | 600W |
| Timer | 1~9999s Adjustable | Tank Material | SUS304 |
| Heater | 20°C – 80°C | Housing Material | SUS304 |
| Tank Size(mm) | 300x240x150 | Unit Size(mm) | 325x265x330 |
| Drain Valve | Yes | Refurbished | No |
| Function | Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-Language Interface Optional | ||
| Logo/Pattern | Silk screen printing, Laser Printing, UV printing, PVC, Other | ||
Box Contents:
1 x Professional Ultrasonic Cleaner 1 x Durable Mesh Cleaning Basket One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
One unit filled with thick foam, then standard export corrugated carton or wooden box.
More Units
40/80/120/170kHz Four Frequency Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YL0810-4080120170 | 8 | 10 | 40/80/120/170 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0814-4080120170 | 8 | 14 | 40/80/120/170 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL1015-4080120170 | 10 | 15 | 40/80/120/170 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1019-4080120170 | 10 | 19 | 40/80/120/170 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1622-4080120170 | 16 | 22 | 40/80/120/170 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1630-4080120170 | 16 | 30 | 40/80/120/170 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
10L Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YNLH0610-17 | 6 | 10 | 17 | 0–480 | 600 | 300x240x150 | 400x300x370 |
| YNLH0610-20 | 6 | 10 | 20 | 0-600 | 600 | 300x240x150 | 400x300x370 |
| YNL0810-25 | 8 | 10 | 25 | 0-400 | 600 | 300x240x150 | 400x300x370 |
| YL0610-28 | 6 | 10 | 28 | 0-300 | 600 | 300x240x150 | 325x265x340 |
| YL0610-33 | 6 | 10 | 33 | 0-300 | 600 | 300x240x150 | 325x265x340 |
| YL0410-40 | 4 | 10 | 40 | 0-200 | 600 | 300x240x150 | 325x265x330 |
| YL0810-40 | 8 | 10 | 40 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YLS1610-50 | 16 | 10 | 50 | 0–480 | 600 | 300×240×150 | 325×265×330 |
| YLS1610-53 | 16 | 10 | 53 | 0–560 | 600 | 300×240×150 | 325×265×330 |
| YL0810-68 | 8 | 10 | 68 | 0-400 | 600 | 300x240x150 | 325x265x340 |
| YL0810-80 | 8 | 10 | 80 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-120 | 8 | 10 | 120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-130 | 8 | 10 | 130 | 0–480 | 600 | 300×240×150 | 325×265×330 |
| YLS1610-200 | 16 | 10 | 200 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0610-2840 | 6 | 10 | 28/40 | 0-300 | 600 | 300x240x150 | 325x265x340 |
| YL0810-4068 | 8 | 10 | 40/68 | 0-400 | 600 | 300x240x150 | 325x265x340 |
| YL0810-4080 | 8 | 10 | 40/80 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-40120 | 8 | 10 | 40/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-80120 | 8 | 10 | 80/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YNLH0410-20/40/60 | 4 | 10 | 20/40/60 | 0-480 | 600 | 300x240x150 | 400x300x370 |
| YL0810-4080100 | 8 | 10 | 40/80/100 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-4080120 | 8 | 10 | 40/80/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-255080120 | 8 | 10 | 25/50/80/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-4080100160 | 8 | 10 | 40/80/100/160 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0810-4080120170 | 8 | 10 | 40/80/120/170 | 0-400 | 600 | 300x240x150 | 325x265x330 |
YL Ultrasonic Bath Features
Specification
Product Specifications
| Brand |
Yunyisonic |
|---|---|
| Origin |
Shenzhen City, China |
| Capacity | |
| Frequency | |
| Power | |
| Timer |
1-9999s |
| Heater |
RT~80°C |
| Tank Material |
SUS304 Stainless Steel |
| Housing Material |
SUS304 Stainless Steel |
| Voltage |
AC 110V 60Hz；AC 220V 50Hz |
| Plug Type |
EU Plug ,US Plug ,AU Plug ,Other Plugs ,UK Plug |
| Certificates |
CE ,FCC ,ROHS |
| Warranty |
1 Year |
| Customization |
485 Port ,Frequency ,PLC System ,Tanks Numbers |
| Assisted Systems Yunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | , , , , , , |
| Function | , , , , , , , , |
| Manufacturer |
Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | 15 kg |
|---|---|
| Package Dimensions | 43.5 × 36 × 40 cm |
