💡 Need custom specs, bulk pricing, or better shipping rates? Just reach out — we’ll prepare a tailored offer that fits your needs and location.
| Quantity ( piece ) | 1 – 10 | 11 – 50 | 51 – 100 | >100 |
| Produce (days) | 2 | 5 | 10 | Negotiable |
👉 Request a Custom Quote

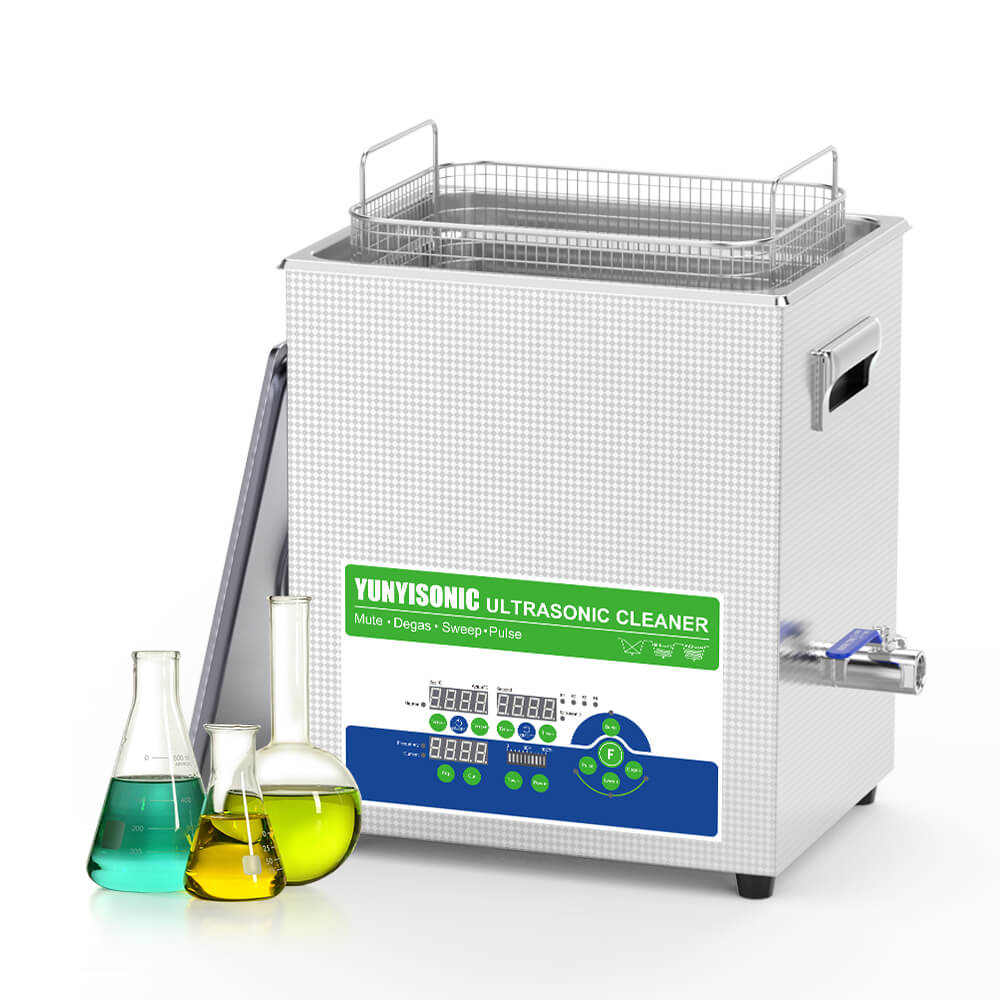

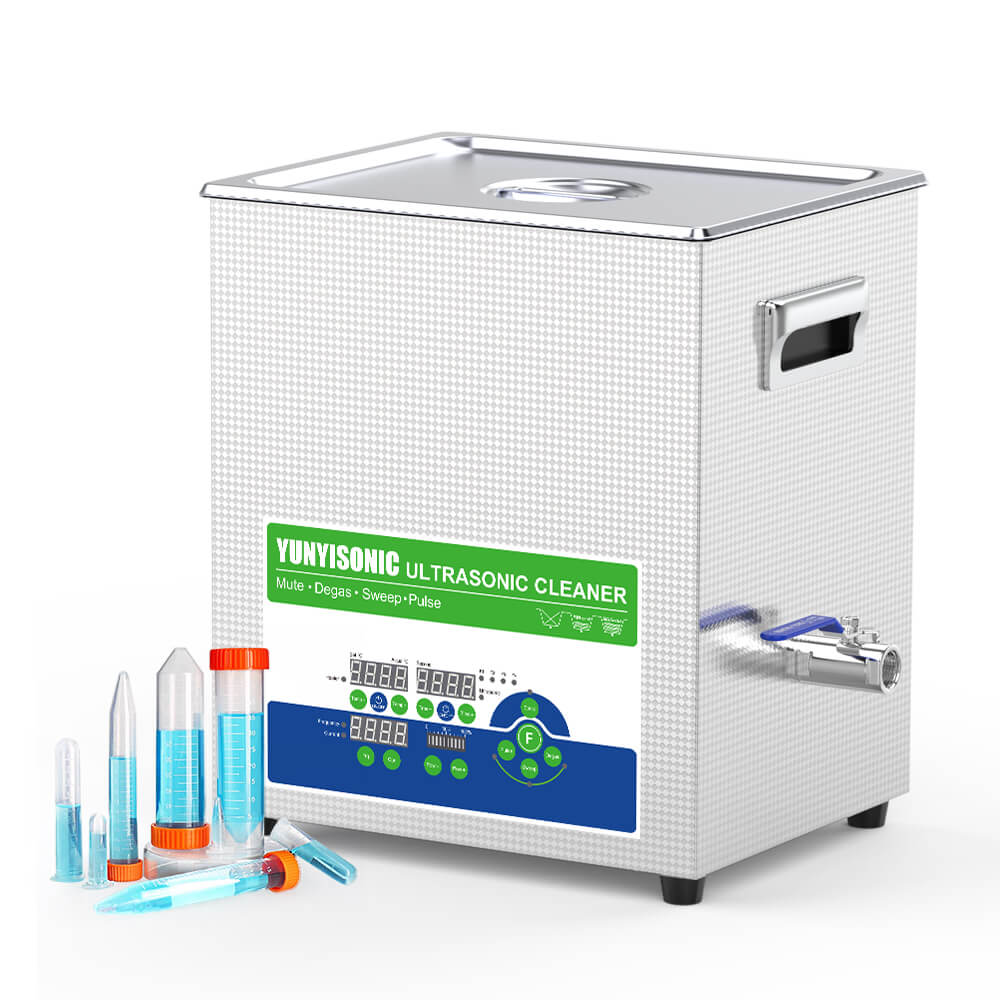

14L Dual-Frequency Ultrasonic Cleaner 400W Digital Timer Heater for Research Labs, Sample Pre-Treatment & Deep-Cavity Washing
- Precision ultrasonic bath for university labs and research facilities
- 40/120kHz dual-mode supports extraction, emulsification, dispersion
- Digital control, low-noise, SUS304 tank, OEM customization available
$724.50piece
14
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description
The YL0814-40120 unit is working as a High-throughput Batch Cleaner. Need to de-flux 10 PCB panels at once? The 14L YL0814-40120 marries 40 kHz carbon-sludge removal with 120 kHz final rinse for microvias. Auto-pulse raises cavitation density by 20 %; digital heaters hit 80 ℃ fast for wax melt-out. Quiet-core insulation keeps dB levels lab-friendly even on all-day cycles.
Product Features:
- Dual 40/120 kHz: 40 kHz punch-cleans watch parts & dental tips; 120 kHz restores ink-jet print heads and polishes optical glass
- 400W peak power via 8×50W piezo transducers, mirroring 14L’s efficient design

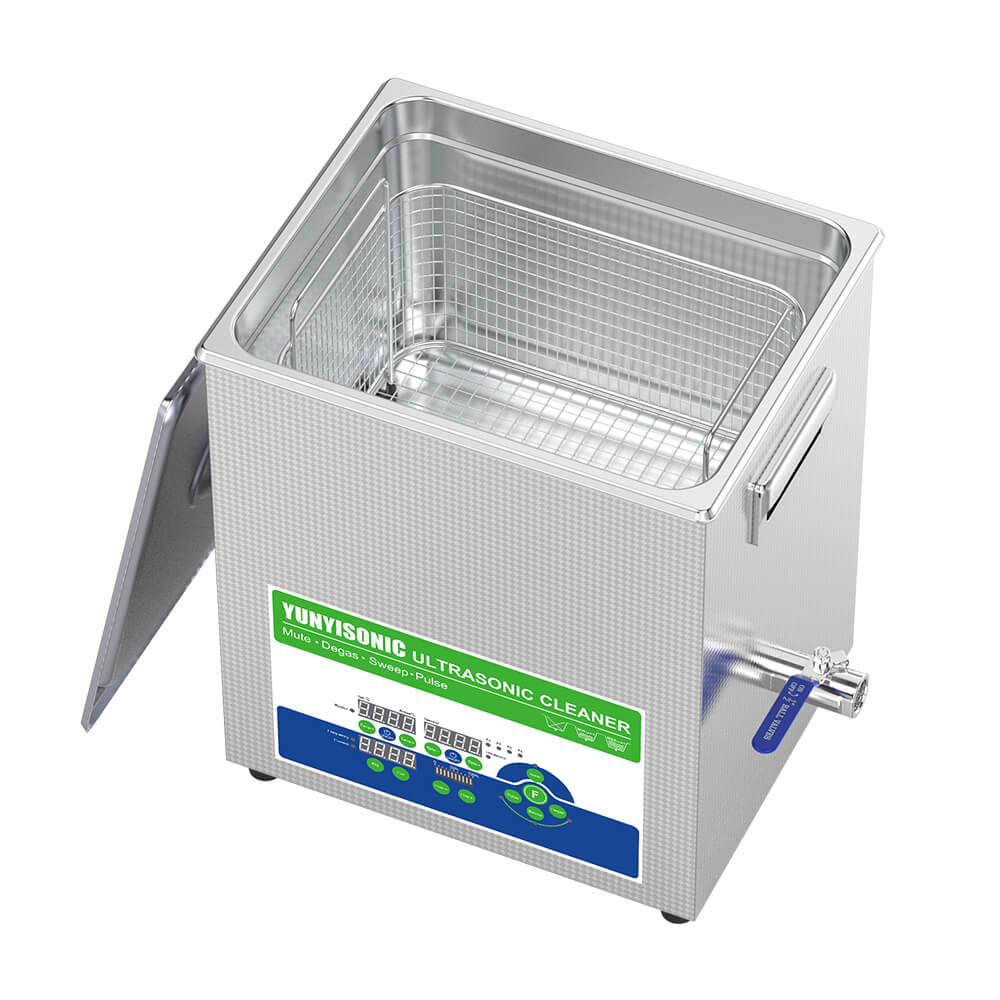

- Durable basket (260 × 200 × 120mm) fits beakers from 800mL to 5000ml
- Dega-Sweep-Pulse trio Cleaning guarantees bubble-free solvents, uniform cavitation, and up to 30 % faster cycle times
- 1–9999 s programmable timer & 20–80 °C heater for digital runs
- Noise-reduced casing (< 85 dB) and global compliance (CE/RoHS/FCC) with 1-year parts warranty—ready for OEM bulk orders and UPS/DHL/SF Express delivery

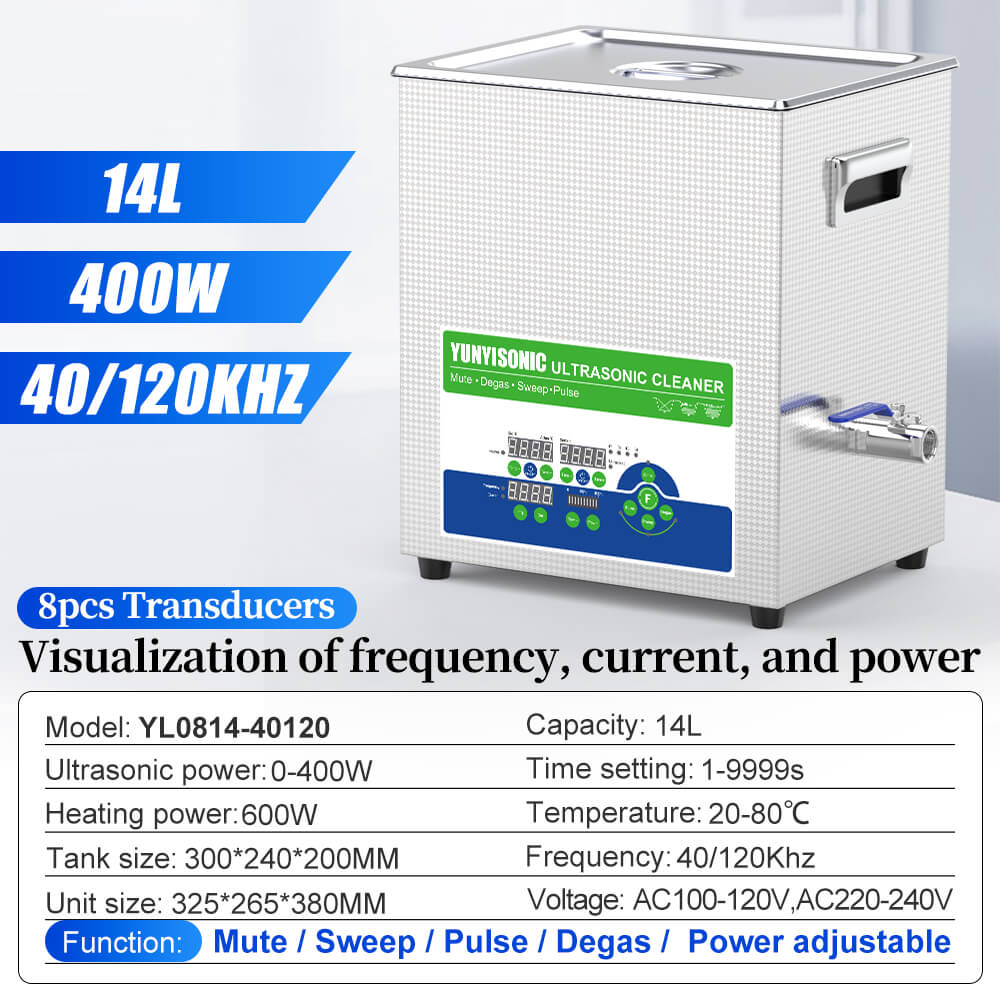

Specification:
| Model | YL0814-40120 | Transducer No. | 8 pcs |
| Frequency | 40/120kHz | Ultrasonic Power | 0-400W |
| Capacity | 14L | Heating Power | 600W |
| Timer | 1~9999s Adjustable | Tank Material | SUS304 |
| Heater | 20°C – 80°C | Housing Material | SUS304 |
| Tank Size(mm) | 300x240x200 | Unit Size(mm) | 325x265x380 |
| Drain Valve | Yes | Refurbished | No |
| Function | Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Multi-language Panel Optional | ||
| Logo/Pattern | Silk screen printing, Laser Printing, UV printing, PVC, Other | ||
Box Contents:
1 x Professional Ultrasonic Cleaner 1 x Durable Mesh Cleaning Basket One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
One unit filled with thick foam, then standard export corrugated carton or wooden box.
More Units
40/120kHz Dual Frequency Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YL0404-40120 | 4 | 4.5 | 40/120 | 0-200 | 450 | 300x150x100 | 325x175x280 |
| YL0406-40120 | 4 | 6.5 | 40/120 | 0-200 | 450 | 300x150x150 | 325x175x330 |
| YL0810-40120 | 8 | 10 | 40/120 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YL0814-40120 | 8 | 14 | 40/120 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL1015-40120 | 10 | 15 | 40/120 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YL1019-40120 | 10 | 19 | 40/120 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YL1622-40120 | 16 | 22 | 40/120 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YL1630-40120 | 16 | 30 | 40/120 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
14L Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YNLH0614-17 | 6 | 14 | 17 | 0–480 | 600 | 300x240x200 | 400x300x420 |
| YNLH0614-20 | 6 | 14 | 20 | 0-600 | 600 | 300x240x200 | 400x300x420 |
| YNL0814-25 | 8 | 14 | 25 | 0-400 | 600 | 300x240x200 | 400x300x420 |
| YL0614-28 | 6 | 14 | 28 | 0-300 | 600 | 300x240x200 | 325x265x390 |
| YL0614-33 | 6 | 14 | 33 | 0-300 | 600 | 300x240x200 | 325x265x390 |
| YL0414-40 | 4 | 14 | 40 | 0-200 | 600 | 300x240x200 | 325x265x380 |
| YL0814-40 | 8 | 14 | 40 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YLS1614-50 | 16 | 14 | 50 | 0–480 | 600 | 300×240×200 | 325×265×380 |
| YLS1614-53 | 16 | 14 | 53 | 0–560 | 600 | 300×240×200 | 325×265×380 |
| YL0814-68 | 8 | 14 | 68 | 0-400 | 600 | 300x240x200 | 325x265x390 |
| YL0814-80 | 8 | 14 | 80 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL0814-120 | 8 | 14 | 120 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL0814-130 | 8 | 14 | 130 | 0–480 | 600 | 300×240×200 | 325×265×380 |
| YLS1614-200 | 16 | 14 | 200 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL0614-2840 | 6 | 14 | 28/40 | 0-300 | 600 | 300x240x200 | 325x265x390 |
| YL0814-4068 | 8 | 14 | 40/68 | 0-400 | 600 | 300x240x200 | 325x265x390 |
| YL0814-4080 | 8 | 14 | 40/80 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL0814-40120 | 8 | 14 | 40/120 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL0814-80120 | 8 | 14 | 80/120 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YNLH0414-20/40/60 | 4 | 14 | 20/40/60 | 0-480 | 600 | 300x240x200 | 400x300x420 |
| YL0814-4080100 | 8 | 14 | 40/80/100 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL0814-4080120 | 8 | 14 | 40/80/120 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL0814-255080120 | 8 | 14 | 25/50/80/120 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL0814-4080100160 | 8 | 14 | 40/80/100/160 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YL0814-4080120170 | 8 | 14 | 40/80/120/170 | 0-400 | 600 | 300x240x200 | 325x265x380 |
YL Series UT Cleaning Machine Features
Specification
Product Specifications
| Brand |
Yunyisonic |
|---|---|
| Origin |
Shenzhen City, China |
| Capacity | |
| Frequency | |
| Power | |
| Timer |
1-9999s |
| Heater |
RT~80°C |
| Tank Material |
SUS304 Stainless Steel |
| Housing Material |
SUS304 Stainless Steel |
| Voltage |
AC 110V 60Hz；AC 220V 50Hz |
| Plug Type |
EU Plug ,US Plug ,AU Plug ,Other Plugs ,UK Plug |
| Certificates |
CE ,FCC ,ROHS |
| Warranty |
1 Year |
| Customization |
485 Port ,Frequency ,PLC System ,Tanks Numbers |
| Assisted Systems Yunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | , , , , , , , |
| Function | , , , , , , , , |
| Manufacturer |
Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | 14.1 kg |
|---|---|
| Package Dimensions | 43.5 × 36 × 45 cm |
