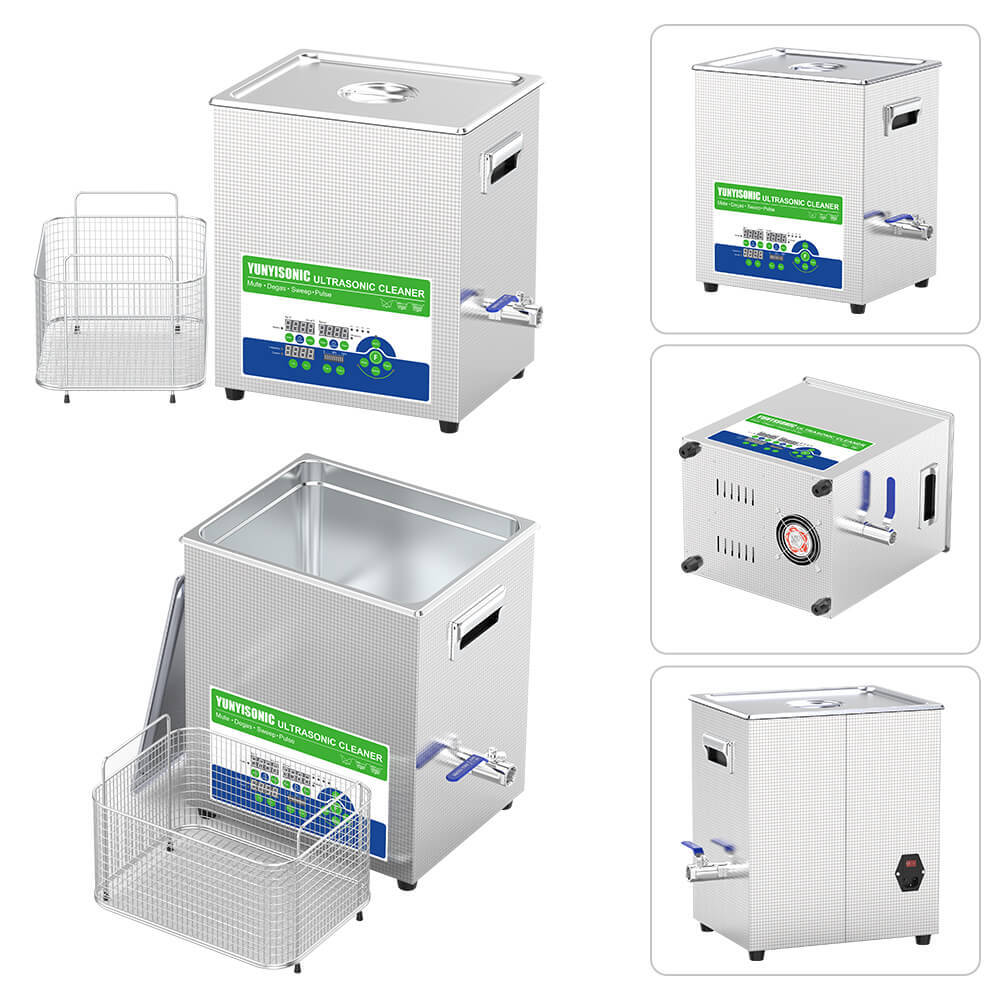

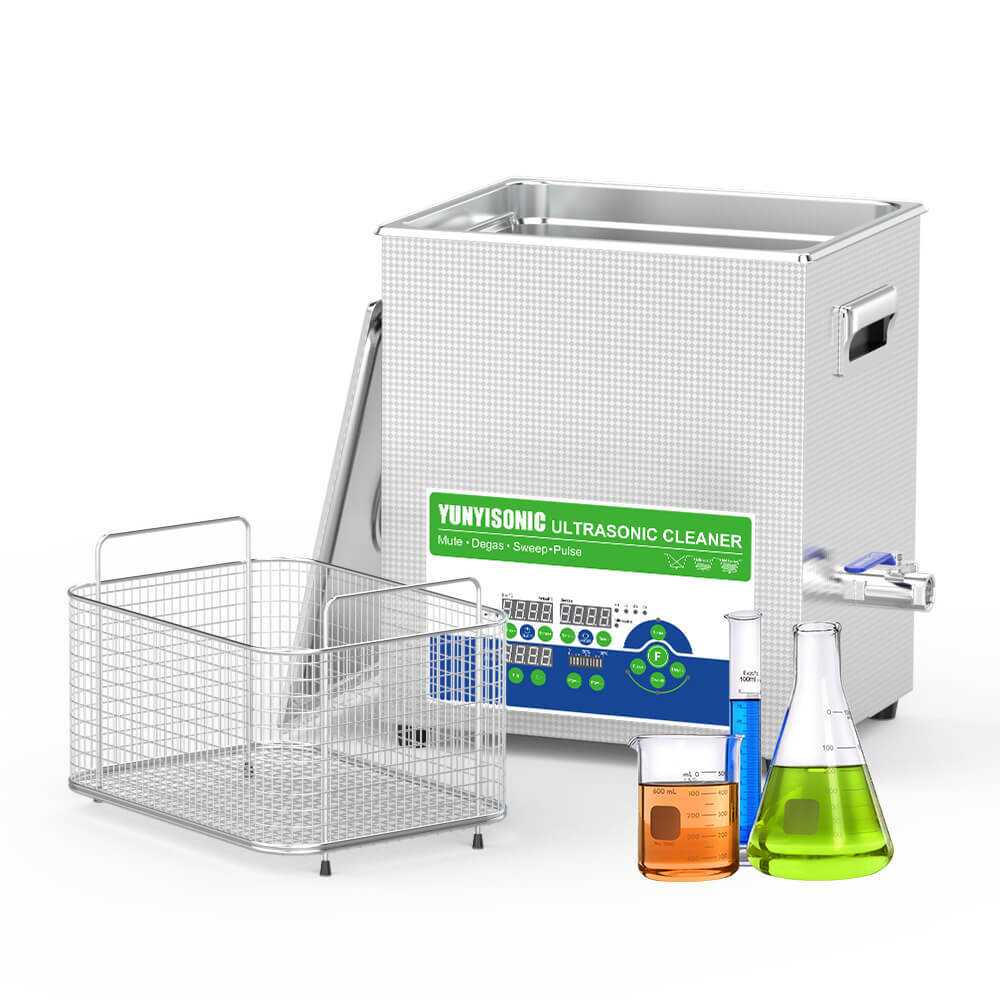

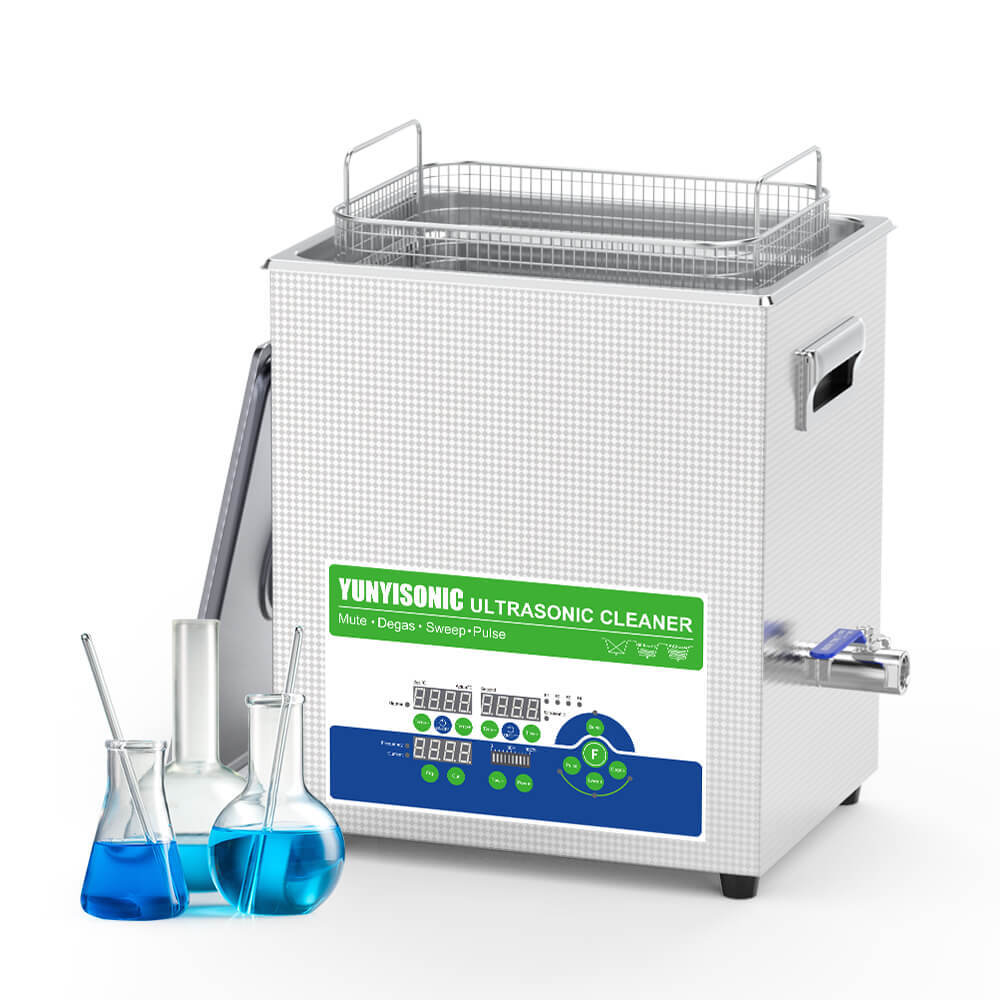

14L Quad-Frequency Ultrasonic Cleaner 40/80/100/160kHz | Precision Cavitation for Nano Particle Research & Complex Samples

Engineered for high-volume industrial and OEM applications, the 14L YL0814-4080100160 leverages quad-frequency technology (40/80/100/160kHz) to deliver unmatched cleaning versatility. The 40kHz setting tackles heavy-duty degreasing of cast-iron molds and automotive components, while 80kHz balances efficiency and material safety for precision parts like platinum-coated nozzles. The 100kHz mode ensures scratch-free cleaning of optical lenses, and 160kHz penetrates sub-micron blind holes in microfluidic chips or inkjet nozzles.

Powered by eight 50W transducers (400W total), the system integrates intelligent cleaning modules: Degas mode pre-treats solvents to eliminate cavitation interference, Pulse bursts disrupt tenacious flux residues, and Sweep technology ensures uniform energy distribution across the 300×240×200mm SUS304 tank. A digital control panel enables precise timing (1–9999s) and temperature adjustment (20–80°C), supporting automated overnight cycles for batch processing. This All-in-One Solution model is optimized for high-volume OEM orders, seamlessly integrating into production lines for consistent, reliable results.

Product Features:

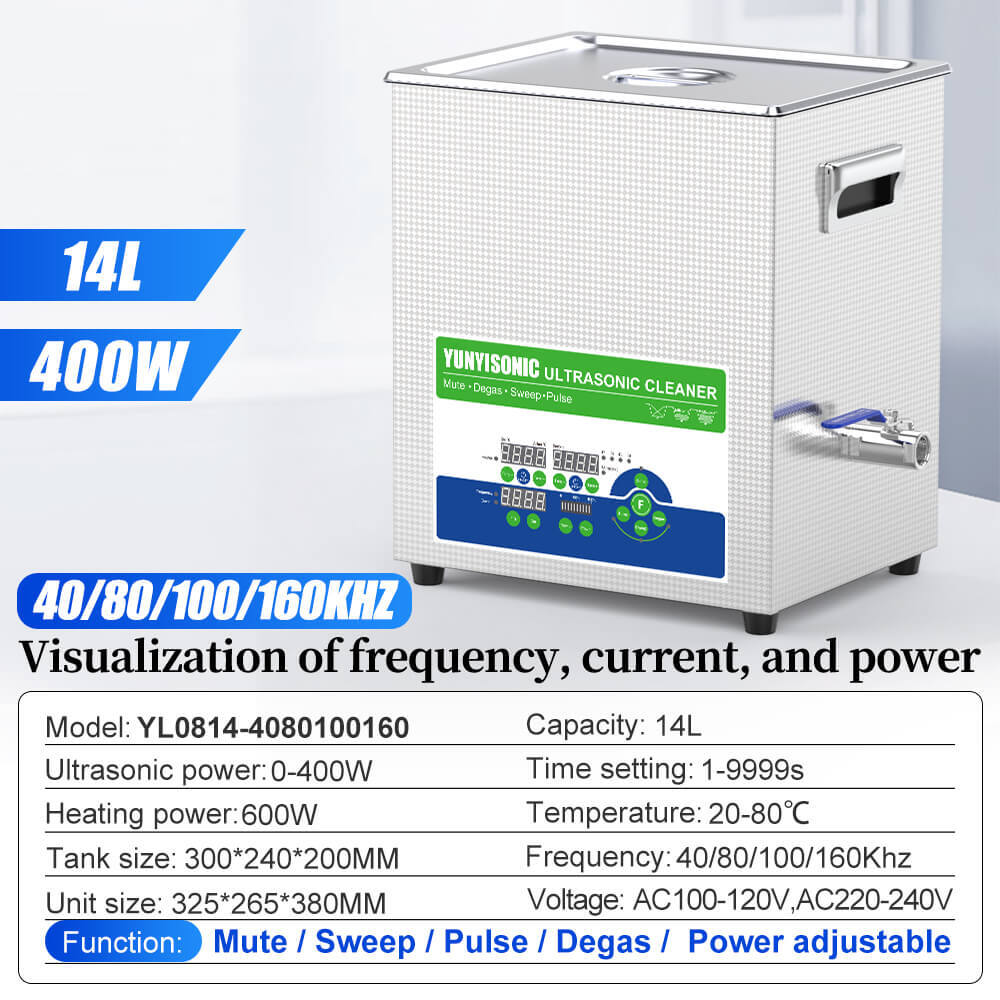

Specification:

Box Contents:

1 x Professional Ultrasonic Cleaner
1 x Durable Mesh Cleaning Basket
One cover, one power cord, one manual warranty card certificate of conformity.

Packing type:

One unit filled with thick foam, then standard export corrugated carton or wooden box.

More Units

40/80/100/160kHz Four Frequency Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

14L Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

YL Ultrasonic Bath Features
