19L 200kHz Large Ultrasonic Cleaner Bath for Silicon Wafers, Chips & Submicron Contaminants with Digital Sweep, Pulse, Degas & Low Noise Operation

1. Ideal for microchips, semiconductor wafers & fine-particle decontamination

2. Equipped with digital sweep, pulse, and degas modes for R&D precision

3. SUS304 ultrasonic bath with OEM support, low-noise operation, and durable quality

SKU: YLS2019-200

$1,090.88piece

17 People watching this product now!

No minimum order required. Enjoy discounts on larger quantities

Quantity ( piece ) 1 – 10 11 – 50 51 – 100 >100
Produce (days) 2 5 10 Negotiable
  • Warranty 1 year

More details

  • 30-Day returns

More details

Payment Methods:

Description

For high-throughput research labs working with optical filters, piezo components, or sensor microchips, the YLS2019-200 combines capacity, control, and consistency. Degas cycles are optimized for dissolved gas removal in DI water and solvent blends. The digital pulse function boosts performance on greasy, polymeric residues without abrasion. The 200kHz frequency ensures scratch-free, non-contact cleaning in precision manufacturing environments. Engineers favor this model for long-run thermal stability, efficient energy delivery, and minimal maintenance.

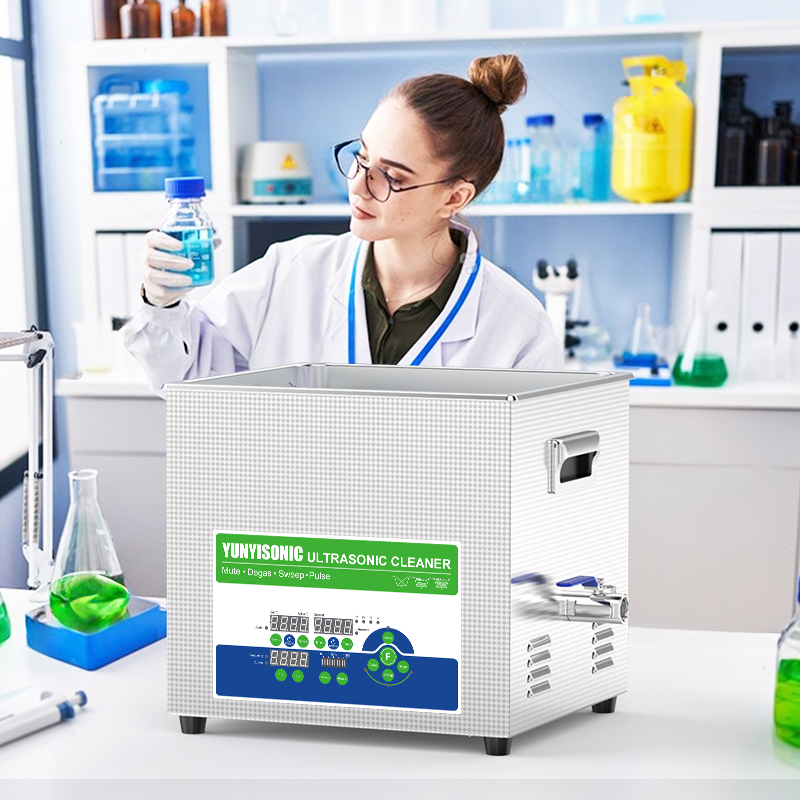

Lab Researcher Using Ultrasonic Cleaning Equipment In Scientific Research Center

Product Features:

  • 20 x 200kHz 25 Watts Transducers – 500 Watts Efficient
  • Generous 19L Tank Capacity & Dimensions 33x30x20cm
  • 1 – 9999s Digital Time Setting
  • Heating Function Room Temperature – 80℃ Range
  • Secure Wire Cleaning Mesh Basket
  • Yunyisonic ultrasonic cleaner meets CE + RoHS + FCC (“Limit the use of certain hazardous substances”) standards and comes with a 1-year “Free Parts” warranty

Specification:

Model YLS2019-200 Transducer No. 20 pcs
Frequency 200kHz Ultrasonic Power 0-500W
Capacity 19L Heating Power 1000W
Timer 1~9999s Adjustable Tank Material SUS304
Heater 20°C – 80°C Housing Material SUS304
Tank Size(mm) 330x300x200 Unit Size(mm) 355x325x380
Drain Valve Yes Refurbished No
Function Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Timer & Heater, Panel Optional Multi-language Support
Logo/Pattern Silk screen printing, Laser Printing, UV printing, PVC, Other

Box Contents:

1 x Professional Ultrasonic Cleaner
1 x Durable Mesh Cleaning Basket
One cover, one power cord, one manual warranty card certificate of conformity.

Packing type:

One unit filled with thick foam, then standard export corrugated carton or wooden box.

More Units

200kHz Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model Transducers Cap Frequency UT Power Heat Pwr Size(LxWxH mm)
(PCS) (L) (kHz) (W) (W) Tank Unit
YLS0603-200 6 3.2 200 0-150 300 240x135x100 265x165x280
YLS0605-200 6 4.8 200 0-150 300 240x135x150 265x165x330
YLS0804-200 8 4.5 200 0-200 450 300x150x100 325x175x280
YLS0806-200 8 6.5 200 0-200 450 300x150x150 325x175x330
YLS1610-200 16 10 200 0-400 600 300x240x150 325x265x330
YLS1614-200 16 14 200 0-400 600 300x240x200 325x265x380
YLS2015-200 20 15 200 0-500 1000 330x300x150 355x325x330
YLS2019-200 20 19 200 0-500 1000 330x300x200 355x325x380
YLS3222-200 32 22 200 0-800 1000 500x300x150 530x330x335
YLS3230-200 32 30 200 0-800 1000 500x300x200 530x330x385

19L Series

Heater 20–80°C · Timer 1–9999s · SUS304 Unit

Model Transducers Cap Frequency UT Power Heat Pwr Size(LxWxH mm)
(PCS) (L) (kHz) (W) (W) Tank Unit
YNLH0819-17 8 19 17 0–640 1000 330x300x200 430x360x420
YNLH0819-20 8 19 20 0-800 1000 330x300x200 430x360x420
YNL1019-25 10 19 25 0-500 1000 330x300x200 430x360x420
YL0819-28 8 19 28 0-400 1000 330x300x200 355x325x390
YL0819-33 8 19 33 0-400 1000 330x300x200 355x325x390
YL0619-40 6 19 40 0-300 1000 330x300x200 355x325x380
YL1019-40 10 19 40 0-500 1000 330x300x200 355x325x380
YLS2019-50 20 19 50 0–600 1000 330×300×200 355×325×380
YLS2019-53 20 19 53 0–700 1000 330×300×200 355×325×380
YL1019-68 10 19 68 0-500 1000 330x300x200 355x325x390
YL1019-80 10 19 80 0-500 1000 330x300x200 355x325x380
YL1019-120 10 19 120 0-500 1000 330x300x200 355x325x380
YL1019-130 10 19 130 0–600 1000 330×300×200 355×325×380
YLS2019-200 20 19 200 0-500 1000 330x300x200 355x325x380
YL0819-2840 8 19 28/40 0-400 1000 330x300x200 355x325x390
YL1019-4068 10 19 40/68 0-500 1000 330x300x200 355x325x390
YL1019-4080 10 19 40/80 0-500 1000 330x300x200 355x325x380
YL1019-40120 10 19 40/120 0-500 1000 330x300x200 355x325x380
YL1019-80120 10 19 80/120 0-500 1000 330x300x200 355x325x380
YNLH0619-20/40/60 6 19 20/40/60 0-720 1000 330x300x200 430x360x420
YL1019-4080100 10 19 40/80/100 0-500 1000 330x300x200 355x325x380
YL1019-4080120 10 19 40/80/120 0-500 1000 330x300x200 355x325x380
YL1019-255080120 10 19 25/50/80/120 0-500 1000 330x300x200 355x325x380
YL1019-4080100160 10 19 40/80/100/160 0-500 1000 330x300x200 355x325x380
YL1019-4080120170 10 19 40/80/120/170 0-500 1000 330x300x200 355x325x380

Why Choose Yunyisonic YL Series Ultrasonic Bath

YL Ultrasonic Cleaner Features & Applications

  • High-Frequency 200kHz Cleaning – Engineered for submicron and nanoscale contaminant removal
  • Large 19L Capacity Tank – Designed to accommodate wafer carriers, optical trays, and chip fixtures
  • Multi-Mode Cavitation – Offers Degas, Sweep, and Pulse for stable, even cleaning effects
  • Adjustable Power & Time Settings – Fine-tune cleaning cycles to match sensitive substrates and lab SOPs
  • SUS304 Tank & Outer Shell – Corrosion-resistant build with reinforced chamber walls (1.5mm thick)
  • Digital Display Panel – User-friendly operation with optional multi-language interface
  • Noise-Reduced & Stable Design – Low acoustic impact for university and cleanroom labs
  • Supports Customization & OEM Branding – Tailored features for integrators or scientific suppliers
  • Backed by China Supplier Certifications – CE/FCC/RoHS compliant, bulk orders and export logistics available
YL ultrasonic cleaner SUS304 bath with low noise pulse degas sweep function
YL Multi Frequency Lab Ultrasonic Cleaner Performance Config

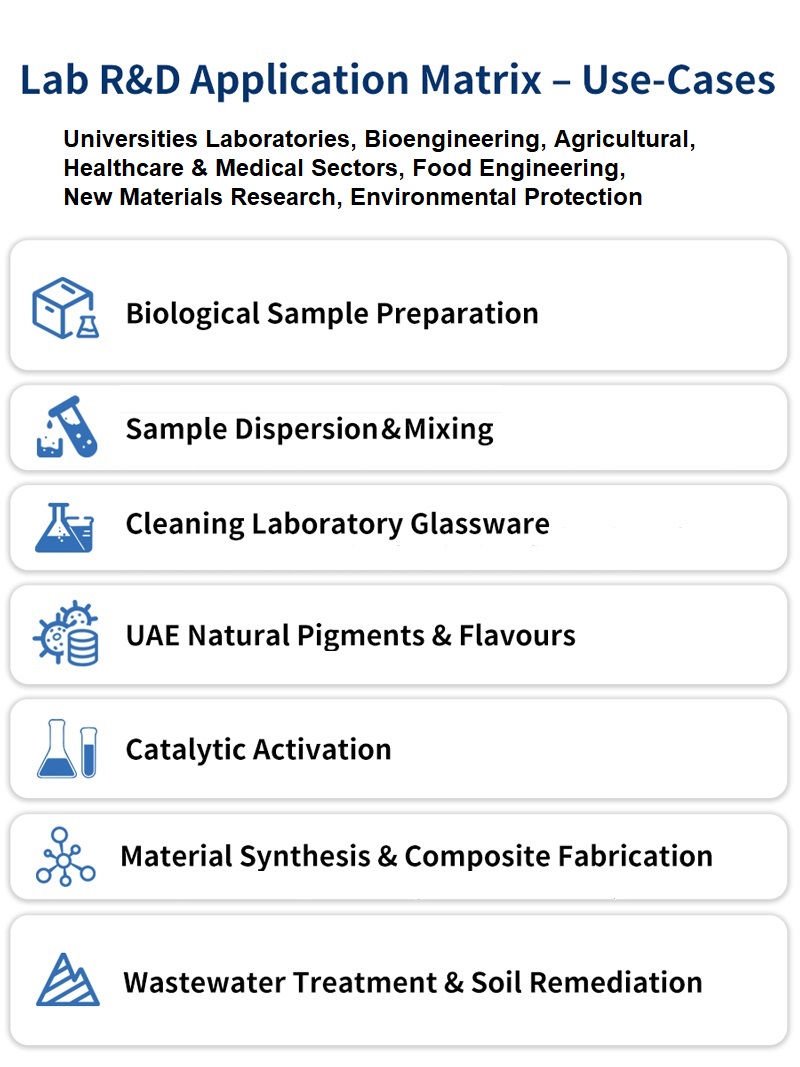

Yunyisonic ultrasonic cleaner lab R&D use cases

Specification

Product Specifications

Brand

Yunyisonic
Origin

Shenzhen City, China
Capacity

Frequency

Power

Timer

1-9999s
Heater

RT~80°C
Tank Material

SUS304 Stainless Steel
Housing Material

SUS304 Stainless Steel
Voltage

AC 110V 60Hz；AC 220V 50Hz
Plug Type

EU Plug

,

US Plug

,

AU Plug

,

Other Plugs

,

UK Plug
Certificates

CE

,

FCC

,

ROHS
Warranty

1 Year
Customization

485 Port

,

Frequency

,

PLC System

,

Tanks Numbers
Assisted Systems Yunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing

,

,

,

,

,

Function

,

,

,

,

,

,

,

,

Manufacturer

Yunyisonic Shenzhen Co., Ltd.

Packaging

Volumetric Weight 17 kg
Package Dimensions 46 × 41 × 45 cm
