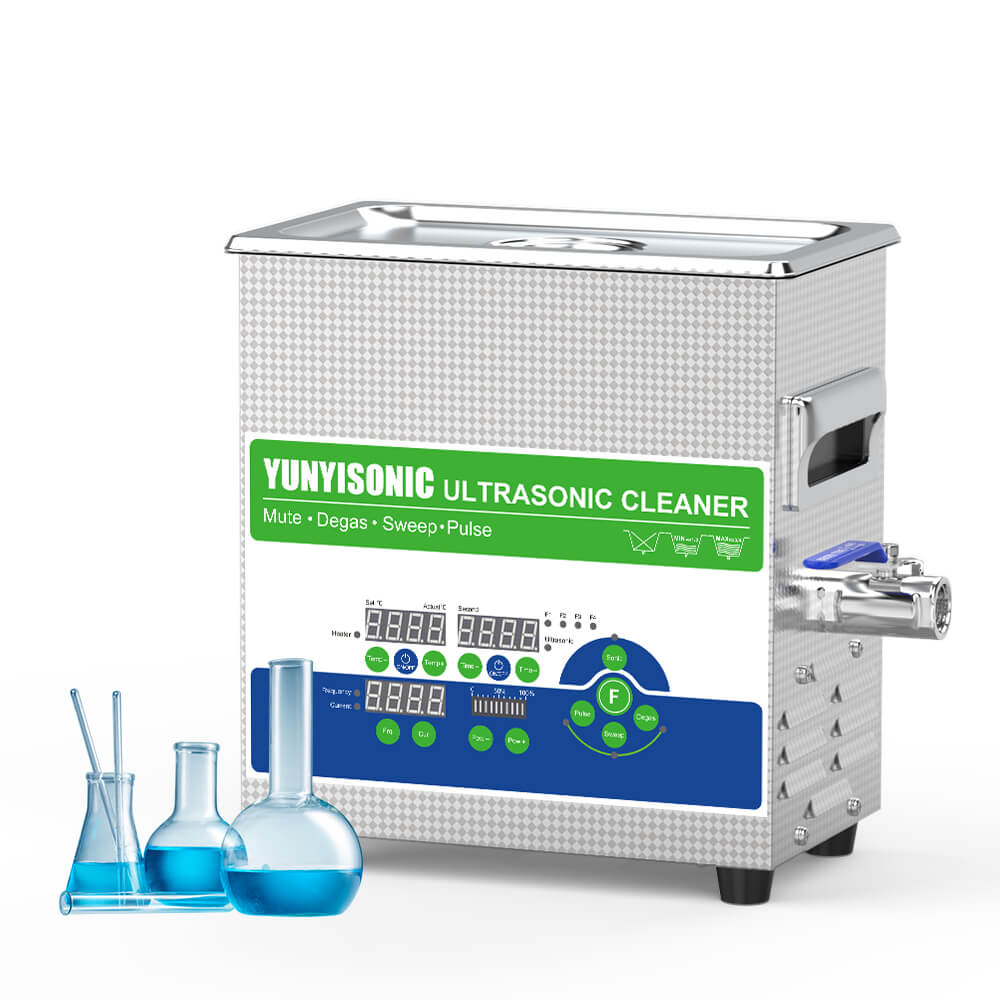

3.2L Single-Frequency Ultrasonic Bath, 200kHz, Adjustable Power 0–150W
3.2L 200kHz ultrasonic cleaner with a durable SUS304 stainless steel tank (24×13.5×10cm, 1.5mm thick), engineered for laboratory applications and precision cleaning of silicon wafers and chips. Ideal for advanced microelectronics and scientific research.
$869.67piece
18
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description
Designed for the most delicate wafer, chip, and MEMS component cleaning tasks, the Yunyisonic YLS0603-200 delivers precise 200kHz ultrasonic waves that gently remove submicron particles without damaging fragile surfaces. With 6 × 25W high-frequency transducers and degas-assisted cavitation, it excels in cleaning narrow microchannels, blind holes, and fine-pitched grooves. This 3.2L compact model is ideal for semiconductor research labs, R&D centers, and process optimization teams. Standard functions include pulse mode for burst cleaning, sweep frequency for cavitation uniformity, and degas for gas-free solvent prep—ensuring consistent results in controlled environments.
Product Features:
- 6 x 200kHz 25 Watts Transducers – 150 Watts Efficient
- Generous 3.2L Tank Capacity & Dimensions 24×13.5x10cm
- 1 – 9999s Digital Time Setting
- Heating Function Room Temperature – 80℃ Range

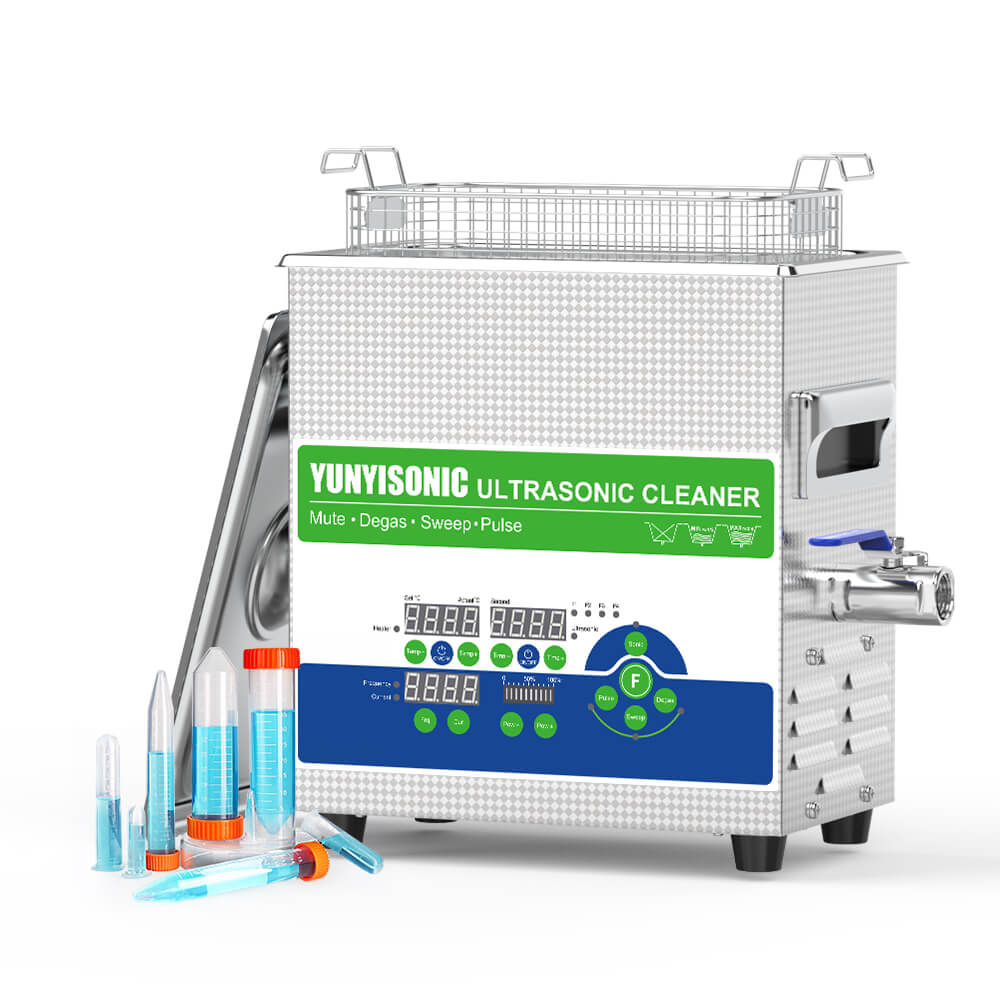

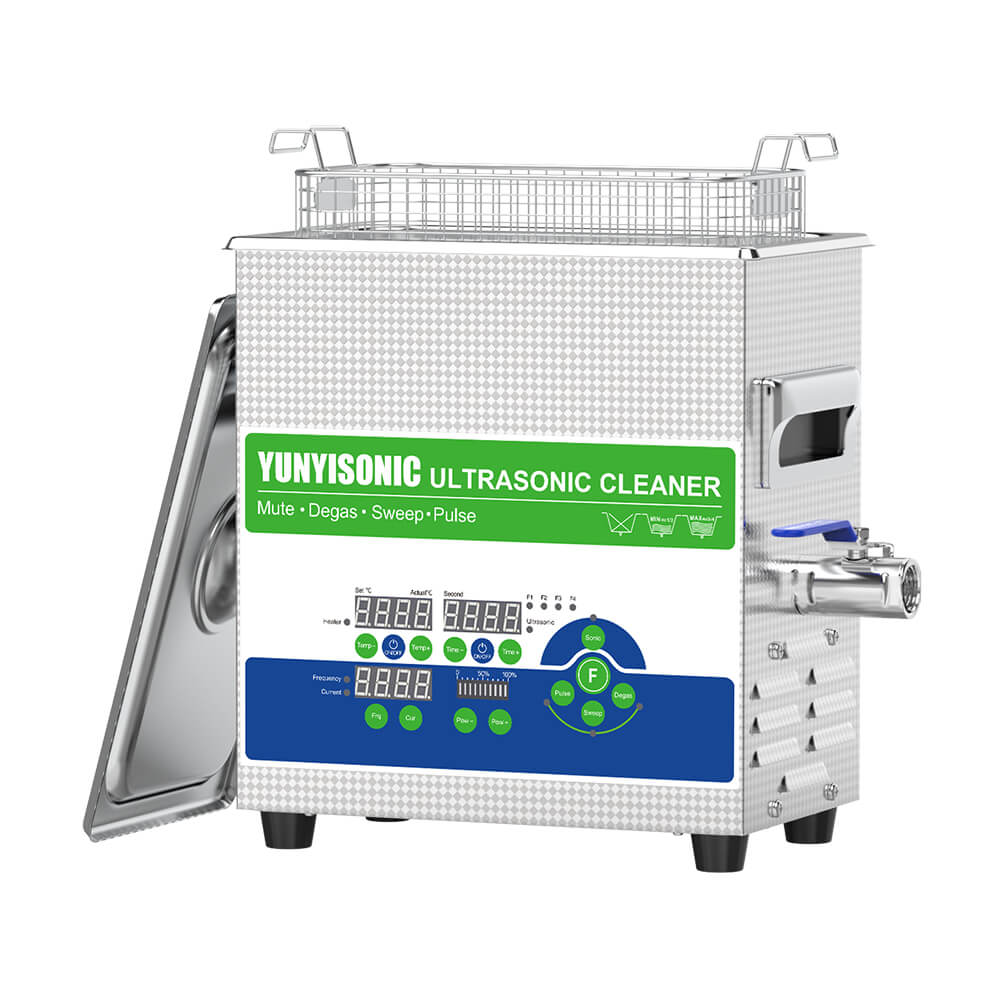

- Secure Wire Cleaning Mesh Basket
- Yunyisonic ultrasonic cleaner meets CE + RoHS + FCC (“Limit the use of certain hazardous substances”) standards and comes with a 1-year “Free Parts” warranty

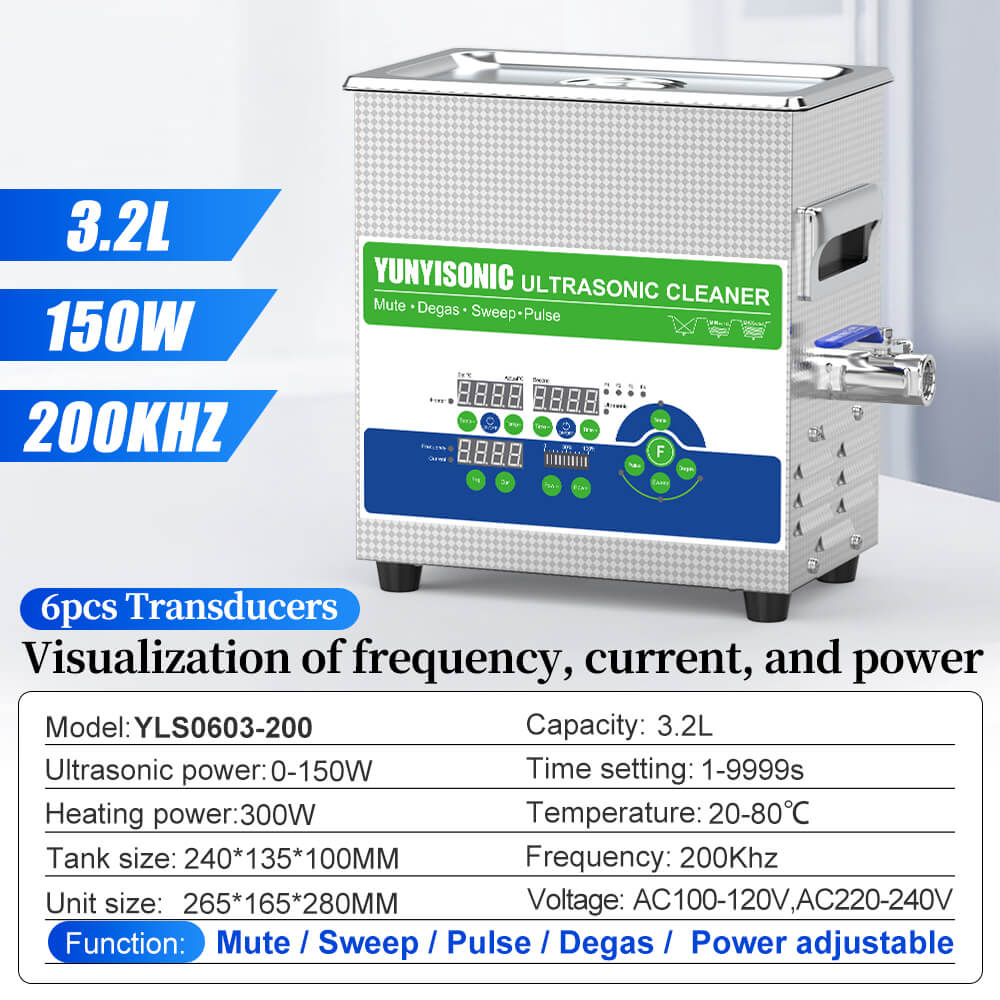

Specification:
| Model | YLS0603-200 | Transducer No. | 6 pcs |
| Frequency | 200kHz | Ultrasonic Power | 0-150W |
| Capacity | 3.2L | Heating Power | 300W |
| Timer | 1~9999s Adjustable | Tank Material | SUS304 |
| Heater | 20°C – 80°C | Housing Material | SUS304 |
| Tank Size(mm) | 240x135x100 | Unit Size(mm) | 265x165x280 |
| Drain Valve | Yes | Refurbished | No |
| Function | Noise Reduction, Sweep Frequency, Pulse, Degas, Adjustable Power, Digital Control, Heating, Operating Panel Optional Language | ||
| Logo/Pattern | Silk screen printing, Laser Printing, UV printing, PVC, Other | ||
Box Contents:
1 x Professional Ultrasonic Cleaner 1 x Durable Mesh Cleaning Basket One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
One unit filled with thick foam, then standard export corrugated carton or wooden box.
More Unit
200kHz Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YLS0603-200 | 6 | 3.2 | 200 | 0-150 | 300 | 240x135x100 | 265x165x280 |
| YLS0605-200 | 6 | 4.8 | 200 | 0-150 | 300 | 240x135x150 | 265x165x330 |
| YLS0804-200 | 8 | 4.5 | 200 | 0-200 | 450 | 300x150x100 | 325x175x280 |
| YLS0806-200 | 8 | 6.5 | 200 | 0-200 | 450 | 300x150x150 | 325x175x330 |
| YLS1610-200 | 16 | 10 | 200 | 0-400 | 600 | 300x240x150 | 325x265x330 |
| YLS1614-200 | 16 | 14 | 200 | 0-400 | 600 | 300x240x200 | 325x265x380 |
| YLS2015-200 | 20 | 15 | 200 | 0-500 | 1000 | 330x300x150 | 355x325x330 |
| YLS2019-200 | 20 | 19 | 200 | 0-500 | 1000 | 330x300x200 | 355x325x380 |
| YLS3222-200 | 32 | 22 | 200 | 0-800 | 1000 | 500x300x150 | 530x330x335 |
| YLS3230-200 | 32 | 30 | 200 | 0-800 | 1000 | 500x300x200 | 530x330x385 |
3.2L Series
Heater 20–80°C · Timer 1–9999s · SUS304 Unit
| Model | Transducers | Cap | Frequency | UT Power | Heat Pwr | Size(LxWxH mm) | |
| (PCS) | (L) | (kHz) | (W) | (W) | Tank | Unit | |
| YNLH0203-17 | 2 | 3.2 | 17 | 0–160 | 300 | 240x135x100 | 340x195x320 |
| YNLH0203-20 | 2 | 3.2 | 20 | 0-200 | 300 | 240x135x100 | 340x195x320 |
| YNL0303-25 | 3 | 3.2 | 25 | 0-150 | 300 | 240x135x100 | 340x195x320 |
| YL0203-28 | 2 | 3.2 | 28 | 0-100 | 300 | 240x135x100 | 265x165x290 |
| YL0203-33 | 2 | 3.2 | 33 | 0-100 | 300 | 240x135x100 | 265x165x290 |
| YL0203-40 | 2 | 3.2 | 40 | 0-100 | 300 | 240x135x100 | 265x165x280 |
| YL0303-40 | 3 | 3.2 | 40 | 0-150 | 300 | 240x135x100 | 265x165x280 |
| YLS0603-50 | 6 | 3.2 | 50 | 0–180 | 300 | 240×135×100 | 265×165×280 |
| YLS0603-53 | 6 | 3.2 | 53 | 0–210 | 300 | 240×135×100 | 265×165×280 |
| YL0303-68 | 3 | 3.2 | 68 | 0-150 | 300 | 240x135x100 | 265x165x290 |
| YL0303-80 | 3 | 3.2 | 80 | 0-150 | 300 | 240x135x100 | 265x165x280 |
| YL0303-120 | 3 | 3.2 | 120 | 0-150 | 300 | 240x135x100 | 265x165x280 |
| YL0303-130 | 3 | 3.2 | 130 | 0–180 | 300 | 240×135×100 | 265×165×280 |
| YLS0603-200 | 6 | 3.2 | 200 | 0-150 | 300 | 240x135x100 | 265x165x280 |
| YL0203-2840 | 2 | 3.2 | 28/40 | 0-100 | 300 | 240x135x100 | 265x165x290 |
| YL0303-4068 | 3 | 3.2 | 40/68 | 0-150 | 300 | 240x135x100 | 265x165x290 |
| YL0303-4080 | 3 | 3.2 | 40/80 | 0-150 | 300 | 240x135x100 | 265x165x280 |
| YNLH0203-20/40/60 | 2 | 3.2 | 20/40/60 | 0-240 | 300 | 240x135x100 | 340x195x320 |
Multi Mode
Degas Mode
Removes dissolved gases to improve cavitation performance
Pulse Mode
Burst cleaning power via pulsed ultrasonic intensity
Sweep Mode
Minimizes standing wave zones and ensures uniform cleaning throughout the tank.
Noise Reduction
Optimized for quiet operation <85dB via full-bridge circuitry and sound insulation layers.
Typical Applications
- Silicon wafers, semiconductor chips, and microchip wafers cleaning
- MEMS, microfluidic, and photonic device processing
- Ultra-fine labware, optical glass, sensor, and medical research tools
- Precision pre-treatment and residue removal for R&D and pilot-scale production
Scientific R&D Application Scenarios
- Ultrasound Assisted Biological Sample Processing
- Ultrasound Assisted Cleaning Lab Equipment and Medical Surgical Instruments
- Ultrasound Assisted Extraction (UAE) of Natural Pigment and Spice and Food Colorants
- Ultrasound Assisted Catalytic Activation
- Ultrasound Assisted Synthesis
- Ultrasound Assisted Environmental Solutions
Ultrasonic Frequency Range and Applications: A Scientific Guide
Low-Frequency Range (17kHz–28kHz)
Characteristics: Long wavelengths generate large, uneven cavitation bubbles with high collapse energy, enabling aggressive mechanical action.
Key Applications:
-
20kHz–25kHz:
-
Wastewater treatment (degradation of organic pollutants, algae inhibition/removal).
-
Dispersion of large-particle powders (e.g., ceramics, composites).
-
Emulsion extraction and hard-to-degrade organic substance treatment (e.g., PFAS, dyes).
-
-
28kHz:
-
Heavy-duty cleaning (rust, grease, carbonized deposits in industrial parts).
-
Pretreatment of metallurgical samples or mechanical components.
-
Mid-Frequency Range (33kHz–40kHz)
Characteristics: Balanced bubble density and collapse force, offering versatility for routine lab and industrial use.
Key Applications:
-
33kHz–38kHz:
-
Standard lab glassware cleaning (e.g., beakers, pipettes).
-
Catalysis acceleration and solvent degassing.
-
Homogenization of suspensions (e.g., cell cultures, nanomaterials).
-
-
40kHz:
-
General-purpose commercial/household cleaning (jewelry, electronics).
-
Intermediate precision tasks (PCB cleaning, medical instrument sterilization).
-
High-Frequency Range (68kHz–200kHz)
Characteristics: Short wavelengths produce dense, uniform microbubbles with gentle collapse forces, minimizing surface damage.
Key Applications:
-
68kHz–80kHz:
-
Microstructure cleaning (fuel injectors, MEMS devices).
-
Penetration of micron-scale blind holes (e.g., 3D-printed parts).
-
-
120kHz–200kHz:
-
Nanofabrication & Precision Optics:
-
Wafer and photomask cleaning (sub-µm particle removal).
-
Synthesis of nanomaterials (e.g., quantum dots, liposomes).
-
-
Biotech & Pharma:
-
Cell lysis for intracellular content extraction.
-
Gentle dispersion of nanodrug carriers.
-
-
Yunyisonic YL Series Support & FAQ

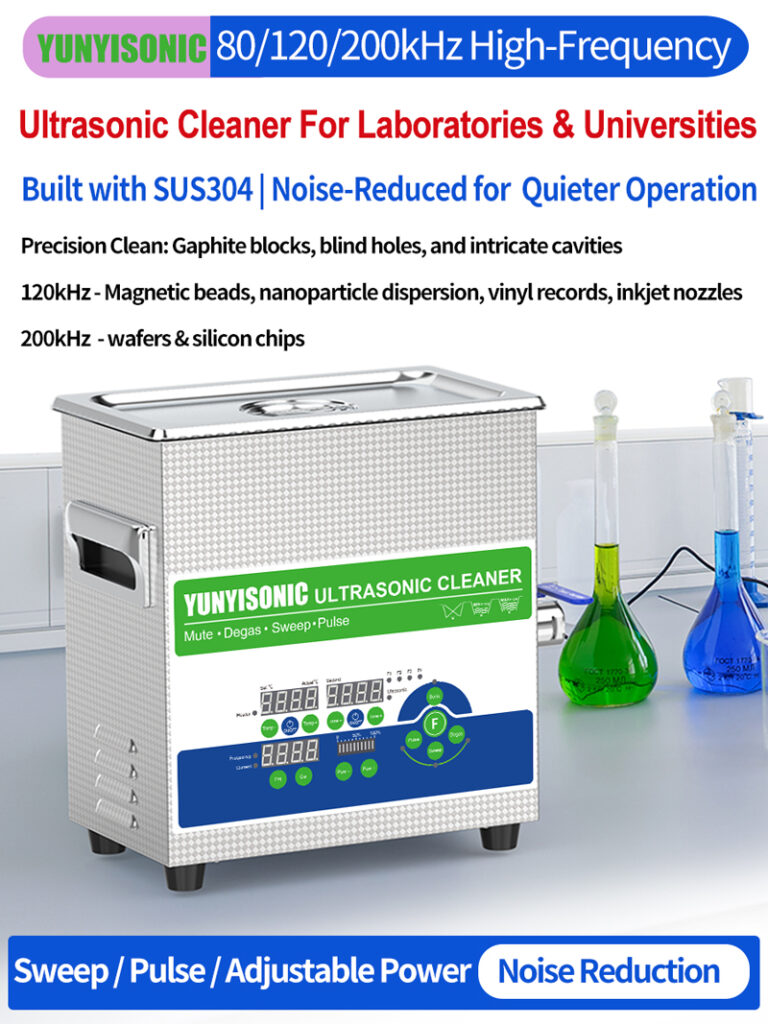

Precision cleaning is defined by Miniaturization (e.g., wafers, chips, micro-blind holes < 0.1mm) and Low Particle Residue (invisible to the naked eye).
Yunyisonic YL Series Recommendations:
• 200kHz: Dedicated for semiconductor wafers, silicon, and chips.
• 80kHz / 120kHz: Ideal for micro/nano blind holes, high-end optical lenses, and sensitive electronic components.
• 200kHz: Dedicated for semiconductor wafers, silicon, and chips.
• 80kHz / 120kHz: Ideal for micro/nano blind holes, high-end optical lenses, and sensitive electronic components.
Higher frequencies produce smaller, denser cavitation bubbles with high penetration, ensuring cleaning without damaging fragile structures.
Based on our YL Series switchable configurations (Single/Dual/Triple/Quad), we recommend:
| Process | Recommended Frequency | Application Context |
|---|---|---|
| Dispersion | 17-28kHz / 40kHz / 120kHz | 17-28k for large solids; 40k for powders; 120k for micron/nano particles. |
| Emulsification | 28kHz / 40kHz | 28kHz is preferred for higher shearing force. |
| Extraction | 40kHz / 120kHz | 120kHz is standard for intracellular substance extraction. |
| Mixing/Catalysis | 40kHz / 120kHz | 40kHz for routine; 120kHz for micro-particle homogenization. |
| Synthesis | 80kHz / 120kHz | Used for molecular aggregation and new material synthesis. |
| Environmental | 20kHz | Unified recommendation for sewage, sludge, and algae treatment. |
💡 Pro Tip: For dispersion, always identify if your particles are solid chunks, powders, or nano-scale before choosing.
We use high-grade stainless steel with different specifications based on the frequency to ensure durability and cavitation resistance:
| Frequency Range | Inner Tank (SUS304) | Outer Shell | Process Details |
|---|---|---|---|
| 28kHz - 200kHz | 1.5 mm Thickness | SUS304 (1.0 mm) | Precision industrial grade. |
| 25kHz | 2.0 mm Thickness | SUS201 (1.0 mm) | Thickened tank; Manual oxy-acetylene welding. |
| 17kHz & 20kHz | 3.0 mm Thickness | SUS201 (1.0 mm) | Ultra-thickened tank; Manual oxy-acetylene welding. |
The Manual oxy-acetylene welding process is specifically used for low-frequency units to withstand the intense cavitation energy generated by high-power transducers.
Our YL Series is equipped with advanced functions to enhance experimental accuracy:
- Sweep Mode: Automatically sweeps ±1kHz around the main frequency to eliminate standing waves and ensure every transducer operates at peak efficiency.
- Degas Mode: Uses pulse intervals (e.g., 5s on/off) to remove dissolved air and chlorine from reagents, crucial for HPLC and lab preparations.
- Pulse Mode: Cycles power from 100% to 0% repeatedly, creating a "blasting" effect to remove tough or baked-on residues.
The difference lies in the Full-Bridge Separately Excited PCB vs. cheap self-excited boards:
- Visualized Data: Our interface shows real-time Power, Frequency, and Current—essential for recording experimental data.
- High Power Density: We maintain a standard ≥ 0.3W/cm². Power Density = Output Power (W) / Radiation Area (cm²)
- Low-Noise Design: Advanced acoustic insulation keeps 68kHz+ units under 80dB, compared to 110dB+ in standard models.
- Reliability: Industrial-grade components ensure a near-zero failure rate even under heavy lab workloads.
Beaker Matching:
• Beaker ≤ 500mL → 3.2L to 6.5L Tank.
• Beaker ≥ 800mL → 10L to 30L Tank (10L is the most popular choice for lab efficiency).
Temperature Management:
Ultrasonic vibration naturally generates heat. While our YL series supports up to 80°C, cavitation effectiveness drops significantly above 80°C. Industry leaders like Branson and Elma also stop activity above 72°C for this reason. To maintain low temperatures, we recommend using ice packs or a cooling condensation system.
If the specific model is currently out of stock, the standard production lead times are as follows:
- 28kHz - 200kHz (Single, Dual, Triple, or Quad frequency): 3 - 5 business days for shipping.
- Low Frequency (17kHz, 20kHz, and 25kHz): 14 - 20 business days for shipping.
*Note: Lead times may vary slightly based on customization requirements (e.g., 485 ports or PLC integration). Please contact us for the most accurate shipping schedule.
Frequency determines the wavelength and the intensity of bubble collapse:
Wavelength (λ) = 1,450,000 (mm/s) / Frequency (Hz)
- 20kHz (λ ≈ 72.5mm): Large bubbles, brute force. Best for heavy rust/oil. Feel: Strong vibration.
- 40kHz (λ ≈ 36.2mm): Universal frequency. Best for general labware. Feel: Gentle tingling.
- 120kHz (λ ≈ 12.0mm): Micro bubbles, high penetration. Best for nano-scale work. Feel: Deep vibration felt in the bone.
Specification
Product Specifications
| Brand | Yunyisonic |
|---|---|
| Origin | Shenzhen City, China |
| Capacity | 3.2L |
| Frequency | 200kHz |
| Power | 0-150W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Extraction, Separation, Washing |
| Function | Clean Thoroughly, Degassing, Digital Control, Heating, Noise Reduction, Power Adjustable, Pulse, Sweep, Timing |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | 6 kg |
|---|---|
| Package Dimensions | 35 × 24.5 × 35 cm |
Customer Reviews
You must be logged in to post a review.
Related Products
14L Single-Frequency Ultrasonic Bath, 33KHz, Adjustable Power 0–300W
In stock
$340.67piece
| Volumetric Weight | 14.1 kg |
|---|---|
| Package Dimensions | 44 × 36 × 45 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 14L |
| Frequency | 33kHz |
| Power | 0-300W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Emulsification, Extraction, Homogenization, Mixing, Separation, Washing |
| Function | Degassing, Digital Control, Noise Reduction, Power Adjustable, Pulse, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
15L Single-Frequency Ultrasonic Bath, 25KHz, Adjustable Power 0–500W
In stock
$792.00piece
| Volumetric Weight | 43 kg |
|---|---|
| Package Dimensions | 53 × 45 × 45 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 15L |
| Frequency | 25kHz |
| Power | 0-500W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Emulsification, Extraction, Homogenization, Mixing, Separation, Washing |
| Function | Degassing, Digital Control, Noise Reduction, Power Adjustable, Pulse, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
30L Single-Frequency Ultrasonic Bath, 25KHz, Adjustable Power 0–800W
In stock
$1,243.00piece
| Volumetric Weight | 60 kg |
|---|---|
| Package Dimensions | 75 × 45 × 53 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 30L |
| Frequency | 25kHz |
| Power | 0-800W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Emulsification, Extraction, Homogenization, Mixing, Separation, Washing |
| Function | Degassing, Digital Control, Noise Reduction, Power Adjustable, Pulse, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
4.5L Single-Frequency Ultrasonic Bath, 25KHz, Adjustable Power 0–200W
In stock
$432.65piece
| Volumetric Weight | 16.36 kg |
|---|---|
| Package Dimensions | 50 × 27 × 28 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 4.5L |
| Frequency | 25kHz |
| Power | 0-200W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Emulsification, Extraction, Homogenization, Mixing, Separation, Washing |
| Function | Degassing, Digital Control, Noise Reduction, Power Adjustable, Pulse, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
6.5L Single-Frequency Ultrasonic Bath, 25KHz, Adjustable Power 0–200W
In stock
$476.00piece
| Volumetric Weight | 25 kg |
|---|---|
| Package Dimensions | 50 × 27 × 45 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 6.5L |
| Frequency | 25kHz |
| Power | 0-200W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Emulsification, Extraction, Homogenization, Mixing, Separation, Washing |
| Function | Degassing, Digital Control, Noise Reduction, Power Adjustable, Pulse, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
6.5L Single-Frequency Ultrasonic Bath, 33KHz, Adjustable Power 0–150W
In stock
$242.20piece
| Volumetric Weight | 8.4 kg |
|---|---|
| Package Dimensions | 41 × 25.5 × 40 cm |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 6.5L |
| Frequency | 33kHz |
| Power | 0-150W |
| Timer | 1-9999s |
| Heater | RT~80°C |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Voltage | AC 110V 60Hz；AC 220V 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Assisted SystemsYunyisonic Laboratory Multi-Function Ultrasonic Cleaning System for Assisted Extraction Emulsification Homogening Dispersion Separation Mixing Defoaming Dissolution Washing | Cleaning, Defoaming, Dispersion, Dissolution, Extraction, Mixing, Separation, Washing |
| Function | Degassing, Digital Control, Noise Reduction, Power Adjustable, Pulse, Sweep |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
Reviews
Clear filtersThere are no reviews yet.
