Key Features

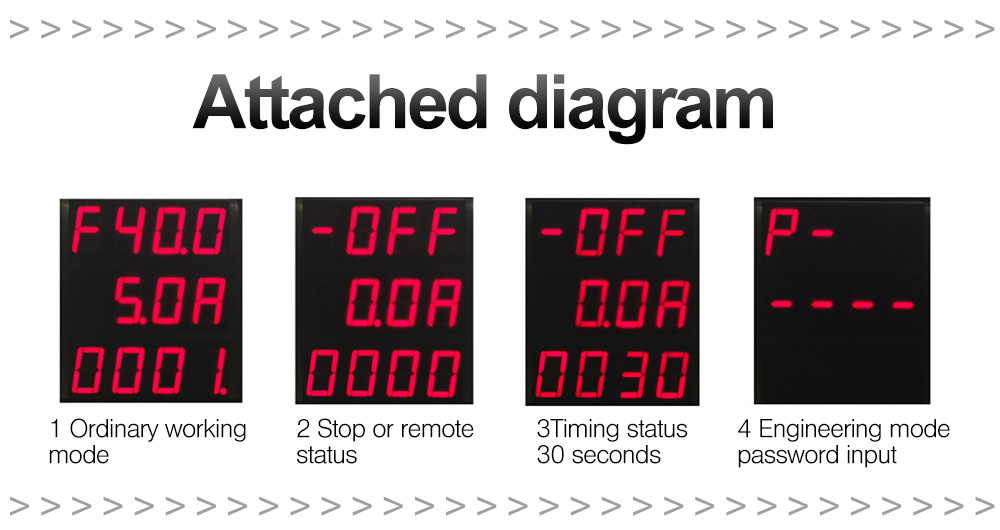

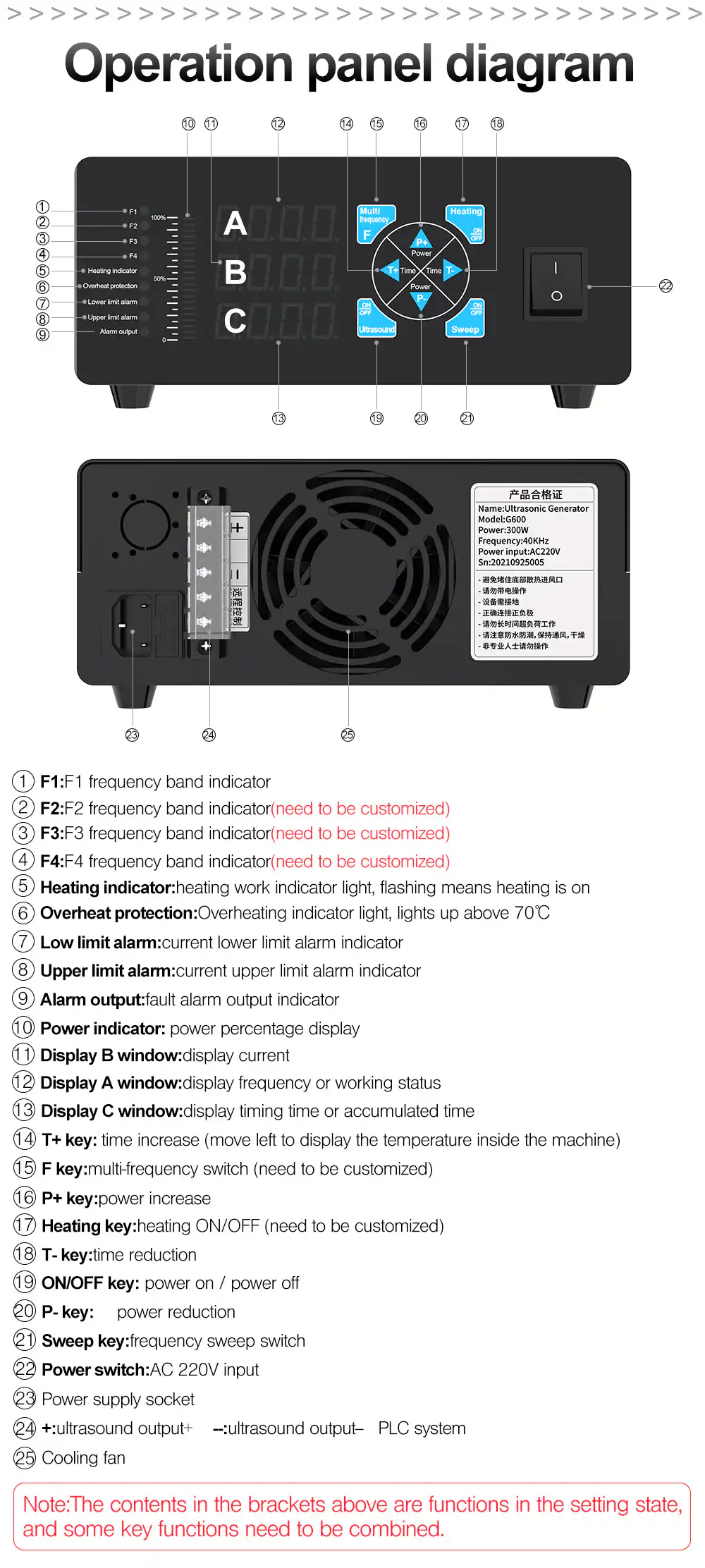

Digital LED display with intuitive menu navigation
Adjustable power output (Min 100 W – Max 3000 W) for energy-efficient operation
Programmable timer function for hands-free processing
Built-in protection: overcurrent, overheating, and short circuit
Rotary knob for fine power tuning

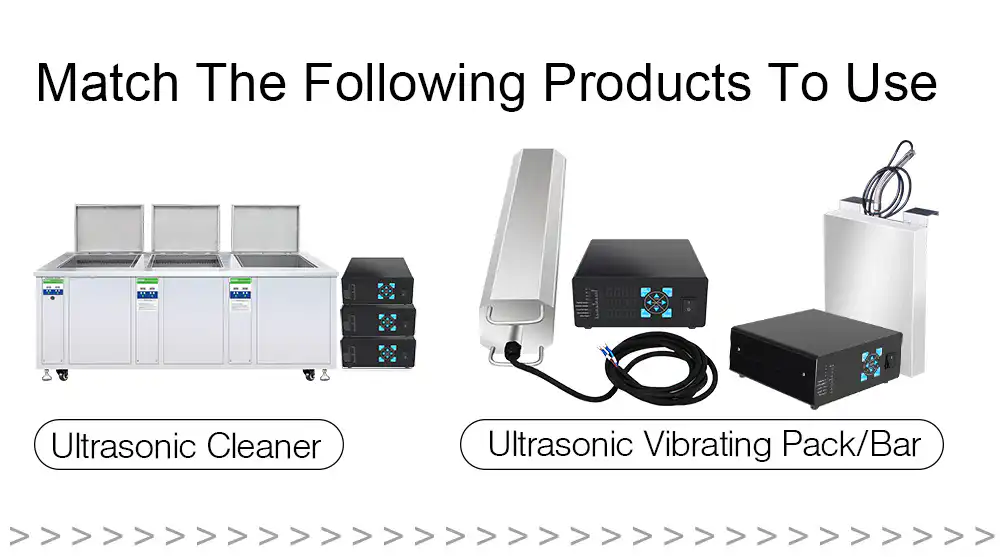

Compatible with ultrasonic cleaners, vibrating bars, and transducer boxes
Optional PLC control interface for automation integration

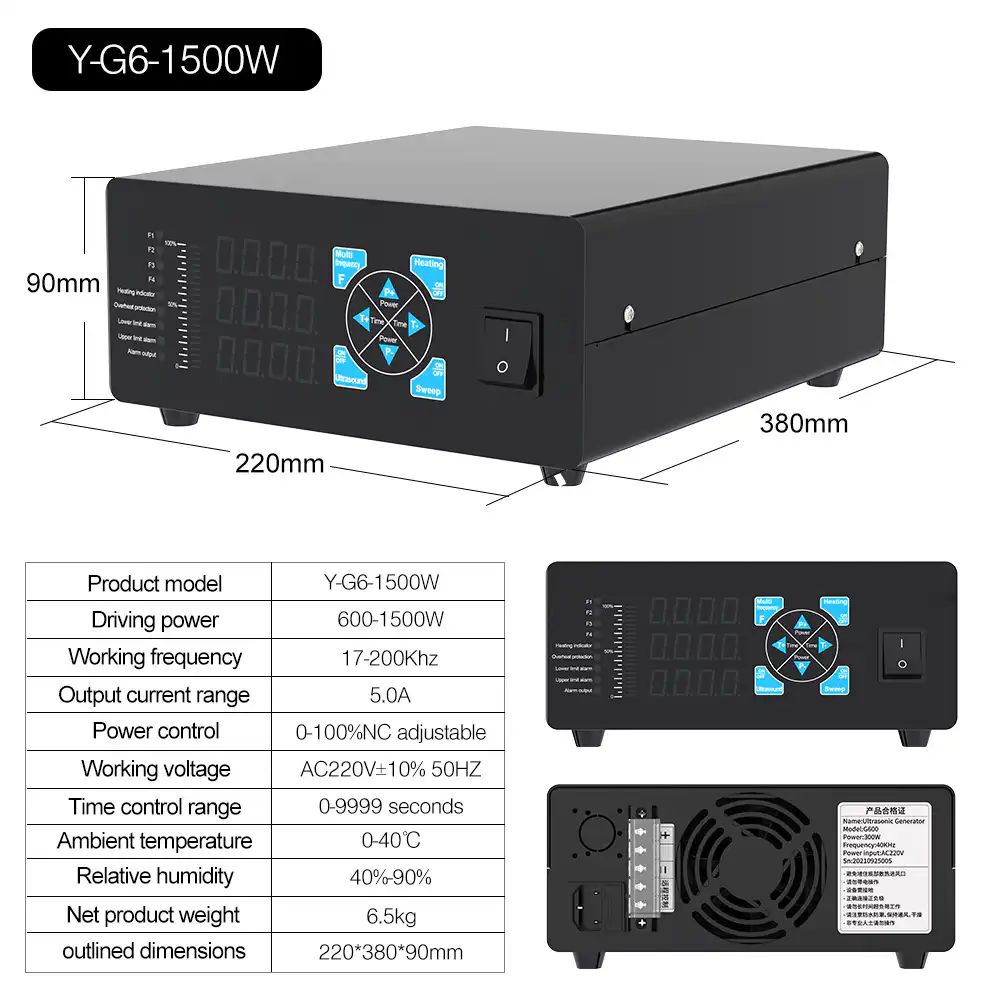

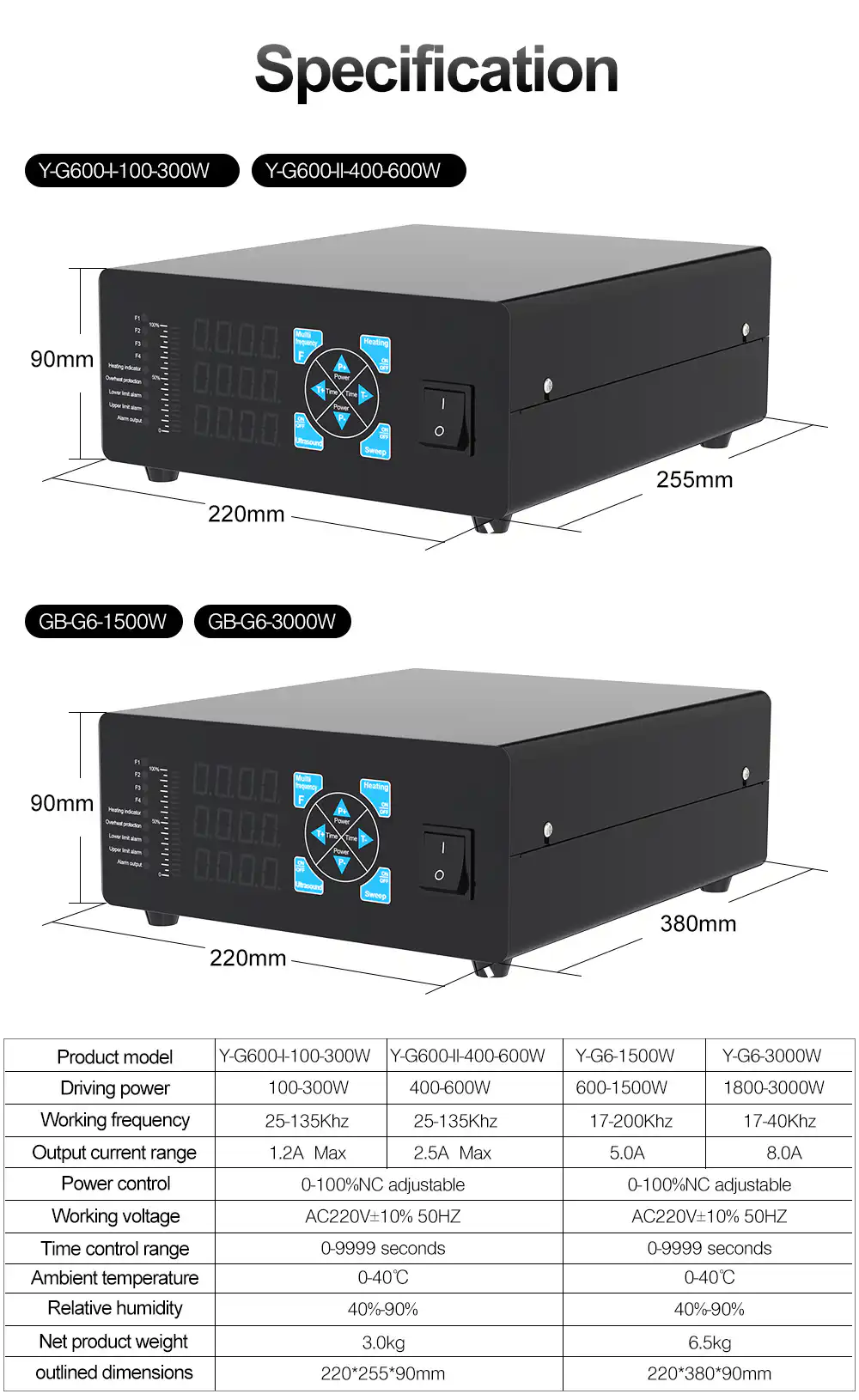

Overview
| Model | Y-G6-F4 100W – 3000W |
|---|---|
| Power Output | Max 3000W (adjustable) |
| Quad Frequency | 25/40/80/120 kHz (Default) |
| Voltage | AC 110V / 220V |
| Control | Digital Buttons |
| Display | LED Digital Display |
| Protection | Overcurrent / Overheat / Short Circuit |
| Applications | Lab, Small Tank, Immersible Plate, Ultrasonic Rod |
Single Frequency Optional Customization
Applications
- Laboratory ultrasonic cleaning, Ultrasonic Liqud-Phase Processors
- Semiconductor & glassware precision rinsing
- Nano-materials ultrasonic-assisted processing
- Jewelry, watch parts, and microelectronic module cleaning
Optional Accessories
- Ultrasonic vibrating plate (YLK series)
- Ultrasonic horn/probe
- PLC interface cable
- Foot switch (manual control mode)
Wiring Instructions
- Power Input (AC 110V/220V):
Connect the AC power cable to the marked terminal. Confirm voltage before use. - Transducer Output Port:
Attach the ultrasonic vibrating plate or rod using the output connector (aviation or terminal style). - Grounding (GND):
Ensure reliable grounding to prevent electric leakage. - Remote Control Port (Optional):
If integrated with a PLC or control system, connect via DB9 or dedicated remote control plug. - Ventilation:
Maintain clear airflow around side vents. Avoid closed or humid spaces.
What’s Included :
Box Contents:
1 x Portable Ultrasonic Generator 1 x Industrial-Grade Power Cord 1 x Warranty Card 1 x Instruction Manual
Packing type:
One unit filled with thick foam, then standard export corrugated carton.
Logo/Pattern Custom:
Silk Screen Printing, Laser Printing, UV Printing, PVC, Other
Why Choose Yunyisonic?
- In-house manufacturing with 100% QC inspection
- Flexible OEM/ODM support
- Technical support and customization
- Fast global shipping from Shenzhen
