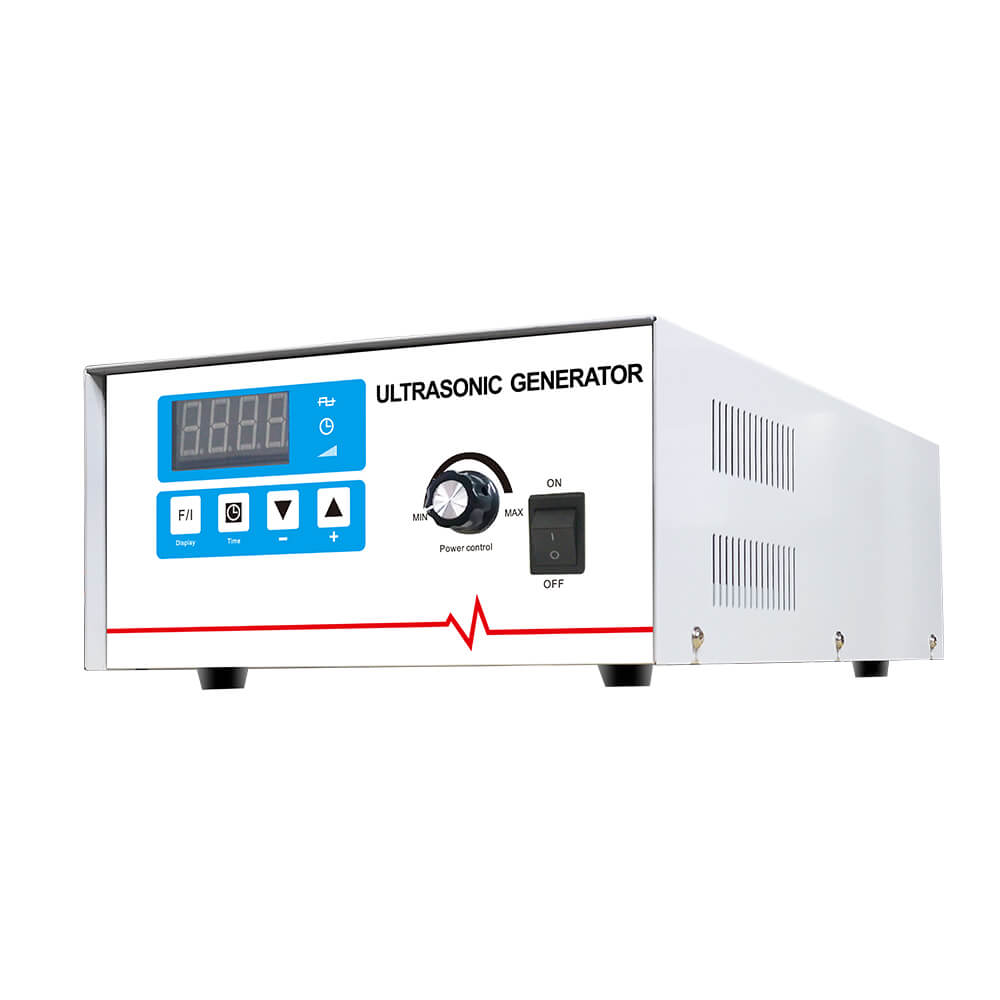

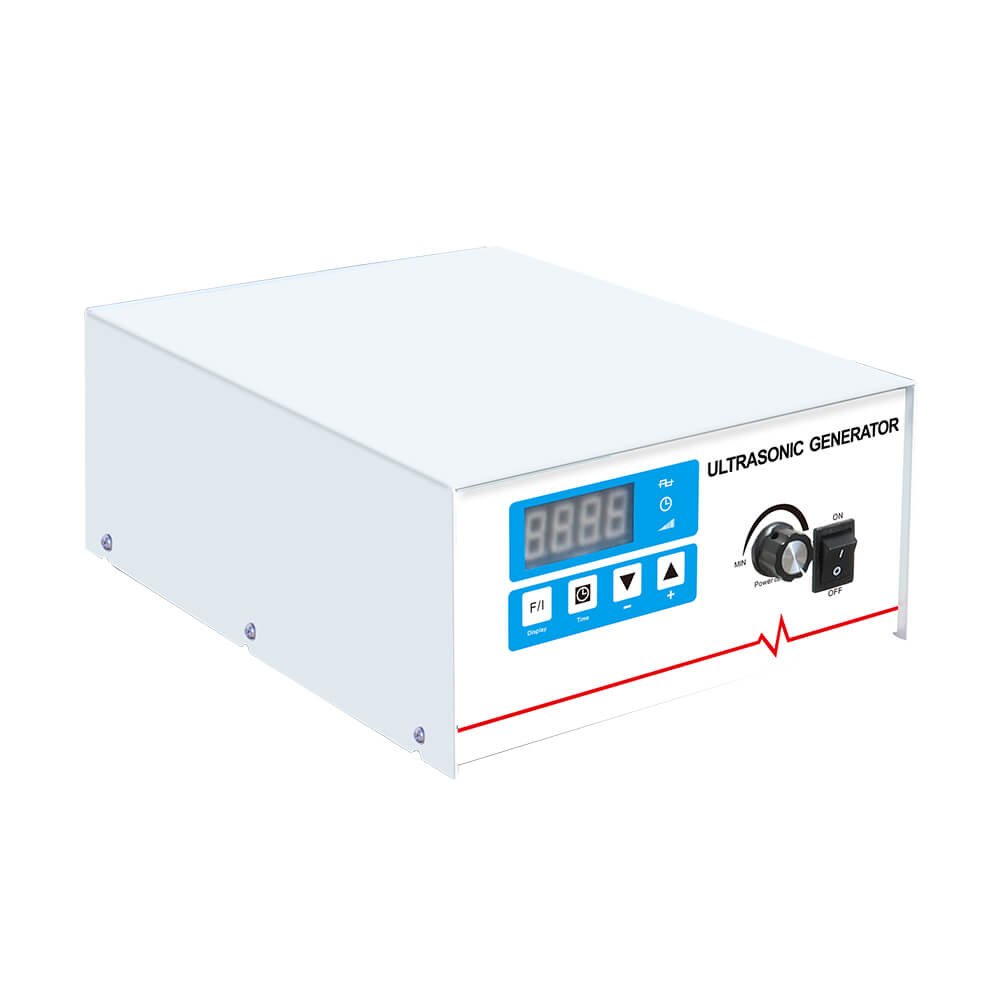

YB-UG-600W Digital Ultrasonic Generator
The YB-UG-600W is a compact and intelligent ultrasonic power supply designed for lab-scale cleaning tanks, immersible transducers, and ultrasonic rods. With precise power control, real-time LED display, and reliable protection features, it delivers stable ultrasonic performance for small to medium systems.
Key Features

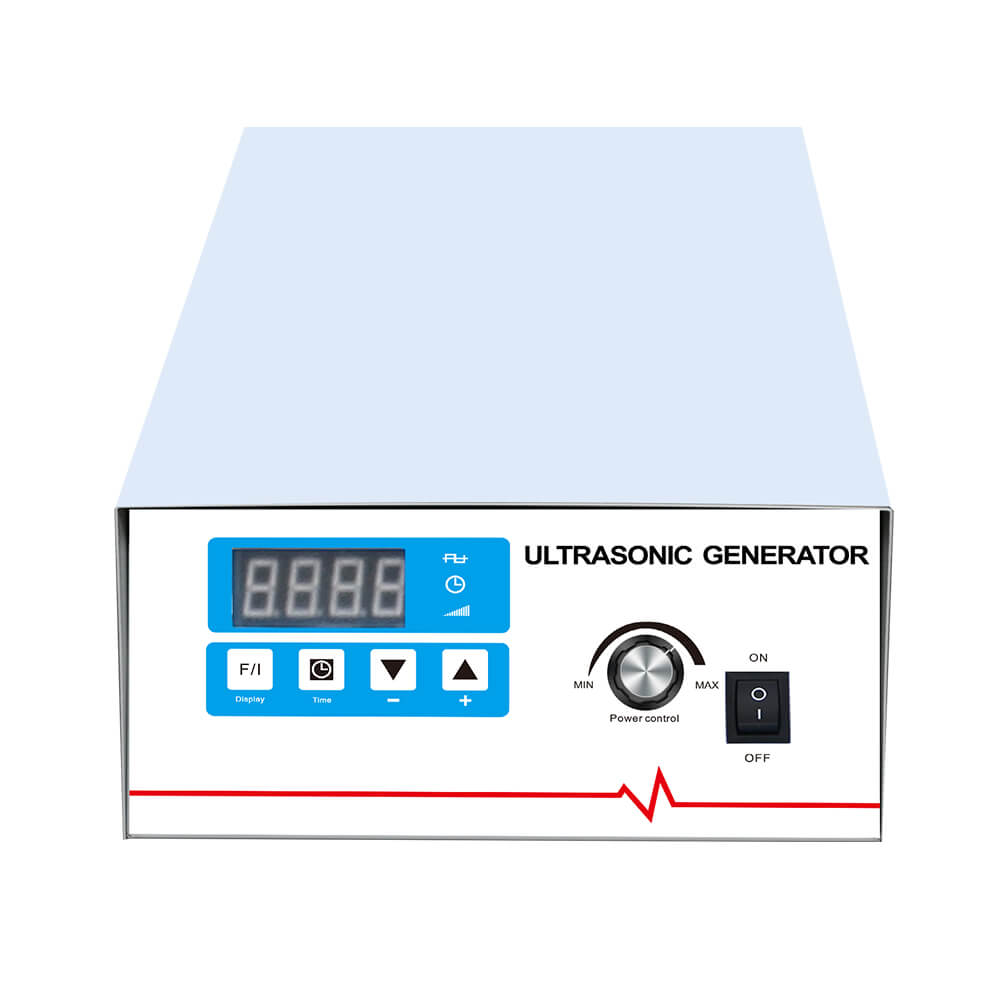

Digital LED display for frequency and power monitoring
Adjustable power via rotary knob
Programmable timer control with responsive buttons
Stable output for 20-200kHz transducers like 28kHz or 40kHz
Built-in protection: overcurrent, short circuit, overheating
Supports PLC integration and automation control (optional)
Overview
| Model | YB-UG-600W |
|---|---|
| Power Output | 600W (adjustable) |
| Frequency | 28kHz / 40kHz (mainly) |
| Voltage | AC 110V / 220V |
| Control | Knob + Digital Buttons |
| Display | LED Digital Display |
| Protection | Overcurrent / Overheat / Short Circuit |
| Applications | Lab, Small Tank, Immersible Plate, Ultrasonic Rod |
Optional Customization
- Frequency: 25kHz / 28kHz / 40kHz / 60kHz / 68kHz / 80kHz / 120kHz / 200kHz
- Power: 300W / 600W / 900W / 1200W / 1800W / 2400W / 3000W
- Control Interface: Digital only or with external PLC module
Note:
Model YB-UG-300W, delivers power out put 300W (adjustable), other featues are the same as Model YB-UG-600W Generator

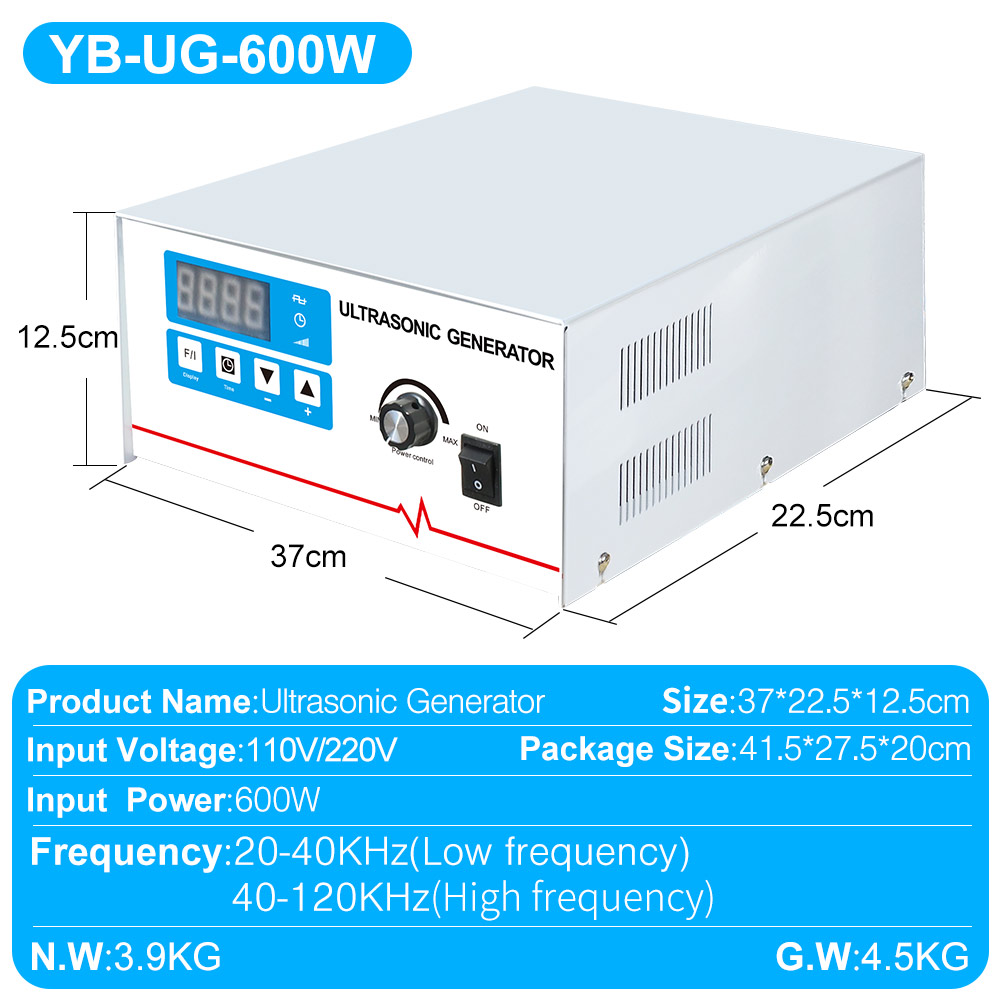

Technical Specifications
Yunyisonic Generator Advantages
Applications
- Laboratory ultrasonic cleaning and testing
- Nanomaterials dispersion, emulsification, and extraction
- Driving immersible transducer boxes and bar-type ultrasonic rods
- Precision parts cleaning in electronics and optics

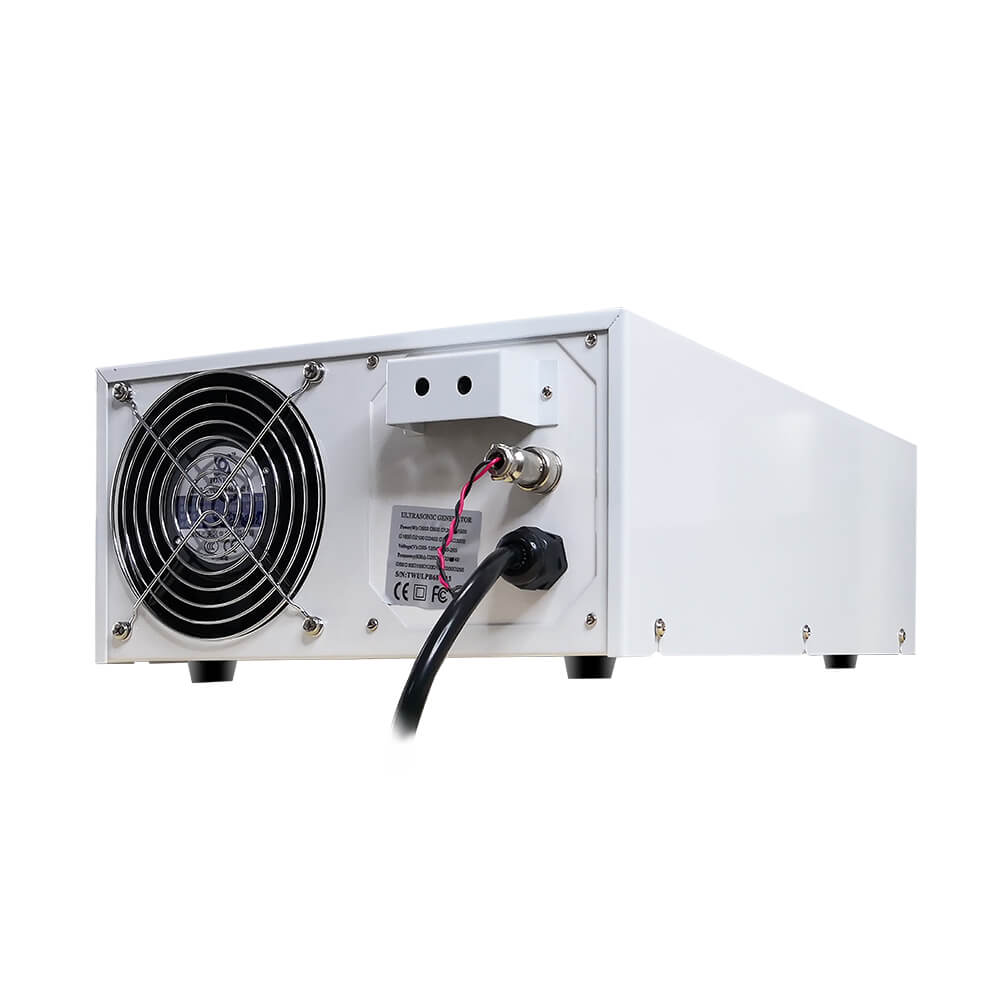

Wiring Instructions
- Power Input (AC 110V/220V): Connect the cable to the AC port. Check voltage before switching on.
- Transducer Output: Connect your ultrasonic tank, rod, or plate via the output terminal.
- Grounding: Properly connect the ground wire to avoid electric leakage.
- Remote Control Port (Optional): Connect to PLC or control panel if needed for automation.
- Ventilation: Keep side vents clear; do not operate in a sealed enclosure.
What’s Included :
Box Contents:
1 x Portable Ultrasonic Generator 1 x Industrial-Grade Power Cord 1 x Warranty Card 1 x Instruction Manual
Packing type:
One unit filled with thick foam, then standard export corrugated carton.
Logo/Pattern Custom:
Silk Screen Printing, Laser Printing, UV Printing, PVC, Other
Why Choose Yunyisonic
- In-house R&D and manufacturing in Shenzhen
- Strict quality inspection before delivery
- Customizable frequency, output, and control interfaces
- Fast global shipping with OEM/ODM support
