900W Power Adjust 28/40kHz Ultrasonic Transducer Plate | Digital Timer Base Sidewall Mount Immersible Vibrating Plate SUS304 for Cleaning Degreasing

The Yunyisonic 900W 28/40kHz ultrasonic transducer plate, made from high-quality SUS304 stainless steel, is a versatile and high-performance solution for industrial cleaning, degreasing, emulsification, and extraction. Its dual-frequency operation, flexible installation options, and high efficiency make it an indispensable tool for industries that require precise, non-destructive, and eco-friendly cleaning solutions.

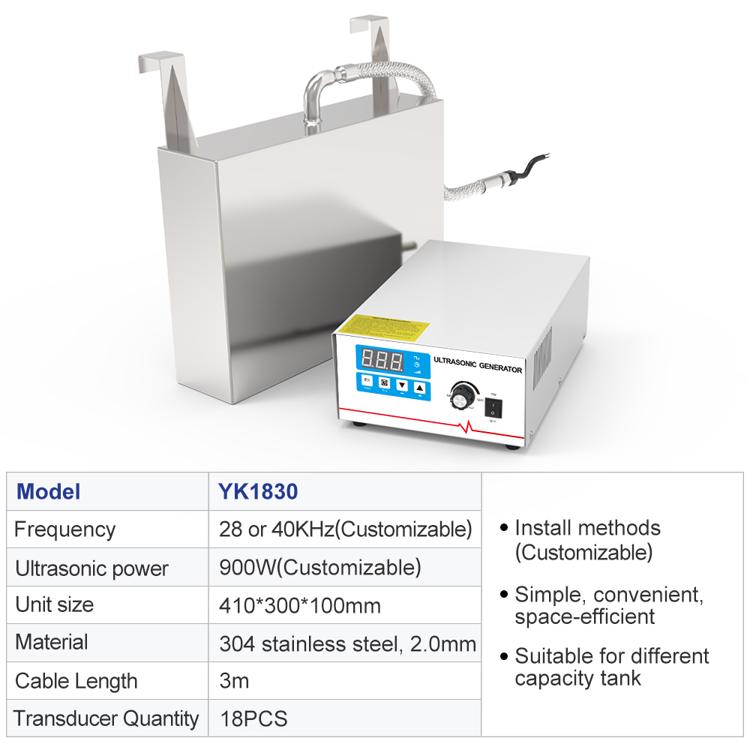

Specifications:

Remark:

We use industrial grade transducer with power, 50W for each transducer.

Transducers arrays working at 40 kHz are ideal for general purpose cleaning.
Higher frequencies of 28 kHz is more used for heavey duty items.

Material:
SUS304, 2.0mm;SUS316, 2.5mm.
If need other material or thicker, pls remark your needs.

Frequency:
If need other or dual frequency, pls feel free to contact us.
Frequency Operation: 28kHz for heavy-duty degreasing and 40kHz for precision cleaning.

Generator:
External, digital control

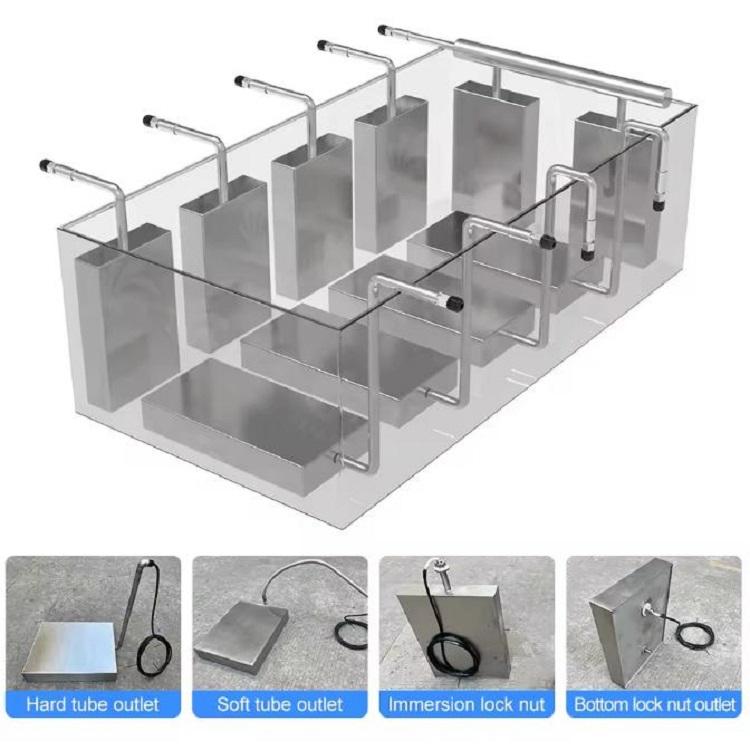

Installation:

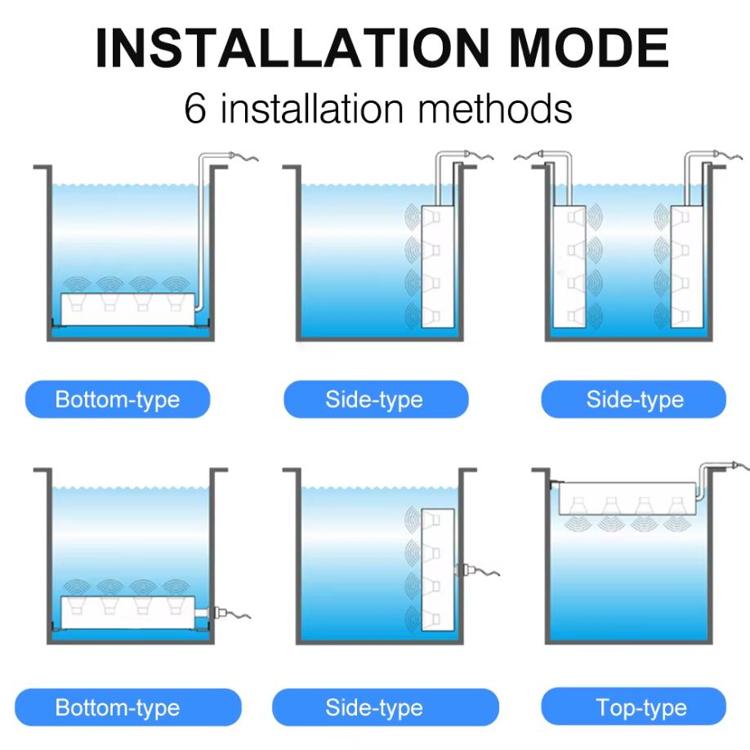

The transducer plate can be installed at the bottom, sides, or top of the cleaning tank to accommodate different cleaning needs.

Cable Length: 3M
If need longer, pls remark your needs

Application:
Mixing, Emulsification, Extraction, Rust Removal, Liquid Defoaming ,Atomization, Algae Removal, Dissolving

OEM Ultrasonic Immersible Transducer Pack:
Size, Frequency,Power, Material Customized

Transport Package:
Standard export carton Carton or wooden box

Package Content：
1 x Ultrasonic Generator
1 x Transducer Plate
1 x Instruction Manual
1 x Industrial Power Cord

Kindly Remind:
– Do not run the machine continuously for more than 30 minutes at a time.
– Do not operate the machine without fluid in the tank (water level is not higher than the water mark)
– Cleaning items should be put on cleaning basket to protect this machine.
– Do not spray water or liquid over the device and the control panel.
– Import duties, taxes and charges are buyer’s responsibility, not included in the price or shipping charge.
– Please add normal water into the tank before using, if you wanna better clean we advise to ass special chemical liquid when you use.
– All models will make the “zizizi” noise during cleaning, it’s normal.
– Please choose the right voltage type and plug accoring to your country, we will not responsible for the problem caused by this.
– We provide four plugs with voltage: 220V-EU plug,220V-UK plug,220V-AU plug,110V-US plug,220V-US plug,220V-JP plug

Industrial Applications of the Immersion Ultrasonic Transducer Plate
Ultrasonic transducer plates are widely used in multiple industries where precision cleaning is essential. Here are some of the primary applications:

1. Cleaning Before Electroplating and Coating
To ensure a uniform coating and strong adhesion, metal parts must be free of oils, oxides, and contaminants before electroplating. Ultrasonic cleaning guarantees a pristine surface, improving electroplating quality and durability.

2. Degreasing and Carbon Removal in Automotive and Aerospace Components
Automobile and aerospace parts often accumulate stubborn grease, carbon deposits, and machining residues. The 28kHz setting efficiently removes these contaminants without causing damage, extending the lifespan of critical components.

3. Precision Cleaning of Semiconductor and Optical Components
Semiconductor wafers, optical lenses, and precision tools require particle-free surfaces. The 40kHz frequency ensures thorough cleaning without micro-damage, preventing defects in high-tech manufacturing.

4. Sterilization and Cleaning of Medical and Laboratory Equipment
Medical instruments, glassware, and lab tools must meet strict hygiene standards. Ultrasonic cleaning eliminates biofilm, contaminants, and residues, ensuring compliance with medical sterilization protocols.

5. Jewelry, Watch Parts, and Fine Metal Restoration
Fine jewelry, watch components, and antique metal pieces often have intricate designs that trap dirt in small crevices. Ultrasonic transducer plates gently remove contaminants, restoring shine without physical abrasion.

Why Choose an Immersion Ultrasonic Transducer Plate?
When standard ultrasonic cleaners are not suitable for specific cleaning environments or when large industrial tanks are already in place, an immersion ultrasonic transducer plate offers a cost-effective and flexible alternative. Here’s why industries prefer this technology:

Retrofitting Existing Tanks: Easily converts an ordinary tank into a high-performance ultrasonic cleaner, reducing equipment costs.
Scalability and Customization: Multiple plates can be installed in large tanks for increased cleaning power.
Energy Efficiency: Ultrasonic cleaning reduces the need for harsh chemicals and manual labor, cutting operating costs.
Non-Damaging Cleaning: Safe for delicate materials, preventing wear and tear.
