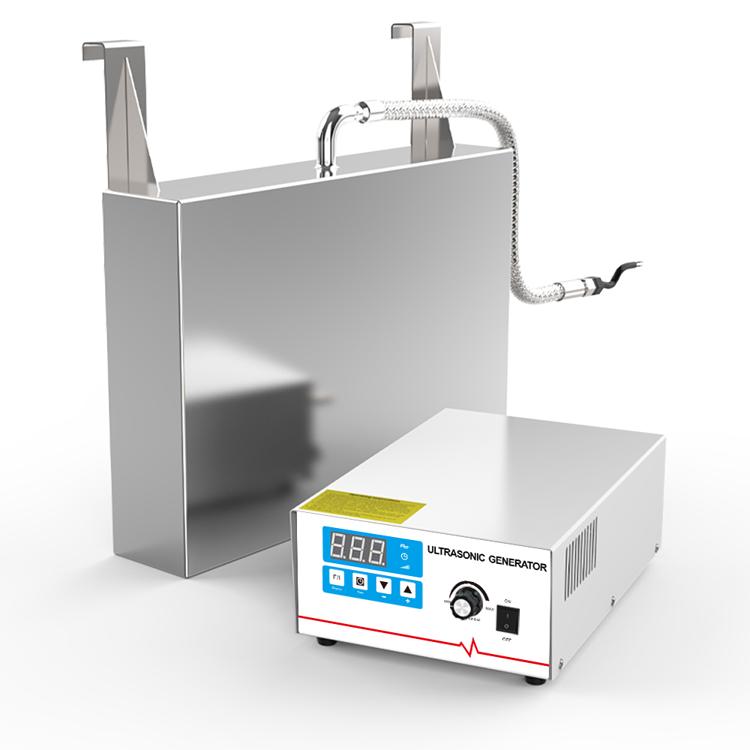

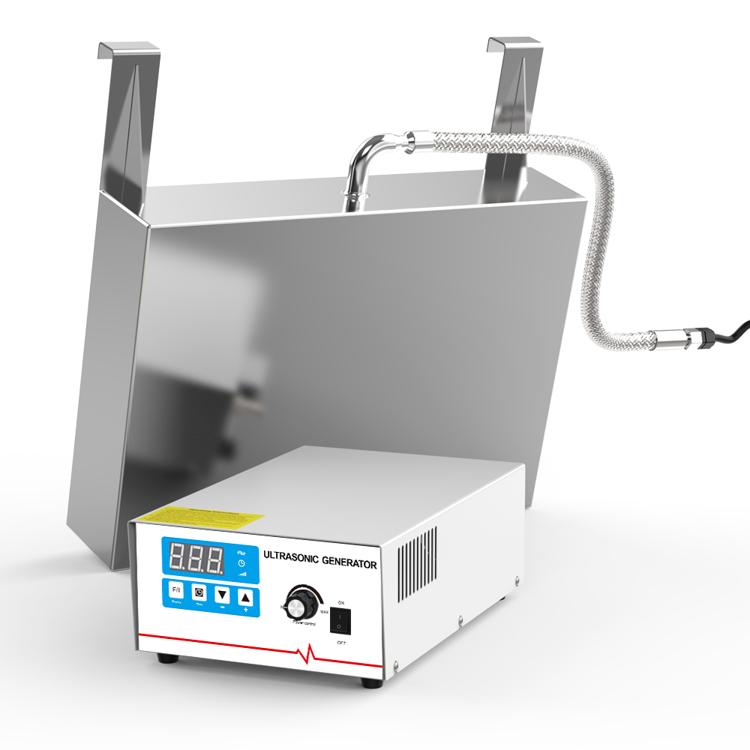

1500W 28/40kHz Immersible Industrial Ultrasonic Transducer Plate with Digital Generator | Algae Control for Lake River Wastewater Environment

Enhanced Chrome-Plated Ultrasonic Transducer Plate For Choosing

Marine Grade Anti-Seawater Corrosion
SUS316 is highly resistant to corrosion and chemical reaction
Standard: 2.00mm SUS304 Stainless Steel, SUS316 Tank or Chrome-Plated Option Available on Request

Ultrasonic technology has transformed industrial cleaning and environmental management, offering a powerful, chemical-free solution for removing contaminants, breaking down organic matter, and controlling algae growth in water bodies. The 1500W 28/40kHz Immersible Ultrasonic Transducer Plate, built with SUS304 stainless steel, delivers exceptional performance for a wide range of applications, from industrial degreasing to wastewater treatment.

This high-powered ultrasonic transducer plate is designed to be fully submersible, making it ideal for large-scale ultrasonic cleaning systems or environmental applications such as lake and river algae control. With dual-frequency operation, users can optimize cleaning intensity and treatment effects for different contaminants and biological growth.

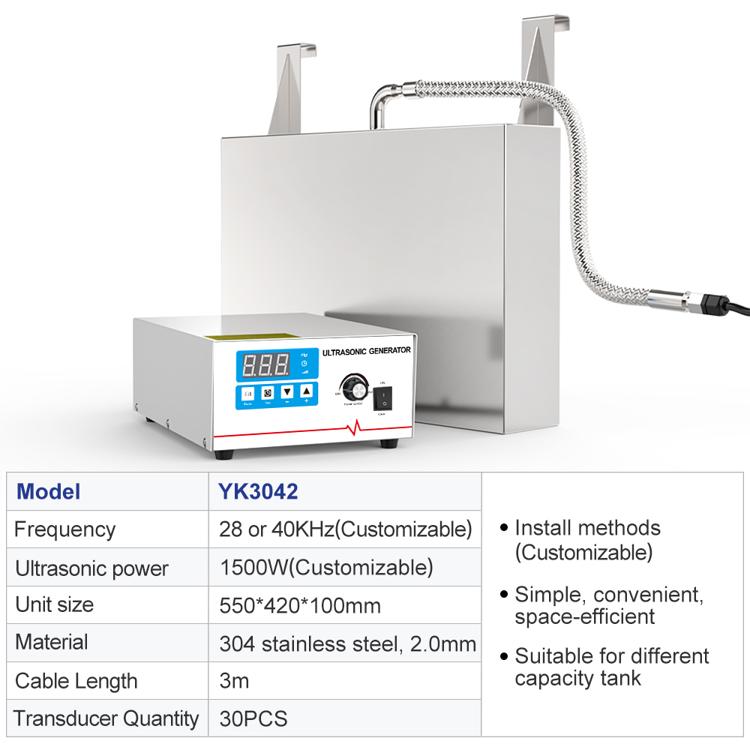

Specifications:

Remark:

We use industrial grade transducer with power, 50W for each transducer.

Transducers arrays working at 40 kHz are ideal for general purpose cleaning.
Higher frequencies of 28 kHz is more used for heavey duty items.

Material:
SUS304, 2.0mm;SUS316, 2.5mm.
If need other material or thicker, pls remark your needs.

Frequency:
If need other or dual frequency, pls feel free to contact us.
Frequency Operation: 28kHz for heavy-duty degreasing and 40kHz for precision cleaning.

Generator:
External, digital control

Installation:

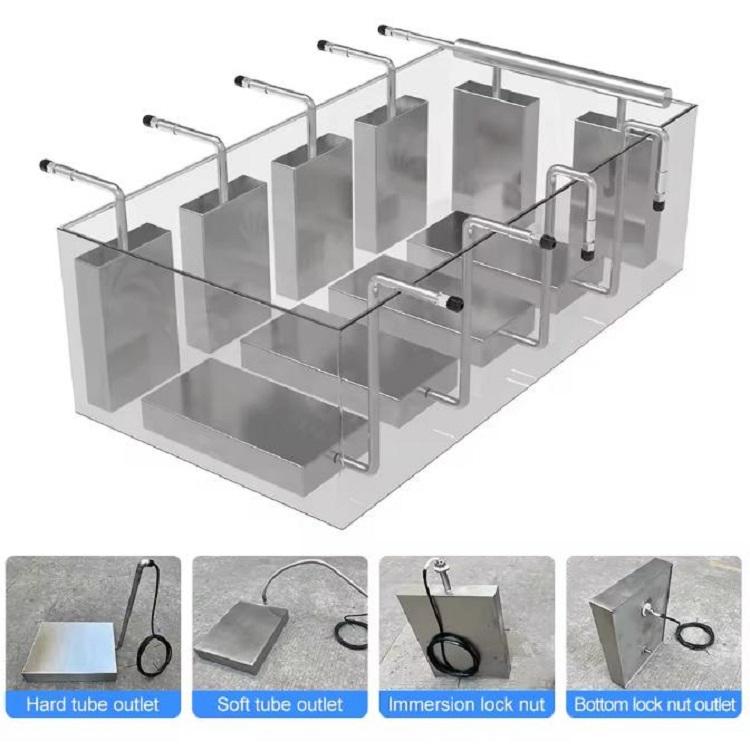

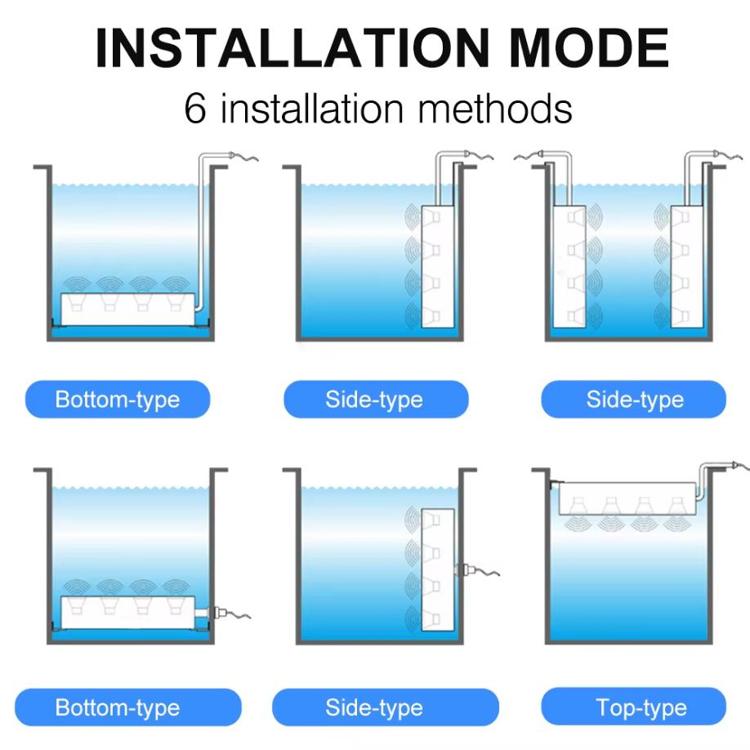

The transducer plate can be installed at the base, sidewall, or top of the cleaning tank to accommodate different cleaning needs.

Cable Length: 3M
If need longer, pls remark your needs

Application:
Mixing, Emulsification, Extraction, Rust Removal, Liquid Defoaming ,Atomization, Algae Removal, Dissolving

OEM Ultrasonic Immersible Transducer Pack:
Size, Frequency,Power, Material Customized

Transport Package:
Standard export carton Carton or wooden box

Package Content：
1 x Ultrasonic Generator
1 x Transducer Plate
1 x Instruction Manual
1 x Industrial Power Cord

Kindly Remind for Industrial Transducers Pack
– Duty Cycle & Heat Dissipation
Our industrial supporting generator supports long duty cycle operation. To protect internal vibrators and wiring from overheating, we suggest intermittent cooling pause after prolonged running (minimum 3 mins break for heat dissipation).
– Liquid must fully cover transducer plate/rod; dry startup is forbidden.
– Keep workpieces ≥2mm away from vibrator surface for stable cleaning effect.
– Only mild water-soluble detergent allowed; strong acid/alkali is prohibited.
– Avoid liquid splashing on supporting generator & control panel.

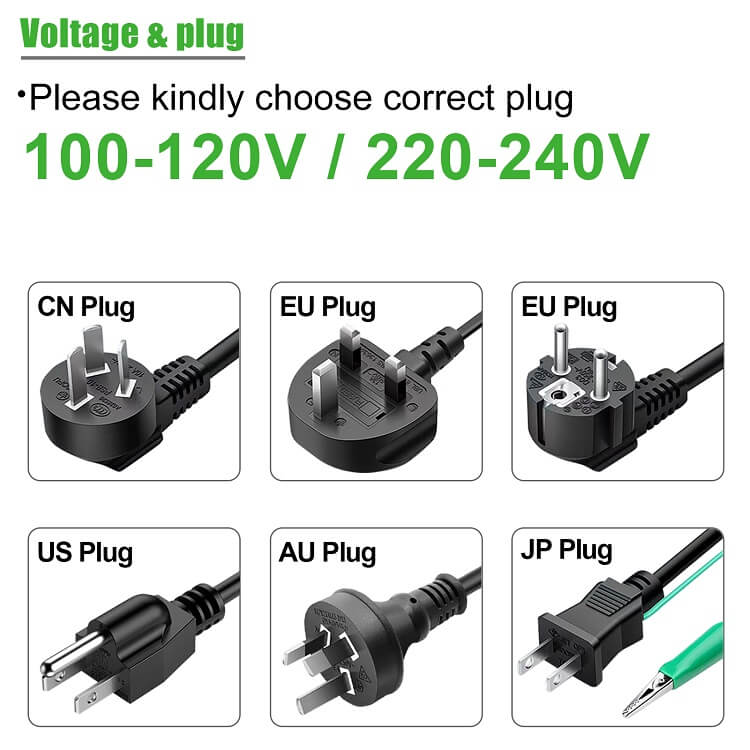

– Voltage & plug mismatch damage is not covered by warranty; multiple regional plugs optional.
– Ultrasonic buzzing noise during work is normal.
– Import duties & local taxes are buyer’s expense.

Key Features of  1500W Immersion Ultrasonic Transducer Plate

1. Frequency Optional for Versatile Applications

The 28kHz and 40kHz frequency options provide adaptability for different cleaning and water treatment needs:
– 28kHz: Generates powerful cavitation, ideal for heavy-duty degreasing, oil removal, and industrial part cleaning. Also effective in breaking up algae clusters in water treatment applications.
– 40kHz: Produces finer cavitation bubbles, making it suitable for precision cleaning and targeted algae disruption without harming aquatic ecosystems.
This flexibility allows industries to maximize the cleaning and treatment efficiency for different surfaces and environmental conditions.

2. High-Powered Performance for Industrial Use

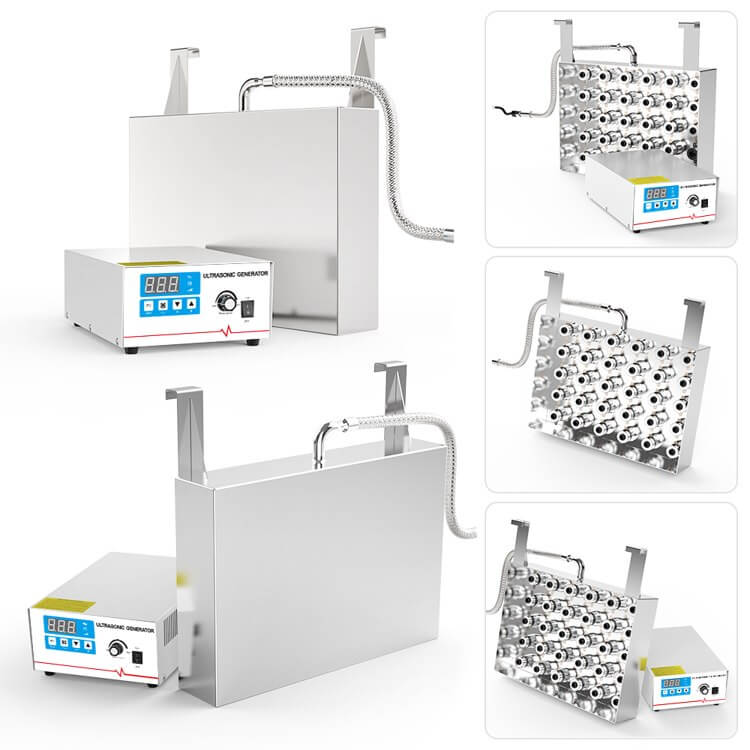

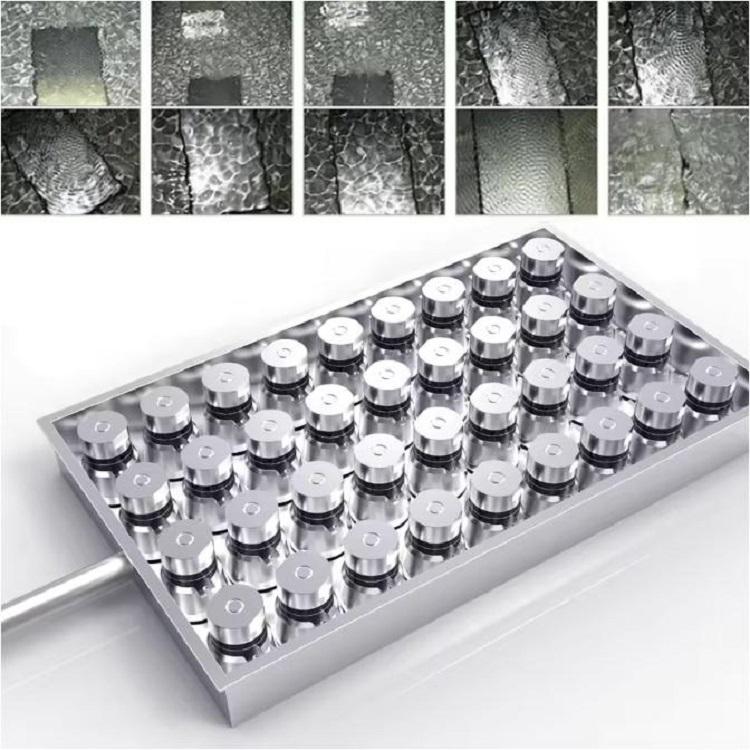

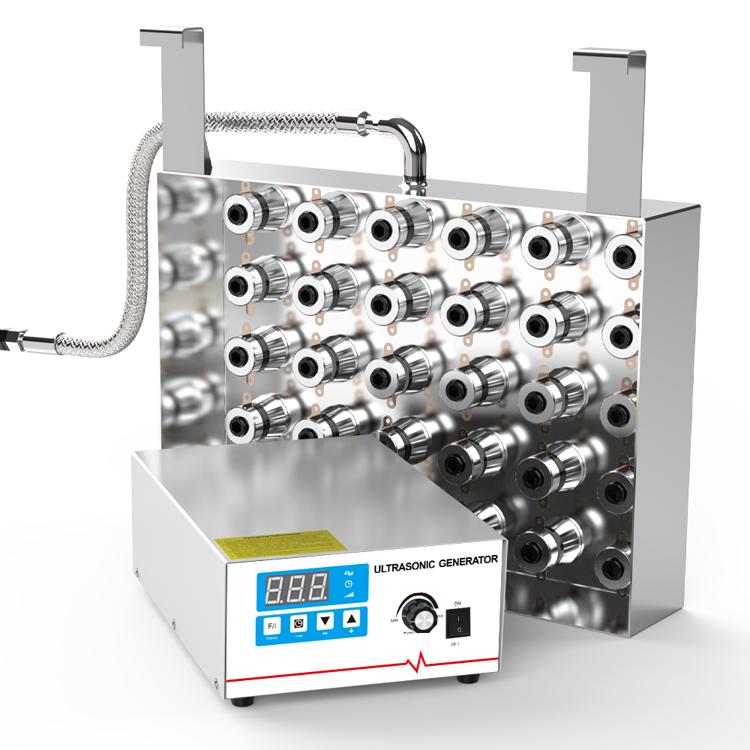

With 32 high-efficiency transducers and an adjustable 0-1500W power output, this immersible ultrasonic transducer plate ensures deep penetration into contaminants. It offers:
– Superior electroacoustic conversion for maximum ultrasonic power.
– High-efficiency cavitation that removes dirt, oxidation, and biofilm buildup.
– Adjustable power settings to suit different cleaning and water treatment intensities.

3. Heavy-Duty SUS304 Stainless Steel Construction

Manufactured from 2.0mm-thick SUS304 stainless steel, the transducer plate is:
– Highly resistant to corrosion, acids, and alkaline solutions, ensuring long-term durability.
– Equipped with a reinforced steel bar structure, making it suitable for continuous industrial operation.
– Designed with a 10mm perforated mesh cover, protecting internal components while allowing optimal ultrasonic wave transmission.

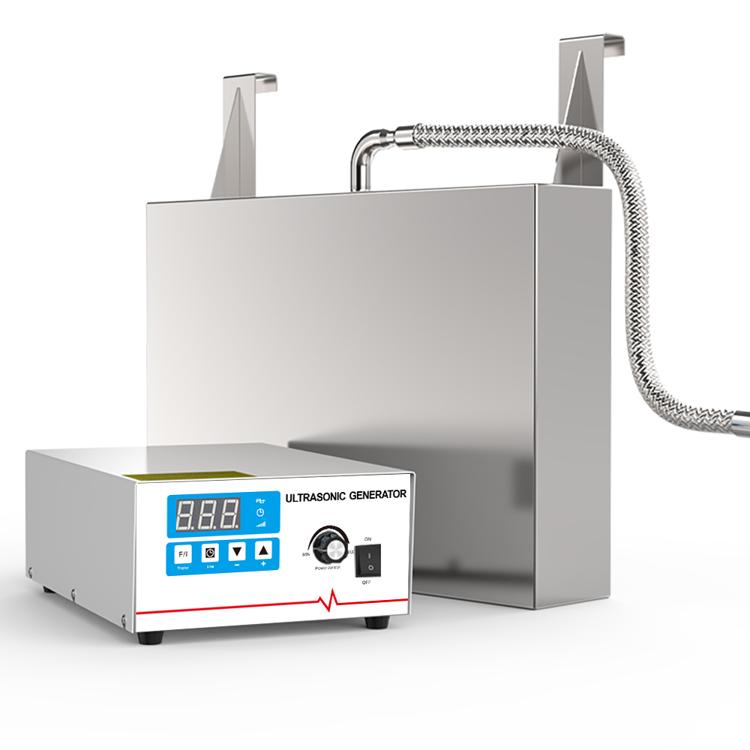

4. Advanced Digital Generator for Precise Control

The included digital ultrasonic generator enhances usability with features such as:
– Time Adjustment (1-99 minutes): Allows users to set cleaning cycles or continuous operation based on requirements.
– Power Adjustment (0-100%): Enables fine-tuning of ultrasonic intensity for different applications.
– Industrial-Grade Power Cables: Ensures stable and safe operation with anti-static, grounded connectors.
– Effective Cooling System: Built-in cooling fan and multiple ventilation slots prevent overheating, enhancing longevity.

Applications of the 1500W Ultrasonic Transducer Plate

This high-power ultrasonic system is designed for industrial, environmental, and scientific applications, offering a cost-effective, eco-friendly alternative to conventional cleaning and algae control methods.

1. Industrial Cleaning and Degreasing
Ultrasonic immersion plates are widely used in automotive, aerospace, and manufacturing industries for removing oil, carbon buildup, and oxidation from metal components, gears, and engine parts. The powerful cavitation effect ensures a deep, non-destructive clean without damaging intricate surfaces.

2. Environmental Water Treatment and Algae Control
The ultrasonic waves disrupt algae growth by breaking cell walls and preventing reproduction, making it an effective solution for:
– Lakes, ponds, and reservoirs: Reducing harmful algal blooms (HABs) without chemicals.
– Rivers and canals: Controlling biofilm and organic buildup to maintain water quality.
– Wastewater treatment plants: Enhancing degradation of organic pollutants and improving efficiency.

3. Laboratory and Research Applications
This system is valuable for biotechnology, pharmaceutical, and material science laboratories, where it aids in:
– Sample dispersion: Evenly mixing chemical solvents and biological compounds.
– Cell disruption and emulsification: Accelerating reactions in biochemical research.
– Graphene and nanoparticle processing: Improving suspension uniformity in advanced materials.

4. Food and Cosmetics Processing
Ultrasonic cavitation enhances fermentation, emulsification, and extraction in industries such as:
– Wine and liquor aging: Accelerating molecular interactions for enhanced flavor profiles.
– Cosmetic formulation: Refining nano-particle dispersion for smoother textures.

Optimizing Performance and Installation

For best results, follow these steps when installing and operating the 1500W immersion ultrasonic transducer plate:

Installation Guidelines
1. Secure the transducer plate at the bottom, sides, or top of the tank, ensuring full submersion.
2. Connect the positive and negative terminals to the generator using the included industrial cables.
3. Ensure proper grounding of the system to prevent electrical interference.
4. Fill the tank or water body with sufficient liquid to enable cavitation effect.

Operational Tips
– Adjust power levels based on the application—higher power for degreasing, lower power for delicate cleaning.
– For algae control, maintain continuous or scheduled ultrasonic pulses to prevent regrowth.
– Regular maintenance of the generator and transducer plate will ensure long-term reliability.

Why Choose an Immersion Ultrasonic Transducer Plate?

Compared to traditional cleaning and water treatment methods, an ultrasonic immersion transducer plate offers:
– Chemical-Free Treatment: Reduces reliance on harsh cleaning agents and chemical water treatments.
– Cost Savings: Extends the life of industrial components while lowering maintenance costs.
– Eco-Friendly Solutions: Effectively removes contaminants without producing hazardous waste.

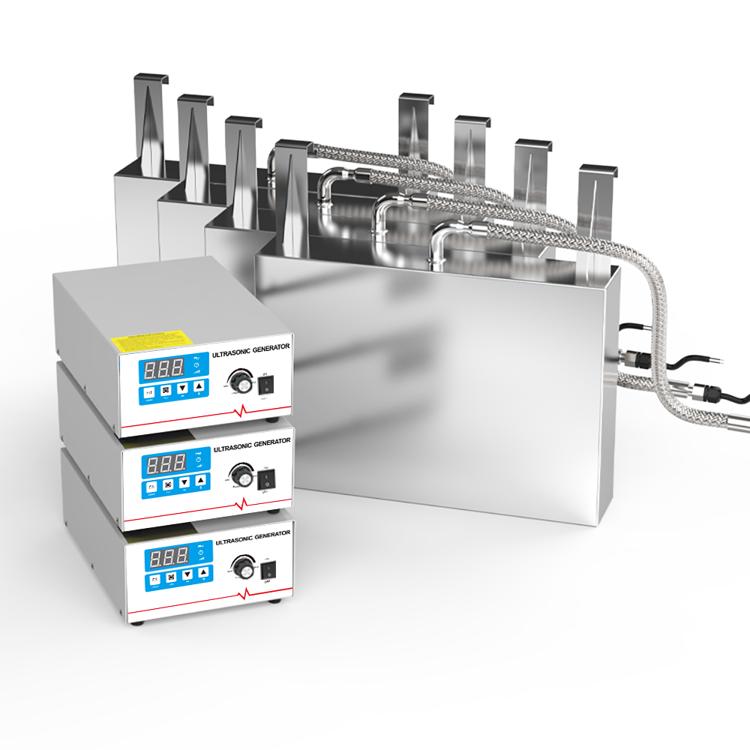

– Scalability & Customization: Multiple units can be installed in large tanks or water systems for greater ultrasonic coverage.
