2400W Ultrasonic Power Control Module | Generator Driver Box for Industrial Ultrasonic Systems
2400W PWM ultrasonic power control box for industrial ultrasonic systems and OEM equipment. Electronic driver unit without transducer, suitable for OEM ultrasonic integration.
$206.52piece
10
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description

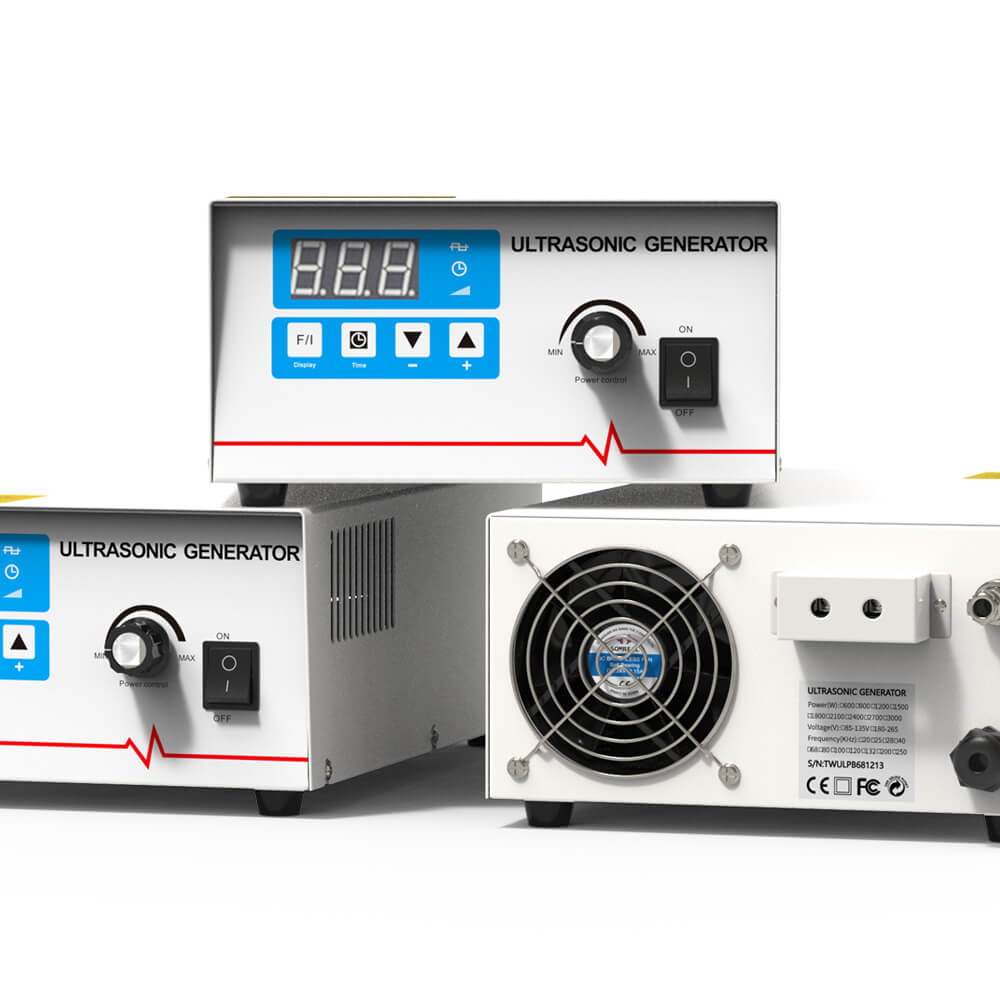

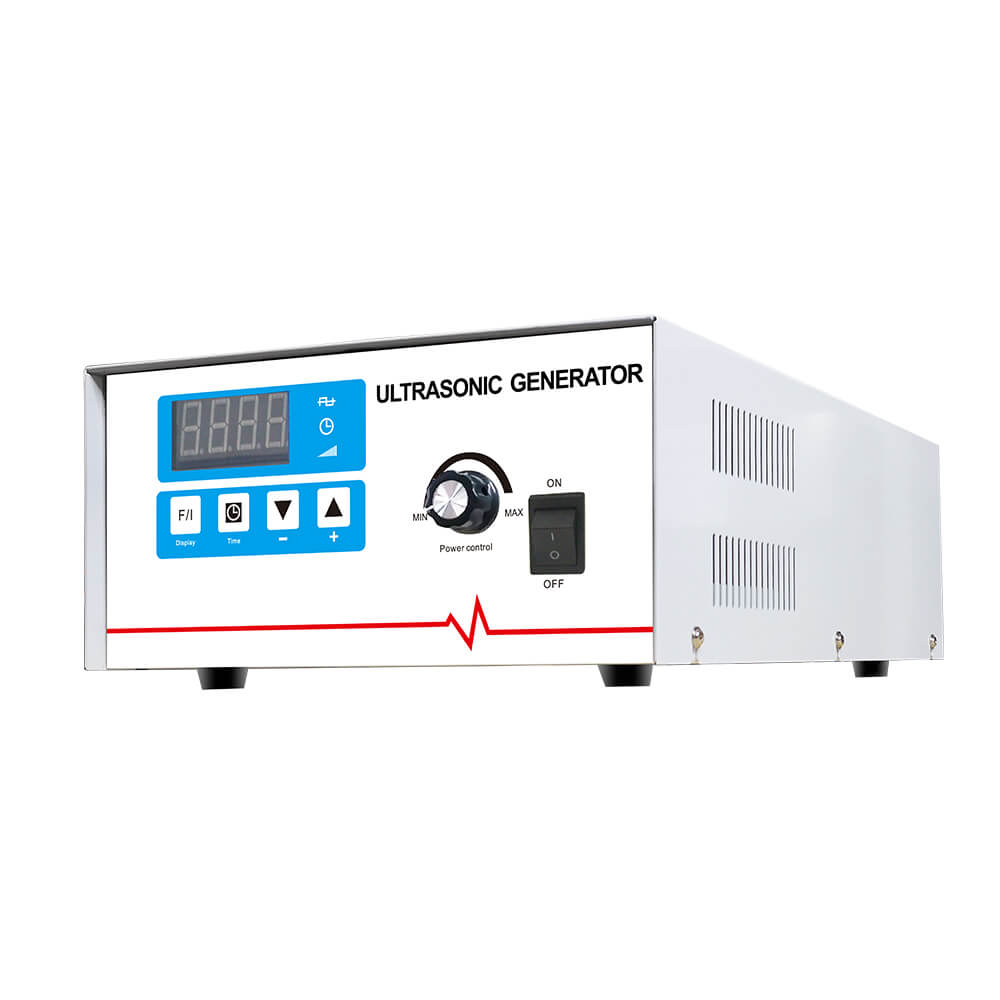

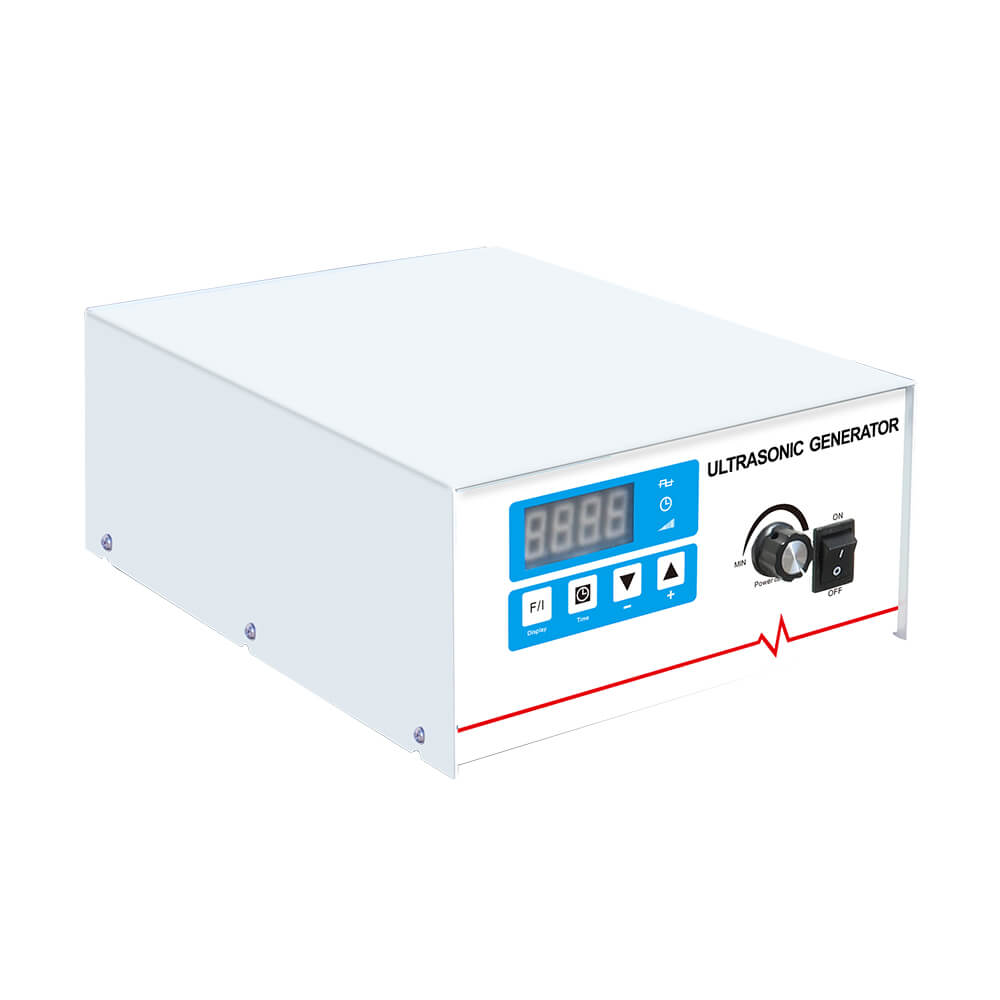

YB-UG-2400W Digital Ultrasonic Generator– Intelligent Control for Precision Cleaning
This 2400W digital ultrasonic generator is designed to deliver stable, high-efficiency output for ultrasonic cleaning systems and lab-scale sonochemical applications. With a clear LED display, adjustable power and time functions, and built-in safety protections, it ensures precise performance and user-friendly control.
Compatible with a wide range of ultrasonic vibrating plates, vibrating rods and bars, tubes, and lab ultrasonic tanks.
Key Features
Digital Display: Real-time frequency and time monitoring
Adjustable Power & Time: Panel buttons and rotary dial control
Flexible Voltage Input: AC 110V / 220V switchable
Built-in Protection: Overload, overheat, and short-circuit protection
PLC Interface (Optional): Supports automation integration
Compact Size: Easy to integrate into benchtop setups
Overview
| Model | YB-UG-2400W |
|---|---|
| Power Output | 2400W (adjustable) |
| Frequency | 28kHz / 40kHz (mainly) |
| Voltage | AC 110V / 220V |
| Control | Knob + Digital Buttons |
| Display | LED Digital Display |
| Protection | Overcurrent / Overheat / Short Circuit |
| Applications | Lab Ultrasonic Tanks, Vibrating Plates,
Ultrasonic Rods, Ultrasonic Liquid Processors |
Optional Customization
Technical Specifications
Yunyisonic Generator Advantages
Typical Applications
- Laboratory ultrasonic tank power source
- Driving ultrasonic vibrating plates for cleaning
- Sonochemistry applications: emulsification, extraction, dispersion
- R&D testing requiring frequency-stable ultrasonic excitation

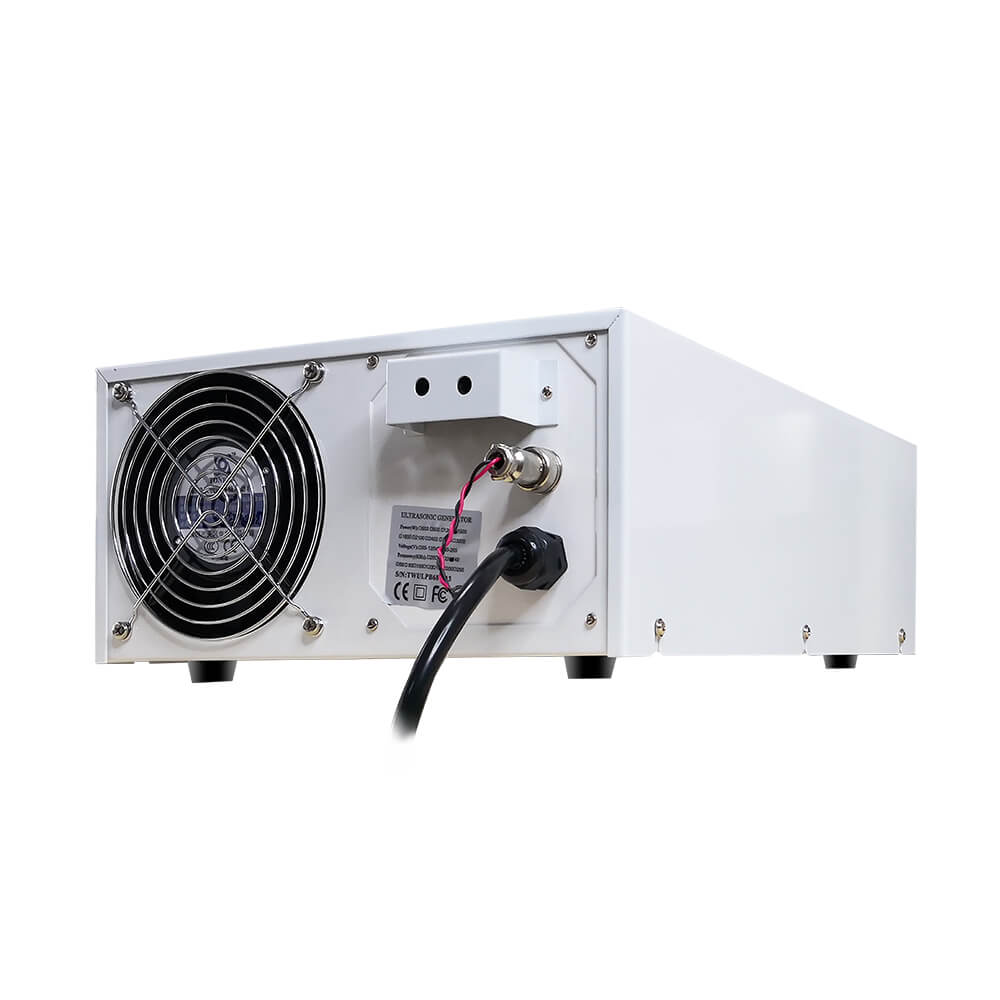

Wiring Instructions
Wiring Instructions for YB-UG-2400W Ultrasonic Generator
- Power Input (AC 110V/220V):
Connect the power cord to the input terminal, ensuring correct voltage selection. - Transducer Output Port:
Plug the ultrasonic vibrating plate/bar or tank transducer into the output connector. - Grounding (GND):
Always connect the generator to a grounded outlet or use the grounding terminal to prevent electrical leakage. - Remote Control Port (Optional):
If your setup includes PLC or automation, connect the control interface to the remote terminal.
Refer to the wiring diagram below for visual setup.
What’s Included :
Box Contents:
1 x Portable Ultrasonic Generator 1 x Industrial-Grade Power Cord 1 x Warranty Card 1 x Instruction Manual
Packing type:
One unit filled with thick foam, then standard export corrugated carton.
Logo/Pattern Custom:
Silk Screen Printing, Laser Printing, UV Printing, PVC, Other
Why Choose Yunyisonic?
- In-house manufacturing with 100% QC inspection
- Flexible OEM/ODM support
- Technical support and customization
- Fast global shipping from Shenzhen

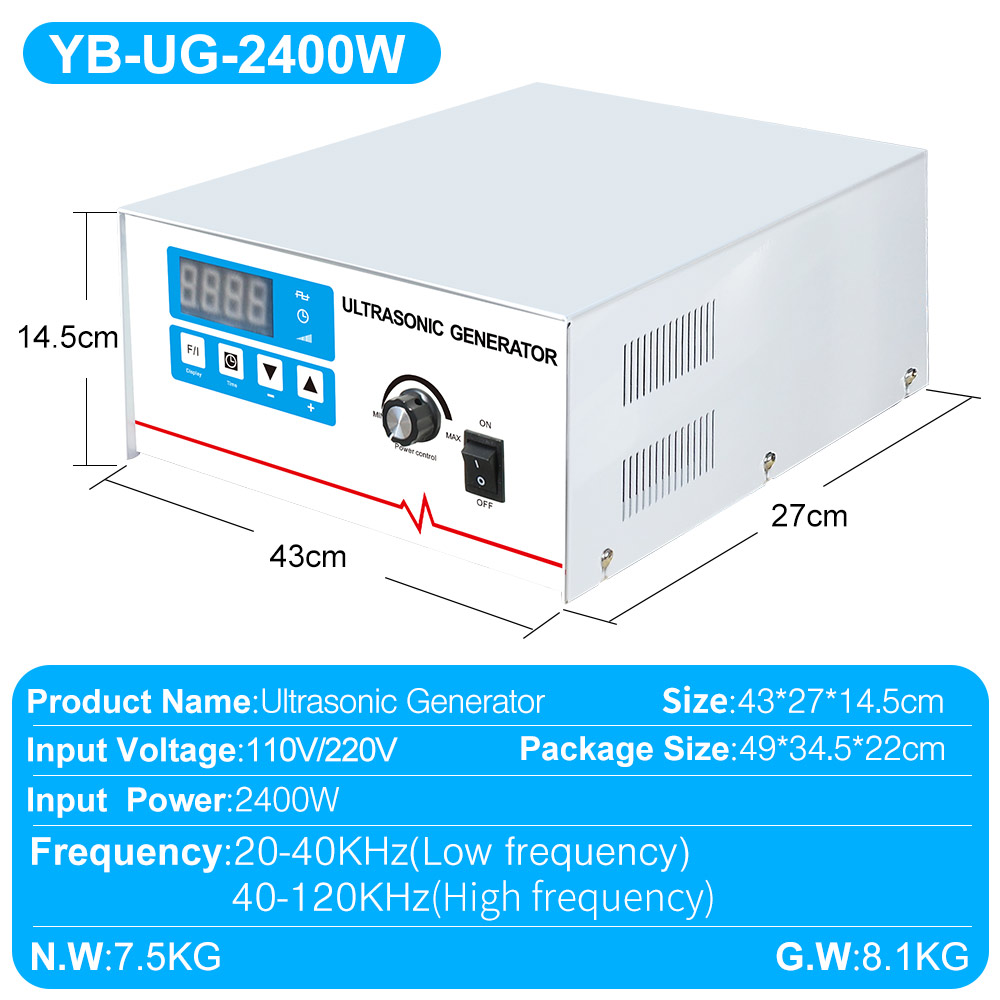

Specification
Product Specifications
| Model | YB-UG-2400W |
|---|---|
| Application Field | Aluminum, Assisted Cleaning, Industrial Use, Laboratory |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Frequency | 120kHz, 200kHz, 20kHz, 25kHz, 28kHz, 33kHz, 40kHz, 68kHz, 80kHz |
| Timer | 1-99mins |
| Power | 0-2400W |
| Tank Material | Plastic, SUS304 Stainless Steel |
| Voltage | 110V, 220V |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Safety Features | overcurrent, Overvoltage, thermal |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | Logo/Pattern, Private Lable, White Label |
| Function | Clean Thoroughly, Power Adjustable, Timing |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | 8.1 kg |
|---|---|
| Package Dimensions | 49 × 34.5 × 22 cm |
