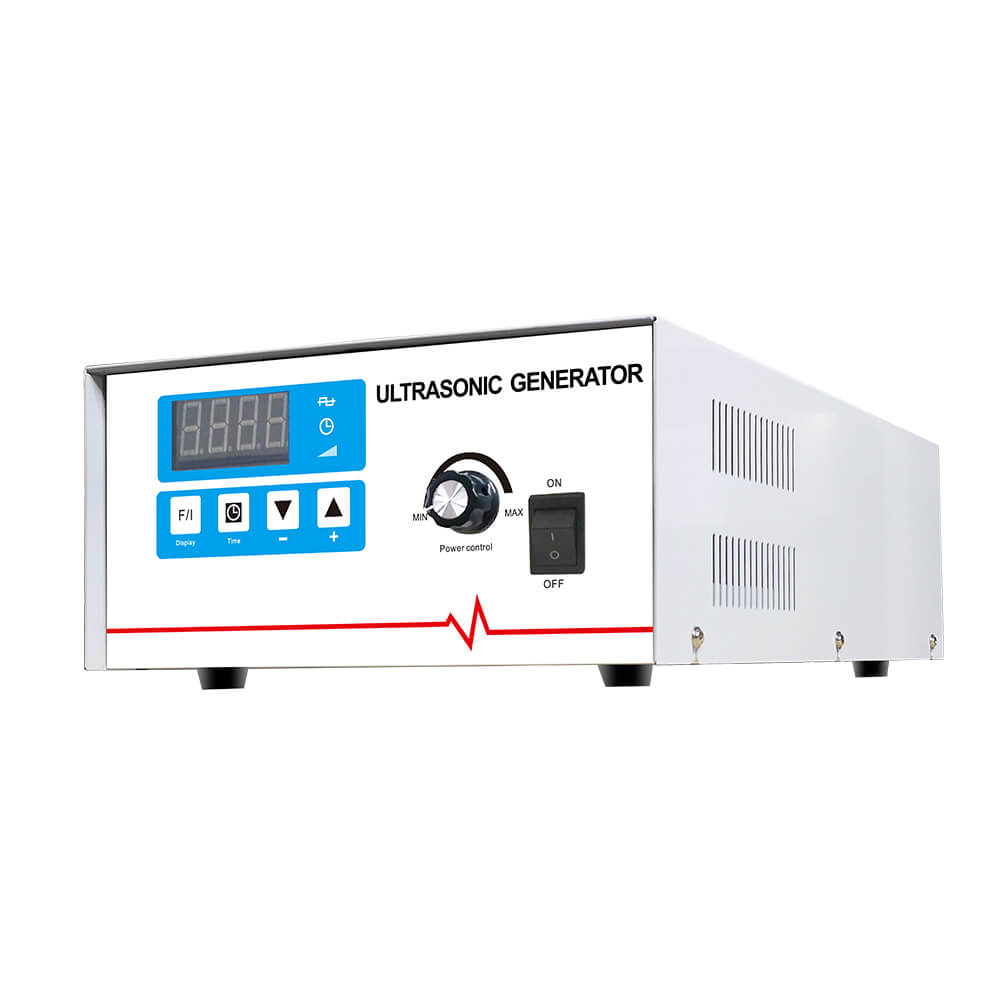

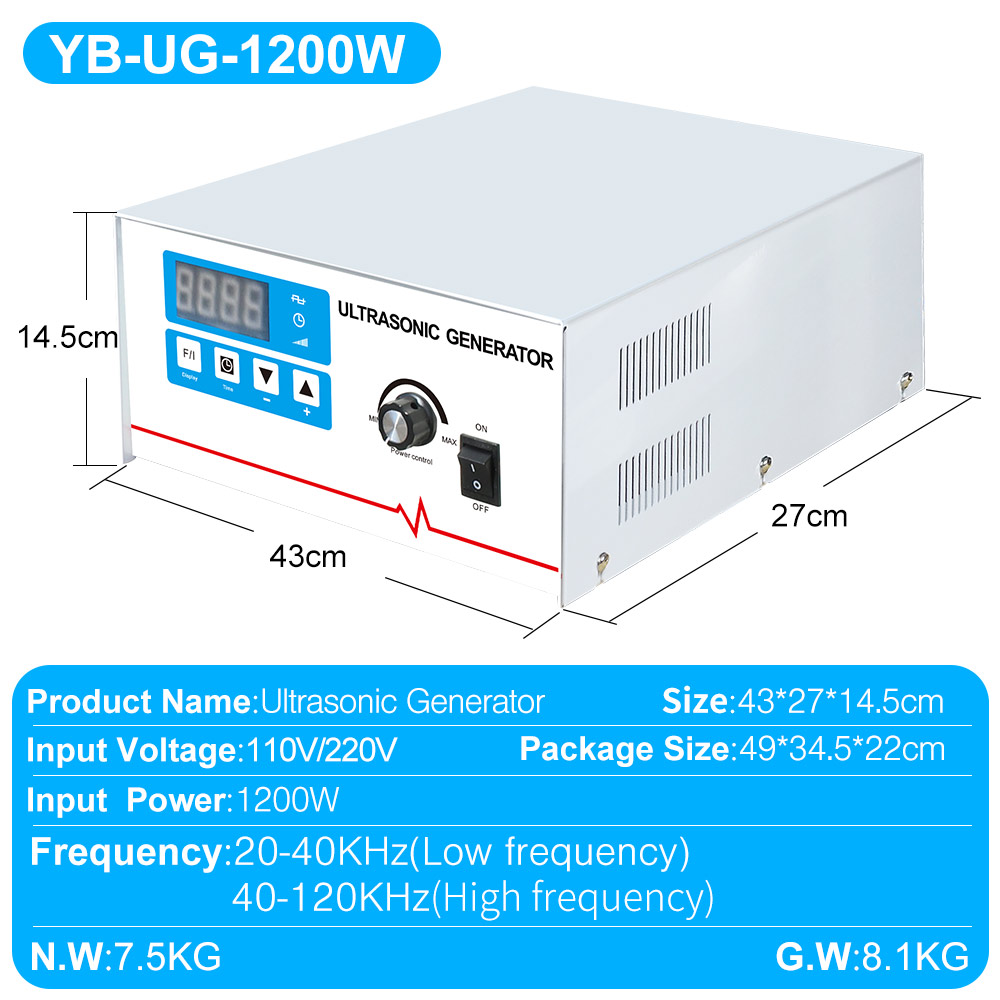

1200W Ultrasonic Driver | Digital Power Supply 20–200kHz Optional for Transducer Pack Vibrating Plate Bar Rod Sonicators

📦Applications

• Laboratory ultrasonic cleaning and testing
• Nanomaterials dispersion, emulsification, and extraction
• Driving immersible transducer boxes and bar-type ultrasonic rods
• Precision parts cleaning in electronics and optics

🔌Wiring Instructions for Digital Ultrasonic Generator

1. Power Input (AC 110V/220V):
   Connect the power cord to the marked AC input terminal. Ensure correct voltage matching (check label).
2. Transducer Output Port:
   Connect the ultrasonic transducer pack, vibrating plate, or vibrating bar using the output terminal (usually aviation plug or screw terminal).
3. Grounding (GND):
   The generator must be properly grounded to prevent electrical leakage and ensure safety. Connect the grounding wire to the marked grounding point.
4. Remote Control Port (Optional):
   If your system includes PLC or remote control, use the dedicated terminal (usually DB9 or aviation plug) to connect remote ON/OFF, frequency, or power adjustment controls.
5. Cooling Ventilation:
   Keep all side vents unobstructed to ensure airflow. Do not place the generator in a sealed space.

What’s Included :

Box Contents:

1 x Portable Ultrasonic Generator
1 x Industrial-Grade Power Cord
1 x Warranty Card
1 x Instruction Manual

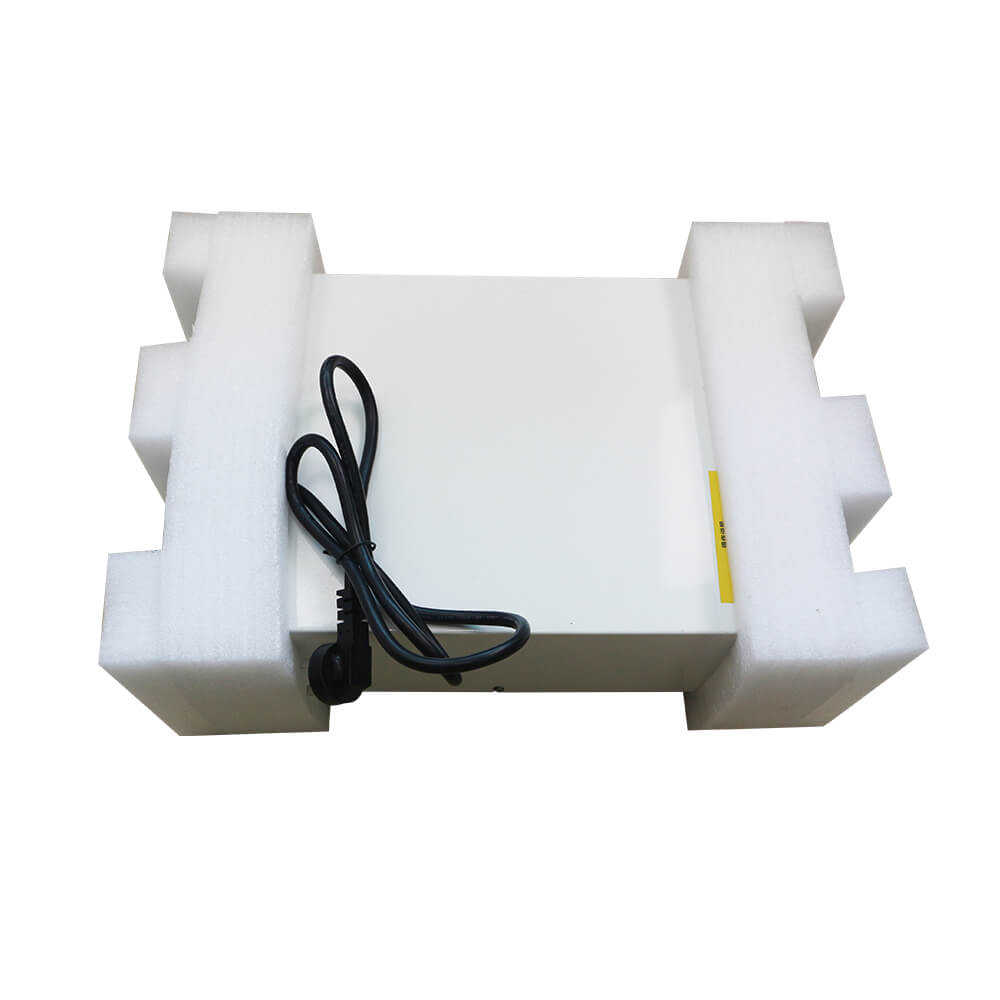

Packing type:

One unit filled with thick foam, then standard export corrugated carton.

Logo/Pattern Custom:

Silk Screen Printing, Laser Printing, UV Printing, PVC, Other

🛒Why Choose Yunyisonic

• In-house R&D and manufacturing in Shenzhen
• Strict quality inspection before delivery
• Customizable frequency, output, and control interfaces
• Fast global shipping with OEM/ODM support
