Make offer
Need a custom quote or worried about shipping cost? Share your budget, address, and requirements—we’ll review and see if we can offer a better solution. (Direct purchase also available above.)

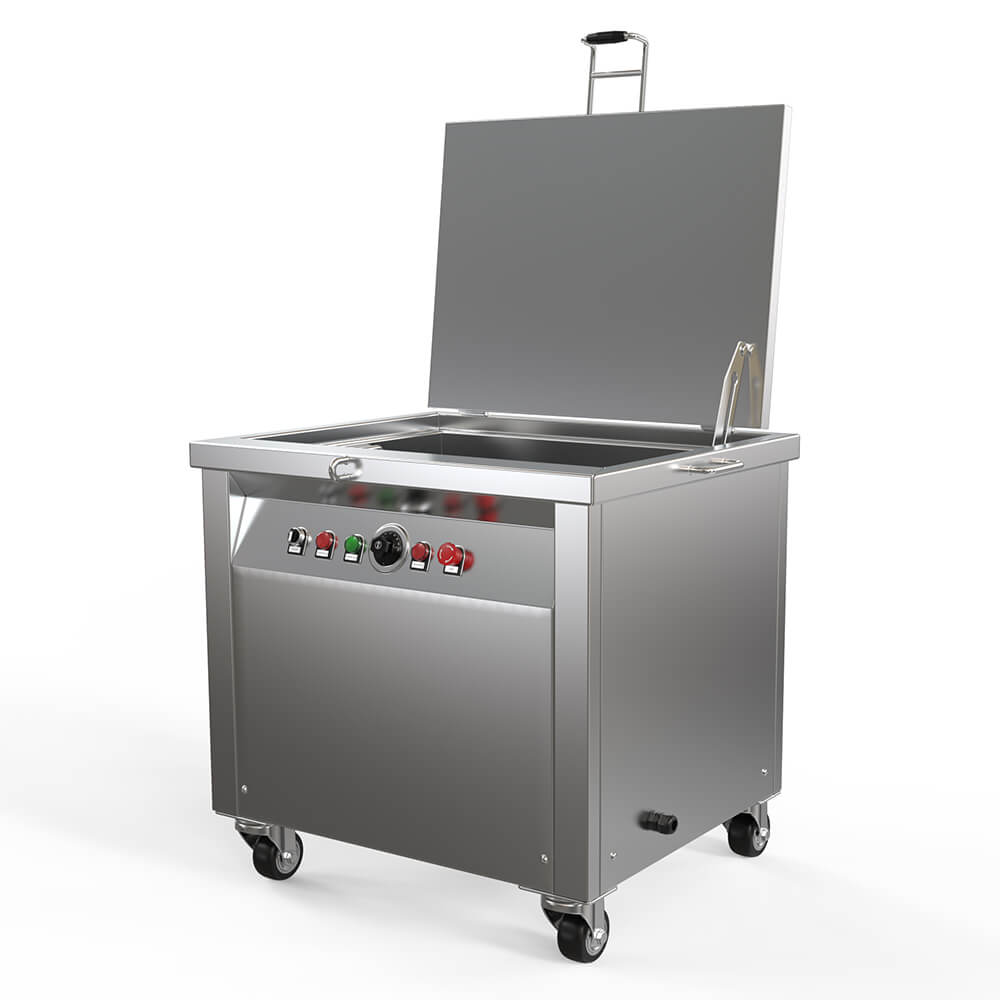

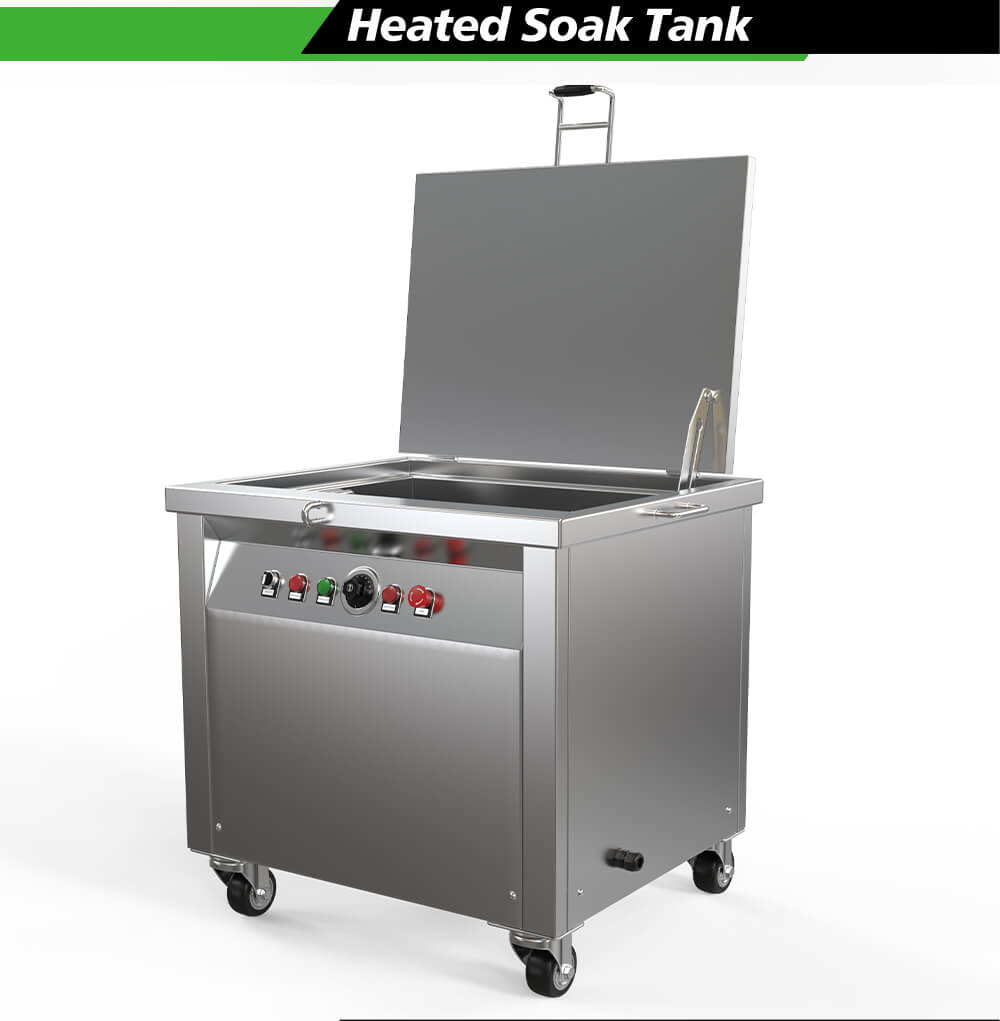

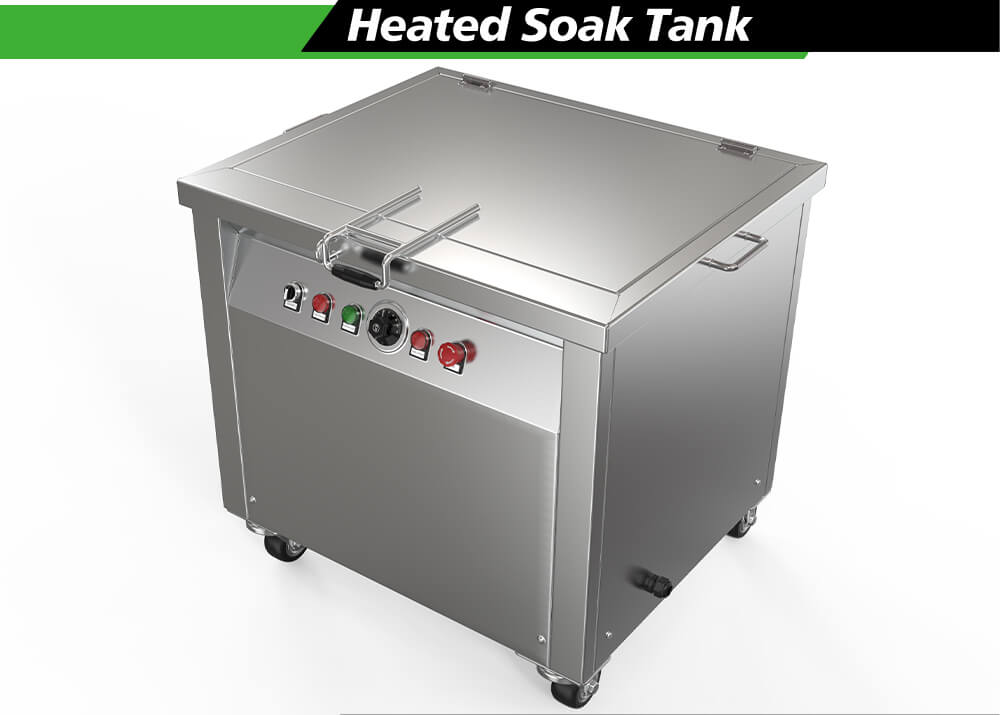

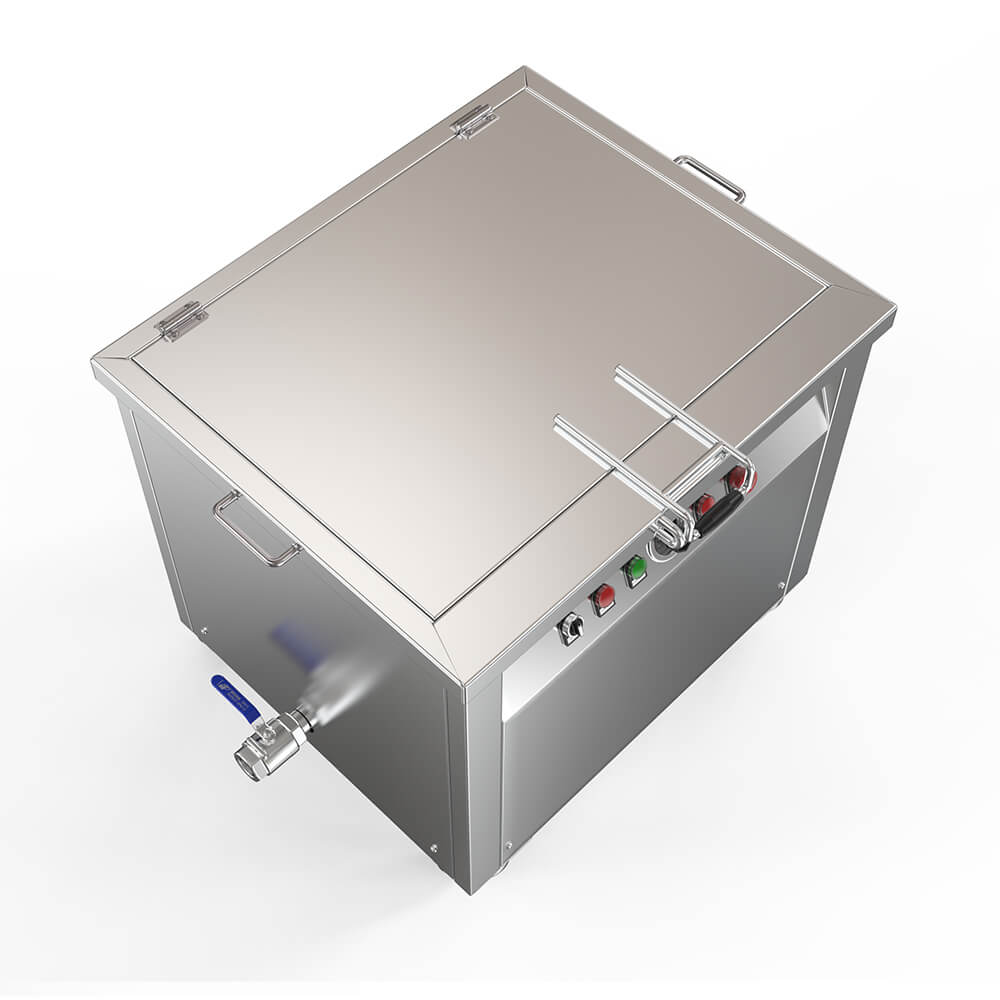

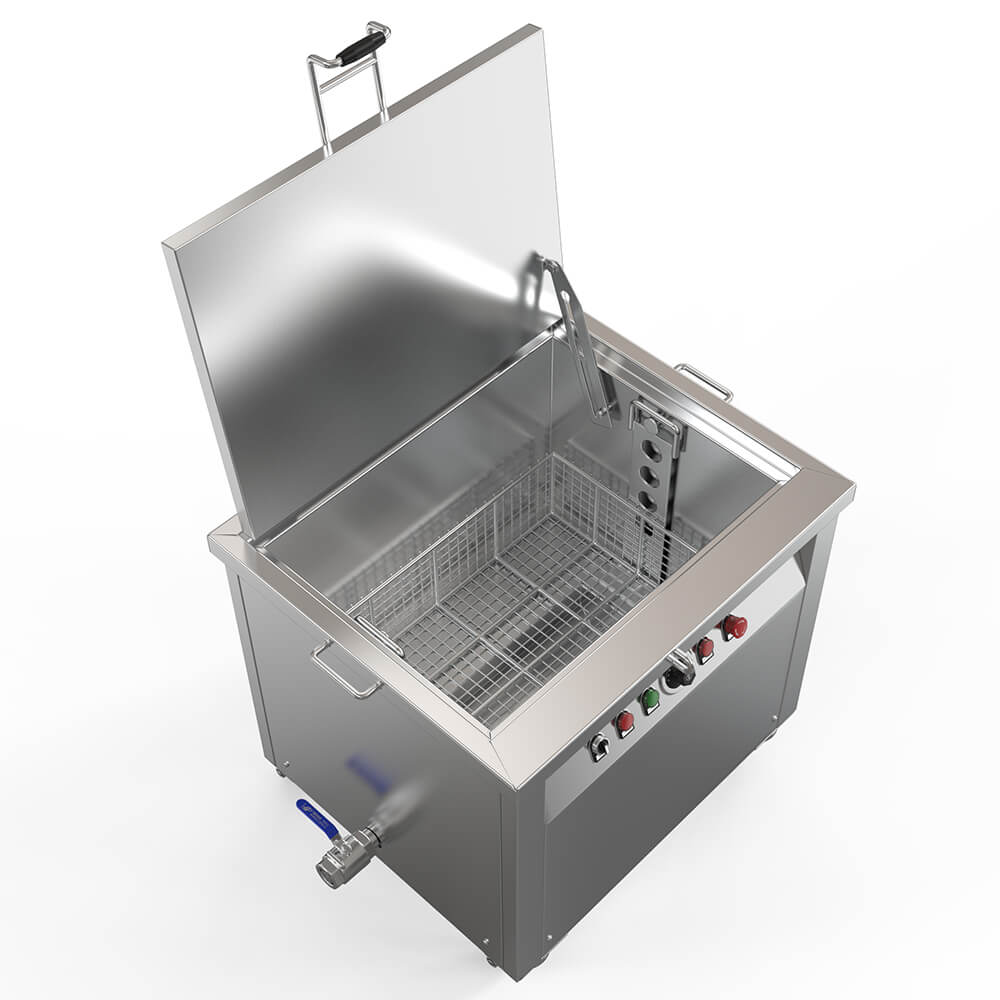

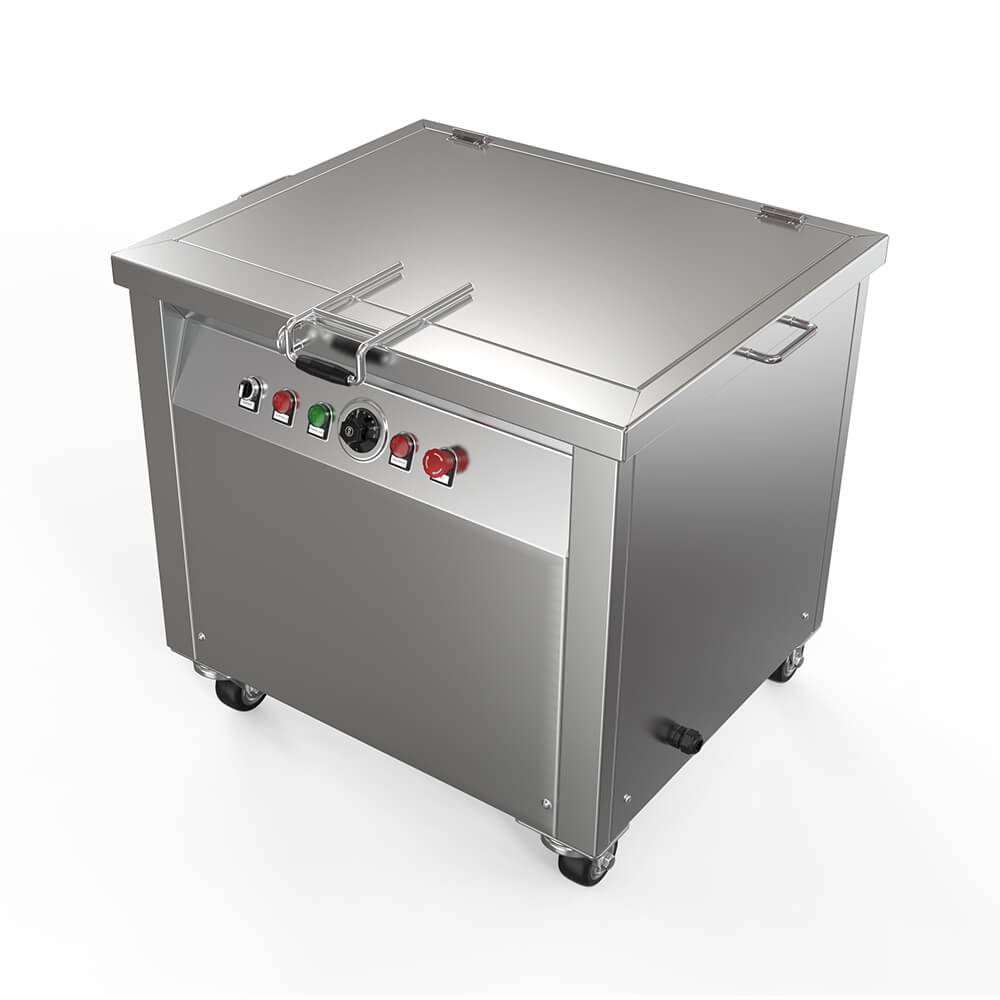

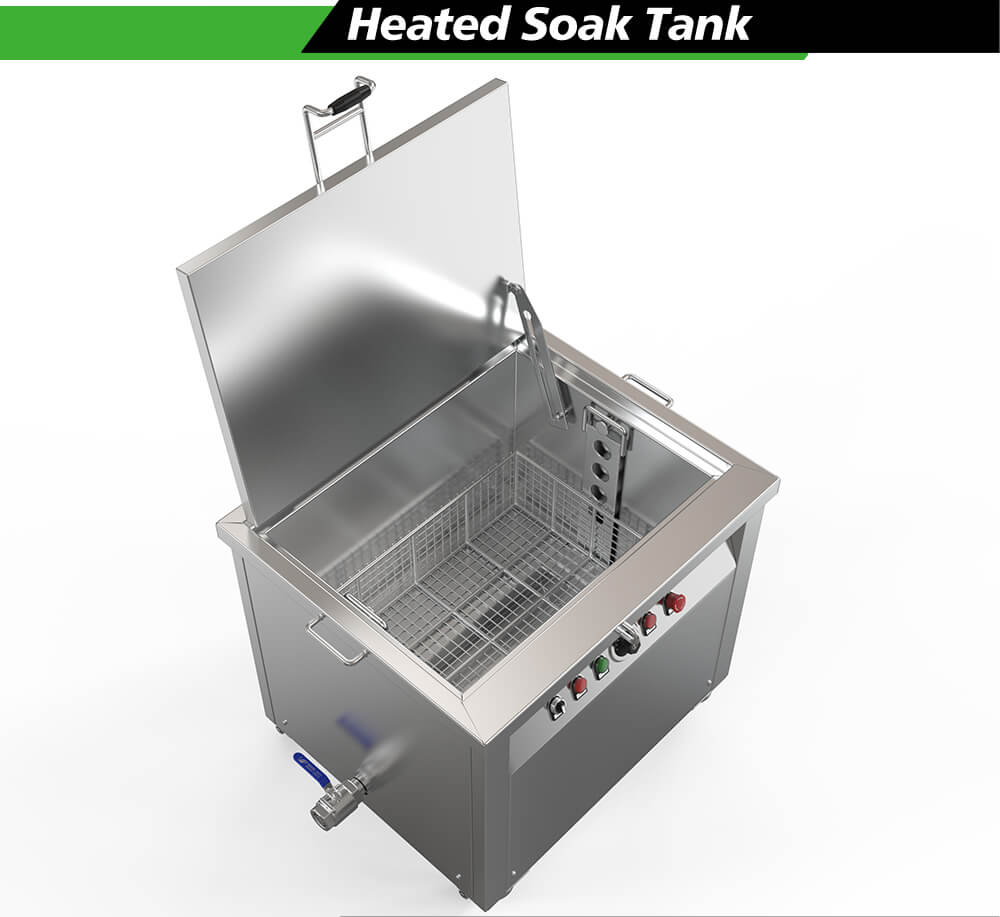

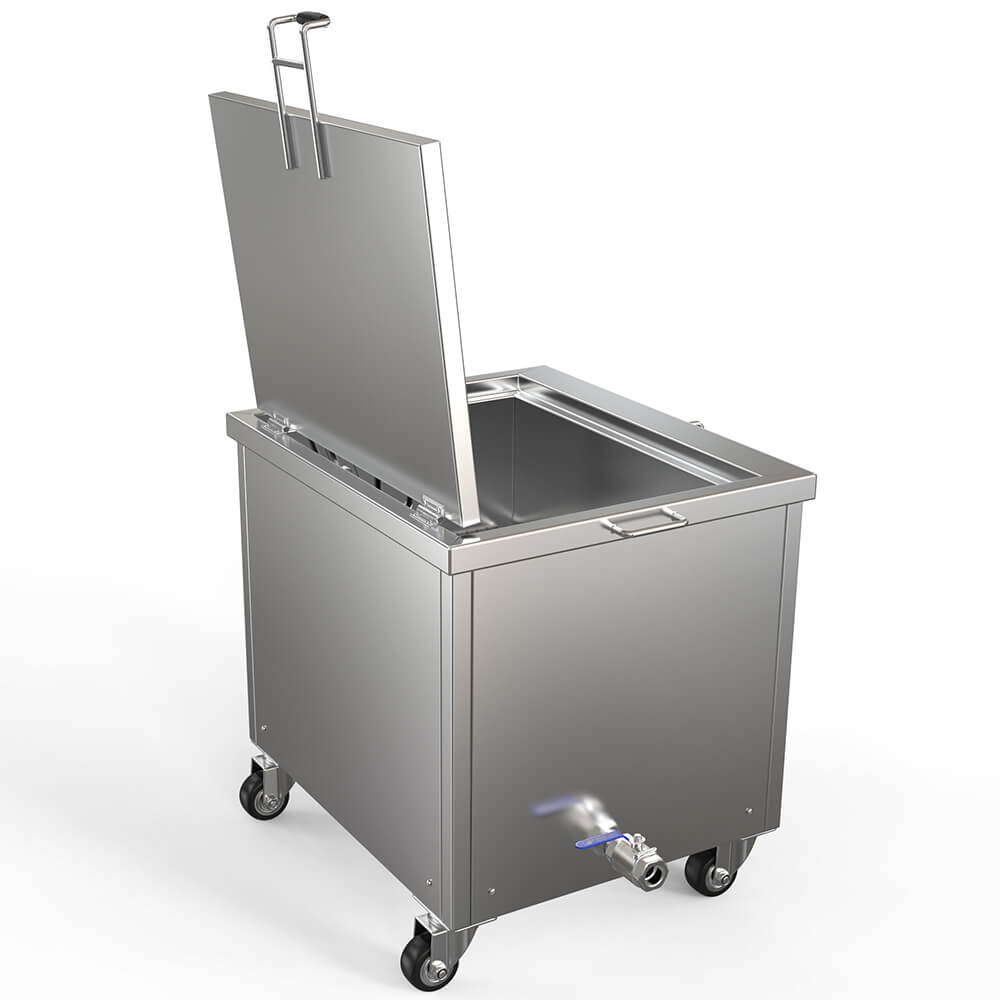

Custom Size Kitchen Heated Soak TanK 135–483L SUS304 Stainless Steel Industrial Heating Soak Bath
Heated soak tanks are used for hot water and chemical pre-soaking in commercial kitchens, mainly to soften heavy grease before manual or pressure washing. They are not medical devices and are not intended for precision cleaning. If ultrasonic cleaning function required, please contact us!
Price range: $862.76 through $2,359.00piece
19
People watching this product now!
-
Warranty 1 year
-
30-Day returns
Payment Methods:
Description
Video 1
Designed for commercial kitchen exhaust cleaning companies.
This 120-gallon heated soak tank is used for hot water and chemical soaking to soften heavy grease on hood and baffle filters.
Optional lifting system, heating power, and tank size customization available.
Yunyisonic heated soak tanks feature a 2.0mm thick SUS304 stainless steel chamber, temperature adjustable from room temperature to 110°C. Equipped with mechanical knob control and comprehensive safety protection, ideal for industrial cleaning, pre-soaking, and high-temp processing. Available in multiple capacities, fully customizable. For industrial parts soaking, degreasing, pre-cleaning, heavy oil removal, lab and workshop soaking, mold & machine maintenance, any process requiring high-temp.

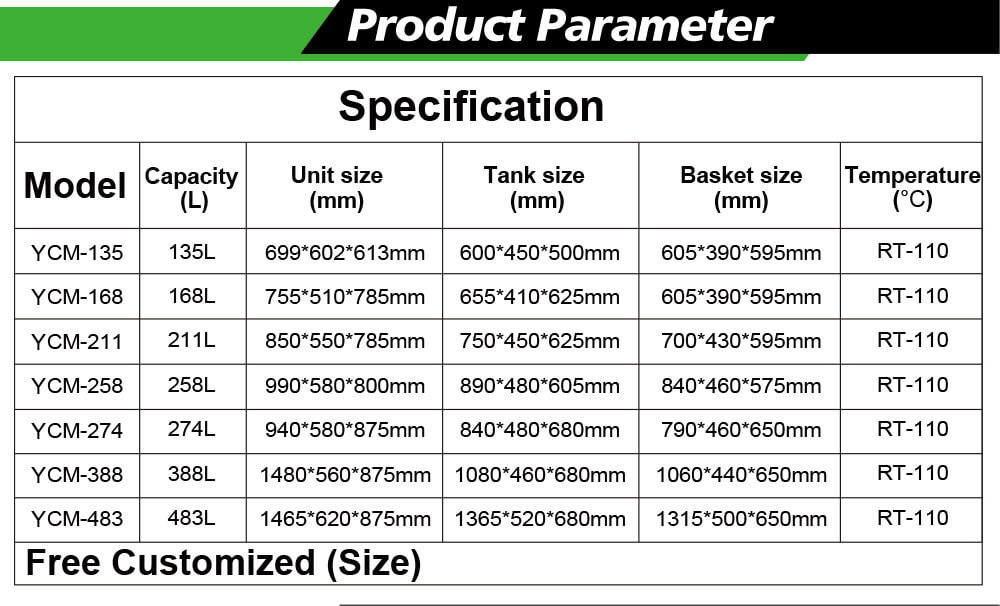

| Model | Capacity | Application Scale | Typical Users |
|---|---|---|---|
| YCM-135 | 168 L | Small batch soaking | Small restaurants, single-location kitchens, fryer basket & tray cleaning |
| YCM-168 | 168 L | Daily standard use | Commercial kitchens, routine rack and filter soaking |
| YCM-211 | 211 L | Medium workload | Exhaust cleaning services, thicker baffle filters, mixed kitchen hardware |
| YCM-258 | 258 L | High-volume operation | Catering kitchens, multi-shift grease pre-soaking |
| YCM-274 | 274 L | Large component soaking | Longer filters, deeper racks, extended soak time applications |
| YCM-388 | 388 L | Central kitchen scale | Central kitchens, food-service hubs, high-throughput operations |
| YCM-483 | 483 L | Industrial / contractor scale | Industrial kitchen cleaning contractors, bulk or fleet operations |
Note:
1. Capacity selection is based on batch size, filter dimensions, and daily workload. Heated soak tanks are used for grease pre-soaking prior to pressure washing or manual cleaning.2. Each unit includes a reinforced hanging stainless steel basket, designed for the model, customizable as needed.
Application:
1. High-temperature soaking, degreasing, and pre-cleaning of heavy or irregular-shaped parts
2. Oil and contaminant removal in industrial workshops and laboratories
3. Pre-treatment for mold and machinery maintenance
4. Any process requiring reliable high-temperature immersion and soaking
Ideal for automotive, aerospace, manufacturing, mold-making, and equipment repair industries
YN Series User Manual:
Yunyisonic YCM Series 30 Gal – 300 Gal Heated Soak Tank user Manual
Specification:
More Kitchen Heated Soak TanK

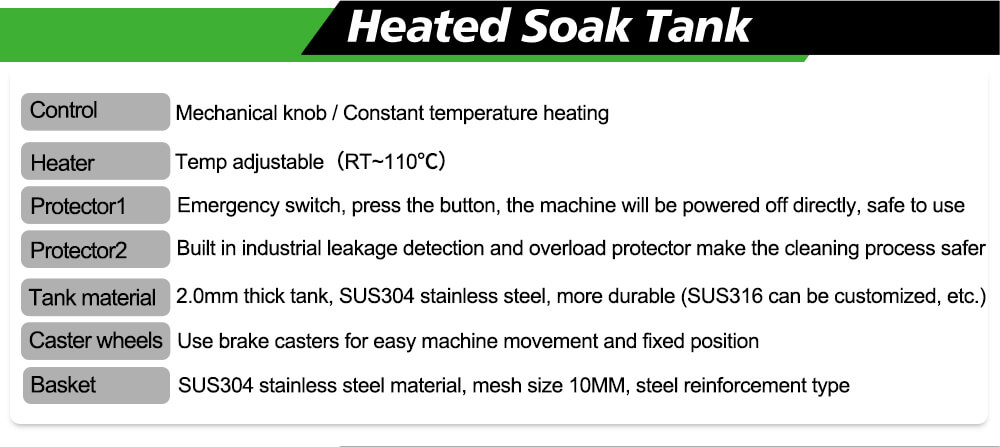

Heating Soak Bath Features
Why Choose Yunyisonic
What’s Included :
Box Contents:
1 x Portable Cleaner 1 x Durable Mesh Basket with Reinforced Hanging Basket 1 x Dust Cover 1 x Industrial-Grade Power Cord 1 x Warranty Card 1 x Instruction Manual
Packing type:
One unit filled with thick foam, then standard export corrugated carton.
Logo/Pattern Custom:
Silk Screen Printing, Laser Printing, UV Printing, PVC, Other

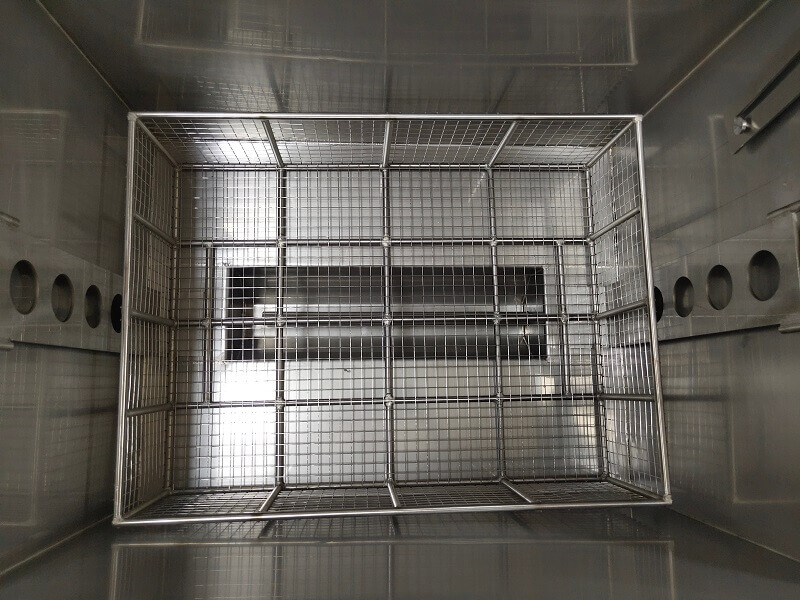

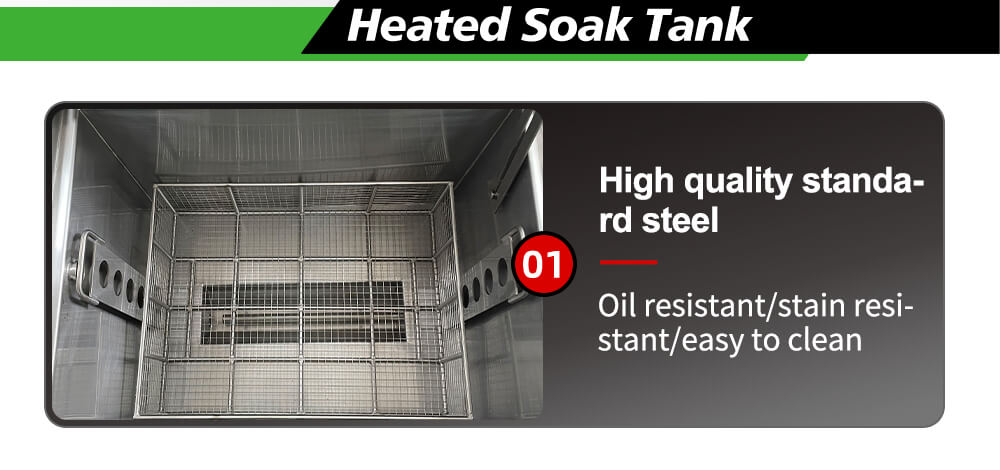

A Reinforced Hanging Stainless Steel Basket
Video 2
Specification
Product Specifications
| Model | YCM-135, YCM-600, YCM-730, YMC-168, YMC-211, YMC-258, YMC-274, YMC-388, YMC-483 |
|---|---|
| Application Field | Aerospace, Autoparts, Aviation, Industrial Use, Kitchen, Laboratory, Marine, Mold, Soaking, Surgical Instrument |
| Brand | Yunyisonic |
| Origin | Shenzhen City, China |
| Capacity | 135L, 168L, 211L, 258L, 274L, 388L, 483L |
| Frequency | none |
| Timer | none |
| Heater | RT~110℃ |
| Transducer Quantity | none |
| Heating Power | 9000W |
| Tank Material | SUS304 Stainless Steel, T2.0mm |
| Housing Material | SUS201 T1.0mm |
| Voltage | AC 3phase 220V, AC 3phase 380V |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Safety Features | overcurrent, Overvoltage, thermal |
| Certificates | CE, FCC, ROHS |
| Warranty | 1 Year |
| Customization | Logo/Pattern, Private Lable, White Label |
| Function | Heating |
| Manufacturer | Yunyisonic Shenzhen Co., Ltd. |
Packaging
| Volumetric Weight | N/A |
|---|---|
| Package Dimensions | N/A |
