Advanced Lab Cleaning: How Ultrasonic Technology Is Revolutionizing Laboratory Maintenance

Keeping laboratory instruments clean is not just about aesthetics—it’s about precision, safety, and efficiency. In modern labs where accuracy is paramount and cross-contamination must be avoided at all costs, traditional manual cleaning methods often fall short. That’s where laboratory ultrasonic cleaning machines come in. By harnessing high-frequency sound waves, these machines offer a highly effective and reliable solution for cleaning intricate instruments, delicate components, and even supporting complex experimental processes.

What Is a Laboratory Ultrasonic Cleaning Machine?

A laboratory ultrasonic cleaning machine is a device that uses high-frequency sound waves—typically between 20 kHz and 80 kHz—to create microscopic bubbles in a liquid cleaning solution. These bubbles rapidly expand and collapse in a process called cavitation, producing intense localized cleaning energy that can remove contaminants from surfaces and even tiny crevices of lab equipment.

Unlike simple rinsing or soaking, ultrasonic cleaning penetrates into areas that are nearly impossible to reach manually. The machines are composed of a tank (usually stainless steel), a transducer that generates ultrasonic waves, a heater to regulate temperature, and a digital or analog control system.

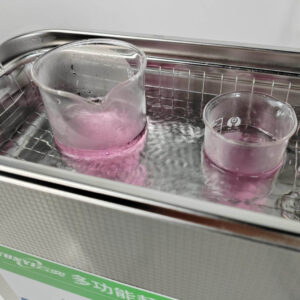

Lab Ultrasonic Cleaner for liquid or particles powder treatment, mixing dispersion dissolving

Key Features and Technical Specifications

Laboratory ultrasonic cleaning machines come in various sizes and capacities, from small desktop units suitable for micro-pipettes and slides to larger systems used for cleaning beakers, glass tubes, or surgical tools. Some of the most important features include:

• Ultrasonic Frequency: Commonly 40 kHz for general use, but higher frequencies (up to 80 kHz) are used for delicate cleaning where surface damage must be avoided. Lower frequencies (20–25 kHz) are used for heavy-duty contaminants.
• Degas Mode: This function removes dissolved gases from the cleaning solution, enhancing cavitation and cleaning performance.
• Digital Timer and Heater Controls: Users can adjust temperature (typically between 20°C to 80°C) and duration (0–60 minutes), ensuring optimal cleaning for various applications.
• Sweep Function: Ensures uniform distribution of ultrasonic energy, especially useful when cleaning sensitive instruments.
• Semiwave Technology: Allows machines to alternate between full and half wave modes for customized cleaning intensity.

These machines can accommodate a wide range of cleaning solutions, from simple distilled water to specialized detergents or enzymatic solutions, depending on the type of contamination and material of the objects being cleaned.

Applications Beyond Cleaning: Supporting Experimental Procedures

Laboratory ultrasonic cleaners are not limited to cleaning functions. Their utility spans several experimental and preparatory applications that are vital in chemistry, biology, materials science, and pharmaceutical research.

• Sample Degassing: Before chromatography or spectrophotometry, removing gas bubbles from solvents is critical. Ultrasonic cleaners efficiently perform this task.
• Cell Disruption: Certain types of ultrasonic cleaning machines can be used to break cell membranes for DNA or protein extraction, especially in microbiological and biotechnological labs.
• Particle Dispersion: In materials science, ensuring a homogeneous mixture of nanoparticles in a liquid can be achieved through ultrasonic dispersion.
• Assisting Chemical Reactions: Known as sonochemistry, ultrasonic waves can enhance reaction kinetics, making the process faster or more complete.

By integrating these additional capabilities, a lab ultrasonic cleaner becomes more than just a hygiene tool—it evolves into a multifunctional device that supports a lab’s core functions.

Benefits Over Traditional Cleaning Methods

The superiority of ultrasonic cleaning machines lies in their ability to achieve consistent, thorough cleaning without human error or damage to sensitive equipment. Here are some of the major advantages:

• Microscopic Cleaning Precision: Perfect for items like syringe needles, capillaries, or micro-glass slides.
• Non-Destructive Process: Unlike brushing or scrubbing, ultrasonic cleaning does not scratch or wear down delicate surfaces.
• Time Efficiency: A typical cleaning cycle takes 5–20 minutes and requires minimal supervision.
• Eco-Friendly: Reduced need for harsh chemicals and minimized water consumption compared to traditional soaking or flushing.
• Consistency: Each cycle offers the same performance, which is critical for standard operating procedures (SOPs) in laboratories.

Moreover, by automating a previously manual process, lab technicians are free to focus on more specialized or analytical tasks.

How to Choose the Right Ultrasonic Cleaner for Your Lab

Selecting the right ultrasonic cleaner depends on various factors, including the lab’s specialty, the types of materials handled, and the intended functions beyond cleaning. Here are key considerations:

• Tank Size and Volume: Choose based on the size and quantity of tools or items you need to clean.
• Power Output: A higher watt-per-liter ratio means more aggressive cleaning. Choose lower power settings for fragile items.
• Control Panel Type: Digital panels allow for more precise settings, including memory storage for common cleaning routines.
• Frequency Flexibility: Some models offer multiple frequencies for cleaning different materials and contamination levels.
• Certifications and Compliance: Especially in pharmaceutical or medical research labs, ensure the machine complies with ISO and GMP standards.

Additionally, maintenance and compatibility with various cleaning agents should be factored in. Reputable brands also offer better after-sales service and spare parts availability.

References

1. Suslick, K. S. (1990). Sonochemistry. Science, 247(4949), 1439–1445. https://doi.org/10.1126/science.247.4949.1439
2. Mason, T. J., & Lorimer, J. P. (2002). Applied Sonochemistry: Uses of Power Ultrasound in Chemistry and Processing. Wiley-VCH.
3. Sostar-Turk, S., & Šostar, M. (2012). Ultrasonic cleaning technology in laboratories. Ultrasonics Sonochemistry, 19(5), 1120–1124. https://doi.org/10.1016/j.ultsonch.2012.01.006
4. Lizzio, A. A., & DeBarr, J. A. (1996). Use of ultrasonic energy in the cleaning of laboratory glassware. Journal of Chemical Education, 73(10), 937. https://doi.org/10.1021/ed073p937
